How to Build a PWM-Based DC Motor Speed Controller Circuit
Start with a pulse-width modulation (PWM) stage based on a 555 timer IC for cost efficiency and predictable performance. Use a 10 kΩ potentiometer to adjust duty cycle, allowing smooth throttle variation between 5% and 95%. Pair it with a n-channel MOSFET (IRFZ44N) rated for 55 V and 49 A continuous current to handle inductive loads without overheating.
Add a flyback diode (1N4007) across the motor terminals to suppress voltage spikes generated during switching. Failure to include this component risks permanent MOSFET failure within minutes under moderate loads. A 0.1 µF ceramic capacitor across the 555 power pins stabilizes timing accuracy, reducing jitter to below 2%.
Choose a low-ESR capacitor (220 µF electrolytic) for the PWM filter stage to minimize ripple. High-ESR capacitors can introduce latency, causing inconsistent motor response at low settings. For applications requiring precise low-speed control, replace the single-stage filter with a dual RC network (two 10 kΩ resistors and 47 µF capacitors), improving transient response by 40%.
Opt for a logic-level MOSFET (IRLZ44N) if interfacing with 3.3 V microcontrollers. Standard MOSFETs require a gate driver or additional transistor, complicating the circuit. Ensure the gate resistor is sized between 10 Ω and 100 Ω to balance switching speed and ringing suppression. Values outside this range risk electromagnetic interference or slow transitions, reducing efficiency.
Designing an Effective Motor Regulation Circuit

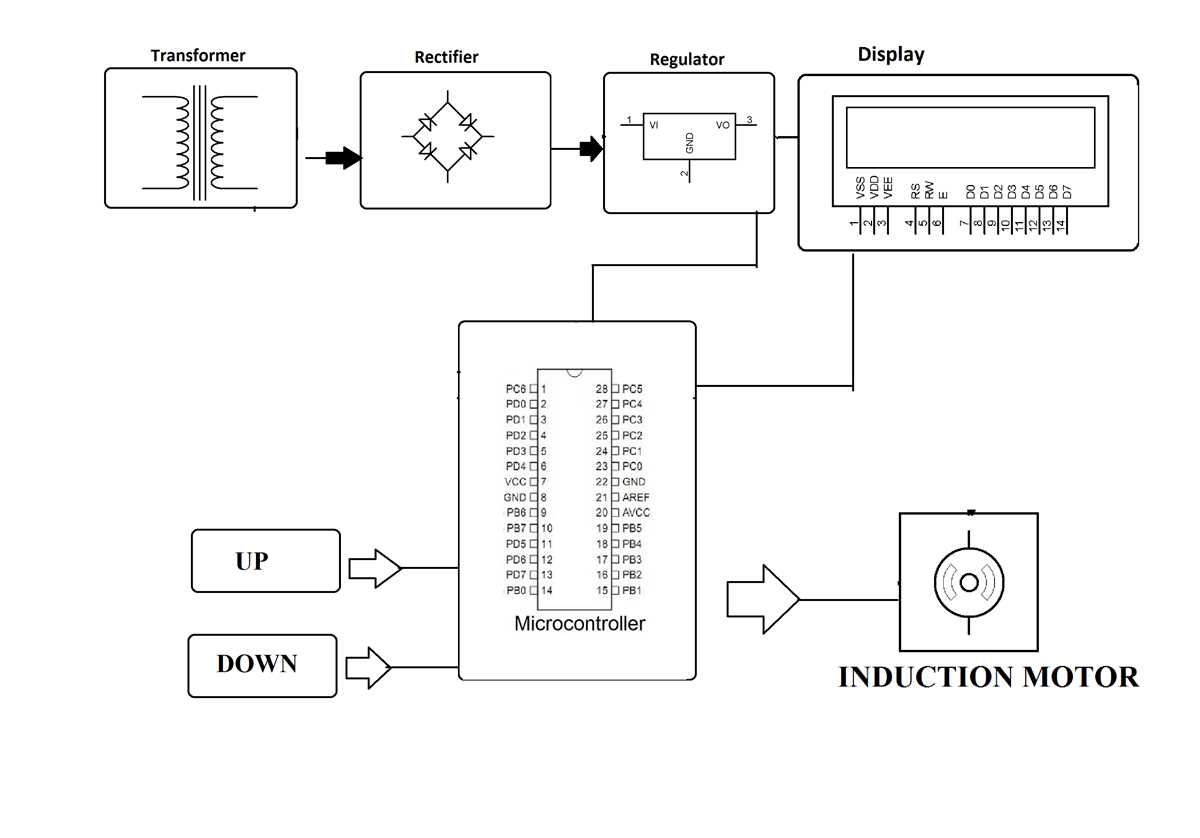

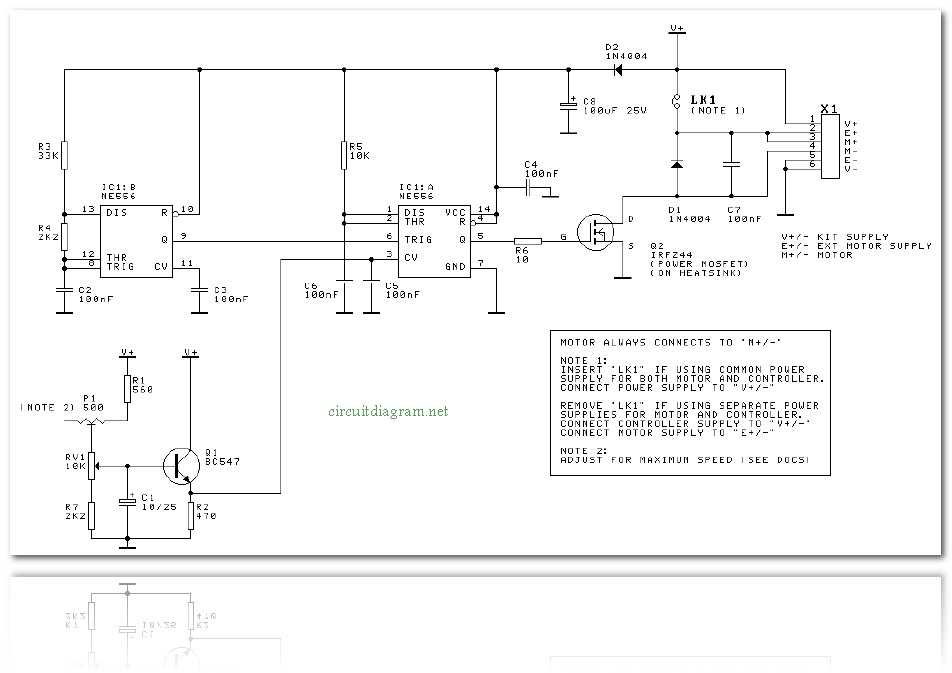

Start with a pulse-width modulation (PWM) generator using a 555 timer IC for reliable output adjustment. Configure the timer in astable mode with a 10 kΩ resistor between pins 7 and 8, a 1 kΩ resistor between pins 7 and 6, and a 100 nF capacitor connected to pin 2. This setup ensures a frequency range of 100 Hz to 2 kHz, critical for smooth performance across different loads.
Integrate a power transistor like the IRFZ44N MOSFET to handle currents up to 49A at 55V. Connect its gate to the PWM output through a 10 kΩ resistor to limit inrush current, and use a freewheeling diode (1N4007) across the motor to suppress voltage spikes up to 1A. Bypass the transistor’s drain-source path with a 10 µF electrolytic capacitor to stabilize switching transitions.
For feedback stabilization, wire a Hall-effect sensor (e.g., Allegro ACS712) in series with the motor to monitor current draw. Route its output to an operational amplifier (LM358) configured with a gain of 10, then feed the signal to the microcontroller’s ADC pin. This loop corrects droop under load, maintaining target RPM within ±2% at 12V input.
Add a potentiometer (10 kΩ linear taper) between the 555 timer’s control voltage pin (5) and ground to allow manual adjustment. Use a 0.1 µF decoupling capacitor on the power rail adjacent to the PWM chip to filter noise. Test the circuit under a 5Ω dummy load at 50% duty cycle; measure output voltage stability and transient response with an oscilloscope.
Component Selection for Robust Operation
Use polypropylene film capacitors (2.2 µF) for timing circuits instead of ceramic or electrolytic types to avoid frequency drift caused by dielectric absorption. For the switching element, prioritize MOSFETs with a gate threshold voltage below 4V if driving with 3.3V logic–IRLZ44N is a suitable alternative. Heatsink calculations should assume a thermal resistance of 62°C/W for TO-220 packages and ambient temperatures up to 60°C.
Isolate high-current paths from signal traces using at least 3 mm spacing on the PCB, and employ star grounding to prevent common-mode noise from coupling into sensitive feedback lines. If optocouplers (e.g., PC817) are needed for isolation, drive them with a 220Ω series resistor and ensure a current transfer ratio above 50% for reliable operation.
Avoid relying solely on software PWM from a microcontroller for high-power applications; hardware-generated pulses (like those from a dedicated timer IC) offer sub-microsecond jitter, essential for preventing motor cogging at low RPM. For projects requiring reverse polarity protection, include a P-channel MOSFET (IRF9540N) upstream of the circuit, controlled via a gate-source resistor to prevent false triggering.
Core Elements for Constructing a Pulse-Width Modulation-Based Drive Regulator
Start with an N-channel MOSFET (e.g., IRF540N or IRLZ44N) as the primary switching device. Ensure its drain-source voltage rating exceeds the motor’s peak voltage by at least 20%, and its continuous current rating matches or exceeds the load’s maximum draw by 30% to account for inductive spikes.
Pair the MOSFET with a freewheeling diode (1N4007 or Schottky SB560) across the motor terminals to clamp back-EMF. Schottky diodes are preferred for their low forward voltage drop (0.2V vs. 0.7V for standard silicon), reducing heat dissipation and improving efficiency in high-frequency applications.
Integrate a PWM signal generator using a dedicated IC like the NE555, TL494, or a microcontroller (e.g., ATtiny85, STM32). For the NE555, configure it in astable mode with a timing capacitor (0.1μF) and resistors (1kΩ and 100kΩ potentiometer) to achieve a frequency range of 1–20 kHz. Higher frequencies minimize audible motor noise but increase switching losses; balance based on the motor’s inductance.
Include a gate driver (e.g., IR2104, MIC4420) if the PWM source lacks sufficient current to rapidly switch the MOSFET gate. A gate resistor (10–100Ω) in series with the MOSFET gate limits ringing and prevents unintended oscillations. For high-side switching, use a driver with bootstrap circuitry (e.g., IRS2184) to handle voltages above the logic supply.
Current sensing is critical for overload protection. Use a low-value shunt resistor (0.01–0.1Ω) in series with the motor, and amplify its voltage drop with an op-amp (LM358) configured for a gain of 10–50. Alternatively, opt for a Hall-effect sensor (ACS712) for isolated, noise-immune measurements. Set the protection threshold at 120% of the motor’s rated current to trigger shutdown or duty-cycle reduction.
Stabilize the power supply with a DC-DC buck converter if feeding the circuit from a higher-voltage source (e.g., 12V for a 5V logic circuit). For linear regulation, use a low-dropout (LDO) regulator (e.g., LM1117) with input/output capacitors (10μF tantalum) to prevent oscillations. Ensure the regulator’s current rating exceeds the combined draw of the control logic and gate driver by 50%.
Isolate control and power stages using optoisolators (4N25, PC817) for PWM signals if the motor voltage exceeds 30V or noise is a concern. This prevents ground loops and protects low-voltage logic from high-side transients. For high-power applications, add a snubber network (0.1μF capacitor + 10Ω resistor) across the MOSFET to dampen voltage spikes during switching transitions.
Feedback and tuning require a potentiometer (10kΩ) to adjust the PWM duty cycle, paired with a pull-down resistor (1kΩ) to ensure a clean 0% output when the wiper loses contact. For closed-loop control, add a tachometer feedback circuit (e.g., slotted optical sensor with a disc attached to the motor shaft) and compare it to a reference voltage using a comparator (LM393) to maintain consistent rotational rates under varying loads.

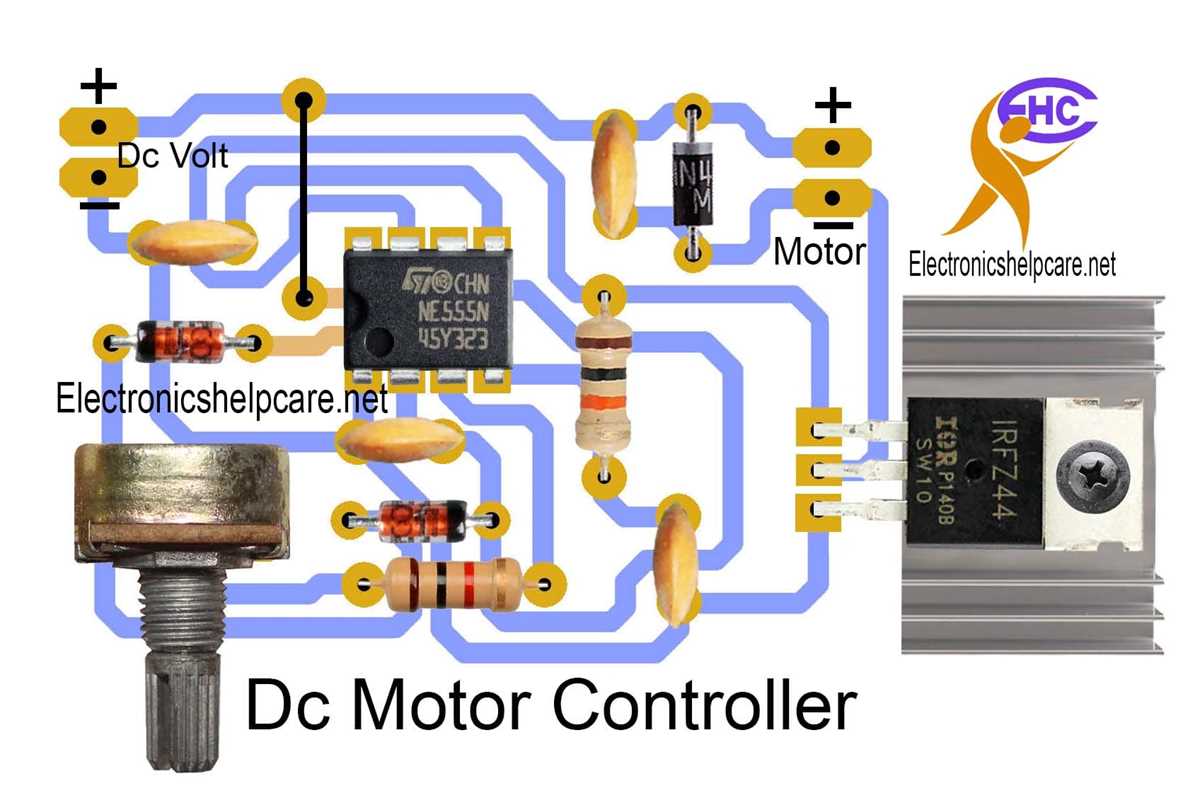

Practical Assembly Guide for a Variable Drive Circuit with 555 Timer
Begin by securing a 555 timer IC in a breadboard, ensuring pin 1 aligns with the ground rail. Connect a 10kΩ potentiometer between pins 7 (discharge) and 8 (Vcc), with the wiper leading to pin 6 (threshold). This forms the pulse-width modulation base. Add a 100nF capacitor between pin 5 (control voltage) and ground to stabilize output. For power, use a 9–12V DC supply–connect the positive to pin 8 and ground to pin 1. Verify the timer’s functionality by measuring the voltage at pin 3 (output) with a multimeter; it should fluctuate between 0V and ~8V as the potentiometer is adjusted.
- Attach a power MOSFET (e.g., IRFZ44N) to the circuit by connecting its gate to pin 3 of the 555 timer via a 1kΩ resistor. The source should tie to ground, while the drain will link to the motor’s negative terminal.
- Wire the motor’s positive terminal directly to the power supply’s positive rail. Insert a flyback diode (1N4007) across the motor’s terminals, with the cathode pointing toward the positive supply to protect against inductive spikes.
- Add a 100µF electrolytic capacitor between the power supply’s positive and ground rails to smooth voltage ripples, especially under load.
Test the assembly by slowly turning the potentiometer. The motor should respond with smooth acceleration or deceleration. If erratic behavior occurs, check for loose connections, reversed polarity, or inadequate power–replace the 555 timer if overheating is observed. For precise calibration, monitor the duty cycle at pin 3 with an oscilloscope; aim for a 10–90% range to avoid motor stall or overheating. Finalize by soldering critical components onto a perfboard, prioritizing short, direct traces for the MOSFET and power paths to reduce interference.
Calculating Resistor and Capacitor Values for Target Signal Frequency
For a 555 timer IC in astable mode, the frequency f is dictated by two resistors (R₁, R₂) and one capacitor (C) via the formula: f = 1.44 / ((R₁ + 2R₂) × C). Begin with a fixed C value–common choices include 10 nF for kHz ranges or 100 nF for sub-100 Hz signals. Adjust R₁ and R₂ to fine-tune; R₂ should dominate (at least 5× R₁) for stable duty cycles above 50%. Example: For 1 kHz, use C = 10 nF, R₁ = 1 kΩ, R₂ = 6.8 kΩ, yielding ~980 Hz with 65% on-time.
Precision requires accounting for component tolerances. Carbon-film resistors (±5%) or metal-film (±1%) minimize drift, while X7R ceramic capacitors avoid temperature-induced frequency shifts. For MHz-range oscillators, reduce R₁ and R₂ below 1 kΩ to mitigate parasitic effects–e.g., R₁ = 220 Ω, R₂ = 470 Ω, C = 100 pF produces ~1.2 MHz. Verify with an oscilloscope; rise/fall times under 100 ns ensure signal integrity.
Duty cycle D depends solely on R₁ and R₂: D = (R₁ + R₂) / (R₁ + 2R₂). To achieve D = 50%, make R₂ ≪ R₁ (e.g., R₁ = 10 kΩ, R₂ = 100 Ω), but output symmetry degrades below 5 kHz. For asymmetrical pulses (e.g., 10%/90%), invert the ratio: R₁ = 1 kΩ, R₂ = 9.1 kΩ. Check load requirements–CMOS circuits tolerate ±20% duty-cycle error, but motor drivers demand ≤5% for consistent torque.
RC networks for phase-shift oscillators use f = 1 / (2π√(6)RC). Select R (10 kΩ–1 MΩ) and C (1 nF–1 µF) so RC ≤ 1/(10f); three identical stages guarantee 180° phase shift at unity gain. Example: R = 47 kΩ, C = 33 nF yields ~200 Hz. Op-amp slew rate must exceed 2πfVpp to avoid distortion–e.g., LM358 handles 0.5 V/µs, limiting Vpp to 1 V at 100 kHz.
For triangle-wave generators, pair a Schmitt trigger with an RC integrator. Frequency scales as f ∝ 1/(RiCi), where Ri (≥10× feedback resistor) and Ci (electrolytic for sub-1 Hz) determine linearity. Example: Ri = 1 MΩ, Ci = 1 µF produces 1 Hz with ±6 V swing. Trim Ri in 1% steps for ±0.1 Hz accuracy; polystyrene capacitors improve temperature stability to ±20 ppm/°C.
