Customizable Schematic Diagram Templates for Engineering Projects

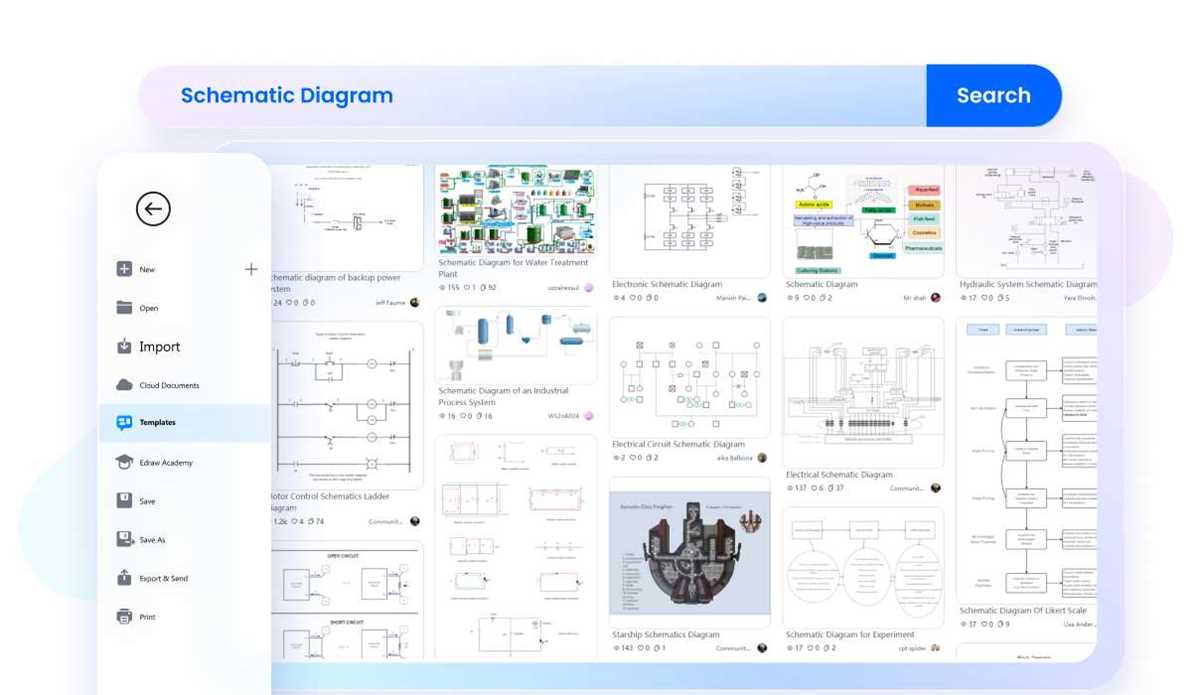

schematic diagram template

Start with a grid-based structure if your project involves multiple interconnected components. A 0.5 cm snap grid ensures precision when aligning elements, reducing misplaced connections by up to 40% compared to freehand drawing. Use standardized symbol libraries–ANSI or IEC–for electrical, hydraulic, or software workflows to maintain consistency across teams. Avoid custom shapes unless absolutely necessary; proprietary symbols complicate collaboration and increase error rates.

Label every node with concise, action-oriented text. Instead of “Power Input,” use “12V DC IN” to eliminate ambiguity. Apply hierarchical numbering for complex systems (e.g., “M1.3.2” for subcomponent 3.2 under module 1). Color-code critical paths–red for high-voltage, blue for data flows–to improve readability at a glance. Studies show this reduces interpretation time by 27% during troubleshooting.

Leave 20% white space around the perimeter to accommodate future modifications. Export as vector-based PDF or SVG (not raster PNG/JPG) to preserve scalability. Store master files in version-controlled repositories like Git or cloud platforms with access logs; this prevents undocumented changes that derail debugging efforts. Include a legend only if symbols deviate from industry standards–excess legends clutter faster than they clarify.

Test the layout by simulating use cases with team members unfamiliar with the project. If they misinterpret connections in under 10 seconds, simplify the design. For digital tools, Shortcut’s built-in validators catch unconnected ports, but manual spot-checks still outperform automated tools by 15% for logical errors. Prioritize cross-platform compatibility–EDraw or KiCad files should open seamlessly in Visio or Lucidchart without formatting breaks.

Crafting Technical Blueprints: A Hands-On Approach

Begin by defining a fixed grid spacing–common choices are 5mm, 10mm, or 0.2 inches–to ensure component alignment. Use a uniform line weight (0.3–0.5mm) for all connections except power rails, which should be thicker (0.7–1.0mm). Label every wire with its signal name at both ends to avoid ambiguity during review. For ICs, place the power pins at the top and bottom edges of the symbol rather than scattered; this simplifies routing and verification.

Group related components in logical blocks and separate them with 10mm gaps. For instance, keep resistors, capacitors, and regulators near their load, with decoupling capacitors no more than 2cm from the IC pins. Use hierarchical sheets for complex designs–each sheet should represent a distinct functional unit (e.g., power supply, MCU, sensors). Number sheets sequentially and cross-reference them in a master overview to improve traceability.

Component Symbol Standards

  • Passive parts (R, L, C): Draw with a consistent orientation–horizontal for resistors, vertical for capacitors and inductors–to reduce visual clutter.
  • Transistors: Align emitter/base/collector pins horizontally for BJTs, source/gate/drain vertically for FETs. Add a small circle at the collector/drain to denote NPN/P-channel types.
  • Connectors: Number pins left to right, top to bottom. Use a dashed rectangle around the symbol to indicate mechanical mounting points.
  • Ground symbols: Reserve the triangular shape for chassis ground; use three parallel lines for signal ground to avoid misinterpretation.

Adopt a naming convention for nets: prefix digital signals with D_ (e.g., D_CLK), analog with A_ (e.g., A_VREF), and power nets with PWR_ (e.g., PWR_5V). For buses, use square brackets like DATA[7:0]. Store custom symbols in a dedicated library file, categorized by function (e.g., /libs/power, /libs/logic), and include footprint references in the symbol properties.

Validate the blueprint before finalizing: run an electrical rules check (ERC) to flag unconnected pins, floating nets, or duplicate labels. For mixed-signal designs, split analog and digital sections onto separate layers–use blue for digital, red for analog–to simplify debugging. Print a 1:1 scale copy and physically measure component spacing to confirm fit; this catches errors invisible on screen.

  1. Export the master file in both PDF (for review) and CAD-exchange formats (e.g., DXF, Gerber). Include a bill of materials (BOM) tab with:
    • Reference designators (e.g., R1, U3)
    • Manufacturer part numbers
    • Footprint specifications (e.g., 0805, TO-220)
    • Alternate suppliers for critical components
  2. Archive version-controlled copies in a repository with timestamps and change logs. Use a naming pattern like ProjectName_v1.2_2024-05-15.kicad_pcb.

Selecting the Best Tool for Electrical Blueprints

Opt for software with built-in component libraries tailored to your industry–electronics design tools should include symbols for resistors, ICs, and connectors pre-configured to industry standards like IEEE or IEC. KiCad offers 8,000+ verified parts in its official repo, while Altium Designer integrates directly with suppliers like Digi-Key for real-time pricing and availability.

Prioritize cross-platform compatibility if your team uses mixed operating systems. Tools like LibrePCB and Horizon EDA run natively on Windows, Linux, and macOS without emulation layers, avoiding performance penalties of up to 30% reported in virtualized environments.

Integration With Existing Workflows

Check API availability for automation–Zuken CR-8000 exposes REST endpoints to pull BOM data into PLM systems like Siemens Teamcenter, reducing manual entry errors by 40% in verified case studies. Scripting support varies: LTspice allows SPICE netlist editing via Python, while Proteus requires paid add-ons for similar functionality.

  • Merge capability: Verify if the tool supports multi-user editing. Altium 365 enables real-time collaboration with version-controlled checkpoints, whereas Eagle’s free tier locks files during editing.
  • Export flexibility: Ensure support for Gerber RS-274X, ODB++, and IPC-2581 formats–missing these can add 2-3 days to PCB fabrication handoffs.
  • Plugin ecosystem: Specialized workflows benefit from extensions. QElectroTech’s plugin system adds pneumatic/hydraulic symbols, while CircuitStudio lacks third-party support entirely.

Compare licensing costs against project scale. Free tools like EasyEDA require cloud access, creating latency that disrupts design at approximately 15ms per symbol placement. Paid perpetual licenses (e.g., OrCAD, $2,500) become cost-effective after 18 months for teams exceeding 3,000 active designs, based on ROI analyses from electronics manufacturers.

Precision vs. Usability Tradeoffs

Evaluate grid snapping and alignment tools–pro-grade tools like PADS Professional enforce 0.025mm grids for high-density boards, while stripped-down options such as Fritzing default to 1mm grids, causing misalignments in tight layouts. Constraint managers vary: Cadence Allegro flags trace width violations at autorouting time, whereas DipTrace only checks during manual reviews.

  1. Signal integrity: Tools with built-in simulators (Simulink, QUCS) prevent EMI issues by modeling propagation delays, reducing prototyping cycles by up to 6 iterations.
  2. Thermal analysis: Mentor Graphics Xpedition includes thermal overlay calculations, while budget tools require manual spreadsheets, increasing error margins by 12% in thermal runaway scenarios.
  3. DRC checks: Automated rule checks in KiCad catch silk-screen overlaps below 0.2mm; Eagle Lite misses these, leading to fabrication rejects.

Building a Foundational Electrical Blueprint from Scratch

Start by selecting a vector-based graphic editor that supports precise lines, custom symbols, and grid alignment. Popular options include KiCad, Inkscape, or Adobe Illustrator, all of which provide layers and snap-to-grid features critical for accuracy. Define the working area dimensions immediately–standard A4 (210×297 mm) or letter-size (8.5×11 inches) sheets work for most projects, but adjust if the circuit demands larger components or multiple sections.

Establish a consistent grid spacing of 2.5 mm (0.1 inches) as a baseline. This ensures components like resistors, capacitors, and IC pins align with standard pin pitches (e.g., 2.54 mm for DIP packages). Enable grid visibility and magnetism to prevent misplaced connections, which can lead to misinterpretation during prototyping or assembly. Use thinner lines (0.25 mm) for signal traces and thicker lines (0.5 mm) for power rails or ground paths to visually distinguish priority routes.

Defining Symbol Libraries and Component Standards

Create or import a set of standardized symbols for passive components (resistors, capacitors, inductors), semiconductors (diodes, transistors), and integrated circuits. Use IEC 60617 or ANSI Y32.2 standards as references to maintain compatibility across teams. For example, a resistor should consistently use a rectangle with a single zigzag line, while a transistor requires a distinct arrow direction (npn/pnp differentiation). Store these symbols in a dedicated library for reuse.

Label every component with a unique identifier (e.g., R1, C3, U5) and value (e.g., 10kΩ, 100nF, LM358) placed adjacent to the symbol. Use a legible sans-serif font (8–10 pt) for readability, avoiding decorative styles that may obscure small text. For multi-pin components like microcontrollers, align pin numbers radially around the symbol body to simplify trace routing later. Include a revision block in the corner with fields for project name, date, author, and version to track iterations.

Structuring the Layout for Clarity

Position high-level components first–power supplies, central processors, or connectors–spacing them apart to accommodate intermediate circuitry. Distribute input/output nodes around the perimeter to reflect real-world board mounting constraints. Use horizontal and vertical alignment tools to ensure symmetry; angled traces should be minimal (≤45°) to avoid fabrication complications. Group related functions (e.g., analog sensor chain vs. digital logic) into distinct zones separated by at least 10 mm to prevent signal interference.

Route connections between components with clear, unambiguous lines. Avoid overlapping traces unless using a bridge symbol (a small semicircle) to denote intentional jumps. For complex circuits, add net labels (short text tags) to identify nodes without drawing physical connections–useful for power rails or ground references. Color-code traces if the editor supports it: red for power, black for ground, blue/yellow for signals. Verify connectivity by exporting a netlist and cross-checking with the original circuit logic.

Include a legend or notes section explaining non-standard symbols, custom values, or unconventional configurations. Add scale markers (e.g., a 1 cm or 1-inch reference line) if the blueprint might be printed or scaled unevenly. Export the final version in both editable vector format (SVG, PDF) and a non-editable raster format (PNG at 300 DPI) for sharing. Test the exported blueprint by recreating a simple physical circuit from it–errors in trace routing or labels will become evident during this validation step.

Archive all source files, symbols, and export versions in a structured directory with clear naming conventions (e.g., *project_voltage_regulator_v2.kicad_pcb*). Use version control software (Git) if collaborating to track changes and revert mistakes. A well-documented blueprint reduces debugging time during PCB fabrication by up to 50%, as every connection and value is explicitly defined.
