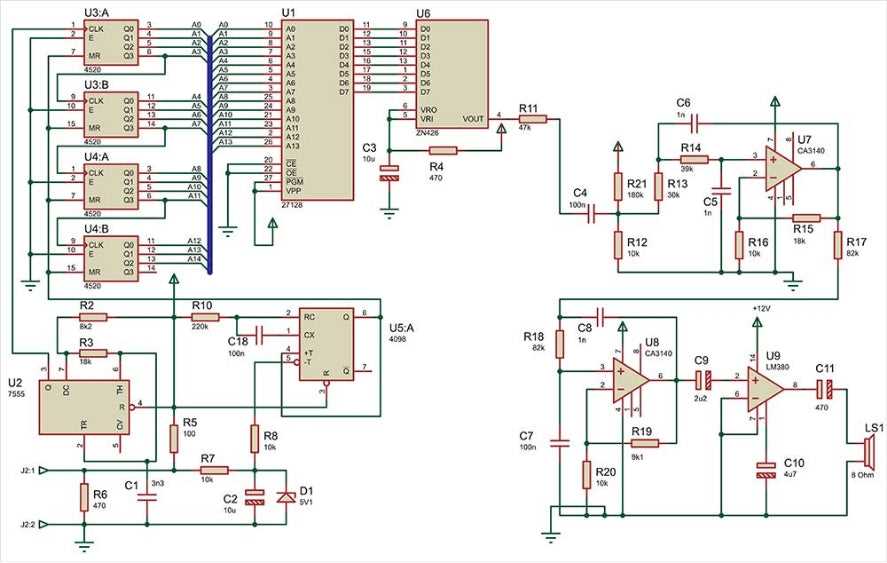

How to Transform Schematic Diagrams into Functional Circuit Boards Step-by-Step

The transition from a conceptual layout to a working prototype requires precision tools. Start with KiCad or Altium Designer–both handle netlist exports seamlessly. KiCad’s open-source advantage cuts costs, while Altium excels in complex layer management. Verify component footprints against datasheets before exporting Gerber files; a single mismatch here causes fabrication errors.

For fabrication, prioritize PCB manufacturers with DFM (Design for Manufacturing) checks. Companies like JLCPCB or OSH Park offer automated reviews, but manually inspect copper traces wider than 0.25mm and clearance gaps above 0.2mm to avoid shorts. Specialized boards (e.g., impedance-controlled) demand suppliers like Eurocircuits, which provide controlled dielectric materials and precise etching.

Assembly starts with a BOM (Bill of Materials) audit. Cross-reference part numbers with distributors (Digi-Key, Mouser) to avoid shortages. For SMD components, use a reflow oven with a temperature profile matching the solder paste’s specifications. Hand-soldering through-hole parts? A 60/40 leaded solder with a 0.5mm tip prevents overheating.

Testing demands a multimeter and oscilloscope. Probe critical nodes first: power rails (±5% tolerance), clock signals (clean edges), and reset pins (stable logic levels). For high-speed designs, a TDR (Time Domain Reflectometer) identifies impedance mismatches. Debugging? Isolate sections by disconnecting power planes–ground loops are a common culprit.

Document every revision. Save Gerbers, netlists, and fabrication notes in a version-controlled system (e.g., Git). Include stencil files if using SMD, as laser-cut stencils lose precision over time. For RF or analog designs, store EMI shielding specifications–even minor changes alter performance.

From Electrical Blueprint to Functional Hardware

Verify component footprints against datasheets before importing netlists into layout software. Many manufacturers provide 3D models alongside land patterns–use both to avoid mismatches. A 0.5mm pitch BGA often requires via-in-pad for proper soldering; omit this adjustment and risk thermal fatigue. Always cross-check pin assignments between the logical design and physical package:

• QFP packages: confirm corner chamfers
• LGA connectors: verify pad height tolerances (±0.05mm)
• Power MOSFETs: account for heat slug orientation

Route critical traces first–differential pairs, clocks, and power delivery networks. A 100MHz LVDS pair demands 90Ω impedance (±5Ω) with

Panelize small designs to maximize fabrication yield. Calculate mouse bites and tabs based on substrate thickness–0.8mm FR4 needs 0.5mm tabs with 1.2mm spacing. Include fiducials (three per panel) with a 1mm clearance; automated assembly machines require ±0.03mm accuracy. Add copper thieving patterns in unused areas to balance etch rates and prevent over-etching fine features. For prototypes, add breakaway rails with 2mm tooling holes for easier depanning.

Specify stack-up details explicitly in fabrication notes. A typical 4-layer build: 0.1oz copper foil (top/bottom), 1oz inner layers, with 0.2mm prepreg between layers 1-2 and 3-4. Dielectric constants vary–IT-180A has ε_r=3.8±0.1 at 1GHz, while FR408HR is ε_r=3.65±0.05. Request impedance coupons for controlled traces; manufacturers charge ~$50 extra but validate your calculations.

Test points should follow a consistent grid (e.g., 2.54mm pitch) and include both electrical and mechanical targets. Place vias with 0.5mm annular rings for probing high-frequency nodes (500MHz+); expose pads on both sides for redundant access. For RF frontends, add ground slugs near matching networks–0402 capacitors need adjacent via clusters spaced ≤1.5mm apart. Avoid placing test points near flexing areas; mechanical stress can cause false opens during ICT.

Finalize gerber files with explicit layer ordering and drill drawings. Include a readme.txt listing:

1. Layer assignments (e.g., GTO: top silk)
2. Hole sizes with tolerances (±0.01mm)
3. Surface finish (ENIG, HASL, OSP)
4. Gold finger chamfer (30° bevel if applicable)
5. V-cut or scored lines (specify depth: typically 1/3 board thickness)

Request X-ray images for BGAs during first article inspection–voids should not exceed 25% of pad area. Keep centroid files separate; pick-and-place machines often misread combined gerber/excellon layers.

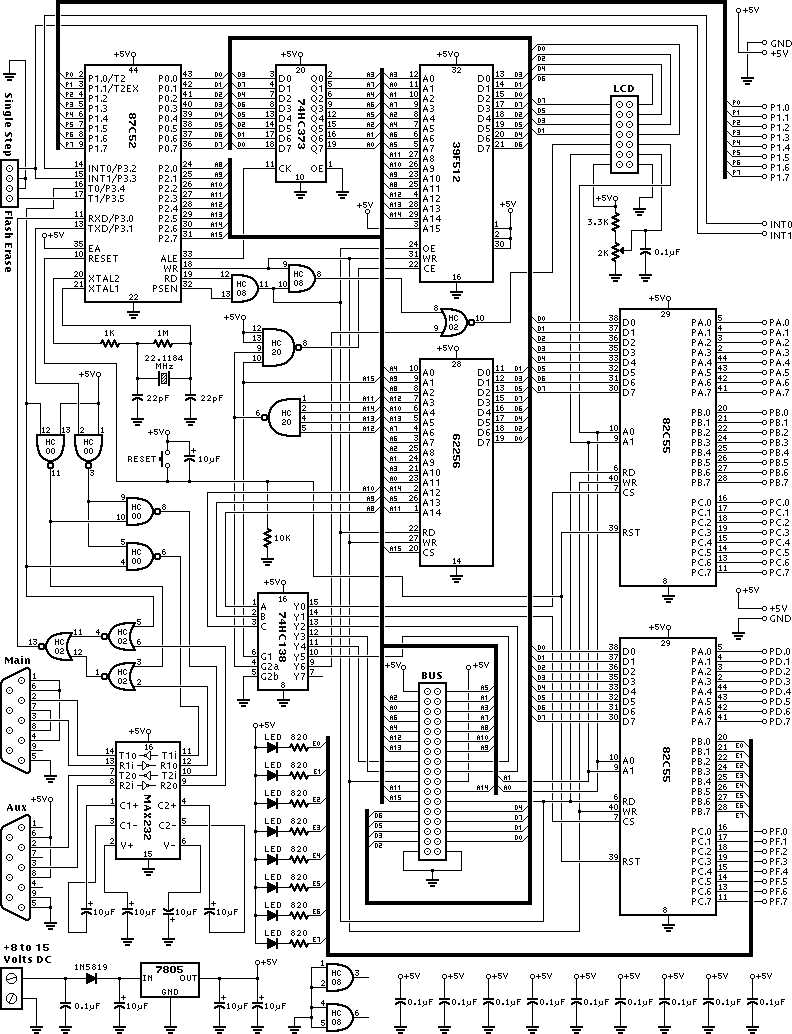

How to Interpret Electronic Blueprints and Pinpoint Core Elements

Begin by tracing power rails–typically marked with VCC, VDD, +5V, or ground symbols like ⏚ or GND. Highlight these lines in red and black; they form the backbone of any layout. Active components (transistors, ICs) depend on these rails for operation, so isolate them first to avoid miswiring. Note voltage ratings–mismatches here will fry parts instantly.

Decode Symbols and Footprints

Passives use standardized glyphs: zigzag for resistors (R), parallel lines for capacitors (C), and circles or arcs for inductors (L). Check values–10kΩ resistors differ drastically from 10Ω ones. Switches appear as mechanical breaks; diodes (D) show a triangle pointing toward a line, indicating current direction. For ICs, cross-reference pinouts with datasheets–confusing INPUT with OUTPUT leads to non-functional builds. Polarized components (electrolytic caps, LEDs) have anodes/cathodes marked; reversing them damages the part.

Look for signal paths–thin lines interconnecting components. Use a highlighter to follow traces between microcontroller pins and peripherals. Label nets with temporary notes (e.g., I2C_SDA, PWM_OUT) to track function. Test points (TP) or vias (plated holes) often indicate where to attach probes during debugging. Verify component footprints match physical parts–SOT-23 transistors won’t fit TO-92 pads.

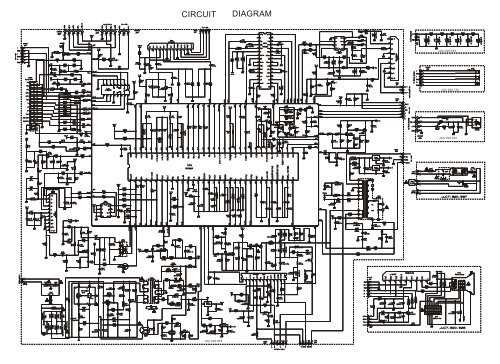

Step-by-Step Electronic Layout Creation from Electrical Plans



Begin by importing netlists directly into your layout tool. Validate all connections immediately–discrepancies at this stage propagate errors exponentially. Use built-in error checks for unrouted nets, floating pins, or duplicate identifiers. Tools like KiCad or Altium flag these automatically; address them before positioning components.

Group related elements spatially during placement. Cluster power regulation near input connectors, signal processing close to sensors, and peripherals within 5 cm of their controllers. For high-speed signals (clocks >50 MHz), place series termination resistors within 2 mm of driver pins. Use real-time DRC violations to guide adjustments–ignore rule constraints during initial placement only if absolutely necessary.

Adopt a hierarchical placement strategy:

• Central processing units (MCUs, FPGAs) as anchors
• Supporting ICs (memory, ADCs) within 3 cm
• Decoupling capacitors on both power rails,
• Crystals directly adjacent to oscillator inputs
• No traces between crystal pins and IC

Route critical paths first–reset lines, bootloaders, differential pairs. For differential pairs, match lengths within 0.25 mm using serpentine tuning. Keep impedances at 100Ω ±10% through controlled-width traces (typically 0.2 mm for inner layers, 0.15 mm for outer). Use vias only when unavoidable; each via adds ~1.5 nH inductance.

Implement ground planes as continuous pours beneath signal layers. Segment power planes only for isolated domains (analog, digital, RF), ensuring no splits under high-speed traces. For mixed-signal designs, place analog components on one edge and route return currents back to a single point star ground. Keep noisy components (switching regulators) ≥15 mm from sensitive analog sections.

Apply these trace width rules based on current:

2. 0.5–2 A: 0.3 mm
3. 2–5 A: 1 mm
4. >5 A: 2 mm or pours

For high-current paths, use 2 oz copper thickness (70 μm); standard 1 oz (35 μm) suffices for signals. Annular rings around vias must exceed drill diameter by 0.2 mm minimum.

Finalize layout with boundary checks:

• Silkscreen references ≥1 mm from pads
• Assembly notes on non-populated areas
• Panelization marks for fabrication (tooling holes, fiducials)
• Copper-to-edge clearance ≥1 mm
• Thermal reliefs for all through-hole pads

Export Gerber files with embedded aperture lists (RS-274X). Generate drill files separately with plated/non-plated distinction. Verify outputs in a third-party viewer; overlay layers to confirm no overlaps or missing features.

Test fabricated samples with these steps:

1. Continuity check with multimeter (all nets)
2. Power burn-in at 1.2× nominal voltage for 1 hour
3. Signal integrity analysis (oscilloscope) for rise times
4. Thermal imaging of power components
5. Functional test with known-good firmware

Choosing the Right Footprints and Pad Sizes for Components

Select land patterns based on manufacturer datasheets first. Resistive and capacitive parts in 0402, 0603, or 0805 packages demand pad dimensions matching the recommended courtyard area–typically 0.6mm × 0.3mm for 0402, 1.0mm × 0.5mm for 0603, and 1.5mm × 0.8mm for 0805. These measurements accommodate reflow soldering tolerances while preventing tombstoning or bridging.

For leaded packages like SOIC or TQFP, calculate pad width as 1.2× the lead width and pad length as 1.5× the pitch. A 0.5mm-pitch TQFP with 0.2mm-wide leads requires 0.24mm × 0.75mm pads. Extend the pad 0.1–0.2mm beyond the lead’s heel and toe to ensure proper fillet formation during soldering.

BGA components demand meticulous spacing. A 0.8mm-pitch BGA with 0.4mm-diameter balls needs 0.45–0.5mm circular pads. Use NSMD (non-solder mask defined) pads for better alignment; SMD (solder mask defined) pads risk misregistration with fine pitches. Maintain a solder mask clearance of 0.05–0.1mm around each pad to prevent shorts.

Electrolytic capacitors often require non-standard pad spacing due to their radial or axial lead configuration. A 10mm diameter capacitor, for example, needs pads spaced 5mm apart with 1.5–2mm diameter holes. Surface-mount variants follow similar rules as MLCCs but add 0.2mm to pad length for mechanical stability.

Thermal pads for power devices like DPAK or TO-220 must include vias for heat dissipation. A DPAK footprint should cover the exposed pad with a 3×3 grid of 0.3mm vias, spaced 1mm apart. Apply a solder mask opening 0.1mm larger than the pad to prevent solder wicking into adjacent areas.

Through-hole connectors with 2.54mm pitch (e.g., pin headers) need 1.6mm-diameter holes with 2.5mm annular rings. For high-current applications, increase hole size to 1.8mm and annular ring to 3mm. Pre-tin the holes with 0.1mm solder thickness to improve conductivity and mechanical strength.

QFN packages present unique challenges. A 6mm × 6mm QFN with 0.5mm pitch requires 0.25mm × 0.8mm pads, with the central thermal pad extended 0.2mm beyond the package outline. Apply a 0.05mm solder paste stencil aperture reduction to prevent excessive paste, which causes floating or shorting.

Always verify footprints against IPC-7351 guidelines for class-specific tolerances. Class 2 (general electronics) allows ±0.1mm pad deviation, while Class 3 (high-reliability) tightens it to ±0.05mm. Use a 1:1 scale printout on transparent film to physically overlay the component and confirm fit before fabrication.
