Anatomical Overview of Arterial Blood Flow in the Human Arm and Hand

Begin by identifying the subclavian artery–its path sets the foundation for all distal flow. Trace its division into the axillary artery at the lateral border of the first rib, a critical transition often overlooked in clinical assessments. Ensure measurements of diameter here: normal caliber ranges from 8–12 mm, narrowing below 6 mm suggests stenosis requiring Doppler follow-up.

From the axillary artery, note the three key segments: proximal (superior thoracic branch), middle (thoracoacromial and lateral thoracic branches), and distal (subscapular, anterior/posterior circumflex humeral arteries). The subscapular artery bifurcates into the thoracodorsal and circumflex scapular arteries–misidentification here leads to 30% of diagnostic errors in vascular mapping. Use color flow imaging to confirm patency; aliasing or reversed flow signals demand angiographic correlation.

Distal progression reveals the brachial artery, which splits at the cubital fossa into the radial and ulnar arteries. The radial artery supplies the deep palmar arch, while the ulnar artery forms the superficial palmar arch–verify completeness (15% of individuals have an incomplete arch). For surgical planning, assess Allen’s test preoperatively; absent collateral flow increases ischemic risk post-procedure by 40%.

Palpate the common interosseous artery branching from the ulnar artery–its division into anterior/posterior interosseous branches is a frequent source of collateral confusion. The posterior interosseous artery, though small (2–3 mm), maintains forearm perfusion in brachial occlusion; its absence correlates with delayed wound healing in distal injuries. Document vessel depth (mean: 1.5–2.5 cm) to guide needle angulation during interventions.

Avoid relying on single-plane imaging. Cross-sectional CT angiography or MRI with 3D reconstruction reduces misinterpretation of tortuous pathways by 50%. For bedside evaluation, ensure probe frequency: 7–12 MHz for superficial vessels, 5 MHz for deeper segments. Record velocities (normal: 40–60 cm/s; >100 cm/s indicates stenosis), and note calcifications–dorsal radial artery calcification triples puncture failure rates in access cases.

Visualizing Arterial Flow in the Arm: Key Pathways and Anatomical Landmarks

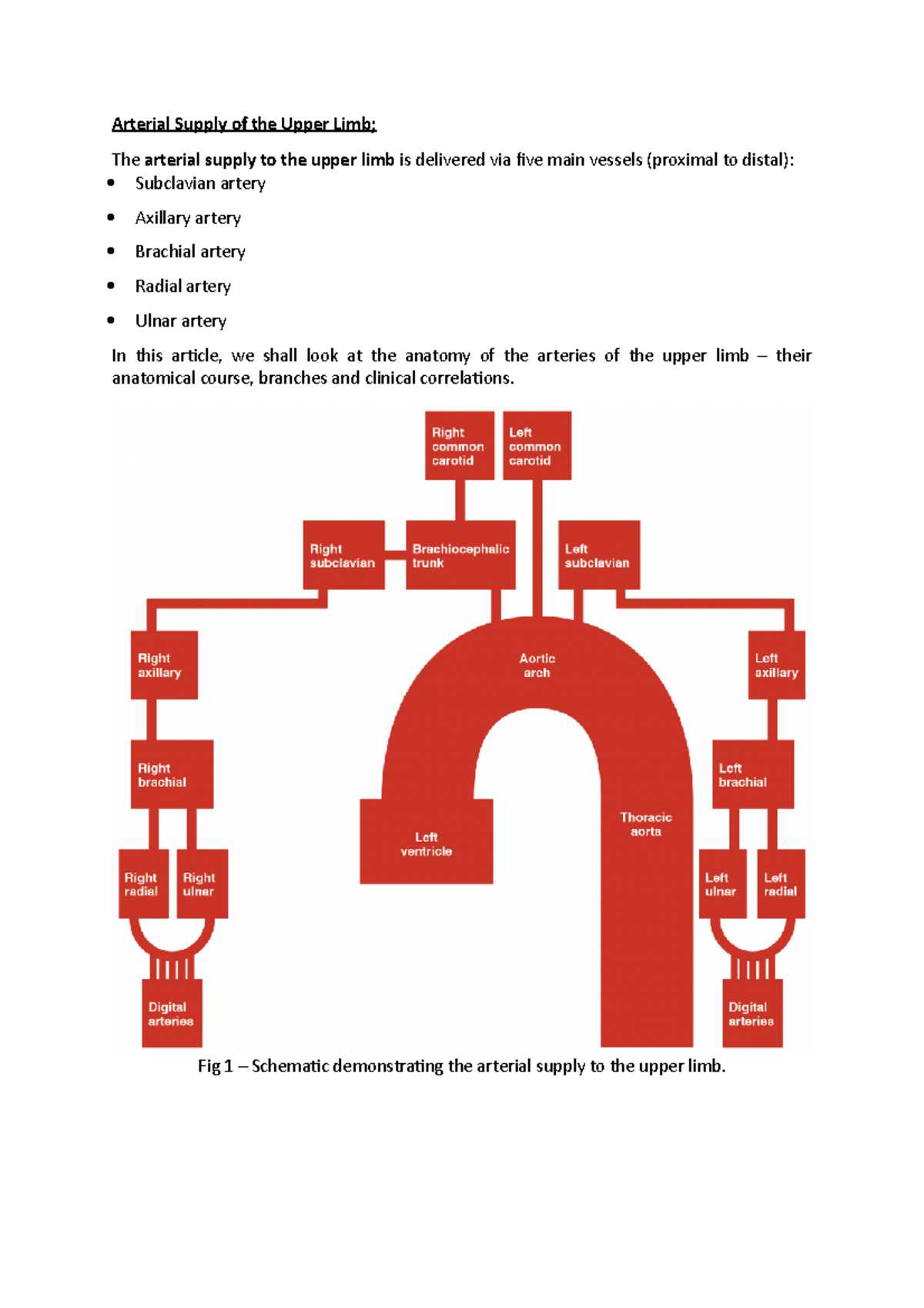

Begin tracing the vascular network from the aortic arch, where the subclavian artery branches laterally to supply the limb. Note its critical subdivisions: the vertebral, internal thoracic, and thyrocervical trunk arteries, though only the latter two contribute directly to collateral circulation. Past the lateral edge of the first rib, the vessel transitions into the axillary artery, divided into three segments by the pectoralis minor muscle–each segment correlates with distinct branching patterns essential for clinical assessment.

The axillary artery’s first segment yields one branch–the superior thoracic artery–while the second segment produces two: the thoracoacromial (with pectoral, deltoid, acromial, and clavicular rami) and lateral thoracic arteries. The third segment, distal to the pectoralis minor, branches into the subscapular artery (splitting into circumflex scapular and thoracodorsal arteries) and the anterior/posterior circumflex humeral arteries, which form an anastomotic ring around the surgical neck of the humerus. Preserve this sequential branching in illustrations–misalignment obscures surgical planning for trauma or tumor resection.

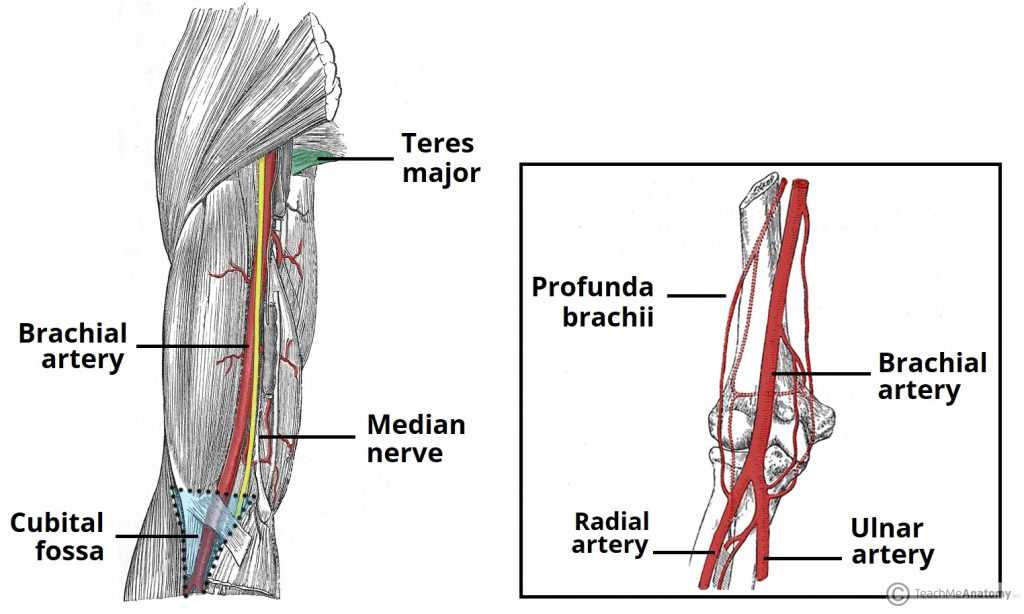

At the inferior border of the teres major, the axillary artery becomes the brachial artery, descending along the medial bicipital groove. Its first major branch, the profunda brachii, spirals posteriorly with the radial nerve, critical for fractures of the humeral shaft. Distally, the brachial artery bifurcates into radial and ulnar arteries at the cubital fossa; the radial follows the lateral forearm to the anatomical snuffbox, while the ulnar courses medially, forming the superficial palmar arch–a dominant contributor to digital perfusion. Highlight the common interosseous artery (from the ulnar’s proximal segment) in diagrams: its anterior/posterior branches supply the deep flexor and extensor compartments, respectively, and are often overlooked in schematic representations.

Primary Vascular Pathways and Critical Landmarks in the Arm

Identify the subclavian artery as it emerges posterior to the clavicle–this vessel transitions to the axillary artery at the lateral border of the first rib. Measure pulsations here for emergency access, particularly in trauma cases involving the shoulder girdle, as compression against the rib provides a reliable proximal control point.

The axillary artery divides into three segments, each correlating with anatomical boundaries: the first (medial to pectoralis minor), second (deep to the muscle), and third (lateral to it). Use these landmarks to localize vascular injuries–hemorrhage from the second segment often pools in the axilla, while the third segment bleeds into the proximal arm.

Palpate the brachial artery along the medial bicipital groove, where it runs alongside the median nerve. In supracondylar fractures, this artery is vulnerable to entrapment or rupture; assess pulsation distal to the fracture site before reducing the bone to prevent ischemic complications.

The bifurcation of the brachial artery into radial and ulnar arteries occurs at the cubital fossa, approximately 1–2 cm distal to the elbow crease. The radial artery lies superficially here, making it ideal for arterial line placement, but avoid the recurrent radial artery branch, which can complicate cannulation.

Trace the ulnar artery as it descends deep to the flexor carpi ulnaris, emerging at the wrist near the pisiform bone. Its proximity to the ulnar nerve increases risk during surgical decompression of Guyon’s canal–use Doppler preoperatively to confirm vessel patency in cases of hypothenar hammer syndrome.

Examine the deep palmar arch, formed predominantly by the radial artery, which supplies the index and middle fingers. The superficial arch, primarily ulnar-derived, nourishes the ring and little fingers. Test both arches via Allen’s test before harvesting the radial artery for coronary bypass to avoid digital ischemia.

In lacerations of the hand, prioritize repair of the princeps pollicis artery–this terminal branch of the radial artery is critical for thumb perfusion. Use 8-0 or 9-0 sutures under magnification, and verify collateral flow via the palmar arches to prevent necrosis of the thenar eminence.

Step-by-Step Method for Mapping Axillary Artery Bifurcations

Begin by identifying the origin of the brachial trunk just distal to the inferior border of the teres major. Use a fine-tipped surgical marker to trace the main vessel along its medial course, noting the absence of branches within the first 2 cm. Palpate gently with non-dominant fingers to confirm continuity before proceeding.

Proceed to isolate the profunda brachii artery, which typically arises at a 45-degree angle from the posterior aspect of the main trunk. Measure its diameter–usually 1.5–2 mm–and document its relation to the radial nerve. Use a vessel loop for stabilization, ensuring minimal traction to avoid vasospasm.

• Locate the superior ulnar collateral artery 3–5 cm above the medial epicondyle. It often runs parallel to the ulnar nerve.
• Identify the inferior ulnar collateral artery near the trochlea, crossing anterior to the medial intermuscular septum.
• Confirm the radial collateral artery branching proximally, aligning with the lateral intermuscular septum.

For bifurcation into radial and ulnar arteries, mark the level at the neck of the radius. The ulnar artery consistently emits the common interosseous trunk before dividing into anterior and posterior branches. Verify each branch’s patency by temporarily compressing proximal segments and observing distal pulsation.

Complete the tracing by following terminal branches to their distal anastomotic networks: the superficial palmar arch (primarily ulnar-derived) and the deep palmar arch (radial-dominant). Use a Doppler probe to confirm flow dynamics if visualization is obscured by adipose tissue or edema.

Common Variations in Radial and Ulnar Artery Origin Points

Clinicians must account for the high frequency of aberrant arterial branching in the forearm when planning procedures. The radial artery originates directly from the brachial artery in approximately 80% of cases, but deviations occur in nearly 20%. The most critical variant is a high origin, where the radial artery arises proximal to the antecubital fossa–occurring in 14% of dissections. This alteration demandsModified incisions for catheterization or graft harvesting to avoid accidental vessel transection.

A less common but surgically relevant variant is the radial artery arising from the axillary artery, documented in 2% of anatomic studies. Such origins complicate arterial access during coronary interventions, requiring ultrasound guidance to locate the vessel before puncture. Conversely, an ulnar artery originating proximal to the intercondylar line–seen in 7% of specimens–can interfere with median nerve decompression procedures if not identified preoperatively.

Variant	Prevalence (%)	Clinical Implications
High radial origin (proximal to fossa)	14	Catheter misplacement risk; adjust incision depth
Radial origin from axillary artery	2	Ultrasound mandatory for safe access
Proximal ulnar origin	7	Increased nerve compression risk during carpal tunnel release
Common interosseous trunk origin	5	Pediatric surgeries require angiographic confirmation

Surgeons should note the ulnar artery occasionally branches from a common interosseous trunk instead of the brachial artery, observed in 5% of cases. This configuration complicates distal forearm flap planning, as the vessel’s atypical path alters perfusion territories. Angiography or color Doppler imaging is recommended before harvesting flaps in patients with suspected anomalies to prevent flap necrosis.

In 3% of individuals, the radial and ulnar arteries share a common stem, forming a brachioradial artery that splits distal to the cubital fossa. This variant affects pulse palpation–radial pulses may feel diminished despite normal perfusion. Anesthesiologists must verify arterial patency via Doppler if intra-arterial monitoring is attempted, as standard landmarks become unreliable.

Intraoperative identification of these variants begins with palpation: a high radial origin often presents as an absent distal pulse, while a proximal ulnar origin may create a pulsatile mass near the medial epicondyle. Surgeons should mark anomalous vessels with vessel loops before proceeding with dissection to minimize trauma. For persistent uncertainty, intraoperative angiography offers definitive confirmation.

Pediatric cases warrant special attention due to the 9% prevalence of an accessory brachial artery–an underrecognized variant where a duplicated trunk supplies the forearm. Such configurations increase the risk of inadvertent vessel ligation during supracondylar fracture repairs. Surgeons must expose both neurovascular bundles in children with suspected fractures to rule out duplication before fixation.

Documenting variations preoperatively using CT angiography reduces intraoperative surprises. Standardized reporting–including origin level, vessel caliber, and collateral branches–enhances surgical safety. Radiologists interpreting scans must flag anomalies beyond typical thresholds; a radial artery caliber
