Complete Guide to GE Refrigerator Schematic Wiring Diagrams

Begin by locating the main power connection at the rear panel–typically marked with a L (line) and N (neutral) terminal. GE models built after 2018 use a 115V, 60Hz setup, while older units may require 230V. Verify the voltage on the compliance label before proceeding; incorrect wiring risks compressor burnout or circuit breaker trips.

Trace the internal harness from the compressor relay to the thermostat. The relay–usually a white or black module–should show three output leads: start winding, run winding, and common. Confirm continuity with a multimeter (resistance values should read 3-7 ohms for the run winding and 12-18 ohms for the start winding). If readings exceed these ranges, replace the relay before powering the unit.

Inspect the defrost heater pathway, which branches from the main board to the evaporator coil. The heater operates at 120V and cycles during the defrost phase. Check for a 3-5 amp fuse inline–this protects the bimetallic defrost thermostat. If the fuse is blown, inspect the thermostat for corrosion or improper reset.

For side-by-side models, prioritize the ice maker module. The water valve solenoid requires 120VAC and draws 4-6 amps. Ensure the harness connects to a dedicated 15-amp circuit; shared circuits may cause intermittent cooling failure. Test solenoid resistance (200-400 ohms); deviations indicate internal damage.

Always disconnect power before accessing live components. Use a non-contact voltage tester to confirm zero current near capacitors–these retain charge even after shutdown. For French-door layouts, note the dual evaporator setup: one circuit handles fresh food, the other freezer. Crossed wires here prevent independent cooling zones.

Understanding GE Cooling Unit Electrical Layouts

Locate the main control board first–typically situated behind the lower rear panel. Verify the model number printed on its surface (e.g., WR55X10942) to ensure compatibility with the specific circuit map. Disconnect power at the dedicated circuit breaker before handling any components to prevent accidental shorts or damage to sensitive elements.

Key connections to inspect include:

• Compressor relay: Check for a resistance reading between 0.5–3 ohms across terminals. Deviations indicate relay failure.
• Defrost heater: Should register 25–40 ohms if functional; infinite resistance suggests an open circuit.
• Temperature sensor: Room-temperature resistance (25°C) should be 10–15 kΩ. Replace if readings fall outside this range.

Trace the red (L1) and black (L2) power leads from the terminal block to the compressor. Intermediate components–such as the start capacitor (rated 25–50 µF) and overload protector–must show continuity. Use a multimeter set to the lowest ohms range (200 Ω) for these checks. If the capacitor fails the “auto-discharge” test (no residual voltage after power-off), replace it immediately to avoid motor burnout.

Troubleshooting Common Faults

For intermittent cooling issues, probe the adaptive defrost control module (ADC) pins while cycling power. Pin 1 (defrost signal) should toggle between 0V and 12V DC every 8–12 hours. Absence of this signal often points to a corrupted board–requiring replacement rather than repair. Similarly, test the evaporator fan motor directly: disconnect its connector and apply 120V AC to the blue and yellow wires. Unresponsive motors typically suffer from seized bearings, necessitating full replacement.

Always cross-reference findings with the exact build version of your unit. For example, GE models manufactured after 2018 (serial prefixes DR, DS) integrate a revised PWM fan controller distinct from earlier SCR-based designs. The updated layout consolidates fan speed regulation into the main board, eliminating the external module but complicating DIY repairs. Download the service manual for your exact model via GE’s official service portal (enter the full serial number) to access pin assignments and voltage charts specific to your variant.

Key Power Supply Pathways in GE Cooling Units

Locate the main terminal block beneath the lower back panel–it houses the black (hot), white (neutral), and green (ground) wires feeding the appliance. Verify incoming voltage at the compressor relay first; use a multimeter set to 230V AC for dual-voltage models or 115V for standard configurations. If readings deviate more than ±5V from nominal, inspect the household circuit breaker or dedicated outlet before proceeding.

• Disconnect power at the breaker before handling any connections.
• Identify the heavy-gauge wires (typically 12-14 AWG) linking the terminal block to the overload protector–they carry primary current to the compressor.
• Trace the red and blue leads from the condenser fan motor; these originate from the main harness but split at the control board to operate separately.

Critical Overload Protector Connections

Check the disc-shaped overload protector mounted on the compressor–it interrupts power if internal windings overheat. Probe the two terminals: resistance should read near 0Ω when cold. A reading above 1Ω indicates failure; replace the protector rather than bypassing it. The white wire from this component must return to the neutral bus without intermediary splices to avoid voltage drop.

For dual-evaporator systems, follow the yellow wire from the main harness to the defrost heater–it cycles during automatic defrost but remains energized only when the compressor runs. Confirm continuity across the heater terminals (≈30-60Ω), then verify the pink defrost thermostat lead switches closed below 45°F. If either component fails, frost buildup will impede airflow within 48 hours.

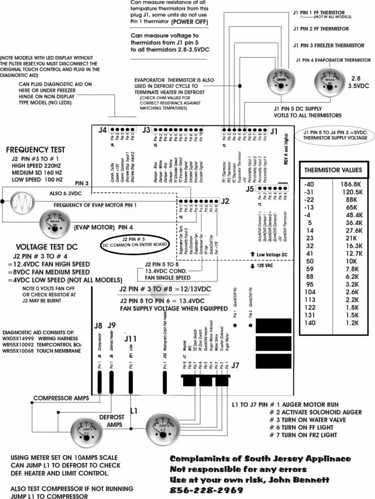

How to Pinpoint Control Board Terminals on GE Electrical Plans

Begin by tracing the thickest lines on the illustrated layout–these represent primary power paths leading directly to the logic module. Look for labels starting with “P” (e.g., P1, P2) or “J” (e.g., J3, J4) near rectangular blocks, as these designate connector ports. Color-coded strips adjacent to these blocks often match real-world wire insulation; red typically denotes high-voltage (120V), yellow signals low-voltage (12V), and blue/black may carry sensor inputs or ground references.

Cross-reference terminal letters with tiny numerals etched beside each pin–these pairings (like “P1-7” or “J2-3”) correspond precisely to the physical board sockets. If the plan includes a legend in the corner, scan for abbreviations such as “COMP” (compressor), “FAN,” “DEF” (defrost heater), or “TH” (thermistor); these shortcuts map to specific board slots with 1mm precision.

For ambiguous ports, measure the gap between pins on the actual component–GE modules consistently space standard connectors at 2.54mm (0.1″) intervals, while high-current outputs (e.g., compressor relay) sit at 5.08mm (0.2″). Digital multimeters set to continuity mode can confirm correct pinout by probing from the labeled port on the plan to the appliance’s corresponding wire harness connector.

If the layout floods terminals with alphanumeric noise, isolate one branch at a time: follow the defrost circuit’s path–it usually snakes from the bi-metal switch (“THS”) through a 2-pin orange connector into pins 8-9 of the primary header, bypassing capacitance filters clustered near the lower-right corner of the board.

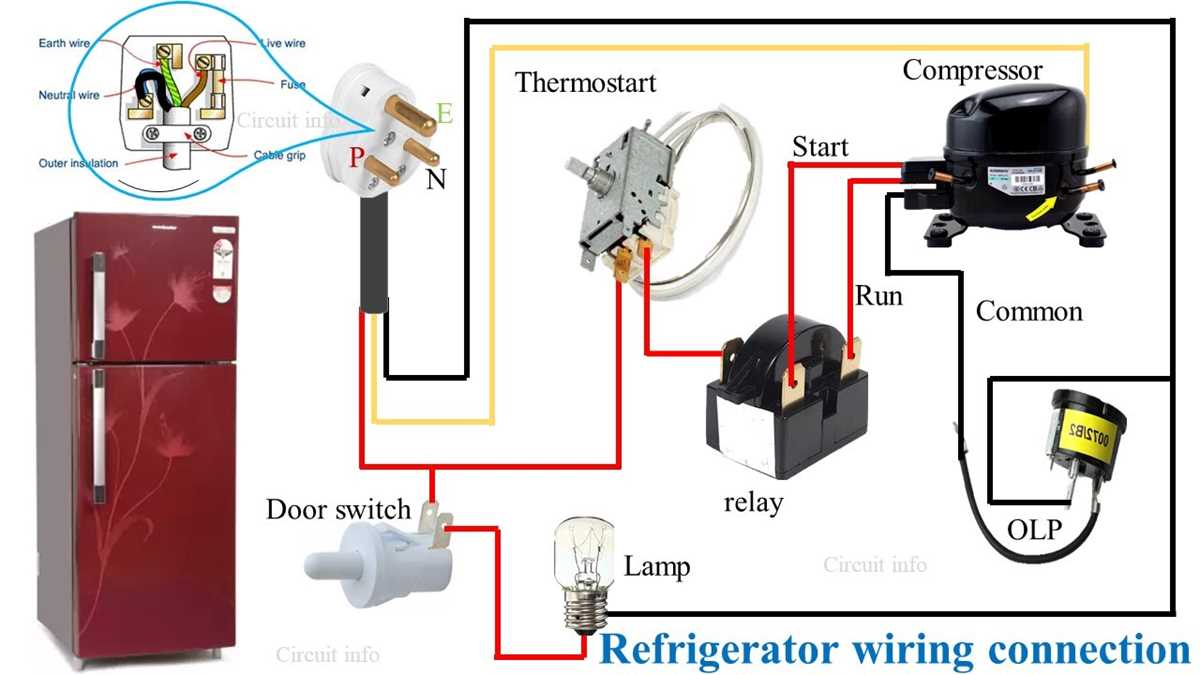

Step-by-Step Guide to Tracing Compressor Circuit Paths

Locate the start relay on the compressor housing–it’s typically a small plastic or metal block mounted directly on the terminal cover. Disconnect power and remove the relay by gently pulling upward while rocking it side-to-side if stuck. Use a multimeter set to continuity mode to probe each terminal on the relay socket. Terminals labeled “S” (start), “R” (run), and “C” (common) must show closed paths between “C” and “R” when the relay is engaged; if not, the relay is defective.

Next, examine the capacitor–round or oval, usually secured near the compressor or on the chassis. Discharge it safely by shorting the terminals with a 20,000-ohm resistor for 5 seconds before handling. Identify the capacitor leads: the “Herm” (hermetic) terminal connects to the start winding, “Fan” or “Run” to the motor or fan, and the third lead always ties to “Common.” Use the multimeter in capacitance mode (µF range) to verify readings match the labeled value within ±10%. A swollen or leaking capacitor must be replaced immediately.

Identifying Motor Windings

Access the compressor terminals–often three prongs emerging from the sealed unit. Label them “C” (common), “S” (start), and “R” (run) based on relay socket positioning. Measure resistance between each pair: “C” to “R” should read 2-5 ohms, “C” to “S” 8-15 ohms, and “S” to “R” must equal the sum of the two. Readings outside these ranges indicate a burnt winding or internal short. Confirm ground integrity by checking resistance from any terminal to the compressor shell–readings below 1 megaohm signal a serious fault requiring professional intervention.

Trace the line voltage entry point–usually a wire harness connected to the compressor or a nearby junction box. Follow the live (typically black or red) and neutral (white) conductors backward to the power source. Look for inline fuses, thermal protectors, or PTC devices spliced into the circuit; bypass temporarily with insulated jumpers only for testing. Document each component’s position with photos or notes before reassembly to avoid miswiring during reinstallation.
