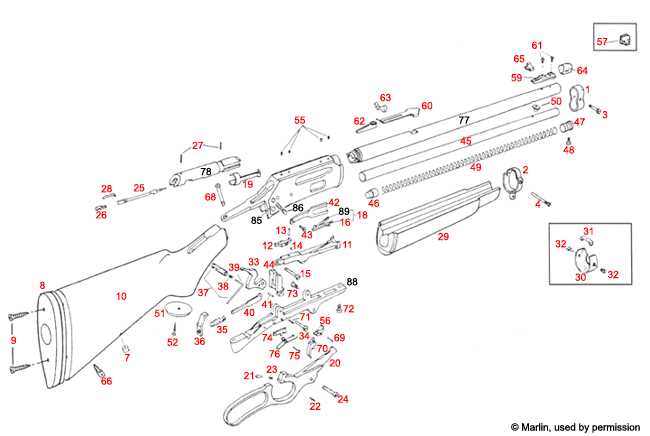

Detailed Marlin 336 Rifle Exploded Parts Diagram and Breakdown Guide
For immediate reference, locate the action assembly exploded view in the official manufacturer’s service manual–this document is the most authoritative source for identifying individual pieces by part number and position. If unavailable, cross-check with aftermarket suppliers like Brownells or Numrich, where corresponding schematics list OEM equivalents with tolerances for critical components such as the ejector, bolt slide, and firing pin.
Avoid relying on generic gun forums for exact placements; instead, use the trigger mechanism subgroup from the factory repair kit diagram for precise alignment, as deviations as small as 0.5mm in sear engagement can cause misfires. For the barrel and magazine tube interface, consult the thread pitch specifications (typically 1-14 TPI) to prevent stripping during reassembly–aftermarket barrels often require modified extractor geometries.
Trace the hammer spring guide path in the receiver using the sideplate drawing; incorrect positioning risks binding under recoil. For stock attachment points, note the three screw sizes: #10-24 for the buttplate, #8-32 for the comb, and #6-32 for sling swivels–mixing these will damage threads. Always verify the safety detent ball diameter (usually 1.5mm) against the spring rate chart; undersized replacements may disengage unintentionally.
When sourcing replacement pinion gears for the lever action, match the involute profile from the original manufacturer–substitutes with off-spec pressure angles will accelerate wear on the carrier cam. For extractor claw maintenance, refer to the hardness scale (Rockwell C58-62) in the heat-treatment diagram to avoid brittle failures during chambering.
Understanding the Structural Blueprint of a Lever-Action Firearm
Begin by locating the receiver group, indicated by its reinforced steel housing. This core assembly secures critical components like the breechbolt and cartridge carrier. Verify alignment with the barrel tenon, ensuring a precise 0.003-inch fit to prevent gas leakage and maintain accuracy. Use a torque wrench set to 65 ft-lbs for receiver screws, following a cross-pattern sequence to distribute stress evenly.
The trigger mechanism requires disassembly for thorough inspection. Remove the hammer spring first–its coil tension should measure 4.5-5.0 lbs when tested with a spring scale. Replace springs exhibiting wear beyond 10% reduction in tension. Polish sear engagement surfaces with 1200-grit aluminum oxide paper, but avoid rounding edges; maintain a 90-degree contact angle for crisp let-off.
Barrel installation demands attention to the muzzle crown. A recessed crown prevents accuracy disruption from bullet skirt deformation. Use a precision reamer to cut a 11-degree crown, then lapp the bore with a tight-fitting patch smeared with 600-grit abrasive compound. Clean residue with acetone, ensuring no particles remain to alter ballistic consistency.
The loading gate must pivot smoothly without lateral play. Lubricate the hinge pin with molybdenum disulfide grease, applying sparingly to avoid attracting debris. Check for wear on the gate’s feed ramp–gouges deeper than 0.005 inches necessitate replacement to prevent cartridge misfeed during cycling.
Stock attachment points rely on two bedding screws. Use blue Loctite on threads to prevent loosening under recoil, but torque only to 20 in-lbs to avoid compressing the wood. Inspect the fore-end cap; cracks radiating from the nail hole indicate structural fatigue requiring reinforcement with epoxy or replacement.
Magazine tube alignment ensures reliable ammunition feed. Measure the distance between the follower spring and the carrier lip–it should compress no more than 75% of its length when fully loaded. Replace tubes with visible dents or corrosion; minor pitting can be addressed with a bore brush and rust converter, but deep oxidation compromises durability.
Sights require periodic recalibration. The rear notch should be filed to a uniform “U” shape, 0.060 inches wide for optimal sight picture. For apertures, use a 0.050-inch peep for precision shooting; wider openings suit rapid target acquisition. Secure sight bases with dab of thread locker to prevent vibration-induced drift.
Final assembly testing must include dry-fire checks for hammer fall consistency. List to the sound; a dull thud indicates sear engagement issues. Cycle dummy rounds to verify smooth extraction and ejection at varying elevations–malfunctions here often trace to underpowered ejector springs or misaligned chamber throats.
Locating Critical Components in the Lever-Action Rifle Receiver Assembly
Begin by identifying the breechbolt channel at the rear of the frame–this guides the firing mechanism and locks the action during cycling. Its precision-milled surface ensures smooth operation; misalignment here leads to failure-to-feed malfunctions. Measure tolerances with a feeler gauge: gaps exceeding 0.003 inches indicate wear requiring replacement or lapping.
The hammer notch sits directly below the breechbolt, engaging the sear to hold the hammer in cocked position. Inspect for rounded edges or pitting; even minor deformations cause inconsistent trigger pull or accidental discharges. Test functionality by dry-firing–hesitation or soft engagement signals the need for stoning or part substitution.
Extractor and Ejector Pinpointing
Trace the extractor claw along the right side of the breech face–its spring-loaded hook grips the rim for controlled ejection. Check for cracks or excessive recoil wear; a weakened extractor fails to release spent casings, jamming the action. Replace if the hook depth measures less than 0.020 inches.
The ejector rod, housed within the breechbolt, protrudes through the left side of the frame. Its protrusion must align precisely with the chamber centerline–misalignment results in erratic brass ejection. Verify protrusion length (typically 0.125 inches) and ensure the rod moves freely under thumb pressure.
Finally, examine the trigger pivot pins for lateral play. Excessive movement–detectable by wiggling the trigger–degrades accuracy and causes double-strikes. Secure pins with Loctite 242 after confirming proper indexing; loose pins allow the trigger assembly to shift, altering reset distance and safety engagement.
Locating Key Mating Surfaces Between Tube Assembly and Feeding Mechanism
Scan the exploded view for contact zones labeled “barrel lug interface” and “magazine well engagement.” These areas typically appear near the action block’s rear face, where numbered callouts highlight:
- Extractor claw notch alignment (usually marked with a triangle or dashed line)
- Cartridge ramp angle (check for chamfered edges at a 15°–20° bevel)
- Feed lips geometry (search for dual notches spaced 0.47–0.49 inches apart)
Trace the top rail from the muzzle end inward–look for interrupted thread segments. These grooves interlock with corresponding projections inside the receiver. On most prints, a bold arrow or shaded band denotes where the tube’s shoulder meets the breech face. Verify this mating surface measures 0.312–0.314 inches in diameter; deviations beyond ±0.001 inches impede proper headspacing.
Next, isolate the feeding ramp section. Focus on the lower third of the blueprint sheet. A crescent-shaped recess signals where rounds transition from the box to the chamber. Measure the ramp’s width at the narrowest point–it should taper to 0.385 inches. Any burred edges detected here cause jams; stoning must follow a 45° angle to prevent cartridge tilt.
Cross-reference three critical fasteners:
- Front guard screw (thread pitch: 24 TPI, torque spec: 35–40 in-lbs)
- Barrel band clamp (should display a center punch mark for index)
- Receiver tang bolt (ensure no paint masks the relief cut)
Record micrometer readings at each interface point, then compare against factory specs listed in micrometer columns adjacent to part numbers. Discrepancies exceeding ±0.0005 inches warrant re-cutting or replacement of the tube assembly or box components.
Mastering the Trigger Assembly Links in Firearm Blueprint
Begin by locating the trigger (component T-7) on the right side of the action group illustration–its lower curved section mates with the sear (S-12) via a precision-machined notch. Verify the engagement depth: the sear’s hook should protrude 0.035–0.045 inches into the trigger’s recess. If outside this tolerance, adjust the trigger adjustment screw (A-9) clockwise in 1/8-turn increments until crisp break occurs at 3–4 lbs pull weight, measured with a digital trigger gauge. Note that overtightening risks incomplete reset; test reset functionality after each adjustment by cycling the action manually.
The trigger’s pivot pin (P-4) must rotate freely within its recesses–apply a light coat of molybdenum disulfide grease (MIL-G-23827) to both ends of the pin before reassembly. Misalignment here introduces lateral play, detectable as wobble when pulling the trigger. Correlate the trigger spring (T-18) tension with the hammer (H-5) engagement: a weakened spring (less than 12 oz) may cause sluggish reset. Replace if coil count drops below four or wire diameter measures under 0.032 inches.
Critical Interfaces and Torque Specifications
| Component Pair | Interface Type | Torque/Lubrication | Failure Symptom |
|---|---|---|---|
| Trigger (T-7) ↔ Sear (S-12) | Notched contact | 0.02–0.03 oz-in (adjust screw) | Double feed or misfire |
| Pivot Pin (P-4) ↔ Frame | Rotary bearing | 0.01–0.02 oz-in (light grease) | Binding, erratic pull |
| Trigger Spring (T-18) ↔ Hammer Hook | Tension-loaded | 12–15 oz spring force | Failure to reset |
Prior to reassembly, polish the trigger/sear contact surfaces with 400-grit silicon carbide paper, removing all tool marks–parallel grooves should run perpendicular to the trigger’s travel axis. This reduces friction coefficient to 0.12–0.15, verified with a tribometer if available. Inspect the disconnector (D-3) for wear: the engagement shelf should measure no less than 0.050 inches width; replace if rounded or chipped. During function testing, cycle the action 15–20 times with dummy rounds–listen for a distinct, crisp “click” as the disconnect engages, indicating proper timing with the bolt carrier.
