Guide to Creating Arduino Circuit Block Diagrams Step by Step
Begin with a clear functional breakdown of your design objectives. Identify core components–processor unit, power delivery system, sensor inputs, output drivers–and isolate their roles before visual representation. For a typical ATmega328P setup, allocate distinct zones: one for the microcontroller (VCC, GND, digital/analog pins), another for regulated power (5V/3.3V DC-DC converters), and separate sections for peripheral connectivity (I2C, SPI, UART). This separation reduces signal interference and simplifies debugging.
Use hierarchical structuring in your layout. Place the central processing node at the top, branching downward into subsystems. Sensors (temperature, light, motion) should connect via short, labeled lines directly to their designated pins (e.g., A0–A5 for analog inputs). Output devices (LEDs, motors, relays) require separate voltage rails–incorporate current-limiting resistors (220Ω–1kΩ) or H-bridges (L298N) for high-load components. Avoid crisscrossing lines; route parallel traces to maintain readability.
Label every element with pin numbers and signal types (e.g., D3 (PWM), A4 (I2C SDA)). For power rails, specify voltage and current ratings (5V/500mA). If using pull-up/down resistors, note their values (10kΩ). Include decoupling capacitors (0.1µF) near the microcontroller’s power pins to stabilize voltage fluctuations. For modular designs, group related components into dashed rectangles with descriptive headers (Sensor Array, Motor Control).
Validate the design by tracing signal flow from sensors to outputs. Ensure ground connections converge at a single point to prevent ground loops. For complex setups, add a legend with symbols (e.g., ⚡ Power, △ Analog, ▢ Digital). Test each subsystem independently before integrating them into the final layout.

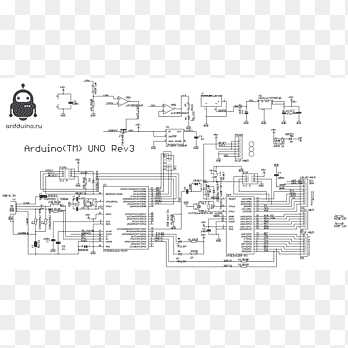

Visual Representation of Microcontroller Connection Layouts
Start by mapping power distribution first–separate 5V and 3.3V rails to prevent interference, especially with sensors requiring stable voltage. Use decoupling capacitors (10µF–100µF) near the controller’s power pins to filter noise from switching components like relays or motors. For ATmega328P-based boards, place a 0.1µF ceramic capacitor between VCC and GND for each pair of power pins to suppress high-frequency transients.
Group input/output devices by function: analog sensors (thermistors, potentiometers) should share a dedicated ground return path, while digital signals (buttons, LEDs) can use a separate return. Isolate high-current devices (servos up to 1A) with dedicated traces or wires to avoid voltage drops affecting logic levels. Use pull-up resistors (10kΩ) for open-drain outputs like I2C, but omit them for active-low inputs with built-in pull-ups (e.g., button to GND via 220Ω resistor for debounce).
Key Trace Routing Practices
- Keep clock signals (SPI, UART) away from analog traces to reduce crosstalk–maintain 0.5mm clearance for 16MHz signals.
- Use star grounding for mixed-signal designs: a single point connects analog ground, digital ground, and power ground to prevent ground loops.
- For PWM-driven devices (fans, dimmable LEDs), add a flyback diode (1N4007) across inductive loads to clamp voltage spikes.
- Label all connections in the layout: mark pin numbers (e.g., “D3”), voltage levels, and signal types (I, O, PWR) to simplify debugging.
Test points simplify validation–add them to power rails, critical signals, and reset lines. For prototypes, use breadboard-compatible layouts with 2.54mm pitch headers. When transitioning to PCB, convert the conceptual flow into copper: wide traces (1.5mm) for power, thinner (0.3mm) for signals, and thermal reliefs for heavy-current pads. Verify continuity with a multimeter before applying power, and use an oscilloscope to check signal integrity on high-speed interfaces (e.g., WS2812 LEDs at 800kHz).

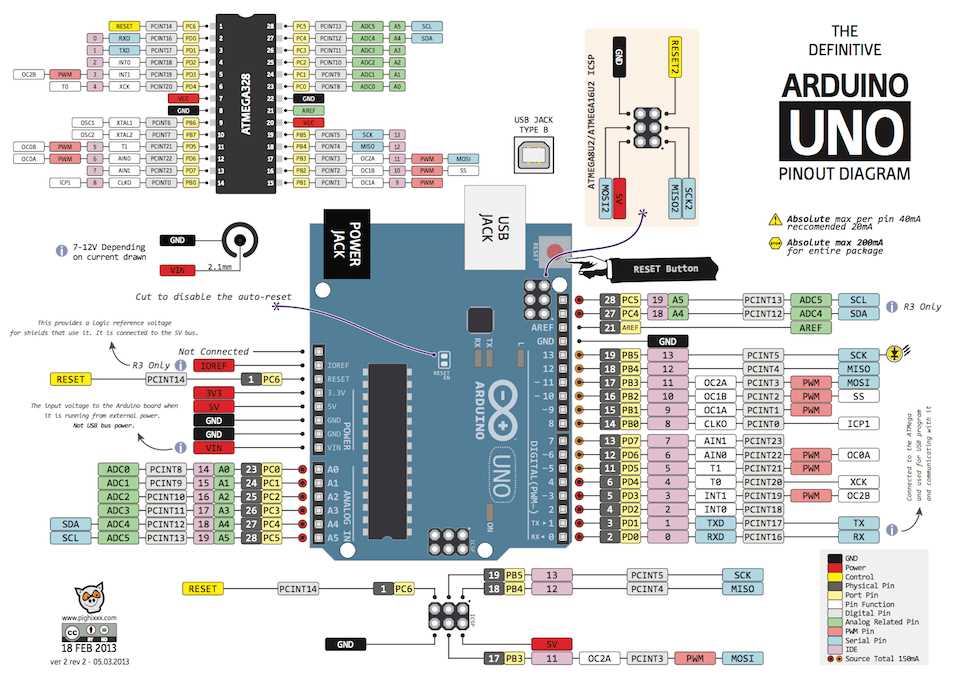

Critical Elements for Constructing an Interactive Microcontroller Layout
Begin with a central processing core–an ATmega328P or equivalent–selected based on pin count and memory requirements. For most embedded applications, 32KB flash suffices, but projects involving datalogging or complex sensors demand 128KB or higher. Verify clock speed: 16MHz covers real-time tasks, while 8MHz reduces power consumption for battery-operated designs. Always match the core’s voltage (5V or 3.3V) to peripheral components to prevent level-shifting overhead.
Incorporate regulated power delivery using an LM1117 or AMS1117 linear regulator for stable 5V/3.3V output. Calculate current draw (sum of all components + 20% buffer) and select a regulator with at least twice the capacity–for example, a 1A regulator for a total 500mA load. Decoupling capacitors (10μF and 0.1μF) must sit within 2cm of the core and each power-hungry module to suppress noise. For portable setups, add a 18650 lithium cell with an MCP73831 charger IC, ensuring 1A charge rate and thermal protection.
| Component | Key Specifications | Recommended Model |
|---|---|---|
| Microcontroller | 32KB+ flash, 16MHz, 5V/3.3V tolerant | ATmega328P, STM32F103 |
| Voltage Regulator | 1A+ output, thermal shutdown | LM1117-5.0, AMS1117-3.3 |
| Charger IC | 1A charge current, JEITA compliance | MCP73831, TP4056 |
| Sensors | Digital/I2C interface, ±2% accuracy | BME280, MPU6050 |
Communication interfaces dictate data transfer rates: UART (115200 baud) handles simple serial, while SPI (10MHz) suits high-speed sensors like the ADXL345. For wireless, the ESP8266 (Wi-Fi) draws 70mA active, demanding a dedicated 3.3V regulator, whereas the NRF24L01+ (2.4GHz RF) draws 12mA but requires precise antenna matching (
Input/output peripherals must align with the core’s logic levels: 3.3V sensors (e.g., BME280) need level shifters when paired with 5V cores, while 5V relays (e.g., SRD-05VDC-SL-C) require ULN2003A Darlington arrays for current amplification (500mA per channel). PWM outputs benefit from 10kΩ pull-down resistors to eliminate floating states. For analog inputs, MAX6675 thermocouples or 10-bit ADC channels (4.9mV resolution at 5V) cover most sensing needs, but an external ADS1115 (16-bit) boosts precision for load cells or strain gauges.
Reset and debugging rely on a tactile switch connected to RST with a 10kΩ pull-up resistor, alongside a 0.1μF capacitor to filter noise. For programming, ICSP headers (2×3, 0.1″ pitch) enable bootloader flashing, while SWD (STM32) requires 4 pins (VDD, GND, SWDIO, SWCLK). Reserve a 6-pin UART header for serial debugging (RX, TX, GND) and route error LEDs to critical nodes (power, SPI CS, I2C SDA/SCL)–use 220Ω current-limiting resistors to avoid burning 5mm LEDs at 20mA.

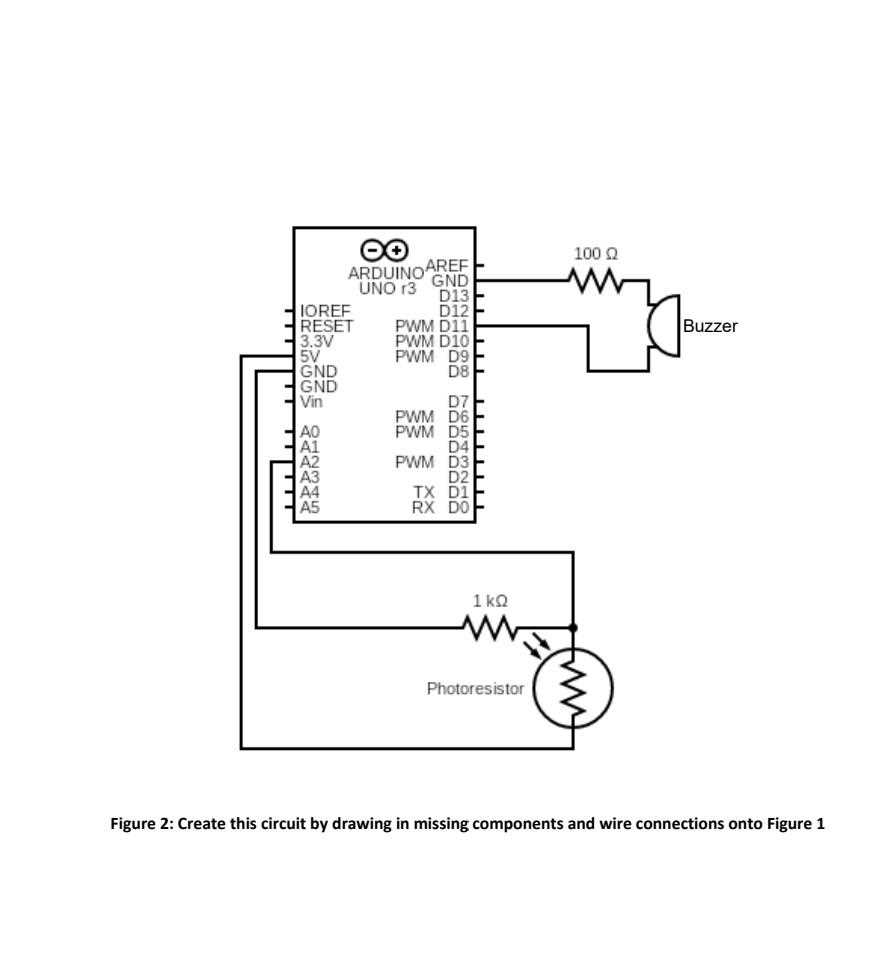

Constructing a Precise Electronic Blueprint for Microcontroller Projects
Begin by isolating every component required–power supply, microcontroller unit, sensors, actuators, and passive elements–listing their exact specifications: voltage ratings, current draw, pin assignments, and connectivity constraints. Use a dedicated design tool like KiCad, Fritzing, or Altium Designer to maintain traceability; avoid hand-drawn layouts as they introduce human error. Configure grid settings to 0.1-inch spacing for through-hole parts, ensuring alignments compatible with standard protoboards or manufacturable PCBs. Group related subsystems (e.g., regulated voltage, signal conditioning, I/O expansion) into discrete sections, labeling each net with unique identifiers to prevent ambiguity during debugging.
Route power rails first–separate analog and digital grounds, joining them only at a single star point near the supply, typically the battery or mains adapter’s negative terminal. Implement decoupling capacitors (0.1 µF ceramic) within 0.5 cm of every IC power pin to suppress noise; for high-frequency operations, add bulk capacitors (10 µF electrolytic) at board entry points. Signal paths should prioritize shortest feasible traces, avoiding right-angle turns–use 45-degree angles or gentle curves to reduce electromagnetic interference. If transistors, relays, or LEDs are present, calculate base/gate resistor values using Ohm’s Law (VCC – VBE/IB for BJTs) and validate with SPICE simulation before finalizing.
Validation Workflow Before Finalization
Export netlist files from the design tool and execute a design rule check (DRC) with PCB-specific constraints: minimum trace width (10 mils for signal, 30 mils for power), annular ring clearance (8 mils), and silkscreen-to-pad spacing (12 mils). Cross-reference every component footprint against manufacturer datasheets, confirming land patterns match physical package sizes–common pitfalls include mismatched SOT-23-6 pinouts or excessive pad spacing on QFP packages. Generate Gerber files, including drill aperture files (Excellon), and upload to a fabrication service or use a CNC mill for in-house boards; omit this step only if using perfboards or solderless assemblies where precise routing is unnecessary.
Assemble a test fixture mimicking the final application–breadboard prototypes should replicate exact trace resistance and capacitance, achieved by trimming wires to match intended PCB lengths. Measure power rail stability oscilloscope, ensuring ripple stays below 50 mVpp under peak load; isolate digital noise sources by toggling outputs at maximum frequency while monitoring analog signals. Annotate the final layout with version number, date, and designer initials; archive both schematic source files and fabrication outputs in a version-controlled repository for future revisions.
