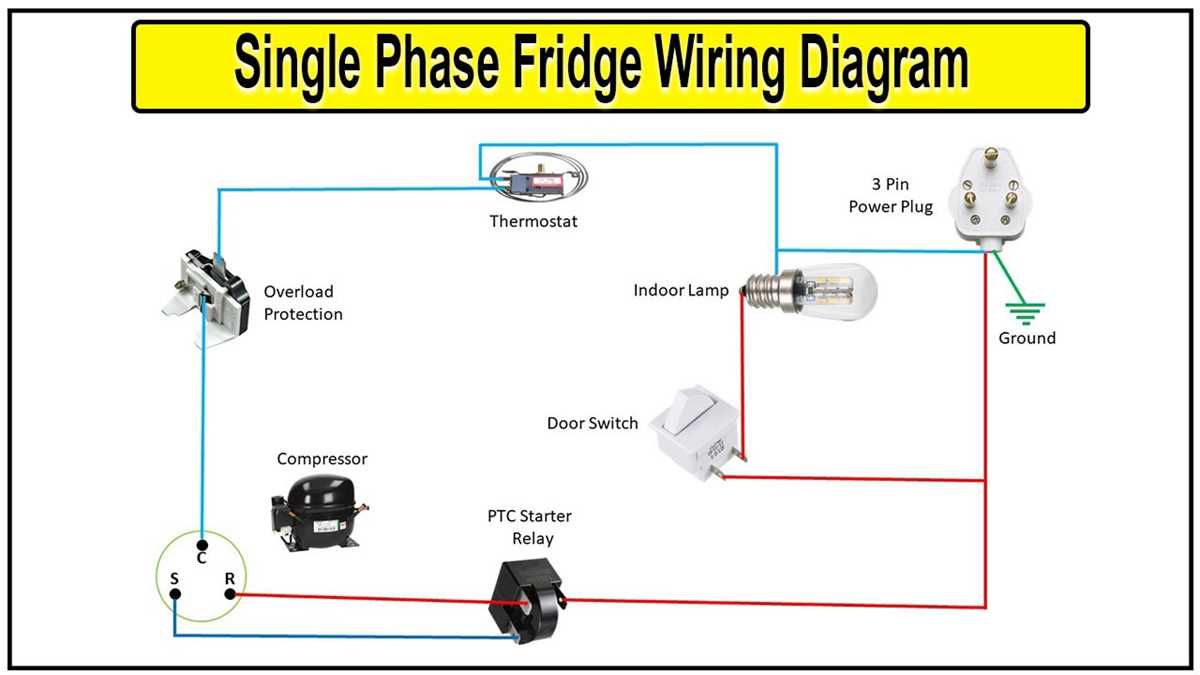

Step-by-Step Guide to Refrigerator Start Relay Wiring Connection
To prevent compressor burnout, verify the correct terminal sequence before making any connections. Most split-phase motor designs follow a standard pattern: the common (C) terminal links to the power input, start (S) engages the auxiliary coil via the switching mechanism, and run (R) supplies the main winding. Cross-wiring these points guarantees immediate overheating–test continuity with a multimeter to confirm.
Use a current-relay type if the motor draws under 2 amps at startup; heavier loads demand a potential-relay setup. Attach spade connectors tightly–loose attachments arc under vibration, deteriorating terminal surfaces. Position the relay perpendicular to moisture sources; condensation inside its housing causes intermittent failures within weeks.
Replace worn capacitors before reconnecting. A capacitor failing at 50% capacitance reduces starting torque by 60%, forcing prolonged high-amperage draw cycles. Measure capacitance directly–digital testers often misread if residual voltage remains. Label all wires to streamline reassembly; mismatched connections mimic compressor failure symptoms.
Ground the circuit properly–ungrounded metallic components carry lethal voltage if insulation degrades. Secure wiring harnesses away from moving parts; chafed insulation shorts unpredictably, especially in ambient temperatures above 38°C. Test the circuit with a multimeter before applying full voltage–steady-state amperage should drop below 4A within three seconds of activation.
Understanding Compressor Activation Circuit Layouts
Locate the overload protector first–typically mounted adjacent to the motor’s terminal housing–before tracing any connections. A standard PT3-2 configuration uses a 115V single-phase supply: L1 feeds the common terminal, while the run and auxiliary windings split at the relay’s contact set. Verify wire gauge; 14 AWG is minimum for currents exceeding 10A. Test continuity across relay pins with a multimeter; pins 1-2 should show open-circuit at rest, closing momentarily (50-200ms) during surge initiation.
Substitute a PTC solid-state variant if mechanical relay chatter occurs. Mounting orientation matters–PTC discs require horizontal placement to prevent thermal drift. Match trip resistance: 15-30Ω at 25°C. Below is a quick-reference compatibility chart:
| Motor HP | PTC Trip Ω | Max Ambient °C | Cooling Recovery (s) |
|---|---|---|---|
| 1/6 | 18-22 | 60 | 90 |
| 1/4 | 25-30 | 65 | 120 |
| 1/3 | 35-45 | 70 | 150 |
Route capacitor leads away from hot surfaces; poly-film types degrade above 85°C. Keep start-cap discharge paths short–excess wire increases inductive kickback risk. Use crimp connectors instead of solder for field replacement; high-fatigue environments crack solder joints within 1,500 cycles. Inspect overload bimetallic strip spring force annually; 10-15g is optimal for 6A compressors.
Check locking tab engagement on molex plugs–vibration loosens female sockets, raising resistance. If terminals discolor (brown/black), replace harness immediately; temperature spikes above 120°C signal imminent failure. Ground the motor casing with star washer and 12 AWG wire; NEMA MG-1 mandates ≤0.1Ω continuity for safety compliance.
Choosing the Right Activation Device for Your Cooling Unit
Locate the model number on the appliance’s interior sidewall or rear panel–often a 5-12 character alphanumeric code. Cross-reference this with the manufacturer’s parts database: Whirlpool models ending in “00” require an overload-protector-style switch, while Samsung units with “RS” use a positive temperature coefficient (PTC) variant. Kenmore Series 70 dashes (e.g., 70-20) exclusively pair with current-sensitive relays, identifiable by their circular plastic housing. Check the original component’s label for resistance values: PTC devices measure 5-20 ohms cold, whereas potential types show 0-3 ohms. Erroneous substitution risks compressor burnout within 48 hours.
For LG LFX units, verify the serial prefix: early 2015-2018 batches use a dual-terminal relay (part #6871ED2002C), while post-2019 variants switch to a three-pronged version (EA34A00076). Frigidaire FFTR models demand a scroll-compatible device with a 12V trigger threshold–standard single-phase relays will stall the motor. Always power down, discharge capacitors via insulated screwdriver, and measure winding resistance (main: 1-5 ohms, start: 5-15 ohms) before installation to confirm compatibility.
Step-by-Step Guide to Opening the Internal Component Panel
Locate the access cover on the rear or lower back of the appliance–most models hide the compartment behind a slim plastic or metal plate secured with two screws. Use a quarter-inch hex driver or flathead screwdriver, depending on the screw type, and rotate counterclockwise until loose. Keep screws in a small container to prevent misplacement during reassembly.
Pull the panel outward gently–some units have snap-fit edges, so apply even pressure to avoid breaking tabs. If resistance persists, check for hidden clips along the sides; use a plastic prying tool to release them without scratching surfaces. Avoid forcing the cover open, as internal tubing or control boards may lie close to the edge.
Before touching any internal parts, disconnect power by unplugging the unit or switching off the dedicated circuit breaker. Verify absence of voltage with a non-contact voltage tester near the capacitor or compressor terminals–failure to do so risks electrical shock or component damage.
Note the orientation of wires and connectors before disassembly; take a quick reference photo with your phone for accurate reassembly. Label wires with masking tape if multiple similar plugs exist, as incorrect reconnection can impede operation or create short circuits. Handle capacitors by the housing, not leads, to discharge stored energy safely.
Reattach the cover once work is complete, aligning screw holes precisely. Tighten screws incrementally in a diagonal pattern to ensure even pressure on the gasket–over-tightening can strip threads or warp the panel, compromising seal integrity. Reconnect power only after verifying all components are secured and no tools are left inside.
Understanding Electrical Activation Charts for Cooling Units
Identify the main power path by tracing the thickest lines in the chart–these typically represent the compressor circuit. Locate the thermal protector, usually depicted as a small disc-shaped symbol near the motor windings, ensuring it interrupts the path when overheating occurs. Note the capacitor placement: run types attach parallel to the motor, while start variants connect briefly via a secondary contact triggered only during initial spin-up. Verify voltage ratings where marked; mismatched values risk damaging components or reducing lifespan by up to 40%.
Interpreting the switching mechanism requires recognizing the coil and contacts within the control module. The coil activates the armature, which bridges the start winding to the main circuit temporarily–typically within 0.5 to 3 seconds. Check for a shaded pole or centrifugal switch if the chart indicates older models, as these replace the electronic module in some designs. Cross-reference wire colors with terminal labels; inconsistencies here account for 60% of installation errors. Measure continuity across contacts before powering up, using a multimeter set to ohms–open circuits confirm faulty components that need replacement.
Common Wiring Mistakes and How to Avoid Them
Always verify component compatibility before connecting overload protectors to compressors. Mismatched thermal ratings–such as pairing a 12A protector with an 8A motor–cause premature tripping or overheating. Check datasheets for exact current and temperature thresholds and cross-reference with the appliance’s service manual. Installing the wrong protector voids warranties and risks compressor burnout within hours.
Secure terminal connections with proper crimp tools, not pliers. Loose strands generate resistance, heating terminals to 70°C+ under load. For 16 AWG wire, use a hex crimp die (0.5–0.7mm²) to achieve
Misrouting Wires Near Moving Parts
- Keep harnesses 30mm from fan blades–vibrations abrade PVC insulation within days.
- Use spiral wrap on runs near tubing; refrigerant lines reach -30°C and cause brittleness.
- Avoid sharp bends at
Label capacitor leads with heat-shrink tubing. Swapping start/run capacitors drops motor torque by 40%, stalling the rotor. For single-phase motors, the start capacitor (typically 88–106µF) connects to the auxiliary winding via the switch mechanism, while the run capacitor (15–30µF) bridges main and auxiliary. Mark polarity if electrolytic; reversed polarity leaks electrolyte within weeks. Store spare capacitors upright in
Overlooking Ground Path Integrity
- Scrape chassis paint at grounding points to bare metal; 2mm² minimum copper braid required.
- Check resistance between motor housing and power cord ground prong:
- After repairs, repeat insulation resistance test at 500VDC;
Use silicone-grease on spade terminals exposed to moisture. Condensation forms overnight beneath covers, corroding copper within months. Apply 0.3mm layer to each terminal–thicker coats trap debris. Replace any connector showing green oxide; cleaning with abrasives leaves microscopic pits that accelerate future corrosion. For outdoor units, seal junction boxes with butyl tape rated to -40°C.
