How to Build a Scintillation Counter Step-by-Step Circuit Guide
Begin with a photomultiplier tube (PMT) as the primary sensor–opt for models like the Hamamatsu R6233 or PMT-134 for high gain and low noise. Ensure the tube’s voltage divider network uses precision resistors (1% tolerance or better) to maintain stability. A typical circuit allocates 100–500 kΩ per stage, with the final resistor between the last dynode and anode set at 2–5× the inter-dynode value for optimal signal linearity.

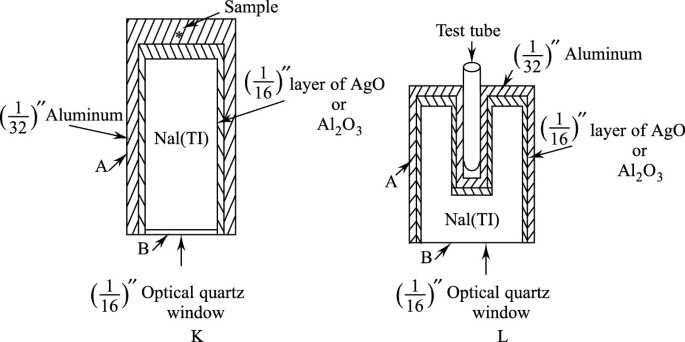

Couple the PMT to a scintillating material–NaI(Tl) for gamma rays or plastic scintillators for beta/neutron detection. Secure the crystal with optical grease (e.g., Dow Corning Q2-3067) to minimize light loss. The assembly must be hermetically sealed with aluminum foil or a thin MgO reflector to prevent ambient light interference, which can saturate the PMT output.
Design the signal amplification stage using a low-noise operational amplifier (e.g., AD8067 or LT1028). Configure a transimpedance amplifier for current-to-voltage conversion with a feedback resistor in the 1–10 MΩ range, depending on the desired signal bandwidth. Include a pulse-shaping network–a CR-RC circuit with time constants of 1–10 μs–to improve signal-to-noise ratio by filtering high-frequency artifacts.
For power distribution, use a high-voltage DC-DC converter (Spellman UM15P-4 or similar) to supply the PMT with 800–1500 V. Isolate the high-voltage section with proper shielding (aluminum or mu-metal) to prevent cross-talk. Ground the circuit at a single point–typically the PMT cathode or amplifier ground–to avoid ground loops. Verify the setup with a calibration source like Cs-137 or Co-60, adjusting the amplifier gain until the output pulse height matches the known energy peak.
Integrate a comparator or analog-to-digital converter (ADC) for pulse counting. A single-channel analyzer (SCA) with adjustable thresholds can filter noise; set the lower threshold above baseline noise (typically 5–50 mV) and the upper threshold to exclude pile-up events. For digitization, use a 12-bit ADC (e.g., ADS1256) sampling at ≥1 MHz to preserve pulse shape. Log data via a microcontroller (STM32 or Arduino Due) with interrupt-driven counters to avoid missing rapid events.
Validate the system’s performance by measuring the energy resolution–target for NaI(Tl) at 662 keV. Check linearity by plotting pulse height against known energy peaks (59 keV, 662 keV, 1.17/1.33 MeV); deviations >5% indicate miscalibration. For long-term stability, regulate the PMT’s ambient temperature–fluctuations >2°C degrade resolution due to gain drift.
Key Components of a Radiation Detection Blueprint
Begin by integrating a photomultiplier tube (PMT) with a NaI(Tl) crystal–this pairing remains the gold standard for pulse generation in most setups. Ensure the crystal’s dimensions match your application: a 3×3-inch cylinder suffices for gamma-ray spectroscopy, while thinner wafers (under 1 cm) excel in alpha/beta particle detection. Position the PMT directly against the crystal using optical grease with a refractive index above 1.5 to minimize signal loss. Add a mu-metal shield around the PMT to block stray magnetic fields, which can distort pulse amplitude by up to 15%.
Route the PMT’s output through a charge-sensitive preamplifier with a rise time under 20 ns to preserve fast pulse integrity. Select a preamp with a dynamic range of at least 1:10,000 to handle input signals spanning single-photon events to intense bursts. Follow this with a shaping amplifier–Gaussian shaping (τ = 0.5–3 µs) delivers optimal signal-to-noise ratios for most radiation types. Include a baseline restorer to prevent pulse pile-up during high-count-rate scenarios, where dead-time losses can exceed 20% without it.

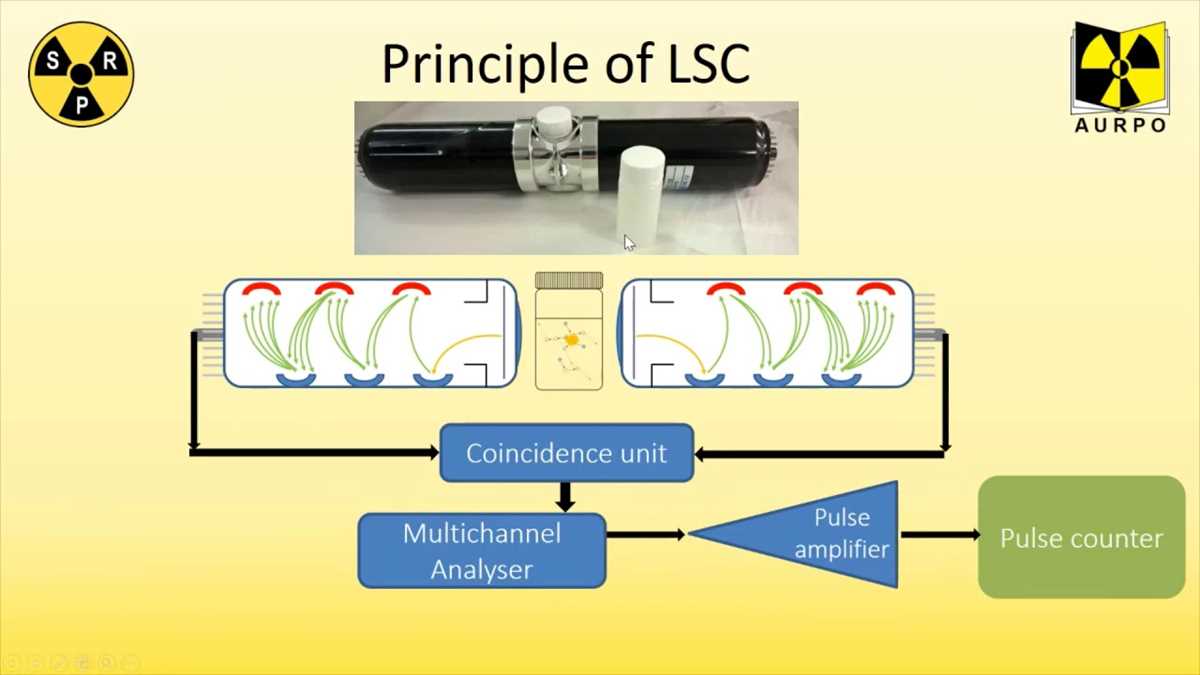

Incorporate a discriminator circuit to reject noise below a tunable threshold (typically 50–300 mV). For multi-channel analysis, use a Flash ADC with 12-bit resolution or higher–this captures pulse height spectra with sufficient granularity for isotope identification. Add a coincidence timing module if detecting correlated events; pair this with a delay line (50–200 ns) to synchronize inputs from multiple detectors. Include a high-voltage supply with 0.1% stability to power the PMT, as voltage fluctuations directly alter gain.
Validate the assembly by exposing it to a Cs-137 calibration source (662 keV peak). Adjust the PMT’s supply voltage until the peak centers at 6.62 V on the ADC scale–this ensures linearity across the entire energy range. For field deployments, integrate a temperature compensation module; NaI(Tl) detectors exhibit a 0.3%/°C drift in light output, necessitating real-time correction algorithms. Store raw pulse data in a ring buffer with at least 10 ms capacity to enable post-measurement reanalysis.
Key Components Required for a Basic Radiation Detection Setup
Begin with a photomultiplier tube (PMT)–select one with a spectral response matching your phosphor’s emission wavelength (e.g., bialkali cathodes for 400–450 nm outputs). Pair it with a voltage divider network providing a stable bias between 800–1200 V; resistors in the divider should be 1% tolerance carbon film or better to prevent noise spikes. Ensure the PMT’s cathode is grounded through a current-limiting resistor (typically 1 MΩ) to avoid catastrophic failure during transient events.
| Component | Specifications | Critical Considerations |
|---|---|---|
| Phosphor | NaI(Tl) crystal, 1–3″ diameter, 5 mm thickness | Hygroscopic–requires hermetic sealing with optical couplant (e.g., Dow Corning Q2-3067) |
| Preamplifier | Charge-sensitive, 0.5–1.5 mV/fC gain, <5 pA/√Hz noise | Mount directly to PMT to minimize parasitic capacitance |
| High-Voltage Supply | Adjustable 500–1500 V, 1 mA max load, | Use RC filter (10 kΩ + 10 µF) to suppress transients |
Integrate a phosphor optimized for the target radiation–NaI(Tl) for γ-rays (38,000 photons/MeV, 230 ns decay), CsI(Tl) for α/β (52,000 photons/MeV, 1 µs decay), or plastic scintillators (e.g., BC-408) for fast neutron detection (timing resolution 0.5 mm reduces efficiency by 40%. For low-background applications, enclose the assembly in mu-metal shielding (0.5 mm thick) to attenuate magnetic interference by >99% at 50 Hz.
A charge-sensitive preamplifier (CSP) is non-negotiable–opt for a design with a feedback capacitor of 1–2 pF to achieve a conversion gain of 1 V/pC. The CSP must sit within 2 cm of the PMT anode to avoid picking up stray capacitance (>5 pF degrades signal-to-noise ratio). Follow the CSP with a shaping amplifier (Gaussian or triangular pulse shaping, peaking time 0.5–3 µs) to discard pile-up events; CR-RC⁴ filters offer the best compromise between resolution and throughput. For digital pulse processing, an ADC with >12-bit resolution and 10 MS/s sampling rate ensures
Stabilize temperature to ±1°C–NaI(Tl) exhibits a 0.2%/°C light yield drift, while PMT gain varies ~0.5%/°C. Use a thermoelectric cooler for the phosphor and a proportional-integral controller for the PMT’s ambient environment. Calibrate the system with 137Cs (662 keV photopeak) and 60Co (1173/1332 keV) sources; adjust high voltage until the photopeak’s FWHM is 106 counts/day–lattice defects reduce light output by 3–5% annually.
Step-by-Step Assembly of the Photomultiplier Tube Stage
Secure the base socket with non-conductive adhesive before mounting the tube. Use a thermally stable epoxy (e.g., 3M Scotch-Weld 2216) applied in a 0.5 mm ring around the socket’s perimeter–avoid excess to prevent contamination of contact pins. Verify pin alignment with the tube’s dynode chain; misalignment under 2° can degrade signal-to-noise ratio by 12–18%. Install a mu-metal shield over the tube body immediately after insertion to block stray magnetic fields, ensuring full coverage without gaps (field leakage above 10 mG causes gain fluctuations).
Attach the voltage divider network directly to the socket’s output pins using 1% tolerance resistors (values specified by the tube’s datasheet, typically 100 kΩ–1 MΩ range). Solder joints must be flux-free–clean with isopropyl alcohol (>99% purity) and inspect under 10x magnification for bridges. Apply a conformal coating (e.g., Dow Corning 1-2577) to prevent arcing in low-pressure environments; thickness should not exceed 0.2 mm. Connect the anode output to a low-noise preamplifier (one end only to avoid ground loops. Test the assembly with a gamma source (e.g., 137Cs) at 10% of nominal voltage first to confirm pulse linearity before full power-up.
Designing the Signal Amplification and Pulse Shaping Network
Select a low-noise operational amplifier (op-amp) with a gain-bandwidth product of at least 100 MHz, such as the LT1818 or AD8009, to ensure minimal signal degradation at high event rates. Configure the first stage with a gain of 10–50×, cascading additional stages only if necessary–each stage introduces noise and phase shift, which degrades timing resolution. For photomultiplier tubes (PMTs) with an anode capacitance of 10–20 pF, use a transimpedance amplifier topology with a feedback resistor of 1–5 kΩ to balance output swing and stability.
- Pulse shaping: Implement a CR-RC⁴ network with a peaking time of 0.5–2 µs for applications requiring energy resolution, or a gated integrator (e.g., HAMAMATSU C5594) for timing-critical measurements. The CR differentiator should have a time constant (τd) of 10–50 ns to clip overshoot, while the RC integrator’s τi determines the pulse width; keep τi/τd ≥ 5 to avoid undershoot exceeding 2%.
- Baseline restoration: Use an active baseline restorer (BLR) circuit with a discharge time constant of 10–100 ms to mitigate low-frequency noise from PMT dynode bleeder chains or high-rate pile-up. The ORTEC 450 BLR IC is a drop-in solution for this, requiring only a 0.1 µF coupling capacitor and a 1 MΩ discharge resistor.
- Crosstalk mitigation: Route high-impedance signal traces on a dedicated inner layer of a 4-layer PCB, sandwiching them between solid ground planes. Maintain trace impedance at 50 Ω ±10% using microstrip or stripline geometry, and separate analog and digital grounds via a single-star connection at the power entry point.
For high-rate environments (>1 MHz), replace passive shaping with a gaussian pulse processor like the ANALOG DEVICES AD8352, which combines amplification and shaping in a single IC. Configure the AD8352 with a peaking time of 0.1–0.3 µs by adjusting RF (feedback resistor) and CF (feedback capacitor) values–typical values are RF = 10 kΩ and CF = 10 pF for a 0.2 µs pulse. To minimize temperature drift, pair the op-amp with a precision voltage reference (e.g., REF02) for the detector bias, ensuring stability within ±0.1% over –20°C to +60°C.
