Step-by-Step Guide to Designing a Self-Balancing Robot Control Circuit

Start with an MPU6050 inertial measurement unit–it combines a 3-axis gyroscope and accelerometer to detect angular velocity and tilt angles with LD1117V33 regulator to avoid noise interference on the I2C bus. Connect SCL and SDA to an ATmega328P microcontroller, using 4.7kΩ pull-up resistors to maintain signal integrity.

For motor control, deploy an L298N H-bridge driver. Each channel handles currents up to 2A continuously, sufficient for 12V geared DC motors (e.g., Pololu 25D). Wire the driver’s IN1/IN2 and IN3/IN4 pins to the microcontroller’s PWM outputs–use fast PWM mode (timer1, 8-bit, 31.25kHz) for precise torque modulation. Add 0.1µF ceramic capacitors across each motor terminal to suppress EMI.

Calibrate PID constants experimentally: begin with Kp=10.0, Ki=0.5, and Kd=0.1. Adjust these values during pendulum drop tests, monitoring stability via serial plotter. The loop rate should exceed 200Hz–compile with -O2 optimization enabled to prevent computation delays. For power distribution, use a LiPo 3S (11.1V) battery with a 5A fuse in line; avoid linear regulators–switching modules (e.g., LM2596) reduce heat losses.

Critical failure points to test: I2C bus freezing–implement a 1ms watchdog timer reset; sudden motor stall–use current sensing resistors (shunt 0.5Ω) to detect overcurrent and trigger a hardware cutoff via LM358 comparator. Mechanical balance requires wheel diameter ≤70mm; larger diameters increase inertia, reducing response speed.

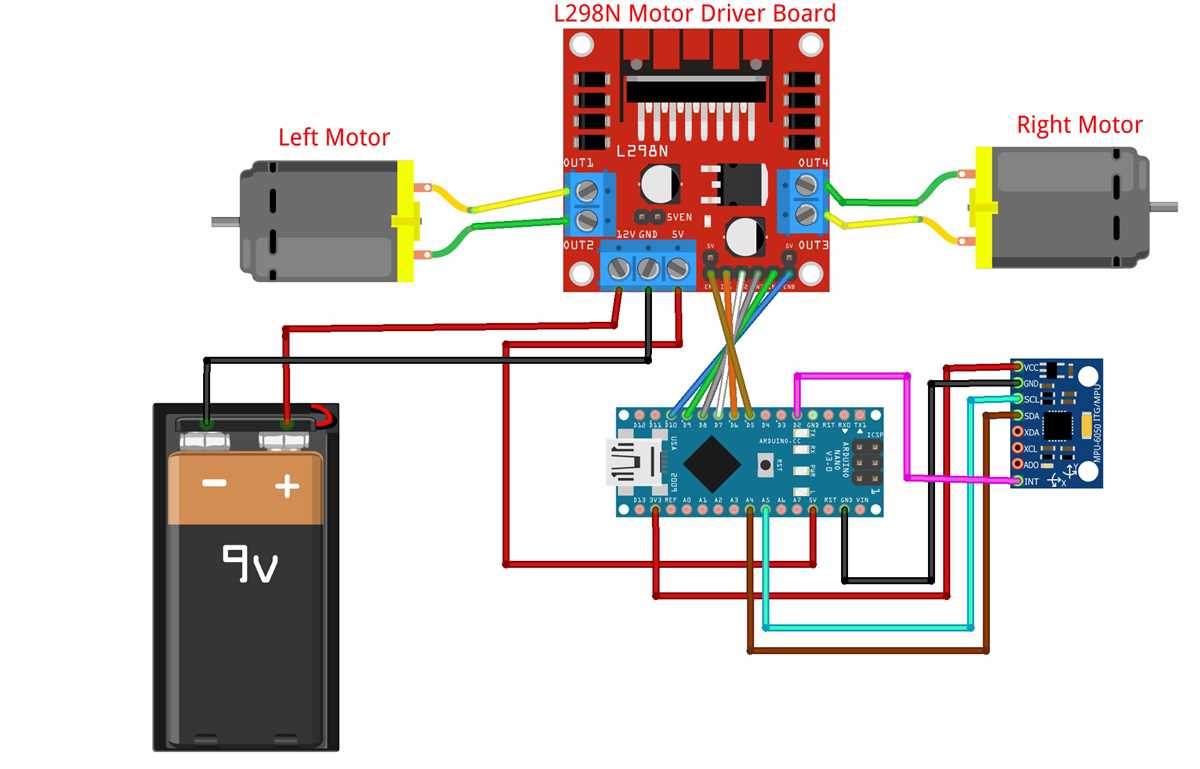

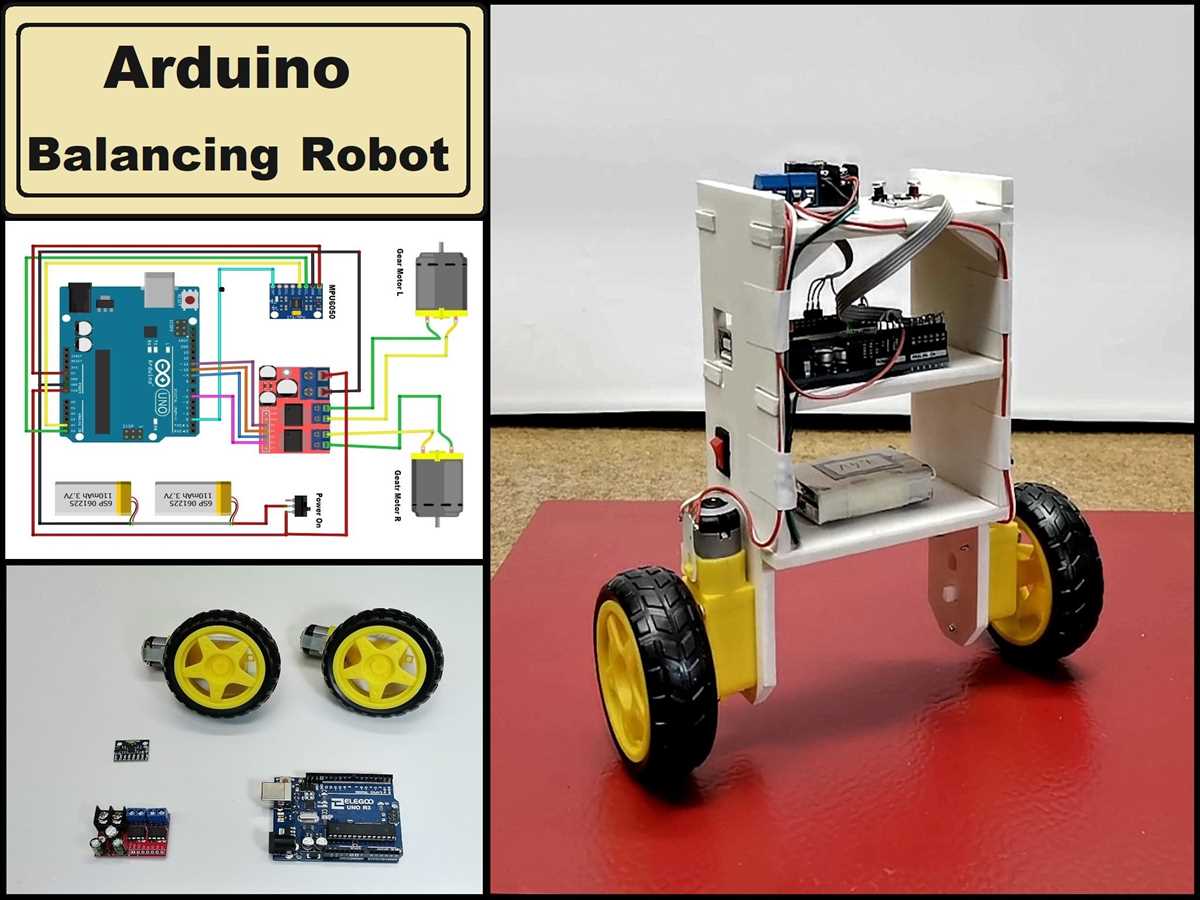

Autonomous Stabilizer Mechanism Schematic

Start with a dual H-bridge motor driver like the DRV8833 or L298N. These handle 1-2A per channel, sufficient for most two-wheeled designs. Connect the driver’s logic inputs to an ATmega328P or STM32F103 microcontroller–avoid Arduino boards if compactness matters. Power the driver separately (6-12V) from the MCU’s 5V rail to prevent noise coupling. Add 100nF decoupling capacitors across each driver IC’s power pins to suppress transients.

Mount a MPU6050 IMU near the center of mass–deviations over 5mm degrade performance. Wire it via I2C (SCL to A5, SDA to A4 on ATmega) and calibrate offsets in code. For real-time responsiveness, set the IMU’s DLPF bandwidth to 5Hz and disable sleep modes. Pair the IMU with quaternion-based complementary filters instead of raw PID loops; the former better handle gyro drift without external tuning.

Power Distribution and Safety

Use a LiPo 2S (7.4V) battery with a 5A fuse for overcurrent protection–cheaper alternatives like NiMH sag under load. Split the power bus: one branch through a LM2596 buck converter for the MCU (5V), another unregulated for motors. Add a Schottky diode (1N5822) between battery and driver to block reverse polarity. Include physical switches for power and emergency cutoff; software-only resets risk runaway states.

Program the control loop at 100-200Hz update rates. Start with conservative PID gains (Kp=30, Ki=0.1, Kd=5) and adjust empirically–excessive I-term causes oscillation. For debugging, route serial output to an HC-05 Bluetooth module and log data via Android’s Serial Bluetooth Terminal. If stability remains elusive, replace rubber wheels with plastic or aluminum–the added traction reduces unpredictable slip.

Critical Elements for an Autonomous Stabilization System Blueprint

Select an MPU6050 or ICM-20948 as the inertial measurement core. The MPU6050 integrates a 3-axis accelerometer with a 3-axis gyroscope, delivering ±2g to ±16g and ±250°/s to ±2000°/s ranges at 16-bit resolution. For better drift stability, the ICM-20948 adds a 3-axis magnetometer, reducing yaw errors by 40% in prolonged operation.

Pair the sensor with a 32-bit microcontroller running a 100-200Hz control loop. STM32F405 offers 168MHz clock speed, hardware floating-point unit, and DMA for sensor data streaming. Alternatively, ESP32-S3 provides Wi-Fi/BLE integration at 240MHz for IoT monitoring while consuming 20% less power than STM32.

Implement a complementary filter or Kalman filter to fuse accelerometer and gyroscope data. The complementary filter reduces computational load by 70% vs. Kalman, using simple high-pass/low-pass fusion:

• Calculate tilt angle: θ = 0.98*(θ + gyro_data*dt) + 0.02*accel_angle
• dt = loop interval (5-10ms for 100-200Hz)
• Error margin: ±0.5° for complementary, ±0.1° for Kalman

Use high-torque 12V DC motors with 30:1 or 50:1 gear ratios. Specifications should include:

1. 100-150 RPM no-load speed
2. 4-6 kg⋅cm stall torque
3. Encoder resolution ≥ 12 pulses/revolution (quadrature)
4. L298N or BTS7960 bridge drivers (15A continuous, 30A peak)

PWM frequency of 20kHz minimizes audible noise while maintaining 96% efficiency.

Add a 11.1V LiPo battery with 2200mAh capacity and 20C discharge rate. Key features:

• Undervoltage protection at 3.0V/cell
• Balanced charger (≤1A/cell)
• Polyswitch fuse (5A) for short-circuit safety

Runtime scales linearly: expected 30-45 minutes for 500g payload, reduced to 20 minutes for 1.2kg.

Auxiliary Safety and Tuning Mechanisms

Include a 7-segment display or serial output for real-time PID parameter adjustments. Optimal starting values:

• Kp = 30-50 (proportional gain)
• Ki = 0.1-0.5 (integral gain)
• Kd = 200-400 (derivative gain)

Add physical kill-switch using a micro limit switch with 5mm actuation travel. Mount 10mm diameter rubber bumpers at 40mm height to protect components during tip-over events.

Connecting MPU6050 Gyroscope and Accelerometer to Arduino

Start wiring the MPU6050 by linking its VCC pin to Arduino’s 5V output–this ensures stable power delivery without voltage fluctuations. The GND pin must connect to Arduino’s ground to complete the circuit and prevent erratic sensor readings.

For I2C communication, attach the SCL (Serial Clock) pin of the MPU6050 to Arduino’s A5 pin, and the SDA (Serial Data) pin to A4. Use 4.7kΩ pull-up resistors on both lines if the wires exceed 20cm to maintain signal integrity.

The MPU6050’s INT (Interrupt) pin can be connected to a digital pin (e.g., D2) if you require real-time motion alerts. Configure the interrupt settings in code to trigger on specific events like free-fall detection or significant tilt changes.

Below is the pin mapping for clarity:

MPU6050 Pin	Arduino Pin	Purpose
VCC	5V	Power supply
GND	GND	Ground reference
SCL	A5	I2C clock signal
SDA	A4	I2C data signal
INT	D2 (optional)	Interrupt output

Avoid placing the MPU6050 near motors or high-frequency components–electromagnetic interference distorts accelerometer and gyroscope data. Mount it on a rigid surface using non-conductive standoffs to minimize vibration-induced errors.

Before uploading code, verify connections with a multimeter: measure continuity between VCC and GND to rule out shorts, and check resistance on SCL/SDA lines (should be ~4.7kΩ to VCC if pull-ups are used).

Use the Wire.h library for I2C communication and MPU6050.h (from i2cdevlib) for simplified sensor interfacing. Initialize the sensor with MPU6050 mpu;, then call mpu.initialize(); in setup(). Calibrate offsets by averaging stationary readings to eliminate bias drift.

Troubleshooting Common Issues

If readings freeze or return zeros, reset the Arduino and recheck SCL/SDA connections–loose wires are a frequent culprit. For noisy data, adjust the digital low-pass filter (DLPF) in code (mpu.setDLPFMode(3);) to smooth accelerometer/gyroscope outputs without excessive lag.

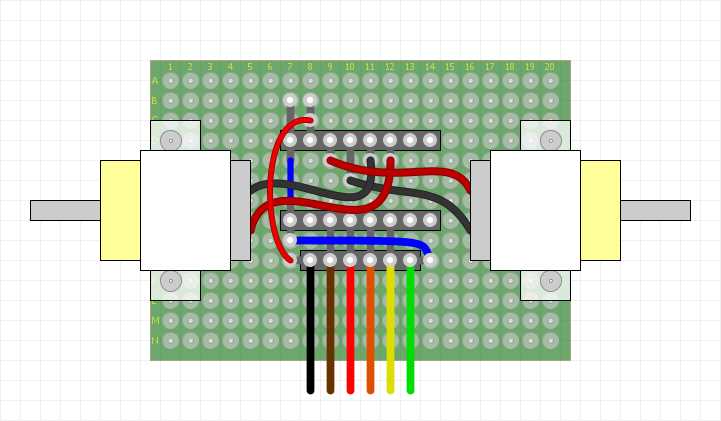

Configuring Dual H-Bridge Drivers for Dynamic Stabilization

Select L298N or TB6612FNG modules with continuous current ratings above 2A per channel to handle torque demands during correction cycles. Connect motor terminals directly to OUT1/OUT2 and OUT3/OUT4 without intermediate components–parasitic inductance degrades PWM response. Power each bridge from a separate 5–12V buck converter to isolate ground loops; shared rails introduce noise that skews sensor readings by ±0.3V. Route high-current traces (2mm width) under the control board to minimize EMI; avoid vias in these paths as they act as thermal bottlenecks. Post-solder, verify absence of shorts with a multimeter–resistance between adjacent pins must exceed 10MΩ.

• Wire STBY (TB6612FNG) or ENA/ENB (L298N) to a 3.3V GPIO through a 1kΩ resistor–direct logic-level connection risks latch-up.
• Connect IN1/IN2 and IN3/IN4 to microcontroller PWM outputs (10kHz–20kHz frequency) with dead-time insertion (3μs) to prevent shoot-through.
• Add 100nF ceramic capacitors across VM-GND and VCC-GND of each bridge to suppress voltage spikes (>50V/μs slew rates).
• Mount drivers on 20mm² copper pads with thermal vias (0.5mm diameter spaced 2mm apart) filled with solder–bare pads dissipate 3W; vias reduce junction temperature by 12°C.

Calibrate PID coefficients with driver outputs disconnected–locked-rotor current (6A for 12V) falsifies integral terms during tuning.

Power Supply Configuration and Battery Selection

Opt for a 2-cell LiPo battery with a capacity of 2200mAh or higher for stability-focused autonomous platforms. This configuration delivers 7.4V nominal voltage, sufficient to drive dual 6V motors while maintaining a 15–20% headroom for voltage drops during abrupt movements. LiPo chemistry provides high discharge rates (30–50C) necessary for dynamic load handling, with weight-to-energy ratios outperforming NiMH by 40%.

Voltage Regulation Requirements

Integrate a switching regulator module like the LM2596 or MP2307 to step down the battery voltage to 5V for microcontroller and sensor arrays. Linear regulators (e.g., 7805) waste excess energy as heat–switching regulators achieve 85–95% efficiency, critical for prolonging runtime. Ensure the regulator’s input voltage tolerance exceeds the battery’s maximum charge voltage (8.4V for 2-cell LiPo) by at least 1V to prevent overvoltage damage.

For motor drivers, bypass regulators entirely–feed H-bridges like the DRV8833 or L298N directly from the battery to avoid brownouts during high-torque operations. Calculate current draw: a single motor peaking at 2A under load demands a battery capable of sustaining 4A continuous output. Add a 1000µF electrolytic capacitor across the driver’s power inputs to suppress voltage spikes.

LiFePO4 batteries present a safer alternative for high-cycle applications, with 2000+ charge cycles compared to LiPo’s 300–500. However, their lower nominal voltage (3.2V/cell) requires a 3S arrangement (9.6V nominal) to match LiPo’s 7.4V output, increasing weight by 25%. Use LiFePO4 only if prolonged lifespan justifies the trade-off in power density.

Protection and Monitoring

Mandate a battery management system (BMS) for LiPo packs to prevent overcharge, overdischarge, or short circuits. Cheap BMS modules (e.g., HX-2S for 2-cell) cut off at 3.0V/cell–pair with an onboard fuel gauge IC like the MAX17043 to track remaining capacity with ±1% accuracy. For LiFePO4, overvoltage protection must trigger at 3.65V/cell to avoid irreversible capacity loss.

Solder 10–12 AWG silicone wires directly to the battery’s balance connector tabs to minimize resistive losses. Avoid generic JST connectors for high-current paths–their 3A rating suffices for signal wiring but melts under sustained motor loads. Replace with XT60 or EC5 connectors, rated for 60A and 100A respectively. Include a resettable polyfuse (e.g., 5A hold, 10A trip) in series with the battery for fail-safe overcurrent protection.

Recharge via a dedicated LiPo charger balancing all cells individually (e.g., Tenergy TB6-B). Steer clear of USB-C PD or generic wall adapters–their lack of balancing risks cell imbalance, reducing capacity by 30% after 50 cycles. For field operations, add a 10W solar panel with an MPPT charge controller (e.g., EPEVER AN-series) to trickle-charge a secondary 18650 battery bank (3.7V, 3400mAh) backing up low-power sensors during idle periods.
