Complete Sensi ST55 Thermostat Wiring Diagram with Color Code Guide
Begin by identifying the low-voltage wires attached to your HVAC system’s control board. Locate the terminals labeled R (power), C (common), W (heat), Y (cool), and G (fan). Ensure each wire matches the terminal–misalignment can cause system failure. If your setup includes a heat pump, additional wires (typically O/B) must connect to the reversing valve terminal. Verify wire colors against your system’s manual; standardization varies by manufacturer.
Turn off power at the circuit breaker before handling any connections. Use a multimeter to confirm 24V AC between R and C–this ensures the transformer is functional. Strip no more than 1/4 inch of insulation from each wire to avoid short circuits. Insert wires firmly into the terminal slots; loose connections lead to intermittent operation or damage. For systems with dual fuel, a separate wire may link to E (emergency heat)–consult the furnace’s technical specs before proceeding.
Label each wire at both ends–near the thermostat and HVAC board–to simplify future troubleshooting. If replacing an older unit, photograph the existing setup before disassembly. For configurations with humidifiers or dehumidifiers, attach auxiliary wires to designated terminals (often HUM or DHUM). Avoid stretching wires taut; leave slack to accommodate enclosure closure. Once connected, restore power and observe the display–error codes often indicate incorrect wiring, such as reversed R and C.
Test heating and cooling modes separately. Activate heat and verify the furnace ignites within 30 seconds; delay may signal an issue with the W terminal. For cooling, confirm the outdoor unit engages and airflow increases. If the fan runs continuously, check the G terminal for proper isolation. For two-stage systems, ensure both Y1 and Y2 wires route correctly–improper staging reduces efficiency. If equipped, calibrate the thermostat’s calibrate sensor after installation to maintain accuracy within ±1°F.
Step-by-Step Connection Layout for the ST55 Thermostat
Begin by identifying the R (power), W (heat), Y (cool), G (fan), and C (common) terminals on both the control unit and the HVAC system. Matching these labels prevents reverse polarity, which can damage components. Use 18-gauge solid copper wire for all connections, ensuring strands are twisted tightly before securing under terminal screws.
The R terminal must connect to the transformer’s 24V output–verify voltage with a multimeter before proceeding. If the system lacks a C wire, use an adapter kit to repurpose an existing wire or install a new one; skipping this risks intermittent power loss and erratic performance.
For heat pump configurations, additional terminals (O/B, E) appear on the board. The O/B wire toggles between heating and cooling modes–connect it to the reversing valve output from the outdoor unit. Label all wires with their corresponding terminal codes to simplify troubleshooting later.
- Single-stage gas furnaces: R → W only (no Y or G needed).
- Two-stage systems: W2 and Y2 terminals must link to secondary heat/cool outputs.
- Dual-fuel setups: Connect auxiliary heat (W2) to the emergency heat source.
After securing connections, wrap each terminal with electrical tape to prevent shorts from vibration or loose wires. Restore power and test each mode (heat, cool, fan) sequentially–listen for relay clicks and confirm compressor/blower engagement within 10 seconds. Delayed activation indicates a miswired common or transformer issue.
For smart integrations, link the C wire to the hub’s 24V reference point. Avoid pairing multiple thermostats on a single transformer unless the total load (in VA) remains below 80% of the transformer’s rating. Overloading causes voltage drops visible as flickering displays or failed boot cycles.
Keep a wiring map adjacent to the unit, noting wire colors, lengths, and any splices. If replacing an older model, trace the original layout first–some systems use unconventional color codes (e.g., blue instead of red for power). Always disconnect power at the breaker before altering connections.
Decoding Critical Elements in the Thermostat Installation Blueprint
Locate the transformer terminals first–typically labeled “R” and “C” on the control board. Verify voltage between these points using a multimeter; values should read 24VAC ±10%. Any deviation suggests a faulty power supply or improper HVAC system grounding, requiring immediate correction before proceeding.
Trace the heat pump reversing valve wire–marked “O/B”–to confirm its path to the outdoor unit. This conductor toggles between heating and cooling modes; improper polarity here causes compressor damage. Cross-reference with the equipment manual to ensure compatibility with the specific valve type (energized in heat or cool).
Examine the fan relay connections, identified as “G” on the schematic. This circuit energizes the blower motor in manual or automatic modes. Test continuity between the relay coil and corresponding HVAC terminal; a broken circuit indicates a defective relay or wiring fault. Replace the relay if resistance exceeds 50 ohms.
Identify the stage 2 heating/cooling wires–often “W2” and “Y2″–if your system supports multi-stage operations. These terminals engage auxiliary heating or enhanced cooling under heavy load. Ensure these lines connect to the correct HVAC sequencer or staging board; miswiring leads to inefficient temperature regulation.
Check the dehumidification terminal–if present–usually labeled “deHUM” or “DH.” This circuit triggers a secondary blower speed to remove excess moisture. Confirm the wire runs to the appropriate control module, as interference with standard cooling cycles disrupts humidity control.
Inspect the auxiliary power connections, particularly the “Aux” terminal on heat pump configurations. This wire powers supplemental electric heat strips during defrost cycles. Measure current draw during operation; values above system ratings mandate immediate fuse or breaker upgrades.
Verify the common (“C”) wire continuity across all low-voltage circuits. This shared return path completes the 24VAC circuit for all thermostat functions. Use a wire identifier tool to detect breaks; even minor corrosion here causes intermittent failures.
Cross-check all labeled conductors against the color-coding standard specific to your HVAC manufacturer. Variations exist between brands–some use red for “R,” others purple. Document discrepancies immediately; relying on generic color schemes risks catastrophic shorts in dual-fuel systems.
Step-by-Step Connection Process for Smart Thermostat Model ST55

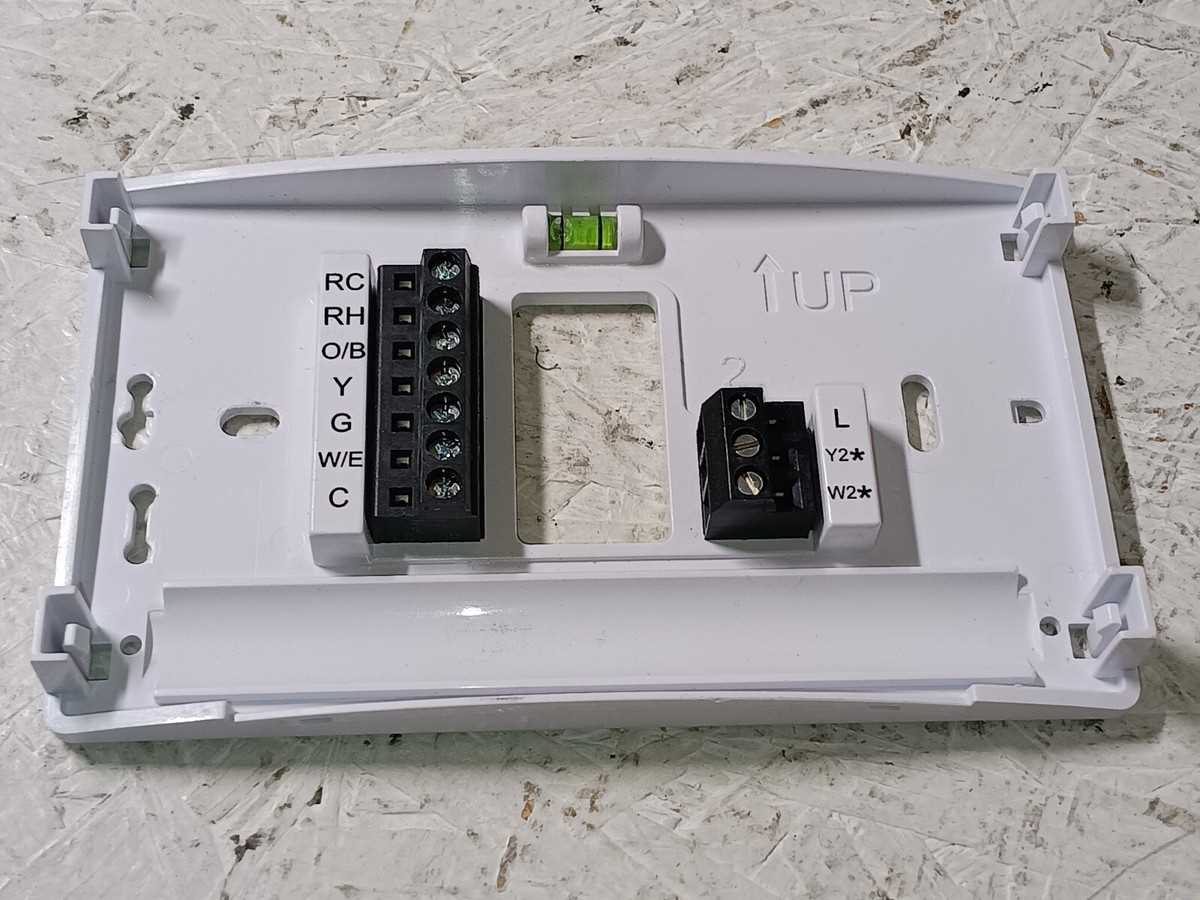

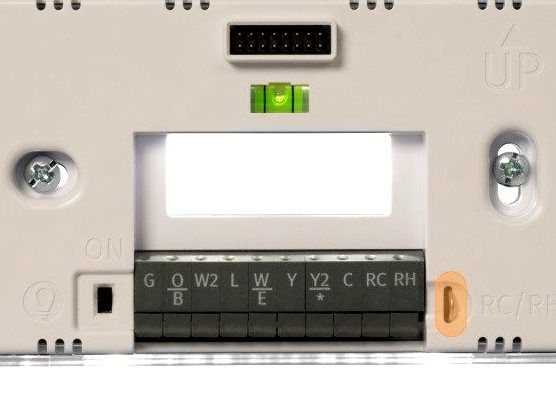

Disconnect power at the circuit breaker before handling any terminals to prevent electrical shock or equipment damage. Identify the low-voltage control board terminals–typically labeled R (24VAC power), C (common), W (heat), Y (cool), and G (fan)–on both the HVAC system and the thermostat baseplate. Use a multimeter to verify no voltage remains at the terminals, setting the meter to AC volts and probing between R and C; a reading above 0V indicates live power. Match each conductor from the HVAC to the corresponding terminal on the baseplate using the color-coded scheme below, securing connections with a screwdriver while ensuring no stray strands touch adjacent terminals:
| Terminal | Wire Color (Standard) | Function |
|---|---|---|
| R | Red | 24VAC power supply |
| C | Blue or Black | Common return |
| W | White | Heating stage |
| Y | Yellow | Cooling stage |
| G | Green | Fan relay |
After fastening all conductors, recheck each terminal for tightness, then restore power at the breaker. Observe the display screen for startup prompts–absence of display may signal incorrect or loose connections. For systems with auxiliary components (e.g., heat pumps or dual-fuel setups), consult the manual for O/B reversing valve or E/Auxiliary heat terminal requirements. If testing reveals no response, revert to the multimeter, probing R-C for 24VAC; a missing reading necessitates HVAC system inspection.
Common Connection Errors and Fixes
Reverse polarity is the most frequent setup blunder. Terminals marked “R” (power) and “C” (common) must align with the furnace’s 24V output–swapping them causes immediate failure. Test with a multimeter before tightening screws: red probe on “R,” black on “C”; 24-28V AC confirms correct pairing. If voltage is absent, inspect the transformer fuse or replace the low-voltage cable segment.
Ignoring furnace board labels guarantees mismatched signals. Label clusters like “G” (fan), “Y” (cool), “W” (heat), and “O/B” (reversing valve) must sync with control leads. Cross-reference the thermostat manual against furnace terminals–mismatches trigger “system lockout” errors. Verify jumper configurations; some older boilers require manual bridges between “R” and “C” for power continuity.
Overlooking jumper placements disrupts staging outputs. Dual-fuel setups demand specific links between “W2” and “Y2” for auxiliary heat. Remove all jumpers before connecting control wires–residual links cause phantom calls for secondary heat. Check continuity with a probe; zero ohms between unintended terminals indicates a short from forgotten jumpers.
Ground loops create erratic behavior. Twisted pair cables unspooled alongside high-voltage lines pick up interference. Separate low-voltage runs by at least 12 inches from 120V+ lines. Use shielded cable for runs longer than 50 feet–ground the shield at one end only. If lines must cross, do so at 90-degree angles to minimize induction.
Diagnosing False Readings
- Fluctuating temperatures despite stable inputs: Probe sensor resistance at room temp (typically 10kΩ ±1%). Faulty sensors drift ±3°F–replace if outside tolerance.
- Unresponsive display: Check for 3V DC at the display connector. Vcc below 2.7V indicates a drained backup battery; replace CR2032 before power loss corrupts settings.
- Ghost cycles: Ensure “C” terminal draws 20-30mA under load. Higher draws signal shorted components–inspect PCB traces for solder bridges.
Incorrect anticipator settings on mechanical boards cause premature cycling. Adjustable heat anticipators must match the heating relay’s amperage draw–typically 0.6A for gas valves, 0.4A for oil. Factory defaults often misalign; fine-tune by moving the slider until cycles stabilize at 5-6 minutes “on” per hour.
Screw terminals torqued incorrectly invite intermittent failures. Strip 0.25″ of insulation, twist strands clockwise, and secure with 8-10 in-lbs of torque. Over-tightening fractures terminal blocks; under-tightening causes oxidation buildup. Recheck connections annually–vibration loosens screws even without visible movement.
- Thermostat reports “low battery” despite fresh cells: Reset by removing power for 30 seconds, then hold the up/down buttons during reboot. Persistent errors indicate corrupted EEPROM–factory reset via software tools required.
- Cooling stages activate incorrectly: Verify “O/B” polarity matches the reversing valve type (normally open/closed). Invert the lead if heat pumps switch to cooling upon defrost.
- Humidity readings drift: Calibrate by placing the sensor in a sealed bag with distilled water for 4 hours–100% RH should display. Adjust offset via configuration menu if readings exceed ±5%.
