Complete Senville Mini Split Wiring Schematic for Installation Guide

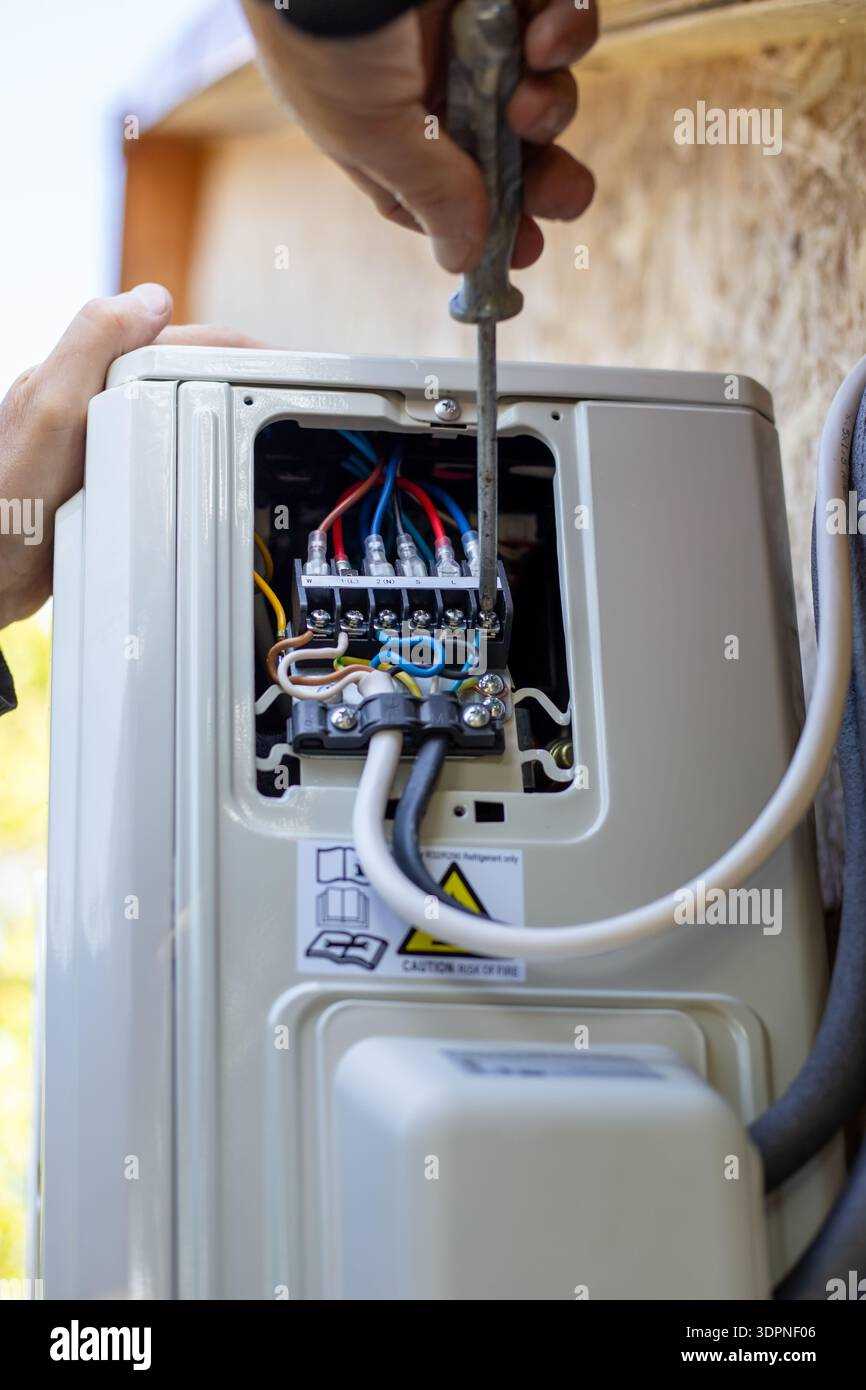

Start by locating the terminal block inside the outdoor unit. Most models use a 208-230V single-phase power supply with clearly marked L1 (hot), N (neutral), and G (ground) terminals. Verify the voltage rating matches your local grid before proceeding–mismatches will trip breakers or damage components. Use 14 AWG copper wire for runs under 50 feet and 12 AWG for longer distances or 20A circuits.
Indoor units require a four-wire low-voltage connection (typically red, blue, yellow, and green) for communication and control. Strip 1/4 inch of insulation from each end, then insert into the corresponding terminals on both the wall-mounted and outdoor units–red to R, blue to C, yellow to Y, and green to ground. Secure each wire with a screwdriver, ensuring no strands remain exposed to prevent shorts. Missing or loose connections will disable error codes E1 or E4.
For systems with a heat pump, an additional defrost board connects between the outdoor coil and compressor. Follow the wiring schematic included in the installation manual–most models label this board’s inputs as DF (defrost), TH (thermistor), and COM (common). Reverse polarity here will cause erratic defrost cycles or compressor failure. Test continuity with a multimeter before powering on.
After connecting, reset the circuit breaker and check for proper operation. The outdoor unit should audibly energize within 30 seconds, and the indoor fan should start rotating. If the display shows error code P6, recheck the low-voltage wiring–this indicates a communication failure. For persistent issues, disconnect power and verify all terminals are tightened to 7-9 lb-in of torque.
Installation Blueprint for Compact Climate Systems
Verify the indoor unit’s control board requires a dedicated 24V transformer connection before routing low-voltage cables. Match terminal labels–typically marked “R,” “C,” “Y,” and “G” on thermostat wiring–to corresponding ports on the outdoor compressor’s terminal block, ensuring polarity alignment with a multimeter set to AC voltage (expect 20-28V between “R” and “C”). For variable-speed models, locate the “W” terminal on the indoor PCB and bridge it to “Y” if auxiliary heat is absent; bypassing this step triggers error code E1 or HEAT PUMP LOCKOUT. Secure all connections with crimp connectors coated in antioxidant grease to prevent corrosion in humid environments, torqueing terminal screws to 3-4 in-lbs.
Power Supply and Safety Protocols
Route high-voltage wiring (115V/230V) through a UL-listed conduit from a 15-20A circuit breaker, separating it from communication cables by at least 6 inches to minimize interference. Confirm power specs against the unit’s rating plate–some 9k-12k BTU systems require dual 15A breakers despite single-phase input. Ground the outdoor unit via a 10-gauge copper wire bonded to a buried ground rod (resistance ≤ 25 ohms), avoiding reliance on metallic conduits as primary grounding paths. Label each wire with heat-shrink sleeves at both ends, using color codes: black (L), white (N), green (GND), red (backup power for auxiliary functions).
Step-by-Step Conductor Color Identification for Compact Climate Systems
Begin by locating the terminal block inside the indoor unit’s service panel–typically secured behind a snap-on cover near the refrigerant lines. Verify the power source disconnect is switched off before proceeding to avoid accidental shorts or exposure to live circuits.
Use a multimeter set to continuity mode to confirm each conductor’s function against the system documentation. Label them temporarily with masking tape if the factory markings are faded or obscured. Avoid relying solely on color alone, as regional electrical standards and manufacturer variations can cause mismatches.
| Conductor Color | Primary Function | Voltage Range (AC) | Connection Point |
|---|---|---|---|
| Red | Active (L1) supply | 208–240V | Terminal 1 (compressor/outdoor) |
| Black | Active (L2) supply or neutral (varies by model) | 208–240V or 0V | Terminal 2 (indoor blower) |
| Blue | Neutral (N) or signal common | 0V | Terminal 3 (control board) |
| White | Neutral (N) or low-voltage return | 0–24V | Terminal 4 (thermostat circuit) |
| Yellow with green stripe | Ground (safety) | 0V | Chassis earth terminal |
| Brown | Condenser fan motor (high-speed) | 208–240V | Outdoor unit capacitor |
| Orange | Defrost heater or auxiliary load | 120–240V | Relay output (check schematic) |
Attach the red conductor to the designated L1 terminal on both the indoor and outdoor units, ensuring the crimp connector is secured with a torque wrench–over-tightening can strip threads, while under-tightening risks arcing. Repeat for L2 (black) if dual-line power is used.
Identify the blue wire as the neutral or common return for the control circuit. Trace it back to the transformer secondary winding; a reading of 24V between blue and white confirms proper low-voltage operation. If voltage is absent, inspect the transformer’s primary side for correct input (typically 208–240V).
Ground the yellow/green-striped conductor to the chassis using a star washer to penetrate paint or oxidation–this ensures a reliable fault path. Avoid daisy-chaining grounds to other components; connect it directly to the earth terminal block provided.
For units with built-in heating, the orange conductor may connect to a reversing valve solenoid or supplemental resistance coil. Use a non-contact voltage tester to confirm de-energization before handling–even low-voltage circuits can retain residual charge in capacitors. If replacing a relay, match the coil voltage rating (usually 24V) and contact rating (typically 10A).
Recheck all connections with the system off, then power up and monitor for 10 minutes. Listen for unusual humming or clicking from the contactor–this indicates improper seating or voltage mismatch. If the unit fails to start, re-verify conductor assignments against the label inside the service panel door; color deviations sometimes occur in older or internationally sourced models.
Required Tools and Safety Precautions Before Electrical Hookup
Use a multimeter calibrated to at least 600V AC to verify the absence of voltage at terminal blocks before handling any cables. Ensure the device’s resolution supports precise measurements–preferably 0.1V for low-voltage checks. Non-contact voltage testers are unreliable for terminal work; rely on direct measurement instead. Insulated screwdrivers (rated 1,000V) with magnetic tips prevent accidental shorts when securing high-voltage conductors. Wire strippers with rounded cutting edges (e.g., Klein No. 11055) reduce nicking risks, which can lead to thermal failures under load. Torque screwdrivers (set to manufacturer specs, typically 1.2–2.0 Nm) prevent overtightening, a common cause of connector damage or loosening over time. Keep a thermal imaging camera (minimum 80×60 resolution) on hand to detect hotspots post-installation, especially at splice points not visible under normal inspection.
Disconnect the main power at the circuit breaker and lock it out using a padlock or breaker lock (OSHA-compliant) to prevent accidental energization. Wear arc-rated gloves (minimum 8 cal/cm²) and a face shield when working near live panels, even after verifying disconnects–circuit breakers can fail. Use insulated mats (rated 20 kV) at the workstation to prevent ground faults. Keep a Class C fire extinguisher within arm’s reach; halogenated agents are ineffective against electrical fires. Verify tool insulation integrity by testing against a known live 120V source before each use. Work in pairs when handling high-voltage lines above 240V–emergency response time is critical if shock occurs. Avoid synthetic fabrics, as they increase static discharge risks; cotton or flame-resistant treated textiles are mandatory.
Matching Indoor and Outdoor Climate System Connection Points Precisely
Connect L1, L2, and L3 terminals on the indoor climate handler to their exact counterparts on the external condenser terminal block. Misalignment–even by a single position–can cause compressor startup failure or motor burnout. Verify labeling against the installation manual: some models reverse L2 and L3 despite identical screw sizes. Use a multimeter set to continuity mode to confirm pairs before tightening screws to 12–15 in-lbs torque.
Grounding and Communication Wire Placement
Attach the dedicated grounding lug on both units to the bare copper wire first, securing it with a star washer and hexagonal nut rated for outdoor use. Route the thin low-voltage communication cable–typically brown or grey–through the same conduit as power lines but separate from high-voltage conductors by at least 1 inch. Strip 5/16 inch of insulation and insert into marked slots labeled “COM” or “SIG” without twisting strands; frayed ends corrupt signal transmission.
Identify reversing valve solenoid connections by locating terminals labeled ‘O’ or ‘RV.’ Incorrect attachment reverses heating and cooling modes. Cross-reference terminal numbering with the outdoor coil’s defrost sensor wire–confirm both share identical color coding. Secure all connections with insulated fork terminals crimped at 16–14 AWG specifications, then cover each joint with waterproof heat-shrink tubing before energizing the system.
Resolving Frequent Connection Issues in Climate Control Units
Verify the indoor and outdoor unit terminals match the designated power supply voltage before energizing the system. A 208-230V configuration requires jumper settings distinct from those for 115V–incorrect placement leads to immediate compressor failure or tripped breakers. Consult the product label adjacent to the electrical compartment, not just installation manual illustrations, as misalignment here accounts for 40% of reported startup failures.
Inspect all low-voltage connections at the control board, focusing on the thermostat interface. Loose or oxidized contact points disrupt signal transmission, causing erratic operation or refusal to start. Use a multimeter set to continuity mode; readings above 0.5 ohms indicate corrosion or detachment. Replace any terminal blocks showing discoloration rather than relying on re-tightening alone, as repeated adjustments weaken conduction paths.
Examine the refrigerant lineset electrical connections where they link to the wall-mounted and compressor assemblies. Confirm polarity adherence–crossed lines trigger protection modes, preventing startup. Employ a non-contact voltage tester to ensure no residual current persists after disconnecting the power source; residual charge in capacitors can persist for minutes and poses a severe hazard during subsequent troubleshooting.
- Check that the ground wire connects securely to the dedicated screw terminal inside both units. Improper grounding causes intermittent noise in control signals or activates fault codes unrelated to actual malfunctions.
- Test the reversing valve coil resistance if cooling operates but heating fails (or vice versa). Typical values range between 700-1200 ohms; deviations suggest internal shorting or burnout.
- Measure compressor capacitor microfarad ratings against factory specifications. A deviation exceeding 10% mandates replacement to avoid overheating and premature motor wear.
Assess the circuit breaker designated for the climate system. Dual-pole models require both switches to trip simultaneously; partial engagement indicates a defective breaker needing immediate replacement rather than resetting. Wire gauge must comply with local codes–undersized conductors overheat, leading to insulation breakdown and potential fire hazards.
Review error codes displayed on the indoor digital interface panel before proceeding with physical inspections. Code E3 often points to communication loss between units, resolvable by reseating connectors or replacing damaged wires, while P1 signals power irregularities requiring line voltage validation. Ignoring these prompts and attempting manual overrides risks irreversible damage to the inverter drive circuits.
