How to Connect Ammeter and Voltmeter in a Series Circuit Explained
Begin by placing the current sensor in line between the power source and the first resistive element. This arrangement ensures the device captures the total charge flow through every component without splitting the path. Position it after the switch but before any load to prevent false readings from switching transients. Use a low-resistance shunt model rated for at least 120% of the expected maximum current to avoid thermal drift or damage during prolonged operation.
Attach the voltage gauge across individual components or the entire arrangement depending on the diagnostic needs. For precise component-level analysis, connect the probes directly to the terminals of each resistor or lamp. To measure the total potential difference, span the leads across the power supply terminals. Choose a meter with at least 10 MΩ input impedance to minimize loading effects on the measured values–this is critical when working with high-resistance loads or low-power signals.
Verify the polarity of all connections before energizing the setup. Reverse polarity on the current sensor can damage its internal circuitry, while incorrect voltage probe alignment will yield negative readings. Label each measurement point clearly using heat-shrink tubing or color-coded wires: red for positive, black for negative, and separate colors for intermediate nodes. This ensures quick troubleshooting if readings deviate from calculated expectations.
Calculate the expected values before powering the configuration. For a closed loop containing three 100 Ω resistors in sequence at 12 V DC, anticipate 40 mA through each element and a 4 V drop across each resistor. Discrepancies beyond ±5% indicate faulty components, poor connections, or meter calibration errors. Use a multimeter in continuity mode to check for unintended breaks in the path before applying power.
Energize the setup with a variable-output supply. Start at 25% of the target voltage, then incrementally raise it while monitoring both meters. Sudden spikes in current or zero voltage readings suggest a short or open element, respectively. For inductive loads like motors or solenoids, include a freewheeling diode across the coil to suppress back-EMF spikes that can destroy sensitive measurement instruments.
Constructing a Sequential Electrical Setup with Current and Voltage Gauges
Place the current-measuring device inline with the load components–its terminals must connect directly in the unbroken path to ensure accurate readings of electron flow. Use thick-gauge wire (18–14 AWG) for connections between the source, resistive elements, and meter to minimize voltage drop; thin or corroded wiring introduces parasitic resistance, distorting measurements. The voltage gauge’s probes should contact the exact points across the component being tested–avoid touching adjacent segments, as this captures unintended potential differences.
Key Configuration Rules
- Power supply polarity: Match the source’s positive terminal to the first inline meter’s ‘IN’ terminal to prevent reverse current damage.
- Ground reference: Connect the voltage gauge’s ‘COM’ probe to the negative side of the power source or a designated ground node; floating grounds create erratic readings.
- Meter range selection: Start with the highest scale on both instruments (e.g., 10A for current, 20V for voltage) and downscale incrementally to locate the optimal, most precise setting without risking overload.
- Component spacing: Keep resistive elements like bulbs or resistors ≥5 cm apart to prevent thermal coupling, which alters resistance and skews voltage readings.
- Final validation: After assembly, measure total resistance with a multimeter before applying power–expected resistance is the sum of all resistive elements in the loop; discrepancies >5% indicate miswiring or faulty connections.
Integrating a Current Meter into a Sequential Path Without Altering Signal Strength
Disconnect power before inserting the measuring device. Locate a single break point in the conductive route–preferably a junction without additional branching–to maintain uninterrupted electron movement. The instrument’s internal resistance typically ranges between 0.01 to 0.1 ohms; selecting a model below 0.05 ohms minimizes voltage drop across its terminals. For precision, verify resistance specs in the datasheet against measured values using an ohmmeter.
Solder or clamp the meter’s terminals directly into the path. Avoid wire nuts or quick-connectors as they introduce contact resistance (~0.02 ohms per connection). For high-current applications (>10A), use thick-gauge leads (≤2.5 mm²) to prevent overheating at the connection interface. A 1 mm² wire will dissipate ~0.2W per ampere, risking thermal expansion and intermittent contact if undersized.
| Current Range (A) | Minimum Wire Gauge (mm²) | Max Safe Voltage Drop (mV/A) |
|---|---|---|
| 0.1–1 | 0.25 | 5 |
| 1–5 | 0.75 | 2 |
| 5–10 | 1.5 | 1.5 |
| 10–20 | 2.5 | 1 |
Polarity matters: align the instrument’s positive terminal upstream of the load. Reversing polarity in DC paths risks damaging analog needle-type meters, as their coil deflects oppositely under negative current. Digital meters tolerate reverse polarity but display negative readings, potentially confusing data interpretation. Confirm terminal markings–some manufacturers denote input (+) and output (-) with distinct symbols.
For transient analysis, use a meter with a fast sampling rate (≥1 kHz). Hall-effect sensors offer galvanic isolation, allowing insertion without breaking the loop, but introduce ±1% accuracy deviation. Shunt-based instruments provide ±0.5% precision but require direct integration into the signal path. If inserting a shunt, place it after inductive loads (e.g., motors) to avoid voltage spikes that exceed the meter’s maximum input rating (typically 100 mV for 100A shunts).
Calibrate the device post-installation by comparing readings against a reference standard. A 4-wire Kelvin connection eliminates lead resistance errors in low-current measurements (
Optimal Voltmeter Placement for Precise Potential Difference Readings
Connect the voltmeter directly across the component under test–whether a resistor, battery, or load–ensuring its probes attach to the entry and exit points of the current path through that single element. This parallel alignment isolates the voltage drop specific to the device, eliminating interference from adjacent segments. For a multi-segment arrangement, target one element at a time; attempting to span multiple parts distorts measurements by aggregating their combined potential differences.
- Position probes at the exact terminals of the target part, not just adjacent wiring junctions.
- Avoid spanning switches or connectors unless testing their own resistance contributions.
- For batteries, measure across their poles to capture full source electromotive force (EMF) or terminal voltage under load.
On high-impedance paths (e.g., megohm resistors), verify the voltmeter’s internal resistance exceeds the tested component’s by at least 100× to prevent loading effects. Most modern digital meters surpass this threshold, but analog models may require correction factors. For microcontroller-based designs, disable interrupts during sampling to shield readings from transient noise. Ground the meter’s negative probe to the nearest zero-reference point if floating voltages risk inaccuracies.
When diagnosing faults, probe sequentially:
- Confirm source voltage at the power supply output.
- Check each segment downstream, noting deviations from expected drops (Ohm’s Law: V = IR).
- Compare measured totals against the source–discrepancies indicate parasitic losses or faulty components.
Use Kelvin (4-wire) sensing for low-voltage (
Constructing a Sequential Electrical Layout Including Current and Voltage Gauges

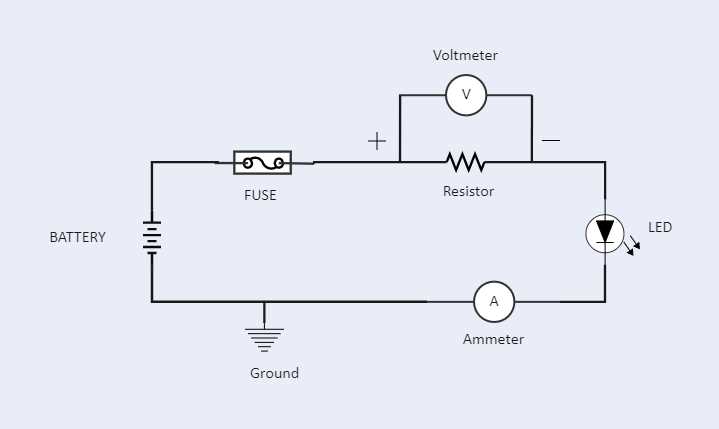

Begin by placing a single conductive path on graph paper, ensuring each component connects end-to-end without branching. Position the power source–battery or cell–at one extremity and mark its terminals with + (cathode) and – (anode) symbols. Sketch a resistor, lamp, or switch immediately adjacent to the anode, maintaining a straight line. Next, incorporate the current gauge: draw a circle on the same linear track, labeling it A. Verify the current gauge sits directly in the path–no detours allowed–so electron flow traverses it fully.
Mount the voltage gauge in parallel across the targeted element: place two small circles flanking the resistor or lamp, link them horizontally, then label one circle V. Extend faint dashed lines from each circle to the exact endpoints of the measured part, confirming no crossover with the primary route. Double-check every joint is crisply marked; loose connections distort readings. Finalize by annotating all symbols legibly–DC supply, load, current gauge, and voltage gauge–with concise text, ensuring labels never overlap traces.
Common Errors in Connecting Measuring Devices in Sequential Pathways
Placing a current gauge in parallel instead of inline disrupts readings entirely–ammeters must share the same conductive route as the load to measure true electron flow. Even a slight deviation creates a shunt, diverting part of the current and producing falsely low values. For example, a 5A expected reading might drop to 2.3A if the meter is misconnected, rendering the data useless for diagnosing faults.
Voltage sensors connected across the wrong components fail to isolate potential drops. Measuring across the entire path when only a single resistor’s drop is needed mixes unrelated voltages, yielding ambiguous averages. A 12V supply with two 6Ω resistors should show 6V across each, but probing the whole loop returns 12V–misleading when troubleshooting uneven loads.
Ignoring internal resistance skews precise setups. Ammeters add negligible but measurable impedance, typically 0.1-0.5Ω, which distorts currents in delicate chains. A path drawing 1A through a 0.3Ω meter sees a 0.3V drop–a 3% error in low-voltage setups. Voltage sensors fare worse: a 1MΩ meter across a 1kΩ load pulls 99.9% of the voltage, collapsing the measurement to near zero.
Overlooking Polarity and Tool Calibration
Reversing leads flips needle instruments into negative readings, but digital tools display errors or lock. A 5VDC check with swapped probes might show “-5V” or “OL,” masking actual drops. Analog meters risk needle damage beyond -10% scale, often permanently bending the movement. Always verify lead orientation against component markings before energizing.
Assuming generic tools match specific ranges creates hazardous conditions. A 10A meter fused for 200mA melts under moderate currents, while a 200V sensor connected to 480V arcs and destroys itself. Confirm maximum ratings–both current and voltage–before each use. Multimeters often have separate ports for low/high ranges; swapping them triggers failures.
Improper Probe Placement and Parallel Interference
Probing mid-component rather than terminals introduces contact resistance. Oxidized or loose connections add 0.5-2Ω, skewing low-current readings by up to 20%. Always attach clips to clean, tight terminals–not wires or lugs–to avoid parasitic drops.
Leaving voltmeters connected during current tests creates parallel paths. A single 10kΩ sensor across a 1kΩ resistor diverts 9% of the current, dropping the effective resistance to 909Ω. Disconnect voltage meters immediately after reading to prevent unintended loads.
Using only clipped leads for high-current measurements risks detachment under load. A 10A spike can melt solder or snap weak connections, breaking the chain. Secure probes with screws or magnetic bases when testing paths exceeding 3A to ensure consistent contact.
