Understanding Series Parallel Circuit Diagrams Step by Step Guide

Begin by sketching the load arrangement on graph paper with a 1:1 scale–every centimeter equates to one volt or ampere for clarity. Label nodes with uppercase letters (A, B, C) and branches with lowercase identifiers (a, b, c) to avoid confusion when tracing paths. For mixed setups, prioritize splitting resistances into clusters: high-impedance elements (above 1kΩ) should form exclusive chains, while low-impedance components (below 50Ω) require direct junctions to minimize voltage drops.

Apply Kirchhoff’s laws immediately after drafting the layout. Calculate loop currents using mesh analysis for closed loops–assign clockwise direction as positive–to detect imbalance early. For example, a 12V source with three 150Ω resistors in varying paths yields distinct current values: 80mA in the primary branch, 40mA in secondary links. Cross-verify with nodal analysis; discrepancies above 5% indicate misplaced connections.

Color-code wire paths: red for power rails, blue for return lines, yellow for intermediate nodes. Use thick lines (0.7mm) for high-current segments (over 100mA) and thin lines (0.3mm) for signal routes. Integrate test points at critical junctions–measure voltage across each branch before energizing. A 10% tolerance in readings flags potential design flaws.

Optimize component placement by grouping inductive elements (coils, relays) away from capacitive loads (LEDs, ICs) to prevent oscillation. For transient response testing, simulate with a 1kHz square wave–rise times slower than 10µs suggest impedance mismatches. Document every adjustment in a revision table with columns for resistance values, node voltages, and time stamps.

Designing Complex Electrical Networks with Mixed Configurations

Use a hierarchical labeling system for each branch to track voltage drops and current splits efficiently. Mark resistors or loads with alphanumeric identifiers (e.g., R1A, R2B) and group them by their arrangement–clusters in line share the same primary label, while those branching off receive a suffix. This prevents errors when calculating total impedance or troubleshooting faults, especially in networks exceeding ten components.

Measure current at key junctions with a multimeter set to the 10A range for safety, then switch to mA for precise readings in low-power segments. For high-load branches, ensure wire gauge matches the expected amperage–18 AWG handles up to 10A, while 12 AWG is required for 20A. Overlook this, and overheating risks increase exponentially in tightly packed configurations.

Optimizing Load Distribution

Distribute resistive elements unevenly to prevent overload on a single path. For example, balance a 12Ω resistor in one branch with two 6Ω units in another to maintain stable voltage levels. This approach also simplifies thermal management–compact layouts benefit from airflow gaps between heat-generating components, reducing the need for additional cooling measures.

Test each segment independently before integrating the full setup. Apply a known voltage (e.g., 5V or 12V) to individual branches and verify readings against calculated values. Discrepancies over 5% indicate wiring errors, loose connections, or faulty components. Prioritize fixing these early; cascading failures in interconnected pathways are harder to isolate later.

Document the layout with a grid-based sketch, noting component values, wire colors, and connection points. Include a reference table listing expected voltages and currents at critical nodes. For dynamic networks (e.g., those with variable loads), add conditional annotations–like “Q3 base voltage varies ±0.2V with potentiometer adjustment”–to streamline future modifications or repairs.

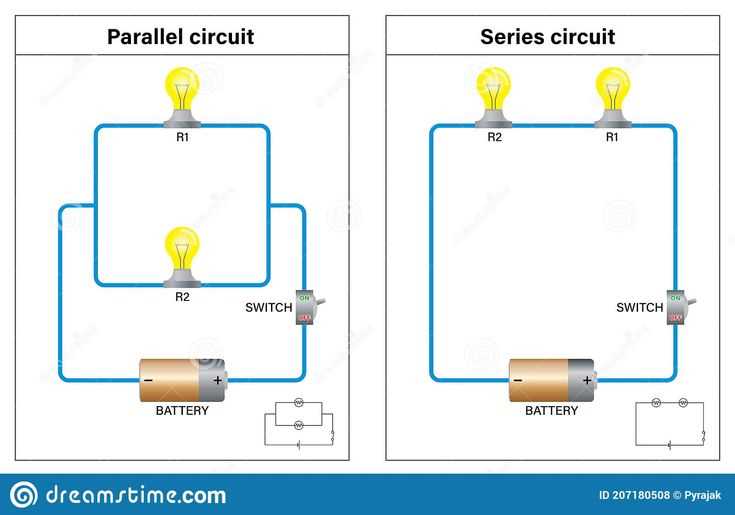

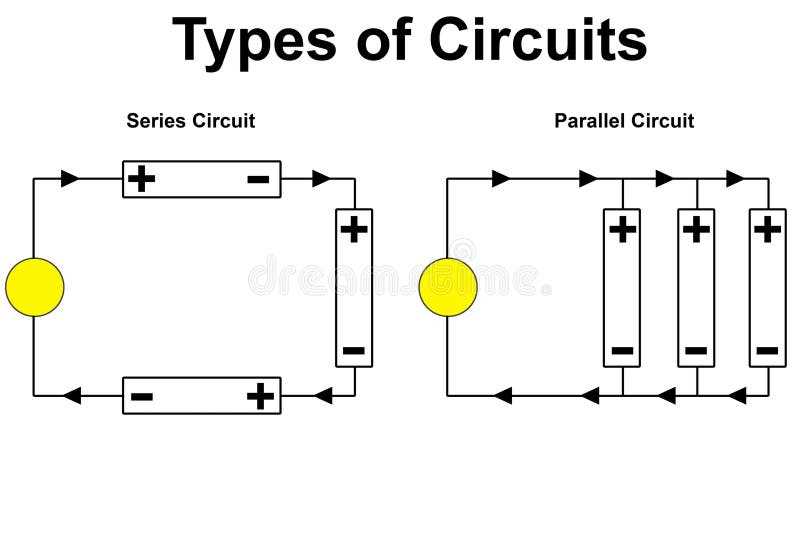

Recognizing Sequential and Branched Elements in Compound Networks

Trace current paths by isolating segments where components share the same flow direction without splitting. Use a multimeter in continuity mode to confirm if elements are chained–probe across adjacent parts while disconnecting other branches to avoid false readings. Sequential connections will show consistent resistance values when tested end-to-end, while branched paths split resistance according to branch count.

Label each node with a unique identifier when sketching the layout. Track voltage drops across components: equal drops on identical resistors indicate they are in line, while varying drops suggest branches. For capacitors, measure charge times–sequential caps charge sequentially, branched ones charge simultaneously.

Feature	Sequential	Branched
Current Flow	Single path	Multiple paths
Voltage Drop	Proportional to value	Shared across paths
Failure Impact	Breaks entire chain	Affects only one branch

Apply the “redraw” method: simplify the network by collapsing identified branches into single blocks, then rebuild the drawing layer by layer. Start from the power source, mark every point where the path divides or merges, and group components between these points. This reveals nested topologies–branches within chains or vice versa.

Use Ohm’s Law on segmented sections. Calculate total impedance for suspected chains by summing individual values; for branches, invert the sum of inverted values. Mismatches between calculated and measured totals indicate misidentified groupings. Test with a known resistor in series or branch to validate calculations.

Examine physical layouts for telltale signs: wires joining components end-to-end form chains, while wires branching off to multiple parts indicate splits. Look for traces on PCBs that fan out or join, solder joints connecting multiple leads, or terminal blocks with jumpers linking rows–these often denote branched configurations.

Leverage simulation tools to highlight paths. Import the layout into SPICE software, probe nodes, and observe current vectors–chained elements show uniform amplitude and direction, branched ones diverge. Export results as netlists to cross-check component grouping against the physical design.

Step-by-Step Guide to Sketching a Combined Electrical Layout from Scratch

Gather components first: list resistors, capacitors, batteries, LEDs, and switches. Arrange them on paper before marking connections. Label each element with values (e.g., R1 = 220Ω, V1 = 9V) to avoid confusion later. Use a ruler to keep lines straight–erratic paths make debugging harder. Start with power sources: draw the battery or supply at the top of the page, ensuring positive and negative terminals face opposite directions for clarity.

Connecting Loads and Branches

Map the main path first: link the positive terminal to the first load, then continue sequentially if loads share the same line. For branching paths, draw perpendicular lines to split currents–use dots at junctions to indicate clear intersections. Avoid diagonal connections; right angles improve readability. Verify loops: trace each path from power source back to ground, ensuring no dead ends. Add a ground symbol (⏚) at the end of every path to complete the flow. Double-check polarities for components like electrolytic capacitors to prevent reverse damage. Test the layout with a multimeter before finalizing the sketch.

Determining Equivalent Resistance in Mixed Electrical Networks

Identify isolated branches first–segments where components share identical current paths. Break the network into smaller, manageable blocks by tracing nodes where voltage splits or merges. Label each block clearly, using reference points like R_eq1, R_eq2, etc., to track intermediate calculations. For example, a cluster of three 10Ω resistors, two connected end-to-end with a third branching off midway, reduces to a single 6.67Ω value using the formula Rtotal = (R1 × R2) / (R1 + R2) + R3.

Step-by-Step Reduction Method

• Locate simplest sub-networks: Start with segments containing two or three components. For instance, a pair of 5Ω resistors in a direct path combines to 10Ω. A trio with two in line and a third shunted calculates as (5 + 5) || 5 = 3.33Ω.
• Progress to nested configurations: Replace resolved blocks with their equivalent values. A 4Ω resistor in series with the 3.33Ω result yields 7.33Ω. If this combines with another 8Ω branch, apply Req = (7.33 × 8) / (7.33 + 8) for the new equivalent.
• Verify node consistency: Ensure all intermediate values align with Kirchhoff’s current law–summed currents entering a node must equal those exiting. Cross-check with V = I × R using known voltage drops.

Use delta-wye transformations for unbalanced three-node clusters. Convert a triangle arrangement of 6Ω, 9Ω, and 12Ω resistors into a wye network with RA = (6 × 9) / (6 + 9 + 12) = 1.8Ω, RB = 2.7Ω, and RC = 3.6Ω. This simplifies further integrations into the broader network. Tools like SPICE simulators automate these calculations but understanding manual derivations prevents errors in complex layouts.

For layered networks, work from the innermost branch outward. A 7Ω resistor flanked by two parallel branches (one with 3Ω and 6Ω, another with 4Ω) requires sequential resolution. First, the 3Ω-6Ω branch resolves to 2Ω. Combine this with the 4Ω branch: (2 × 4) / (2 + 4) = 1.33Ω. Finally, add the 7Ω resistor: 1.33 + 7 = 8.33Ω. Document each step to backtrack inaccuracies.

1. Measure unknown resistances with a multimeter before calculations to avoid reliance on theoretical values.
2. For networks with reactive components, extend analysis using impedance concepts (Z = √(R² + X²)).
3. Cross-validate results by recalculating from an alternative starting node–discrepancies signal misapplied formulas.
