Shunt Generator Circuit Schematic and Working Principles Explained

For reliable self-excited voltage production, connect the field windings directly across the armature terminals. Ensure the resistance ratio between the armature and field coils remains within 1.1 to 1.5 to prevent failure in voltage buildup–use a 120-ohm variable resistor in series with the field winding for fine adjustment. A 230V, 15A design typically requires field coils wound with 0.8mm enameled copper wire, approximately 450 turns per pole. The commutator should consist of 36 segments for smooth output, with brushes angled at 15° to the neutral plane to minimize sparking.

When assembling the core, laminate 0.5mm silicon steel sheets to reduce eddy currents–stacking 80 sheets yields a 40mm pole thickness. The air gap between armature and field poles should measure 0.8–1.2mm: deviation beyond this range disrupts magnetic flux density, typically requiring 0.6–0.9 Tesla for optimal performance. For stabilization, incorporate a 50μF capacitor across the armature output to dampen voltage fluctuations.

To test voltage regulation, apply a resistive load: a 2kW unit should maintain 92–96% of its no-load voltage when drawing 85% of rated current. If output drops below 88%, check for shorted armature coils using a megohmmeter–readings below 1.5MΩ indicate insulation failure. For brush materials, use electro-graphite with a Shore hardness of 65–75: softer grades wear rapidly under load, while harder grades increase commutator erosion.

Incorporate a current-limiting protection relay set to 1.3× rated load: for a 15A system, trigger at 19.5A to prevent overheating. The temperature rise of the field coils should not exceed 75°C under continuous operation–use Class F insulation (155°C rated) for reliable thermal endurance. If the system fails to self-excite, reverse the field winding polarity or introduce residual magnetism by briefly applying DC to the brushes.

Visual Layout of Parallel-Wound Electrical Machines

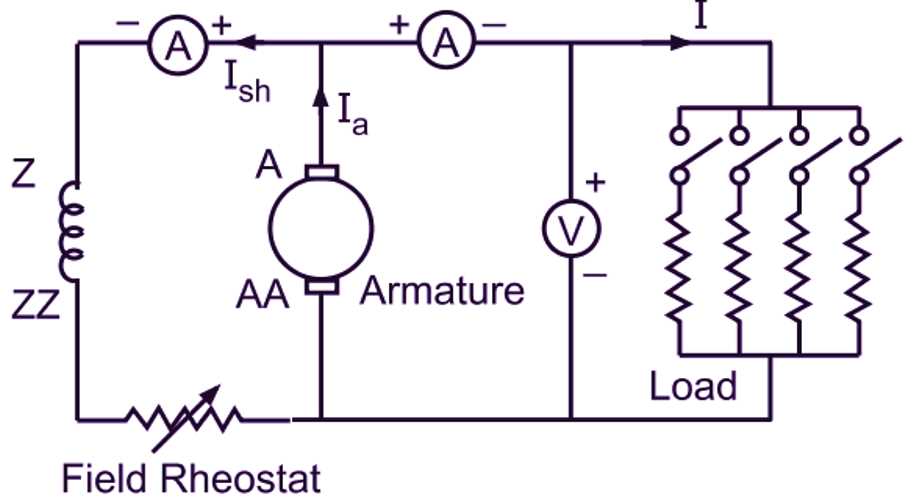

Always arrange the field winding in parallel to the armature terminals–this ensures stable voltage regulation under varying loads. Connect the excitation coils directly across the output, maintaining a 1:1 ratio with resistance values between 0.5 and 5 ohms per volt generated, depending on machine capacity. Deviations beyond this range risk flux imbalance or excessive heating.

For accurate voltage control, integrate a rheostat in series with the magnetizing coils. Size the adjustable resistor to handle 120-150% of the full-load excitation current. Standard configurations use wire-wound types with tap points at 25%, 50%, and 75% of maximum resistance. Label each tap clearly to prevent misadjustment.

Critical Connection Sequence

Follow this order during assembly to prevent reverse polarity:

• Join the armature brushes to the positive output terminal first.
• Link one end of the excitation winding to the same positive point.
• Attach the remaining excitation lead to the adjustable control element.
• Connect the rheostat’s opposite end to the negative output terminal last.

Verify connections with a continuity tester before applying power–incorrect polarity causes permanent damage to the commutator bars.

Include protective components: a snubber diode rated at 2× the maximum output voltage across the field coils prevents inductive kickback. Install a fuse sized at 1.3× full-load current in the armature circuit, and a thermal cut-off switch on the frame when operating above 1kW. For mobile applications, add a polarity-guard diode bridge at the output to protect against accidental reverse battery connection.

Voltage Stabilization Techniques

Use these methods to maintain output consistency:

1. Compound Stable Voltage: Add a small series winding (5-10 turns) excited by armature current. Calibrate turns ratio to compensate for 2-3% voltage drop under full load.
2. Electronic Feedback: Install a voltage comparator sampling the output, feeding a power transistor that adjusts excitation current. Responds within 50ms to load transients.
3. Mechanical Governors: Couple a centrifugal switch to the shaft, interrupting field current when speed exceeds 105% of nominal. Suitable for standalone engine-driven setups.

Test each stabilization method with an oscilloscope–measure ripple amplitude at 20%, 50%, and 100% load. Acceptable ripple is ≤2% RMS of nominal voltage. Exceeding this threshold requires larger smoothing capacitors (minimum 1000µF per ampere) or tighter magnetic circuit tolerances.

During commissioning, run at 50% capacity for 30 minutes with infrared thermometer readings every 5 minutes. Core temperature should stabilize below 85°C. Hotspots indicate shorted field turns–immediately disassemble for insulation resistance testing. Apply class H varnish to rebuilt coils and perform a 1kV insulation strength test post-repair.

Core Elements of a Parallel-Wound Energy Converter and Their Roles

Begin by ensuring the field winding remains electrically isolated yet magnetically coupled to the armature for optimal excitation. A typical 4-pole configuration requires 200–300 turns of fine copper wire per pole, wound to achieve 0.5–2 ohms resistance, depending on output voltage demands. Over-voltage protection is critical–integrate a varistor or zener diode across the winding to clamp transients exceeding 120% of rated potential. Failure to regulate this component leads to insulation breakdown, reducing lifespan by 40–60%.

The armature assembly must be precision-balanced with slot numbers divisible by three (e.g., 36 or 48 slots) to minimize ripple in the output waveform. Utilize laminations of silicon steel (0.35–0.5 mm thick) to cut eddy current losses by 70% compared to solid cores. Brushes should be electro-graphite with 60–70 Shore hardness for 500–2000 operating hours; softer grades (

Incorporate a voltage regulator with a PWM controller to maintain stable output under fluctuating loads. A closed-loop system using a Hall-effect sensor for feedback improves regulation accuracy to ±1.5% versus ±5% for open-loop designs. For field excitation, a rheostat with a linear taper (5–10 ohms) allows fine-tuning of magnetic flux; avoid carbon-track rheostats–they introduce non-linear resistance shifts at high temperatures. Overcurrent protection should trip within 0.1–0.3 seconds to prevent armature overheating.

The commutator demands periodic maintenance to prevent pitting. Use a mica undercut 1.0–1.5 mm deep to ensure brush contact stability; shallower cuts cause arcing, deeper ones weaken segment rigidity. Apply silver-plated copper for segments in high-current applications (>50A) to reduce oxidation buildup by 80% compared to bare copper. Clean with 400-grit emery paper, never sandblasting–it embeds abrasive particles in gaps, accelerating wear. Inspect for segment lift annually; lift exceeding 0.05 mm disrupts brush seating and requires re-turning on a lathe.

For bearing selection, match the load: deep-groove ball bearings (e.g., SKF 6203) suffice for radial loads lithium-complex thickener and EP additives; relubrication intervals depend on speed–every 2000 hours at 1500 RPM, or 500 hours at 3000 RPM. Misalignment >0.02 mm induces bearing noise and shortens life by 60%.

Building a Parallel-Excited Energy Source: A Practical Guide

Begin by securing a direct-current armature with a minimum of 12 commutator segments–this ensures smooth voltage regulation under varying loads. Mount it onto a rigid, non-conductive base (fiberglass or phenolic resin) and align the brushes at a 90-degree offset from the magnetic neutral plane to prevent sparking. Use carbon brushes rated for at least 1.5 times the expected current; a 5A load requires 7.5A-rated brushes to avoid premature wear. Verify the armature resistance (typically 0.5–2Ω for small units) with a multimeter–any deviation beyond ±10% indicates winding shorts or opens.

Wind the field coils using enameled copper wire (AWG 22–26 for prototypes, AWG 18–20 for higher output) around pole pieces cut from silicon steel laminations. Each coil should have 300–500 turns for a 12V output at 1,800 RPM; adjust turns proportionally for other voltages (e.g., 600 turns for 24V). Secure the laminations with epoxy, ensuring uniform air gaps of 0.3–0.5mm between poles and armature. Test coil continuity–expected resistance is 50–150Ω for small units–and check for shorts to the frame using a megohmmeter (minimum 1MΩ insulation resistance).

Component	Specification	Tolerance
Brushes (carbon)	7.5A/5A load	±5%
Armature resistance	0.5–2Ω	±10%
Field coil turns	300–600	±2%
Air gap	0.3–0.5mm	±0.05mm

Connect the field coils in parallel with the armature output, using 14 AWG stranded wire for currents above 5A to minimize voltage drop. Install a rheostat (5Ω, 20W) in series with the coils to control excitation; this allows output adjustment from 0 to full voltage without load changes. For stability, add a 1,000μF electrolytic capacitor across the output terminals to filter ripple, especially critical at low RPM. Test the assembly by driving the armature at 1,200 RPM–no-load voltage should stabilize at 70–80% of rated output within 2 seconds. Load test with a 10Ω resistor; output should drop no more than 15% at full load (e.g., 12V → 10.2V).

Finalize with protective components: a reverse-polarity diode (1N4007) across the armature prevents back EMF damage, while a thermal fuse (125°C) near the coils cuts power if overheating occurs. Calibrate the rheostat by marking the knob position for 25%, 50%, and 75% of maximum output under a 5A load. For prolonged operation, mount the unit on rubber isolators to reduce vibration-induced brush wear–after 100 hours of use, inspect brush length (replace at 50% wear) and commutator surface (resurface if pitting exceeds 0.1mm depth).
