How to Build and Analyze a Basic Silicon Diode Circuit Step by Step
Start by ensuring the component’s forward voltage matches the application’s power requirements–0.6 to 0.7 V drop is standard for most small-signal units, while higher ratings demand 1.0 V or more. Verify the peak inverse voltage (PIV) exceeds transient spikes by at least 20% to prevent avalanche breakdown in reverse bias. Overlooking this margin risks thermal runaway during load surges.
Use a current-limiting resistor in series when driving inductive loads like relays or motors; calculate its value using R = (Vin – Vf)/Iload, where Vin is the supply voltage, Vf the forward drop, and Iload the expected current. Failure to include this resistor accelerates degradation, shortening lifespan by thousands of cycles.
Mount the device on a heat sink if power dissipation exceeds 100 mW. Thermal resistance of the junction-to-case (θJC) and case-to-ambient (θCA) paths dictate cooling needs. Multiply total power (PD) by θJC + θCA to estimate junction temperature rise. Exceeding the maximum rated temperature (typically 125°C–150°C) reduces efficiency by 3–5% per 10°C increment.
For AC-to-DC rectification, pair the device with a smoothing capacitor sized to limit ripple voltage to C = Iload/(2 × f × Vripple), where f is the line frequency. Underestimating capacitance leads to voltage sag under dynamic loads, causing erratic behavior in downstream circuits.
Test reverse recovery time (trr) if switching speeds exceed 1 kHz. Fast recovery types (trr ) minimize power loss in pulse-width modulation (PWM) systems. Slow variants inject noise into digital logic, corrupting signals in mixed-signal applications. Replace general-purpose units with ultrafast or Schottky alternatives when rise/fall times are critical.
Constructing Practical Semiconductor Pathway Schematics
Begin with a forward-biased 1N4007 junction connected directly to a 5V DC supply. Use a 470Ω current-limiting resistor in series to prevent thermal runaway; this value balances signal integrity while ensuring the component operates below its 1A maximum rating. For reverse-voltage protection, place a 1μF ceramic capacitor across the junction’s terminals to absorb transient spikes up to 50V, critical for long-term stability in low-noise environments.
For half-wave rectification, position the junction between an AC source (12V RMS) and a load resistor (1kΩ). The resultant output waveform will exhibit a 0.7V forward drop, reducing the peak voltage to approximately 16.3V; verify this with an oscilloscope at the load’s terminals. Below is a comparison of common junction characteristics under varying input conditions:
| Input Voltage (V RMS) | Peak Output (V) | Forward Drop (V) | Reverse Recovery (ns) |
|---|---|---|---|
| 6 | 7.8 | 0.7 | 5 |
| 12 | 16.3 | 0.7 | 5 |
| 24 | 33.2 | 0.75 | 7 |
When designing clamping circuits, pair the junction with a zener (e.g., 1N4733A, 5.1V) in opposing polarity. This configuration limits overshoot to ±5.8V for a 3V input signal, preserving downstream components from excessive voltage swings. Ensure the zener’s power rating (500mW) is not exceeded; calculate dissipation via P = (Vin – Vzener) × I.
For high-frequency applications (≥1MHz), replace standard junctions with Schottky variants (e.g., 1N5817) to exploit their lower forward drop (0.2V) and faster recovery (10ns). However, note the trade-off: Schottky types support lower reverse voltages (20V vs. 100V for 1N4007). In RF circuits, minimize lead inductance by soldering junctions directly to the PCB traces, avoiding wire loops >5mm.
To validate a full-wave bridge configuration, arrange four 1N4007 junctions in a diamond pattern. Test with a 9V AC input; the output should yield a DC voltage of (Vpeak × 0.636) – 1.4V (≈5.3V net). Check each junction’s thermal performance post-operation–touch the casing after 30 seconds; temperatures above 60°C indicate insufficient heat sinking or an overloaded load.
Decoding Fundamental Semiconductor Component Symbols and Notations
Begin by identifying the anode and cathode terminals: the straight line represents the cathode, while the triangle points toward the anode. Ensure the arrow direction aligns with conventional current flow (positive to negative) to avoid misinterpretation. Mistakes here lead to reverse bias misconfigurations, causing unintended blocking behavior.
Key graphical elements to recognize:
- Triangle: Indicates forward conduction direction. Confirms polarity orientation.
- Straight bar: Marks the cathode. Often labeled with a stripe on physical components.
- Dashed line: On some variants denotes a Zener type; verify breakdown voltage annotations.
Annotate schematics with exact voltage parameters: forward drop (~0.7V for standard types) and reverse breakdown thresholds. Example: VF = 0.65V @ 10mA. Omitting these risks underestimating power dissipation in designs. Include them adjacent to the symbol using compact formatting for clarity.
Distinguish between single-junction and multi-junction variants by examining additional markers:
- Schottky: Extra curved line at the cathode junction.
- Light-emitting: Arrows radiating outward from the symbol edge.
- Photovoltaic: Inward arrows converging on the junction.
Verify datasheets for exact graphical deviations–standards vary across manufacturers.
Label high-frequency designs with package parasitics (e.g., Cj = 5pF for small-signal types). Include these near the symbol if switching speeds exceed 1MHz. Neglecting this causes unexpected ringing or attenuation in signal paths.
Adopt consistent orientation: align all symbols in schematics with current flowing downward or rightward. Rotate only when physical constraints demand it–rotation disrupts readability and increases error rates during PCB layout reviews.
Step-by-Step Assembly of a Single Semiconductor Rectifier Setup
Gather a 1N4007 rectifying component, 1kΩ resistor, 1μF capacitor, breadboard, and a 12V AC power source before starting. Verify the peak inverse voltage (PIV) of the 1N4007 meets or exceeds 50V to prevent breakdown under typical loads.
Position the rectifying element vertically on the prototyping board, ensuring the cathode (striped end) faces the output terminal. Insert the anode into the same rail as the AC input, separating high and low potential zones by at least three unused rows to minimize noise coupling.
Connect the 1kΩ load resistance directly across the output terminals. For transient suppression, place the 1μF smoothing capacitor parallel to the resistor, observing polarity if using electrolytic types–positive lead to the DC side, negative to ground.
Attach the AC input leads to a transformer secondary or signal generator set to 12V RMS. Confirm the waveform frequency (e.g., 50Hz or 60Hz) matches the capacitor’s ripple current rating (typically 10% of nominal capacitance). Overlooking this may cause excessive heating or reduced lifespan.
Power the assembly via a fused 12V AC source. Use an oscilloscope to probe the DC rail–expect a pulsating waveform with a trough-to-peak value approximating 1.4× the RMS input minus the forward voltage drop (≈0.7V for silicon-based devices).
If the output voltage sags below 0.9× the expected value, inspect solder joints or breadboard connections for cold contacts. Replace the rectifier if forward voltage exceeds 1.1V under rated current, indicating degradation or counterfeit parts.
For low-current applications (
Critical Note: Avoid exceeding the component’s average forward current (1A for 1N4007) or repetitive peak current (30A) to prevent thermal runaway. Always derate power ratings by 20% for continuous operation in ambient temperatures above 25°C.
Identifying Key Components for a Half-Wave vs Full-Wave Rectifier Configuration
For a half-wave setup, prioritize a single junction device with a forward voltage drop of 0.6–0.7V and a peak inverse voltage (PIV) rating at least twice the input AC peak. Pair it with a smoothing capacitor sized at 1,000–4,700µF for low-current loads (≤500mA) to reduce ripple below 10%. A series resistance (typically 10–100Ω) protects the junction during reverse recovery, especially in high-frequency applications. Omit a center tap–this simplifies transformer selection but halves efficiency compared to full-wave designs.
Full-wave configurations demand either:
- Center-tapped transformer:
- Two junction devices, each rated for ≥1.5× the RMS input voltage.
- PIV must exceed the peak secondary voltage (e.g., 35V PIV for 24V RMS).
- Capacitor values drop to 470–2,200µF for equivalent ripple suppression due to doubled frequency.
- Bridge assembly:
- Four junction devices in a quad package, each with PIV matching the peak secondary voltage.
- No center tap required, but power dissipation increases–add heatsinks for currents ≥1A.
- Input fuse: fast-acting (e.g., 1A for 500mA loads) to prevent thermal runaway during surge currents.
Match the transformer’s VA rating to the load: undersizing by 20% increases harmonic distortion. Test with an oscilloscope–half-wave outputs show asymmetric ripples; full-wave should exhibit symmetrical 100/120Hz pulses.
Calculating Forward Voltage and Load Capacity for Real-World Applications

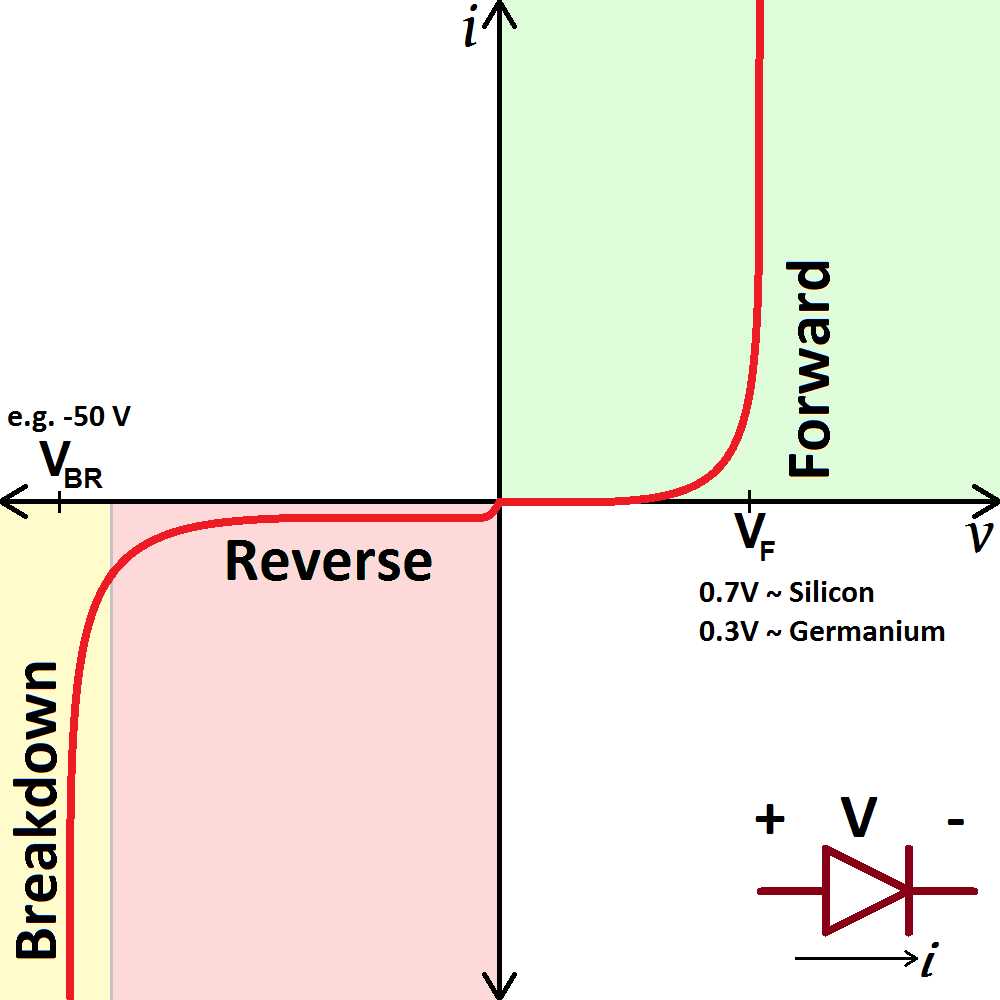

Start with a baseline drop of 0.6–0.7V for standard semiconductor junctions at room temperature. This value increases by 2mV per °C above 25°C–measure ambient conditions if precision matters. For high-current scenarios, derate linearly: a junction rated for 1A at 0.7V may drop 0.8V at 3A, though thermal resistance can push this toward 1V if cooling is inadequate.
To estimate current limits, consult the datasheet’s maximum forward current (IF(max)) and peak repetitive forward current (IFRM). For example, a common 1N4007 handles 1A continuous but allows 30A for 8.3ms surge–exceeding these values risks junction failure. Derate IF(max) by 20–30% if operating above 50°C ambient.
For pulsed loads, use the non-repetitive surge current (IFSM) as a hard limit. A 1N5408 (3A continuous) tolerates 200A for 10µs–this dictates fuse selection: a 3A slow-blow protects steady-state loads, while 10A fast-acting guards against transients. Always match fuse I²t rating to the component’s surge capability.
When cascading elements, model the total forward drop as VF(total) = n × VF(single) + (I × Rseries), where n is the count of junctions and Rseries includes bond wires and lead resistance (~0.1Ω/cm). A stack of three elements at 100mA sees ~2.1V drop–critical for low-voltage designs like 3.3V logic where margins shrink to 100mV.
Reverse leakage (IR) scales exponentially with temperature and reverse voltage. A 1N4148 leaks 25nA at 25°C and 100V, but jumps to 5µA at 125°C–this can dominate power dissipation in precision analog circuits where IR > 1µA may distort signals. Prefer Schottky alternatives for IR requirements.
Dynamic resistance (rd) alters voltage drop under varying loads. At 1mA, rd for a small-signal junction is ~100Ω, dropping to 1Ω at 100mA. Use the piecewise linear approximation: VF ≈ 0.6V + (I × rd). For switching regulators, compensate by oversizing inductors to handle ±20% ripple.
Thermal derating curves in datasheets plot IF(max) against case temperature. A TO-220 package rated for 10A at 25°C drops to 4A at 100°C. Attach a heatsink using RθJC = 3°C/W; aim for RθSA if dissipating 5W. Ignoring derating leads to junction temperatures exceeding 150°C–shortening lifespan by 50% per 10°C rise.
For custom assemblies, validate calculations with a Kelvin measurement: inject a known current (10mA–1A), measure VF at the die interface, and subtract lead/wire drops (0.1–0.5Ω). A 5A test current through a 1m wire adds 0.5V–masking actual junction behavior. Log data across temperature sweeps (−40°C to +125°C) to map real-world performance, especially for automotive or industrial use cases.
