Understanding SIM Card Internal Electronics and Connection Layout

Identifying the correct pinout configuration is critical before attempting any modifications. The primary module typically consists of five essential contact points: VCC (voltage supply, 1.8V or 3V), RST (reset), CLK (clock signal, 5MHz), I/O (data line), and GND (ground). Mistakes in these connections lead to immediate module failure. Verify manufacturer specifications–common modules like Infineon SLS32AIA or Samsung KC45 use slight variations in pin spacing (0.8–1.2mm pitch). Always probe with a multimeter before soldering.

Voltage regulation requirements differ across devices. For GSM modules, current draw peaks at 50–200mA during transmission, demanding decoupling capacitors (10µF–100µF) near the VCC pin to prevent brownouts. Low-dropout regulators (LDOs) like AP2112K stabilize voltage for long-term reliability. Bypass noise with a 0.1µF ceramic capacitor within 2mm of the module. Skipping this step risks erratic behavior or permanent damage to the flash memory.

Signal integrity hinges on proper trace routing. Clock and data lines should run parallel with matched impedance (50Ω–75Ω) and minimal vias to reduce EMI. Avoid right-angle bends–use 45-degree transitions instead. Shield sensitive traces with grounded planes on adjacent layers. For debugging, attach test points to CLK/I/O with 22pF capacitors to filter high-frequency noise. Logic analyzers like Saleae confirm signal quality before full integration.

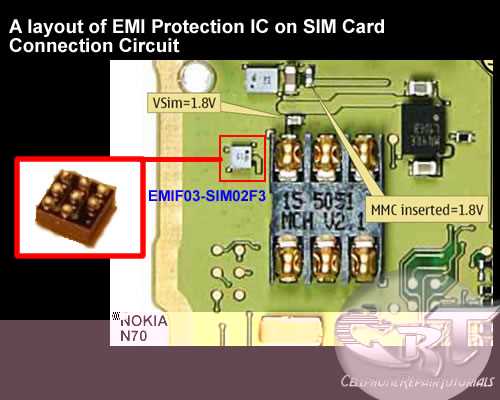

Modification thresholds depend on module type. Contact-based modules tolerate static discharge up to ±2kV, but embedded variants (e.g., eUICC) require strict ESD protection. Use TVS diodes (e.g., SMF5V0) on all external interfaces. For encryption-dependent designs, isolate the module’s tamper-detect lines–triggering them may brick the device permanently. Always refer to the datasheet’s absolute maximum ratings; exceeding them voids functionality instantly.

Microprocessor Interface Layout for Mobile Identifiers

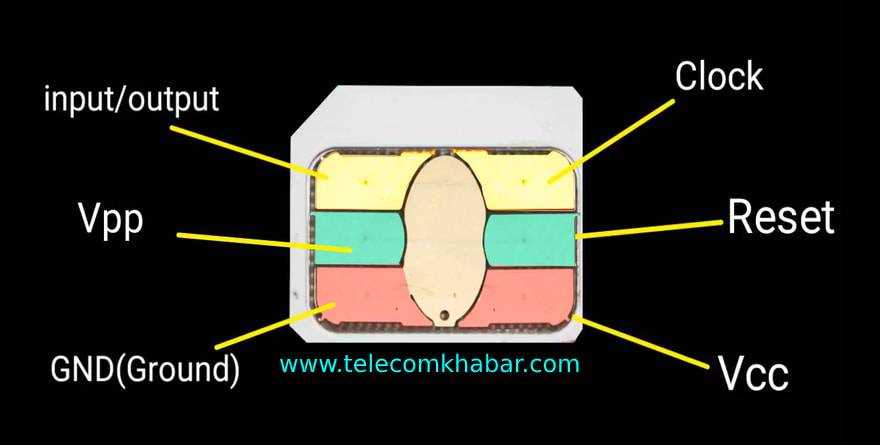

Start by identifying the VCC, GND, I/O, CLK, and RST contact points on the module–these correspond to ISO/IEC 7816-3 standards, though pinouts may vary slightly between manufacturers like Gemalto, STMicroelectronics, or Infineon. Use a multimeter in continuity mode to trace each pad to its corresponding via on the PCB, ensuring no misalignment with adjacent RF shielding or power rails. For stable communication, maintain a pull-up resistor (typically 10-47 kΩ) on the I/O line to prevent floating states during initial handshake sequences.

When reverse-engineering an existing board, prioritize decoupling capacitors near the power input–ceramic 100 nF directly between VCC and GND, plus a bulk electrolytic (10-47 µF) if the trace length exceeds 3 cm. Avoid routing control lines (CLK, RST) parallel to high-speed signals (e.g., LTE/NR bands) to minimize crosstalk; instead, use orthogonal paths or a ground pour between traces. For custom designs, implement an ESD protection diode array on all exposed pads to prevent damage during insertion cycles.

Test sequences should verify signal integrity at 1.8V or 3V levels, depending on the module’s operating voltage. Use a logic analyzer to confirm ATR (Answer To Reset) respond timing–standard protocols mandate a response within 400–40,000 clock cycles. If interfacing with an MCU, ensure software de-bouncing for RST pulses to avoid erroneous reinitialization, especially in environments with mechanical vibration.

Key Components of a Mobile Identity Module Board Design

Prioritize the microcontroller unit (MCU) at the core of the board–opt for models like the STM32F0 or ATmega328, as they balance power efficiency with sufficient GPIO pins for interfacing. Ensure the MCU supports ISO/IEC 7816 protocols for secure communication, with a clock speed of at least 16 MHz to handle APDU commands without latency.

Integrate a secure element, such as the NXP P60 or Infineon SLE 97, to store cryptographic keys and user data. This component must comply with Common Criteria EAL 4+ or higher for tamper resistance. Position it adjacent to the MCU, minimizing trace lengths to reduce signal attenuation and electromagnetic interference.

Use low-dropout regulators (LDOs) like the TPS73601 to maintain stable voltage (1.8V or 3V) for both the MCU and secure element. Avoid switching regulators here–linear LDOs eliminate noise, critical for reliable data transmission during authentication exchanges. Include decoupling capacitors (0.1µF ceramic) at each power pin to suppress transient voltage spikes.

Design the I/O interface with a 6-pin connector (VCC, GND, CLK, I/O, RST, and optional VPP) following the ETSI TS 102 221 standard. Use gold-plated contacts for corrosion resistance and 200µm pitch for reliable mating. Route the RST line through a 10kΩ pull-up resistor to prevent floating states during power cycles.

Implement ESD protection on all external pins using TVS diodes (e.g., PESD5V0S1BA), rated for ±15kV air discharge. Place them within 2mm of the connector to clamp transients before they reach sensitive components. For high-frequency signals (CLK/I/O), use controlled impedance traces (50Ω single-ended) and avoid 90° bends to prevent reflections.

Finalize the layout with a 4-layer board: signal (top), ground plane, power plane, and signal (bottom). Keep the secure element and MCU on the same layer to minimize vias, which introduce inductance. Validate the design with IPC-2221 clearance rules and perform DFT (Design for Test) by adding test points for each net to simplify debugging.

Step-by-Step Guide to Reading Mobile Chip Pinout Schematics

Locate the VCC pad first–it’s typically labeled as “VCC,” “VPP,” or “VDD” on most layouts. This contact supplies power to the chip, usually ranging between 1.8V and 3.3V depending on the device generation. Verify voltage with a multimeter before connecting; applying incorrect levels risks permanent damage. Newer models often group VCC with ground pads in a symmetrical pattern, while legacy designs separate them.

Identify Data and Control Lines

Trace the I/O, CLK, and RST connections immediately after confirming power. The I/O line handles bidirectional communication, flashing at speeds up to 5 MHz in high-frequency protocols. CLK synchronizes operations, always pulsing cleanly; noise here corrupts data transfer. RST resets the chip when held low for more than 100 ms–ensure your schematic reflects pull-up resistors (usually 10–47 kΩ) if present. Misrouting these links causes boot failures or erratic reads.

Ground pads (GND) appear 2–4 times across layouts, often mirroring VCC positions. Connect all GND points to avoid ground loops–test continuity with a probe, especially in compact designs where pads merge under shielding. Some manufacturers annotate additional contacts like VPP2 or GPIO; consult datasheets for these, as they vary by supplier (e.g., Infineon reserves IO2 for NFC in dual-interface chips).

Decipher signal flow by following arrow indicators or color-coded layers in the schematic. High-speed traces demand shorter paths; deviations over 3 cm introduce latency. For UICC-type modules, prioritize the C4 line if present–it carries authentication tokens in modern stacks. Validate each connection against a known-good reference to spot swapped lines, a common error in DIY adapters.

Key Mobile Chip Interface Connections and Their Purposes

Always verify voltage levels first when troubleshooting connectivity issues–most modules operate at 1.8V or 3V, while legacy units may require 5V tolerances. Connecting mismatched voltages risks permanent damage to the VCC pin.

Ground (GND) serves as the reference point for all signals. Ensure a low-resistance path (<0.5Ω) to avoid signal degradation, especially under high-current scenarios like active data transmission.

• CLK (Clock): Synchronizes data transfers–typical frequencies range from 1–5 MHz depending on protocol (e.g., ISO/IEC 7816). Unstable clock signals cause communication failures during authentication.
• I/O (Input/Output): Bi-directional data line carrying APDU commands/responses. Noise susceptibility increases with trace length; maintain <10 cm or use shielding for traces longer than 15 cm.
• RST (Reset): Forces module reboot when held low (min 10 μs). Improper pull-up resistors (>1 kΩ) can lead to false resets during power fluctuations.

For UICC-based designs, the VPP (Voltage Programming Pin) is rarely needed in modern implementations but must be tied to VCC if unused to prevent floating-state errors. Older modules (pre-2010) required pulsed 12V signals for programming–consult datasheets before omitting.

Firmware updates via SWP (Single Wire Protocol) or NFC interfaces require 50 kΩ pull-up resistors on the C6 pin (SWP). Missing this resistor causes update failures on Android and iOS devices with secure elements. Test continuity with a multimeter before deployment.

Avoid routing high-speed traces (e.g., USB 2.0 for eUICC) parallel to I/O/CLK lines–separate by >2 mm or use ground planes. Crosstalk above 50 mV disrupts APDU exchanges.

For embedded modules, the SIM_DETECT pin (active low) triggers host recognition. Use a 33 kΩ pull-up to VCC; weaker resistances drain power unnecessarily in battery-operated designs.

Locating Microchip Power Delivery Paths in Schematics

Identify the VCC or VDD pins on the chip module first–these are typically labeled in the datasheet with exact pin numbers (e.g., pins 12, 45, or 27 for supply rails). Trace them backward to the power management IC (PMIC) or LDO output using continuity checks: probe each via or pad connected to the line while cross-referencing the netlist. Expect decoupling capacitors (100nF–10µF) near these pins; their placement confirms the supply path. For multi-layer boards, peel off solder mask with a scalpel at suspected nodes to expose copper traces if inner layers aren’t visible.

Key Voltage Rail Markings and Expected Values

Pin Label	Voltage (V)	Tolerance (%)	Common Net Name
VBAT	3.3–4.2	±5	Battery_In
VCORE	1.8	±3	Core_Supply
VIO	1.2–2.8	±10	IO_Power
VRF	2.5	±5	RF_Supply

Spot test points labeled TP_VCC or TP_VDD–these are direct taps into the rail. For hidden traces, use a thermal camera to detect slight temperature rises along active paths (0.3–1°C delta). If schematics aren’t available, derive the topology by measuring resistance between known ground (GND) and suspected supply pads: values below 1Ω confirm a power rail, while 10kΩ+ indicate signal or floating nets.
