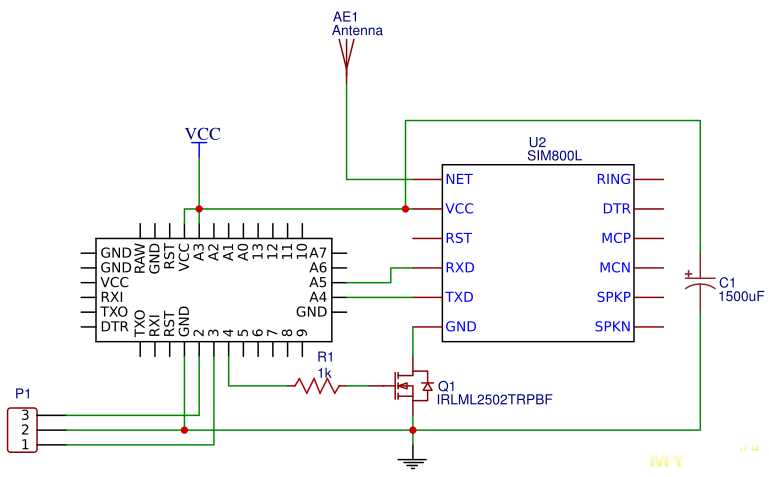

Complete SIM800L Module Wiring Guide with Schematic Examples

Start by connecting the module’s VCC pin to a stable 3.4–4.4V power source–exceeding this range risks permanent damage. Use a low-dropout regulator (LDO) like the AMS1117 if your supply voltage is higher, as direct battery connections (e.g., LiPo) can vary unpredictably. A 1000μF electrolytic capacitor across the power pins dampens voltage spikes, essential for stable operation.

Ground the module’s GND directly to the system’s common ground plane. Avoid daisy-chaining ground connections; instead, use a star topology to minimize noise interference. If integrating with a microcontroller, route the ground traces adjacent to the signal paths to reduce loop inductance.

For serial communication, link the TXD of the GSM component to the RX of your host device (e.g., Arduino, ESP32) and vice versa. A level shifter (e.g., TXB0104) is mandatory if the host operates at 5V logic–failing this risks frying the module’s 3.3V inputs. Pull-up resistors (10kΩ) on the UART lines prevent floating states during initialization.

Network connectivity requires a dual-band antenna (900/1800 MHz) connected to the ANT pad via a U.FL or SMA connector. Ensure a minimum 2dBi gain and proper impedance matching (50Ω) to avoid reflection losses. Place the antenna at least 20mm away from metal surfaces to prevent signal degradation.

Add a SIM card holder with secure retention–vibration or improper insertion can cause intermittent failures. Format the SIM to 3GPP standard and disable PIN authentication if testing locally. For debugging, expose the RI (Ring Indicator) and DTR (Data Terminal Ready) pins to the host; these enable SMS/voice call notifications and power-saving modes, respectively.

Implement a P-channel MOSFET (e.g., IRF9540N) or a load switch (e.g., TPS22915) for controlled power cycling. Hard resets via the RST pin should be avoided–use software commands instead. Log power consumption during TX bursts (typically 2A @ 900MHz) to size your power delivery network accordingly.

Isolate sensitive traces using a ground pour around high-frequency paths. Keep the layout compact; excessive trace length introduces parasitic inductance, impairing signal integrity. For prototypes, prefer perfboard with short, direct leads over breadboards–capacitance between breadboard rows can destabilize RF performance.

GSM Module Integration: Step-by-Step Wiring Instructions

Connect the power supply directly to the module’s VCC pin with a 3.7V lithium battery–avoid USB or 5V rails to prevent overheating. Use a 2A switching regulator if battery voltage exceeds 4.2V during charge cycles, as linear regulators waste energy as heat. Ground the GND pin to the microcontroller’s common ground plane, keeping traces under 5cm to minimize noise interference.

Signal Line Optimization

Route UART RX/TX lines through 220Ω series resistors to absorb voltage spikes during transmission bursts. For antenna connectivity, solder a U.FL connector to the SMA pad with a 0.5mm trace width–coaxial cable impedance must match 50Ω ±5% to avoid signal reflection. Add a 10μF decoupling capacitor within 2mm of the power input pin to filter low-frequency ripples, paired with a 100nF ceramic capacitor for high-frequency noise suppression.

Test the network registration by sending “AT+CREG?” every 2 seconds during boot–successful responses (0,1 or 0,5) confirm carrier compatibility. For battery-powered applications, enable deep sleep mode via “AT+CSCLK=1” to reduce current draw to 0.7mA, but reconnect UART before entering sleep to avoid communication loss during wakeup transitions.

Key Components and Pinout Connections for the GSM Module

Start with a regulated 3.4–4.4V power supply; the module consumes up to 2A during transmission bursts. Use a low-dropout regulator (LDO) or a dedicated buck converter to prevent voltage drops that cause unexpected resets. Connect the positive terminal to the VBAT pin and ground the GND pin directly to the power source’s negative rail–avoid sharing this ground with high-current loads like motors to minimize noise.

Connect the VIO pin to either a separate 1.8V–3.0V logic supply or tie it to the same voltage as your microcontroller’s I/O level. Mismatched logic levels (e.g., 5V on a 3.3V module) permanently damage the interface. For 3.3V microcontrollers, link VIO directly; for 5V systems, use a logic-level converter on all data lines.

• UART Pins:
  • TXD → Microcontroller RX (serial receive)
  • RXD → Microcontroller TX (serial transmit)
  • RST → Pull high via 10kΩ resistor; toggle low for 100ms to reset
  • DTR → Optional for sleep control; connect to MCU GPIO with pull-down resistor if used
• SIM Card Interface:
  • SIM_VDD → Tie to 1.8V or 3V via a 100nF decoupling capacitor
  • SIM_DATA, SIM_CLK, SIM_RST → Route directly to the SIM card holder
• Network Status LEDs: If present, the NET pin drives an LED (330Ω series resistor) to indicate registration: solid on (registered), blinking (searching), off (no network).

Route the RI (Ring Indicator) pin to an interrupt-capable GPIO on the microcontroller. Configure it for falling-edge detection to wake the host system upon incoming calls or SMS. Omit this connection only if call/SMS handling is unnecessary.

For battery-powered applications, solder a low-ESR capacitor (e.g., 1000µF tantalum) across VBAT and GND as close to the module as possible. This smooths current spikes during GSM bursts that can destabilize the power rail. Monitor temperature; the module draws transient currents up to 2A, so ensure the power source and traces handle pulsed loads without overheating.

Keep antenna traces short and impedance-matched (typically 50Ω). Use a ceramic or PIFA antenna for compact designs; position it at least 10mm from ground planes to prevent detuning. For high-gain applications, add a ground plane clearance zone around the antenna footprint to reduce interference with other components.

Double-check all connections against the module’s datasheet before powering on. A single reversed voltage on VBAT or misrouted logic pin (e.g., TXD to MCU TX instead of RX) renders the device non-functional and risks permanent damage. Test connectivity in stages: power first, then UART communication, followed by SIM registration before integrating with host firmware.

Step-by-Step Power Supply and Voltage Regulation Setup

Begin with a 4V-4.2V LiPo battery or a 5V regulated power source with at least 2A peak current capacity. Connect the positive terminal to a low-dropout (LDO) regulator like the MIC29302WU or AP2112K-3.3V, ensuring input capacitance of 10µF tantalum or 22µF electrolytic at the regulator’s input pin. The output must stabilize at 3.7V-4.0V to avoid brownout conditions, with a 100nF ceramic capacitor soldered as close as possible to the output pin to suppress high-frequency noise. Avoid switching regulators–linear LDOs minimize RF interference.

Critical Component Placement

Mount the LDO and capacitors within 10mm of the module’s power pins to prevent voltage drops across traces. Use thick (2oz copper) PCB traces or 18-20AWG wires for power delivery, calculating trace width via the IPC-2221 formula (e.g., 2mm width for 2A at 50°C ambient). Add a Schottky diode (1N5817) in reverse polarity between the battery and regulator input to block backflow during accidental short circuits. Test the setup with a multimeter in DC mode–voltage should remain stable under 1.8A load pulses (typical for GSM transmission bursts).

For backup power, integrate a 1F supercapacitor (e.g., Maxwell BCAP0350) in parallel with the LDO output, charged via a 2Ω resistor to limit inrush current. This buffers transient loads up to 3A for 500ms, critical during transmission spikes. Validate ripple with an oscilloscope–peak-to-peak noise should not exceed 50mV. If irregularities appear, add a pi-filter (10µH inductor + 220µF capacitor) post-regulator to smooth residual fluctuations. Avoid USB-powered setups without current-limiting mechanisms–they risk thermal shutdown under sustained loads.

Connecting the GSM Module to a Microcontroller via UART

Use a 3.3V logic level for UART communication to avoid damaging the module–most GSM transceiver pins tolerate only 2.7–3.6V. Connect TXD of the transceiver to RXD of the microcontroller and RXD to TXD, ensuring the baud rate matches the default 9600 for the transceiver. Include a 100nF decoupling capacitor between VCC and GND, placed as close as possible to the module’s power pins to suppress voltage spikes.

Module Pin	Microcontroller Pin	Connection Purpose
TXD	RXD	Serial data reception
RXD	TXD	Serial data transmission
VCC	3.3–4.2V supply	Power input (regulate if above 4.2V)
GND	Ground	Common reference

Ground the module’s RST pin through a 10kΩ resistor to prevent accidental resets–tying it directly to ground risks unreliable performance. If using hardware flow control, connect RTS/CTS pins with pull-up resistors (4.7kΩ) to 3.3V; omit if software flow control via AT commands suffices. Test connections with AT commands like AT (response: OK) and AT+CSQ (signal strength) before proceeding with network operations.

Adding Antenna and SIM Card Module for Reliable Connectivity

Use a soldered U.FL connector to attach a compact 2.4 GHz ceramic antenna to the GSM module’s RF pin. Position the antenna at least 3 cm from metal surfaces or dense components to avoid signal attenuation. Test reception with an RSSI reading–values below -90 dBm indicate poor placement.

Select a nano-SIM with a multi-band profile covering 850/900/1800/1900 MHz frequencies, especially if deploying in regions with mixed network standards. Insert the card into the module’s push-pull slot while powered off to prevent electrical damage. Verify lock status via AT+CREG?–response +CREG: 0,1 confirms successful registration.

For extended range, connect an external dipole antenna via SMA or IPEX connector, ensuring the coaxial cable has minimal impedance mismatch (≤0.5 dB loss per meter). Avoid bending the cable sharply–radii under 20 mm degrade signal integrity. If interference persists, add a 33 pF capacitor between the antenna feed and ground to filter high-frequency noise.

Power the module with a stable 3.8–4.2 V supply, bypassing with a 100 µF capacitor near the VCC pin to suppress voltage spikes. Measure current draw during transmission–spikes above 2 A suggest inadequate decoupling or antenna mismatch, requiring re-termination of the feed line.
