How to Draw a Basic Electric Circuit Diagram for KS2 Students

Start with a battery, a single bulb, and two wires. Connect one wire from the battery’s positive terminal to the bulb’s base, then attach the second wire from the bulb’s side to the battery’s negative terminal. This forms a closed loop allowing current to flow, lighting the bulb instantly. Test variations: replace the bulb with a buzzer or LED–observe how resistance changes behaviour.

Introduce a switch between the battery and bulb. Use a paperclip or small metal strip as a simple toggle. When the switch closes, the loop completes; when open, current stops. This demonstrates control over the flow without altering components–ideal for explaining energy conservation. Safety tip: always use low-voltage batteries (1.5V–3V) to avoid overheating.

Expand the setup with parallel and series connections. In series, add a second bulb in line–both glow dimly. In parallel, connect bulbs side by side; each receives full voltage and shines brighter. Compare results: series bulbs share voltage (halving brightness), while parallel bulbs operate independently. Record observations with a multimeter (if available) to measure voltage drops.

For hands-on engagement, use conductive dough or copper tape on cardboard to create paths. Shape the dough into letters or spirals, then press wires into it–this reinforces conductivity concepts while adding creativity. Alternatively, sketch layouts on paper first, labeling +/– terminals and component roles to reinforce planning before physical assembly.

Troubleshooting is key. If the bulb doesn’t light, check for loose connections, reversed polarity (LEDs are directional), or depleted batteries. Teach learners to trace the loop step-by-step: “Is the switch on? Is the wire fully connected? Is the bulb burned out?” This builds systematic problem-solving skills. For advanced projects, incorporate a resistor to dim light–compare 100Ω vs. 1kΩ effects.

Building Basic Electrical Loops for Young Learners

Start with a single 1.5V AA battery, a bulb rated for 2.5V (e.g., E10 base), and two insulated copper wires (0.5mm² thickness). Strip 1cm of insulation from each wire end using wire strippers–avoid scissors to prevent fraying. Connect one wire to the battery’s positive terminal (+), loop it to the bulb’s metal base, then attach the second wire from the bulb’s side contact back to the battery’s negative terminal (-). Test the setup by gently pressing the bulb into its holder; it should glow steadily without flickering.

For troubleshooting, use this checklist:

Issue	Possible Cause	Fix
No light	Loose connection	Re-strip wires and ensure metal-to-metal contact
Dim light	Battery drain or high resistance	Replace battery; shorten wire length to ≤20cm
Flickering	Corroded wire ends	Sandpaper the copper until shiny

Introduce a switch by cutting one wire and attaching its ends to a simple rocker or slide switch (SPST). Teach polarity by marking the battery’s terminals with red (+) and black (-) stickers–this prevents reversed connections in future experiments. For a parallel example, split the wires after the battery to power two bulbs simultaneously, observing equal brightness. Note that each bulb will drain the battery faster; calculate runtime using the formula: Hours = Battery Capacity (mAh) / (Bulb Current (mA) × Number of Bulbs)

Use a multimeter set to 2V DC to measure voltage drops across components. Probe the battery terminals first (normal: 1.2–1.5V), then the bulb’s contacts (normal: 0.5–1.2V drop depending on resistance). If readings deviate by >0.3V, check for shorts or poor connections. For advanced learners, replace the bulb with a 10Ω resistor (1/4W) and measure current; expect 100–150mA with a fresh battery. Record data in a table to identify patterns:

Component	Voltage (V)	Current (mA)
Battery	1.5	N/A
Bulb	1.2	120
Resistor	1.5	150

Safety rules: Never exceed 3V in classroom setups; lithium or 9V batteries pose burn risks. Always disconnect the battery before modifying wiring. For reusable projects, solder connections or use alligator clips (pre-tinned to prevent oxidation). Store materials in labeled plastic bins to avoid mixed components–keep switches separate from bare wires to prevent accidental bridging. Label each experiment’s diagram with component names and expected outcomes, e.g., “Loop with Switch–Light On when Closed.”

Extend learning by substituting the bulb with a small motor (3V DC,

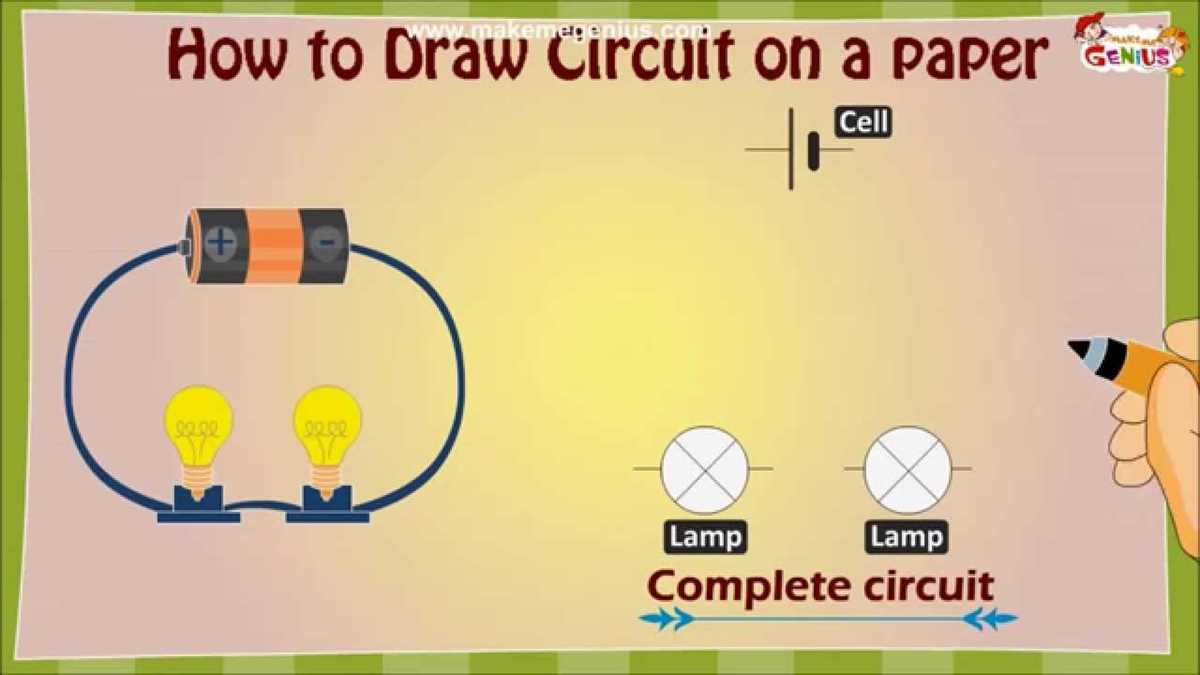

Creating a Basic Electrical Sketch with Power Sources and Lamps

Begin by placing a single-cell battery symbol vertically–draw a short straight line for the positive terminal, cap it with a plus sign (+), then leave a small gap before adding a longer parallel line beneath for the negative side. Connect the bulb directly to the battery by running a straight conductor from the battery’s negative line to the lamp’s base, then extend another conductor from the bulb’s top back to the positive terminal. This closed path ensures current flows predictably. For clarity, keep conductors straight with 90-degree turns only, using graph paper if hand-drawing.

Key Symbols and Their Placement

Use a small circle with a cross inside to represent the lamp–position it closer to the positive end if multiple lamps are added to avoid visual clutter. For multi-cell batteries, stack identical symbols vertically, separating each with equal gaps. Label each power source with voltage (e.g., 1.5V) if testing with real components; this helps debug unexpected dim lamps or overheating wires. Maintain consistent spacing between all elements–minimum 1cm gaps prevent overlaps when tracing pathways later.

Test the design by tracing the route with a finger: power leaves the positive terminal, enters the first lamp, exits, and returns to the negative side. If two bulbs share the same path, confirm they sit in parallel (separate branches) or series (single continuous loop) to match intended brightness. Misaligned connections cause open loops–check for accidental gaps where conductors should fully meet. Use a second color to highlight the flow path if revising the sketch, ensuring every intersection is deliberate.

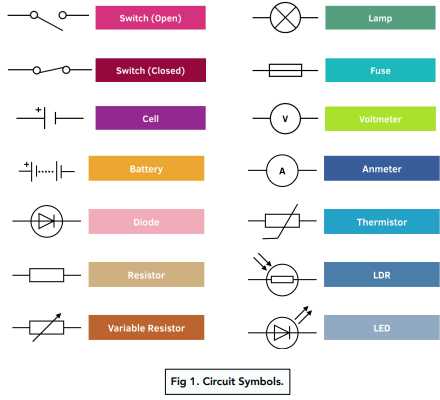

Key Electrical Schematic Symbols for Young Learners

Master the battery symbol first: two parallel lines, one longer (positive) and one shorter (negative). The longer line must connect to the target component’s positive terminal to avoid reverse polarity, which can damage LEDs or motors. Practice drawing this symbol ten times on graph paper–consistency prevents wiring errors in real builds. For switches, use break symbol (a diagonal line intersecting a straight one) for simple on/off, and SPDT (a sideways “Y” with three terminals) for multi-path control.

Resistors require a zigzag line–count the peaks (always 5) to distinguish from other components. Ohm values are coded by colored bands: gold/silver bands on the right signify tolerance (±5% or ±10%). Memorize the color order using “BBROYGBVGW” (Black, Brown, Red, Orange, Yellow, Green, Blue, Violet, Gray, White). Lamps use a circle with an “X” inside; ensure this symbol aligns vertically to match physical bulb orientation, especially in series connections where orientation affects current flow.

How to Assemble a Basic Electrical Loop from a Schematic

Gather these components first: a 1.5V AA battery, a small bulb (3V), two insulated wires (15cm each), and a switch. Verify the bulb’s voltage matches the power source to prevent overheating.

Strip 1cm of insulation from each wire end using wire cutters. Twist the exposed copper strands tightly to avoid fraying. Loose strands can cause short connections.

Connect one wire to the battery’s positive terminal. Hold it in place with a small piece of electrical tape–no soldering is needed for this temporary setup.

Attach the other end of that wire to one side of the switch. Use the same tape method to secure the connection. Ensure the switch is in the “off” position before proceeding.

Link the second wire to the remaining switch terminal. This wire will complete the path to the bulb. Double-check that no bare wires touch each other accidentally.

Fasten the loose end of the second wire to the bulb’s metal base. If using a bulb holder, insert the bulb first, then attach the wire to the holder’s screw terminal.

Connect the final wire to the bulb’s tip (or holder’s opposite terminal) and the battery’s negative terminal. The loop is now complete but inactive until the switch is flipped.

Test the setup by turning the switch to “on.” The bulb should glow steadily. If it flickers, recheck all connections for loose strands or gaps. Dim light indicates insufficient power–replace the battery or bulb.

• Avoid bending wires sharply; repeated bends weaken the copper.
• Never connect the battery terminals directly without a load (bulb/switch)–this creates a dangerous short.
• For longer experiments, use a battery holder to stabilize the power source.

1. Disassemble in reverse order: turn off the switch first.
2. Remove wires from the bulb before detaching from the battery.
3. Wrap unused wires around a cardboard tube to prevent tangling.

Common Errors in Primary-Level Schematic Sketches

Mixing up battery polarity is a frequent error. Children often place cells with the positive terminal connected to another positive terminal, creating a short path. Label each terminal clearly with “+” and “–” and double-check connections before testing. Use colored wires–red for positive, black for negative–to reinforce visual cues.

Overcomplicating layouts causes confusion. Avoid crisscrossing wires unnecessarily; route paths parallel or perpendicular to the edges of the page. Keep components spaced at least 2cm apart to prevent accidental contact. Break down multi-part constructions into separate subsections, linking them with arrows or numbered junctions:

• Use straight lines, not curves, for connections
• Group related parts (switches, lamps) horizontally
• Avoid drawing components over wires

Ignoring Component Symbols

Skipping standardized shapes frustrates understanding. A lamp is a circle with an “X,” not a realistic bulb drawing. Motors use a lowercase “m,” not a gear icon. Provide a reference sheet with five core symbols (cell, wire, switch, lamp, buzzer) and require consistent use. Check final sketches against the sheet–mismatches indicate rushed work.
