Understanding Basic Circuit Diagrams for Beginners Step by Step
Begin with a 5V to 12V power supply for low-voltage projects–batteries or AC adapters work reliably. Use a breadboard for prototyping before committing to permanent connections. Label every component on paper first: resistors, capacitors, transistors, and ICs should have clear identifiers like R1, C2, or Q3 to avoid confusion during assembly.
Apply Ohm’s Law (V = I × R) to calculate current and voltage drops across resistors. For LEDs, add a 220Ω to 1kΩ resistor in series to prevent burnout–check the LED’s forward voltage (typically 1.8V–3.3V) to adjust resistance accordingly. Use a multimeter to verify voltages at critical points before powering the entire setup.
Ground all unused IC pins (e.g., logic gates) to prevent erratic behavior. For switches, use pull-up or pull-down resistors (10kΩ) to ensure stable high or low signals. Draw interconnections with consistent conventions: power rails at the top, ground at the bottom, and signal flow from left to right. Test each sub-circuit independently before integrating them into the final layout.
Keep wire lengths short in high-frequency designs to minimize noise. Use decoupling capacitors (0.1µF) near IC power pins to filter voltage spikes. Document every modification–even minor ones–directly on the schematic to save debugging time later.
Building Basic Electrical Schematics: A Practical Guide
Begin with a single power source–a 9V battery or 5V USB adapter–placed at the top of your schematic. Label voltage and polarity (+/-) immediately to avoid ambiguity. Use a straight vertical line for the positive rail and a parallel one for ground, keeping them at least 2 cm apart for clarity. This separation prevents accidental shorting when tracing paths later.
Select standardized symbols: a straight line with a break for a resistor, a zigzag for a variable resistor, and a circle with an “L” for an LED. Avoid custom shapes unless documenting proprietary components–consistency accelerates recognition. For ICs, show pin numbers outside the rectangle, aligning them clockwise starting from the top-left corner (pin 1 = dot or notch).
- Resistor values: 220Ω–1kΩ for LEDs, 10kΩ for pull-ups.
- Capacitors: 0.1µF ceramic for decoupling near ICs, 10µF electrolytic for smoothing.
- Connections: Use T-junctions (avoid 4-way crosses) to prevent confusion; color-code wires if drafting by hand.
Annotate critical paths: mark input/output terminals, test points (TP1, TP2), and expected voltage ranges. Example: “TP1: 3.3V ±0.2V when SW1 closed.” Group related components within dashed boxes–e.g., “Oscillator Section” or “Power Regulation”–to visually segment functionality. Keep high-current paths (>100mA) thick and short to minimize resistance losses.
Validate the draft by tracing current flow manually: start at the power source, follow each branch to ground, and verify no loops lack a return path. Use a multimeter to check continuity on a breadboard prototype before finalizing. Common pitfalls: reversed polarity on electrolytics, floating inputs on CMOS logic, and forgotten pull-up/down resistors. Fix these at the schematic stage to save hours of debugging.
Interpreting Fundamental Schematic Symbols: Resistors, Capacitors, and Transistors
Resistors use a zigzag line to denote their function–count the number of bends to approximate resistance values in older schematics, though modern layouts prefer numerical annotations like “R1 10kΩ.” For fixed resistors, the symbol remains consistent, while variable resistors (potentiometers) add an arrow crossing the zigzag. Polarized resistors, rare but existent, include a diagonal line through the zigzag.
Capacitor Symbols and Their Variations
Capacitors split into two categories: non-polarized (two parallel lines) and polarized (one curved line). The curved line represents the negative terminal in electrolytic types–critical for correct placement. Parallel lines with a gap indicate ceramic or film capacitors, while an additional “+” sign confirms polarity. Small capacitance values (pF, nF) often use just the parallel lines without extra markers.
Transistors combine three terminals into a single symbol: the collector (C), base (B), and emitter (E). Bipolar junction transistors (BJTs) use a diagonal line with an arrow pointing away for NPN or toward the base for PNP. Field-effect transistors (FETs) replace the arrow with a perpendicular line for the gate. Enhancement-mode MOSFETs add a broken line between source and drain, while depletion-mode uses a solid line.
Tunnel diodes and thyristors share symbols with transistors but include extra lines–an “S” shape for tunnel diodes or a third line parallel to the base-emitter junction for thyristors. Light-dependent resistors (LDRs) and phototransistors integrate arrows or lines to indicate light sensitivity. Always verify terminal labels, as manufacturers sometimes rotate or mirror symbols.
Start with color-coded resistor bands if numerical values are missing: gold/silver bands denote tolerance (±5% or ±10%), while absent bands imply ±20%. For capacitors, microfarad (µF) values appear directly, but picofarads (pF) may require conversion. Transistors in datasheets include pinout diagrams–never assume the emitter is always on the bottom.
Step-by-Step Guide to Drawing a Battery-Powered LED Schematic
Begin with a 3V coin cell (CR2032) or two AA batteries in series–directly label voltages on the diagram. Position the power source at the top-left corner: the positive terminal (marked “+”) connects to the LED’s anode via a 220Ω resistor (color bands: red-red-brown). Below the battery, sketch a straight horizontal line (trace) extending right–this is the ground rail, terminating the cathode leg. For precision, use standardized symbols: the LED (an arrow pointing toward a vertical line) and the resistor (zigzag or rectangular block).
| Component | Symbol Dimensions (mm) | Recommended Trace Width |
|---|---|---|
| LED | 5×3 (arrow length × line gap) | 0.5 mm |
| Resistor | 6×2 (straight) or 4×3 (zigzag) | 0.3 mm |
| Battery | 8×5 (parallel lines, “+” labeled) | N/A |
Draw connections with 90° bends–avoid diagonal lines to prevent misinterpretation. Number each node (1: battery “+”, 2: resistor lead, 3: LED anode) and cross-check continuity with a multimeter. If the LED fails to light, reverse polarity or verify the resistor value: red LEDs typically require 1.8–2.2V forward voltage, so recalculate using Ohm’s Law (R = (Vsource – VLED) / ILED). Scan the finished layout at 600 DPI for clean exporting.

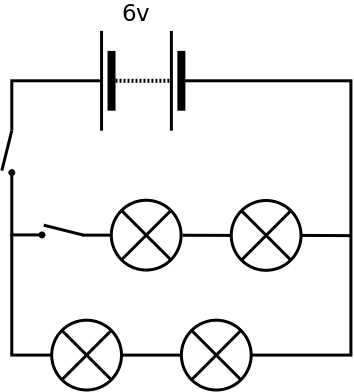

Common Pitfalls in Connecting Sequential vs. Branched Electrical Paths
Avoid mixing voltage requirements across branches in a branched configuration. Each branch must handle the same voltage as the power source; placing a 12V LED in one branch and a 5V component in another guarantees failure. Verify component datasheets before drawing connections, and group devices by their voltage needs to prevent uneven distribution or overheating.
Overloading a sequential chain by ignoring current limits causes rapid degradation. In a single-path setup, current remains constant, but resistance adds up. A 10Ω resistor followed by a 5Ω load doubles total resistance from 5Ω alone, cutting current by 33% (Ohm’s Law). Calculate cumulative resistance before wiring, and split high-load elements into separate branches if current exceeds component ratings.
Misidentifying ground points creates ghost voltages. In branched arrangements, components often share a common return path, but loose connections or incorrect splicing introduce parasitic resistance. Measure voltage drop across each branch’s return path–any deviation beyond 0.1V signals a bad joint. Use star grounding: route all returns to a single point rather than daisy-chaining grounds.
Neglecting power dissipation leads to thermal runaway. A 1/4W resistor in a sequential chain carrying 20mA dissipates 0.1W (I²R), but increasing current to 30mA jumps dissipation to 0.225W, exceeding its limit. For high-current paths, replace inline components with equivalents rated for 1W or higher, or redistribute load across multiple branches.
Assuming identical behavior between AC and DC branched paths risks waveform distortion. Capacitors in parallel sum capacitance (C₁ + C₂), but inductors in parallel require reciprocal addition (1/Lₜ = 1/L₁ + 1/L₂). A 10µH coil paired with a 5µH coil yields 3.33µH, not 7.5µH. For reactive elements, recalculate impedance at the target frequency–20kHz AC behaves differently than 50Hz.
Skipping continuity checks in sequential chains masks intermittent faults. A single broken solder joint in a 10-component chain drops the entire path’s voltage to zero, yet visual inspection often misses hairline cracks. Use a multimeter in continuity mode, probing each joint, and apply thermal stress (heat gun at 60°C) to expose cold-solder joints that pass room-temperature tests.
Underestimating stray capacitance in high-speed branched networks introduces signal integrity issues. Two adjacent traces on a breadboard with a 1pF/cm coupling coefficient over 10cm create 10pF of unintended capacitance. For frequencies above 1MHz, separate traces by at least 2mm or switch to a PCB with controlled impedance (ground planes reduce parasitic capacitance by 70%).
Tools for Designing and Validating Prototypes on Solderless Boards
Begin with a high-quality solderless breadboard–choose one with at least 830 tie points. Models like the MB-102 or SYB-170 offer sufficient rows for complex layouts, including power rails that run vertically to minimize voltage drop. Avoid cheap variants with poorly aligned contacts; they cause intermittent connections. Pair the board with 22 AWG solid-core jumper wires–stranded wires fray and disrupt signals. Pre-cut wire kits with color-coded insulation (red for power, black for ground, others for signals) accelerate testing.
A digital multimeter (DMM) with continuity testing is non-negotiable. The Fluke 117 or UNI-T UT61E detect shorts, open paths, and measure voltage/current with ±0.5% accuracy. For precision, ensure the DMM has a low-current mode (≤200μA) to avoid triggering sensitive components like MOSFETs during checks. Add a logic probe for TTL/CMOS signals–the Elenco LP-560 distinguishes between high/low states and pulse trains, eliminating guesswork in digital builds. For power, use a bench supply with adjustable voltage (0–30V) and current limiting–models like the Riden RD6018 offer dual channels and programmable presets to prevent component burnout.
For schematic capture, KiCad 7.0 delivers PCB-grade netlists that sync flawlessly with breadboard layouts–its EEschema module includes real-time ERC (electrical rule checks) to flag unconnected pins or conflicting power domains. Export netlists as SPICE directives to validate circuits in LTspice before prototyping. If hand-drawing schematics, use quad-ruled notebook paper and a 0.5mm mechanical pencil with erase-proof leads–mistakes in wire labeling cause hours of troubleshooting. Keep a 3x magnifier nearby to inspect tiny IC pins or surface-mount adapters for alignment issues.
