Basic Electronic Ballast Circuit Schematic with Components Guide
Start with a half-bridge inverter configuration to achieve stable high-frequency operation for gas-discharge lamps. A 2N60 or IRF840 MOSFET pair will handle switching at 30–50 kHz, reducing flicker and eliminating audible noise. Ensure the gate resistors (10–47 Ω) match the MOSFET’s rise/fall times to prevent shoot-through–calculate dead-time (500 ns–2 µs) based on your chosen IC or discrete drivers.
For resonant tank design, pair a 0.1–0.47 µF film capacitor with a 1–3 mH inductor–values depend on lamp power (18W–58W). Use EE16 or EF20 cores with 20–30 turns of 0.3 mm enameled wire for 20W luminaires; scale up for higher loads. The capacitor must be rated for 600V+ to withstand voltage spikes during ignition (peak 700–1000V). Add a 33–100 nF snubber across the MOSFETs to clamp transients from parasitic inductances.
Feed the topology with a stabilized 250–400VDC supply–rectify mains (220V/50Hz) using a bridge rectifier (1N4007) and smooth with 47–100 µF/450V electrolytic capacitors. For flicker-free startup, precharge the bus with a 10–22 Ω/5W resistor in series, bypassed by a relay or NTC thermistor within 1–2 seconds. Include a fast-acting fuse (1–2A) on the AC side to isolate faults in the switching stage.

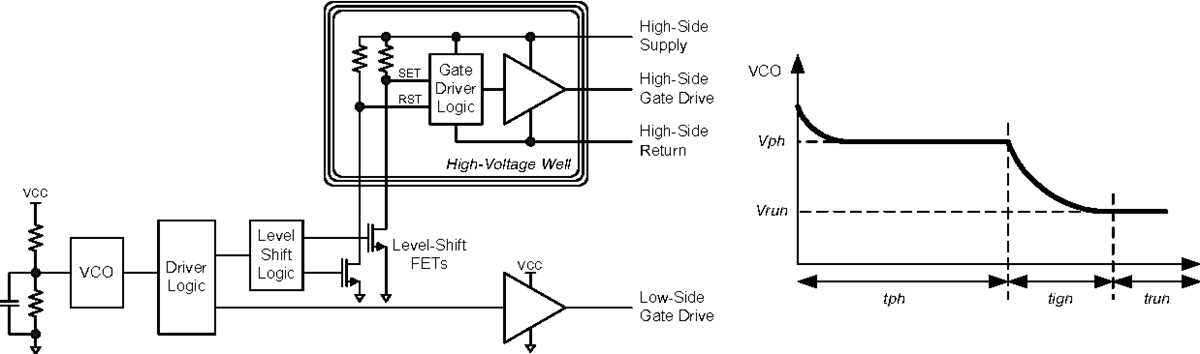

Control ignition with a UBA2024 or discrete PWM oscillator–set frequency slightly above resonance (2–5 kHz) for soft start, then lock to the tank’s natural frequency (30–50 kHz) once the lamp strikes. Use 1N4148 diodes for feedback and a 1 MΩ resistor to stabilize the oscillator against temperature drift. Test waveforms with an oscilloscope: expect sine-like voltage across the lamp (200–300V RMS) and current crest factor for optimal electrode life.
Avoid toroidal inductors–air gaps in EE/EF cores provide better saturation margin under high inrush currents. Polypropylene film capacitors (WIMA FKP1) outperform ceramics in the resonant tank due to lower dielectric losses. For EMI compliance, add common-mode chokes (10–30 mH) on the AC input and X2-class capacitors (0.1 µF) across the rectifier outputs. Measure leakage current: target to meet IEC 61000-3-2 for household lighting.
Prototype on perfboard with heavy copper traces or a double-layer PCB (> 2 oz/ft²) to handle > 5A RMS currents. Keep high-voltage traces (> 4 mm clearance) and isolate input/output grounds to prevent coupling. For dimming, replace the fixed resistor in the oscillator with a 10 kΩ potentiometer–ensure frequency sweep covers 20–100 kHz without entering unstable regions. Lamps rated for 26 mm tube diameter tolerate wider frequency ranges than 16 mm variants.
DIY Fluorescent Lamp Driver Layout
Use a half-bridge inverter topology with two IRF840 MOSFETs rated for 500 V and 8 A to handle 20–50 W tubular lamps reliably. Connect the DC bus via a 450 V, 22 µF electrolytic capacitor after a full-wave bridge rectifier–add a 100 nF polypropylene snubber across each MOSFET drain-source pair to suppress 50–150 kHz switching spikes. Drive the gate network with an IRS2453D lamp-control IC, configuring the internal oscillator to 40 kHz via a 10 kΩ resistor and 1.5 nF timing capacitor for optimal filament preheating and steady-state operation.
Wind the resonant inductor on a 12 mm RM6 ferrite core with 60 turns of 0.5 mm enameled wire (AL ≈ 30 µH/N²) and tune the parallel tank with a 4.7 nF, 630 V MKP capacitor; maintain a Q-factor between 2 and 3 to ensure cold-start ignition under 10°C ambient conditions without overheating filaments.
Selecting Parts for a Fundamental Lamp Driver
Start with a high-voltage MOSFET rated for at least 600V and 2A continuous current–IRF840 or STW20NM60N fit most 20W to 40W fluorescent tubes. Gate capacitance should stay below 500pF to avoid slow switching. Pair it with a fast-recovery diode (UF4007) on the freewheeling path; older 1N4007 variants add unnecessary reverse recovery losses.
Choose an inductance core between 1.5 mH and 4 mH depending on lamp wattage. For 36W tubes, use an EI-30 or EF-25 ferrite core with 100 turns of 0.4 mm wire (≈2.2 mH). Ensure the core gap stays under 0.5 mm to prevent saturation at 1.2A peak current. Measure inductance with an LCR meter at 50 kHz before soldering.
| Lamp Power (W) | Core Type | Turns Count | Wire Diameter (mm) | Target Inductance (mH) |
|---|---|---|---|---|
| 18W | EI-25 | 80 | 0.35 | 1.5 |
| 26W | EI-28 | 90 | 0.40 | 2.0 |
| 36W | EI-30 | 100 | 0.40 | 2.2 |
Resistors for current sensing must handle 0.5W dissipation–carbon film types drift less than thick-film at 10k Ω. Connect the sense resistor directly between the MOSFET source and ground; track layout must keep stray inductance under 10 nH. Solder a 1N4148 across the sense resistor to clamp reverse voltage spikes from lead inductance.
Pulse Conditioning Elements
Gate drive resistors should range from 10 Ω to 47 Ω–lower values speed up switching but increase ringing. Include a 1 kΩ pull-down resistor on the MOSFET gate to prevent false turn-on at startup. Capacitors across the driver IC supply (100 nF X7R) must sit within 2 mm of the IC pins; ceramic types perform better than electrolytic at 100 kHz.
Opt for polyester film capacitors (≈100 nF) for the resonant tank–avoid cheap polypropylene variants that shift capacitance with temperature swings. Mount the resonant capacitor as close to the lamp filaments as physically possible; PCB trace lengths over 15 mm introduce unwanted phase shifts that degrade lamp ignition reliability.
Step-by-Step Assembly of a Budget Fluorescent Driver
Gather components rated for 220V AC input: a 10μF 400V polyester capacitor, four 1N4007 diodes, an 8W 130Ω resistor, and a 100nF 275V X2 capacitor. Verify each part’s markings with a multimeter to confirm values before soldering–mismatches risk overheating. Arrange parts on a 5x7cm perfboard, spacing high-voltage traces at least 3mm apart to prevent arcing.
Connect the diodes in a bridge configuration: attach two diodes in series per leg, cathodes pointing toward the DC output. Solder the 10μF capacitor across the output, ensuring the negative terminal aligns with the diodes’ common cathode. Snip excess lead lengths to avoid stray capacitance–excessive wire bends can create inductive loops.
- Install the 130Ω resistor between the bridge’s positive terminal and the lamp’s filament–this limits inrush current.
- Parallel the X2 capacitor across the input to suppress EMI; failure here causes flicker.
- Twist filament wires tightly to the board’s output pads, then insulate with heat-shrink tubing.
Test the driver with a 20W fluorescent tube–measure 260V DC across the capacitor. If voltage drops below 240V, recheck diode orientation; reversed polarity will blow the fuse. For 120V AC inputs, swap the capacitor to 22μF and resistor to 68Ω–this adjustment maintains stable plasma ignition.
Avoid enclosing the assembly in plastic; use a ventilated metal chassis to dissipate heat. Label input/output terminals clearly–miswiring damages lamps. For dimming, add a 10kΩ potentiometer in series with the resistor, but expect reduced tube lifespan below 50% brightness.
Calculating Resistor and Capacitor Values for Reliable Ignition
Select a starting resistor (R_start) between 47Ω and 100Ω for a 220V AC input with a 40W fluorescent load. This range ensures sufficient preheating current (0.5–1A) while preventing overheating. For lower wattages (e.g., 20W), reduce to 33Ω–68Ω. Verify using Ohm’s Law: R = V_preheat / I_preheat, where V_preheat ≈ 10V for most tubes. Exceeding 150Ω risks delayed ignition or cold-start damage.
Capacitor Selection for Phase Shift and Strike Voltage
Match the resonance capacitor (C_res) to the lamp’s power rating: 6.8nF for 36W, 4.7nF for 20W, or 10nF for 58W. Calculate using C = 1 / (2πfL), where f = 30–50kHz (typical inverter frequency) and L = 1–3mH (choke inductance). For 40W lamps, a 8.2nF polypropylene capacitor rated for 630V DC ensures a 600–900V peak-to-peak strike voltage, exceeding the 400V minimum required for reliable ignition. Derate voltage by 20% for ambient temperatures above 50°C.
Add a snubber capacitor (C_snub) of 1–2.2nF across transistor switches to suppress voltage spikes. Pair with a 47–100Ω resistor (R_snub) in series; this RC network improves efficiency by damping oscillations and reducing switching losses. For high-frequency inverters (>60kHz), increase C_snub to 3.3nF to counteract parasitic inductance in PCB traces.
For filament heating, use a 10µF–22µF electrolytic capacitor (C_filament) to stabilize current during preheat. Verify ripple current: I_ripple = V_filament / X_C, where X_C = 1 / (2πfC). At 40kHz, a 15µF capacitor yields X_C ≈ 0.265Ω, limiting ripple to
Verifying Power Consistency in Homemade Lighting Drivers
Measure output voltage at the lamp terminals with a multimeter set to AC mode. For a 20W fluorescent tube, target values should stabilize between 80–120V RMS within 100ms of startup. If readings fluctuate beyond ±5%, inspect the resonant capacitor for ESR degradation–replace if ESR exceeds 0.5Ω. Probing should occur at cold start and after 5 minutes of operation to detect thermal drift.
Oscilloscope checks reveal transient spikes invisible to conventional meters. Connect probes across the switching transistor’s drain-source (or collector-emitter) with a 10x attenuation setting. A stable waveform should show clean sinusoidal traces; ringings above 20% of peak amplitude indicate poor snubbing–add a 1nF/1kV ceramic capacitor in parallel to the transistor’s leads. For current stability, clamp a 10A RMS Hall-effect sensor around the inverter’s input line: expect 180–220mA RMS for a 20W load, with less than 30mA ripple.
Thermal validation demands infrared thermography. After 30 minutes of operation, scan the inductor and switching components. Temperatures above 60°C on the ferrite core or 85°C on the transistor case signal inefficient energy conversion–recalibrate the duty cycle or upgrade to a toroidal core with lower hysteresis loss. For rigorous stress-testing, cycle the driver every 30 seconds for 2 hours; consistent ignition without flicker confirms robustness.
