Easy to Build Basic Light Circuit Design Explained Step by Step
Start with a 9V battery as your power source–its compact size and reliable voltage make it ideal for beginner setups. Connect the positive terminal to a slide switch (SPST type) to control current flow without complicating the design. From the switch, run a 22-gauge copper wire to the first component: a resistor rated 220Ω to 470Ω, depending on your LED’s forward voltage. This prevents thermal damage to the diode.
Attach a 5mm LED (standard 20mA rating) to the resistor, ensuring the anode (longer leg) faces the positive path. Use a jumper wire to ground the cathode to the battery’s negative terminal. For stability, solder joints on a perfboard or secure them with alligator clips during testing. Avoid breadboards for permanent setups–oxidation at contact points causes intermittent failures.
Verify connections with a multimeter set to continuity mode before powering on. If the LED glows dimly, reduce resistor value incrementally; if it flickers, check for loose wires or insufficient solder. For alternating effects, replace the switch with a 555 timer IC in astable mode (adjust capacitor values to customize blink rate). Keep traces short–long runs increase resistance and heat buildup.
For outdoor use, encase the assembly in a weatherproof junction box and seal entry points with silicone grease. Replace alkaline batteries every 6 months–voltage drops below 7V degrade LED brightness. If expanding the design, add a transistor (2N2222) to drive higher-current loads like 1W LEDs (use a 10Ω resistor on the base).

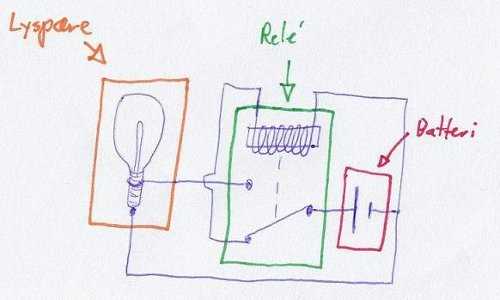

Basic Electrical Schematic for Illumination
Begin by connecting a power source directly to the control element, ensuring polarity matches the manufacturer’s specs. A standard 9V alkaline battery suffices for low-current setups, while a 12V lead-acid unit better supports higher wattage. Avoid exceeding 80% of the battery’s capacity to prolong lifespan.
Integrate a mechanical or solid-state switch between the power supply and output. For manual operation, a toggle rated at 15A handles most household bulbs; opt for a relay rated at 30A when automating via microcontrollers. Position the switch within 15cm of the device for safety and ease of access.
Select an emission device based on luminous efficacy and thermal limits. LEDs dissipate minimal heat, accepting up to 150mA per segment, whereas incandescent filaments require derating beyond 70% of nominal voltage. Use the table below for component pairing:
| Power Rating | Emission Device | Current (mA) | Resistor (Ω) |
|---|---|---|---|
| 3V | Red LED | 20 | 47 |
| 5V | White LED | 25 | 120 |
| 9V | Incandescent | 100 | N/A |
| 12V | Halogen | 400 | N/A |
Calculate series resistance using R = (Vsupply – Vforward) / Iforward. For 5mm LEDs, forward voltage typically ranges 1.8–3.3V; exceed 200Ω only if thermal dissipation is managed externally. Parallel multiple small-value resistors to split heat output.
Route wiring with 18AWG copper strands for currents below 5A; upsize to 14AWG for 10A loads. Secure joints with solder sleeves rather than twist-and-tape methods to prevent oxidation. Keep conductor runs under 2m to minimize voltage drop, especially when powering multiple emitters.
Mount emission devices on heat sinks if duty cycles exceed 30%. Aluminum substrates measuring 30×30×3mm suffice for single-LED assemblies; increase surface area by 50% per added emitter. Apply thermal paste between interface surfaces, achieving
Include a diode across inductive loads to snub voltage spikes. A 1N4007 clamps transients up to 1kV, protecting both switch contacts and semiconductor devices. Position the diode cathode toward positive voltage, allowing reverse recovery currents to bypass sensitive components.
Validate functionality using a multimeter before final assembly. Measure voltage across each resistor, confirming ±5% tolerance. For AC-derived systems, add a fuse rated at 1.2× nominal current; automate shutdown via crowbar circuits if thermal thresholds near 85°C.
Essential Parts for a Fundamental Illumination Setup
Begin with a power source delivering 3–12 volts to avoid overloading small LEDs. Button-cell batteries (CR2032) work for compact designs, while AA or AAA alkaline cells (1.5V each) suit larger assemblies–connect two in series for 3V. Avoid lithium-ion packs unless paired with a current-limiting resistor to prevent LED burnout. For permanent installations, a 5V USB adapter or 9V wall wart stabilizes output and extends longevity compared to disposable batteries.
Select resistors based on LED voltage drop and target current. Standard 5mm red LEDs typically drop 1.8–2.2V; divide the excess voltage (e.g., 3V supply minus 2V LED drop = 1V) by the desired current (20mA) to choose a 47–56Ω resistor. For blue or white diodes (3.0–3.6V drop), recalculate: (5V supply minus 3.3V drop) ÷ 0.02A = 85Ω–round up to 100Ω. Place the resistor between the power source and the LED anode to dissipate excess energy as heat rather than damaging the diode.
Switch Selection and Placement
Momentary push-buttons (6mm tactile switches) suit temporary activation, while SPST slide or rocker switches excel for persistent states. Position the switch between the power source and the resistor to break the entire path, preventing parasitic drainage. For multi-LED arrays, a rotary potentiometer (10kΩ) doubles as a dimmer–wire it in series with the LEDs, ensuring the wiper connects to the resistor’s side of the path to avoid voltage spikes when toggling.
Wire gauge depends on current load: 22–24 AWG stranded copper handles ≤1A, fine for single-LED setups, while 18 AWG solid core supports up to 5A for parallel arrays. Twist stripped ends clockwise before inserting into terminal blocks to maximize contact; solder joints only if heat-shrink tubing insulates the connection afterward. Avoid bare copper near flammable surfaces–use heat-resistant loom or PVC sleeves for exposed runs.
Housing and Safety Considerations
Enclose components in ABS plastic project boxes or 3D-printed enclosures with ventilation cutouts for resistors dissipating >0.25W. For outdoor use, seal entry points with silicone compound and use IP65-rated switches. Mount LEDs on aluminum heatsinks if driving high-brightness variants (>20mA) for prolonged periods; thermal paste between the diode and heatsink improves heat transfer by 30%. Always include a diode (1N4007) across inductive loads like relays to suppress voltage spikes when breaking the path.
Test continuity with a multimeter before applying power; probe the entire path from battery to LED to confirm zero short circuits. For debugging, substitute a 1kΩ resistor as a temporary current limiter–if the LED illuminates dimly, the original resistor value was correct. Never bypass resistors completely; even a 1Ω resistor limits current sufficiently during initial tests to prevent immediate failure.
Step-by-Step Wiring Instructions for a Battery-Operated Illumination Setup
Gather the following components before starting: a 9V alkaline battery, a toggle switch, a 3mm LED with a forward voltage of 2V–3.5V, a 220Ω resistor, and insulated jumper wires. Verify the LED’s polarity–its longer leg is the anode (+), the shorter leg or flat edge marks the cathode (-). Use sandpaper to lightly roughen the battery’s snap connector terminals if oxidation is present to ensure a secure connection.
Solder the resistor directly to the LED’s cathode leg to prevent heat damage to the semiconductor. Strip 3mm of insulation from the free end of the resistor and twist it to the red wire of the 9V battery snap connector. For the switch, solder one terminal to the LED’s anode leg and the other to the battery’s black wire. Use heat-shrink tubing or electrical tape to insulate each joint, leaving no exposed metal.
Test the configuration by pressing the switch–if the LED fails to illuminate, immediately disconnect the battery and check for reversed polarity, loose connections, or incorrect resistor value. A 220Ω resistor limits current to ~20mA for a 9V source, but substitute a 150Ω resistor if using a low-drop LED (1.8V forward voltage). Exceeding 30mA risks permanent LED failure.
Secure the components on a non-conductive base, such as a small plastic project box or a wooden block. Drill a 5mm hole for the LED and a matching slot for the switch. Fasten the toggle with its mounting nut, then thread the LED through the hole, securing it with hot glue. Avoid over-tightening the switch to prevent cracking its housing.
Before finalizing, measure voltage across the LED with a multimeter–expect ~2V–3.5V depending on the semiconductor’s rating. If voltage drops below 1.8V, reduce resistor value incrementally (e.g., 180Ω or 100Ω). For extended battery life, replace the alkaline cell with a rechargeable NiMH 9V battery, ensuring it delivers at least 8.4V under load to maintain brightness.
Frequent Errors in Basic Electrical Setup Construction
Ignoring component polarity ranks among the most critical oversights. Many beginners assume all elements behave uniformly, but capacitors, diodes, and batteries demand strict orientation. Reversing a polar component–like installing an electrolytic capacitor backward–can lead to catastrophic failure, including leakage or explosion. Always verify datasheets for symbol markings, particularly for diodes (`+`, `-`, or banded cathodes) and capacitors (longer positive leads or striped negative sides).
Underestimating wire gauge selection causes resistance-related issues. Thin conductors overheat under moderate current, degrading performance or melting insulation. For a 1A load, 22 AWG suffices, but 18 AWG becomes necessary at 3A. Use standard wire gauge charts to match conductor thickness to anticipated amperage. Skimping on gauge risks voltage drops across even short runs.
Overlooking Heat Dissipation Requirements
Heat buildup from resistors or transistors often goes unchecked. A ¼W resistor can safely dissipate 0.25W, but exceeding this by even 0.1W may cause failure within minutes. Calculate power dissipation using P = I²R or P = VI. For example, a 100Ω resistor at 5V pulls 0.05A, resulting in 0.25W–already at the ¼W limit. Upgrade to ½W or 1W resistors for marginal cases.
Loose connections create intermittent faults that frustrate debugging. A single unsoldered joint or frayed wire end introduces micro-gaps, causing inconsistent operation. Use proper soldering techniques–heat both the pad and component lead, apply flux, and ensure a shiny, concave fillet. For temporary setups, twist wires tightly and seal with electrical tape, avoiding oxidation-prone copper exposure.
Misinterpreting schematic symbols derails entire prototypes. Confusing a ground symbol (⏚) with chassis ground or misidentifying a MOSFET as a BJT leads to incorrect layouts. Commit fundamental symbols to memory: resistors (─[ ]─), capacitors (─| |─), LEDs (anode `>|`, cathode `|authoritative references.
Failing to account for ambient conditions corrupts performance. A setup functioning indoors may fail in high humidity, low temperatures, or under vibration. Encase moisture-sensitive components (e.g., uncoated PCBs) in conformal coatings, and use silicone-based grease on connectors exposed to outdoor conditions. Test prototypes across expected environmental ranges before finalizing designs.
