Build Your First Microcontroller Project Basic Circuit Schematic Guide
Start with an ATtiny85 or PIC12F675 for low-pin-count projects–both require only a 5V power supply, decoupling capacitor (0.1µF), and a 10kΩ pull-up resistor on the reset pin for stable operation. Connect VCC and GND directly to a regulated source, avoiding breadboard power rails which introduce noise.
For clocking, bypass default internal oscillators–use an external 8MHz crystal with two 22pF load capacitors if timing precision matters (e.g., UART communication). Skip RC oscillators unless power efficiency outweighs accuracy (typical drift: ±1% vs. ±0.005% for crystals). Ground unused pins via 10kΩ resistors to prevent floating inputs.
Add an MCP2515 CAN transceiver for robust industrial interfaces: power it from 5V, link SPI signals (CS, SCK, MOSI, MISO) to the controller, and terminate CAN_H/CAN_L with 120Ω resistors. For debugging, solder a FT232RL USB-to-serial converter–match baud rates (e.g., 9600) and route TX/RX directly; no level shifters needed for 5V-compatible logic.
Keep analog inputs noise-free by placing a 1µF tantalum capacitor at the ADC pin and ensuring ground returns trace back to a single star point. For high-current loads (>20mA), isolate traces with SI2302 N-channel MOSFETs–gate resistors (100Ω) prevent ringing, while flyback diodes (1N4007) protect against inductive spikes.
Programming requires a 6-pin ICSP header (VCC, GND, MCLR, PGD, PGC). Flash firmware using AVRDUDE (AVR) or MPLAB IPE (PIC); verify fuse settings (e.g., disable watchdog, set clock source). Forget lengthy IDEs–use command-line tools with scripts for batch production.

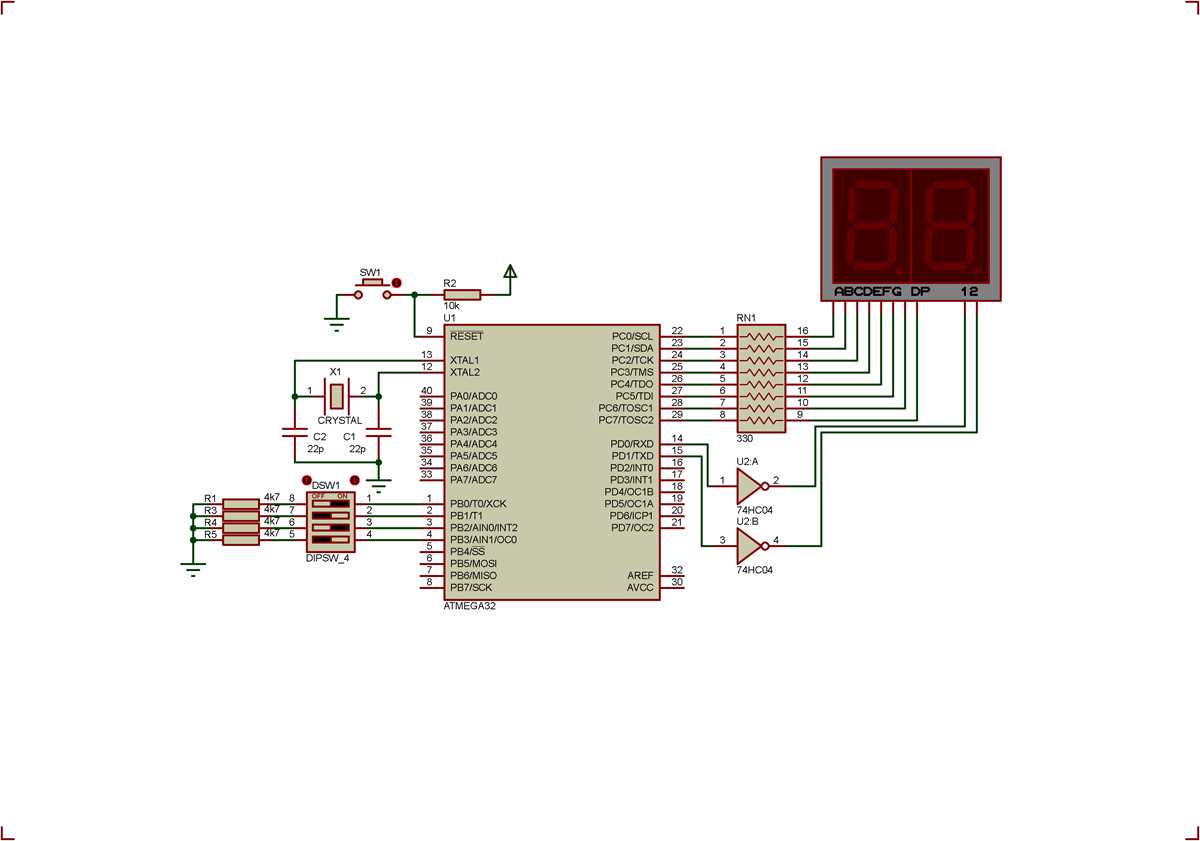

Building a Basic Embedded System Layout
Start with an ATtiny85 or PIC12F675 for minimal component count–these chips require only power, a decoupling capacitor (0.1µF), and a reset circuit. Place the capacitor within 2mm of the VCC pin to suppress noise from sudden current spikes.
For clock signals under 8MHz, omit an external crystal. Enable the internal oscillator via fuse settings in the IDE (AVRDUDE for ATtiny: -U lfuse:w:0xE2:m). This reduces parts but limits precision; expect ±10% frequency drift.
- Power: 2.7–5.5V DC (regulated LDO like MCP1700 for stability).
- IO: Use pull-up resistors (10kΩ) if input pins float. Drive LEDs directly with 220Ω series resistors to avoid exceeding 20mA per pin.
- Debugging: Add a 1kΩ resistor between GPIO and ground to isolate short circuits during testing.
Interfacing sensors? Allocate a dedicated ground plane beneath analog inputs to minimize crosstalk. Route traces wider than 12 mils for currents above 100mA. Avoid vias under the chip; thermal conductivity can disrupt internal readings.
Firmware flashing demands a 5-pin ISP header (MOSI, MISO, SCK, RESET, VCC, GND). Position it near the edge of the PCB for easy access. Use 6-pin female headers if space allows–male headers risk shorting if probed accidentally.
For power-saving modes, tie unused pins to GND via 1MΩ resistors. This prevents floating inputs from leaking current when the chip sleeps. Measure current draw with a multimeter; targets below 1µA indicate success.
- Choose a development board like Arduino Pro Mini to prototype–swap to bare chips later.
- Route traces manually for single-sided PCBs. Use 0.2mm traces for signal paths; 0.5mm for power.
- Test each section incrementally (power → clock → reset → GPIO → peripherals).
Thermal considerations: Avoid running chips at maximum frequency continuously. Derate power dissipation by 30% if ambient exceeds 40°C. Heat sinks are unnecessary for low-power designs unless driving inductive loads (relays, motors).

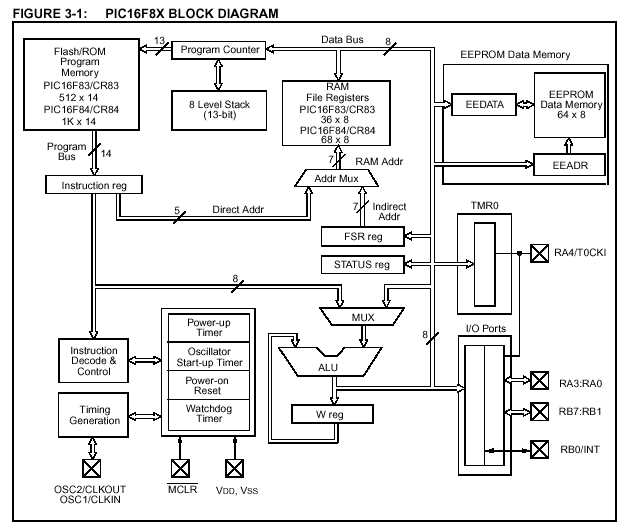

Selecting the Optimal Processing Unit for Embedded Applications
Begin by evaluating compute requirements: for low-power sensor nodes, the ATtiny85 consumes less than 1 µA in sleep mode while providing 8 KB flash and 512 B RAM–ideal for battery-driven devices like remote environmental monitors. If your design demands more peripheral integration, the STM32G031 offers 32 KB flash, 8 KB SRAM, and a hardware multiplier within a 20-pin package, balancing cost and performance for real-time control tasks in motor drivers or LED matrices.
Prioritize peripheral compatibility when interfacing with external components. Projects requiring precise timing–such as PWM-based dimmers or stepper motor controllers–benefit from units with dedicated timer modules. The PIC16F18875 includes four 16-bit timers and a 10-bit ADC, eliminating the need for external ICs in designs like custom power supplies or audio synthesizers. For connectivity-heavy applications, the ESP32-C3 delivers Wi-Fi and Bluetooth LE alongside dual-core 160 MHz processing, though its 320 KB SRAM increases current draw to 80 mA active, critical for always-on IoT nodes.
Power Constraints Dictate Choices
For ultra-low power deployments, compare deep sleep currents: the MSP430FR5969 retains data in 0.1 µA shutdown, while the nRF52810 drops to 0.3 µA but adds Bluetooth 5.0 for wireless sensor networks. When active power becomes a factor, calculate duty cycles; a device waking every 10 ms to sample a 12-bit ADC will consume significantly less energy on a SAMD21 (Cortex-M0+, 3.3 µA/MHz) than an STM32H7 (Cortex-M7, 280 µA/MHz), despite the latter’s superior raw speed for image processing or floating-point math.
Avoid over-specifying core speed unless necessary. An 8-bit AVR running at 8 MHz handles most 10 kHz control loops efficiently, whereas a 32-bit RISC-V GD32VF103 at 108 MHz offers diminishing returns for simple PID controllers but excels in computational workloads like encrypted data logging or FIR filters. Check vendor libraries; Arduino-compatible cores streamline development for prototyping, but bare-metal firmware unlocks finer hardware control in production.
Cost and Longevity Matter
Factor in BOM impact: the RP2040 costs $1 in volume but lacks onboard flash, requiring an external 2 MB NOR chip that adds $0.30 and 50 mm² PCB area. In contrast, the STM32F030 integrates 64 KB flash and starts at $0.50, simplifying layouts for mass-produced consumer devices. For industrial applications, verify silicon revision stability; NXP’s LPC8xx series guarantees 15-year availability through its i.MX roadmap, while cheaper clones from no-name vendors risk sudden EOL notifications.
Evaluate toolchain lock-in. Keil supports 80% of ARM Cortex units but charges $3,000/year; open-source alternatives like PlatformIO cover most chips but may lack vendor-specific CMSIS libraries for specialized features like ST’s ART accelerator or TI’s ultra-low-power modes. Always test power-on reset behavior with your exact voltage rails–some units, such as the EFM32HG, glitch below 1.8 V, mandating careful decoupling and brown-out detector configuration.
Step-by-Step Guide to Sketching a Fundamental Electronic Blueprint
Select graph paper with a grid size of 5mm or 10mm for precise component alignment. Smaller grids work better for dense designs, while larger ones improve readability for beginners. Avoid unlined sheets–misaligned symbols create confusion during assembly.
Begin by placing the power source symbol in the top-left corner of the sheet. Use a horizontal line for the positive rail and a parallel one below for ground, spaced at least 2cm apart. This convention helps prevent signal crossover and maintains consistency with industry standards.
Arrange active components–ICs, transistors–in a logical flow from left to right, mirroring the intended current path. Label each pin with its function (e.g., VCC, GND) and reference designator (R1, C2) immediately. Forgetting this step doubles debugging time later.
Connect passives–resistors, capacitors–using straight orthogonal lines. Diagonal traces complicate PCB translation and violate most schematic capture tool conventions. Keep traces short; longer lines should only bridge unavoidable gaps, not wander across the page.
Add net labels for identical nodes to avoid visual clutter. For example, ground connections can use a single GND label instead of drawing multiple lines to a central point. Verify all labels match exactly–case-sensitive tools like KiCad reject mismatches.
Cross-check every connection against a datasheet before finalizing. A single misplaced pin (e.g., connecting MISO to MOSI) renders the entire design non-functional. Print a hard copy, highlight each path with a highlighter, and trace with a finger to catch errors.

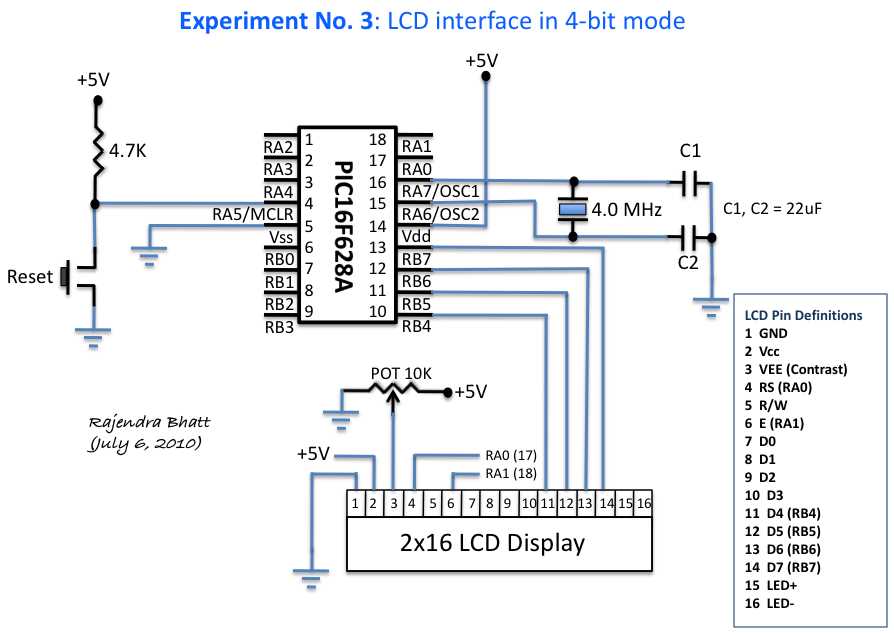

Essential Components for a Minimal Embedded Processor Configuration
Start with a 5V or 3.3V voltage regulator (e.g., AMS1117 or LM1117) to ensure stable power delivery from a battery or USB source. Choose a regulator with a dropout voltage under 1.5V for efficiency, especially when powering from Li-ion cells. Include input/output capacitors (10µF tantalum + 0.1µF ceramic) to suppress noise and prevent oscillation. For low-power applications, consider a buck converter like the TPS62743 with 90%+ efficiency.
Select a clock source based on precision needs. A 8MHz-24MHz ceramic resonator suffices for most tasks, while a 16MHz crystal oscillator (paired with 22pF load capacitors) provides higher accuracy for UART or timing-critical operations. For ultra-low-power designs, use an internal RC oscillator if ±1% tolerance is acceptable. External crystals demand proper PCB trace length matching (max 2-3mm) to avoid reflections.
Reset circuitry requires a 10kΩ pull-up resistor on the reset pin and a momentary push-button to ground for manual recovery. For robust operation, add a 0.1µF capacitor between the reset pin and ground to filter glitches. If using a supervisor IC (e.g., MAX809), ensure its threshold matches the processor’s voltage (e.g., 4.63V for 5V systems). Brown-out detection is critical for battery-powered devices.
Core Peripheral Selection
| Component | Recommended Model | Key Specification | Notes |
|---|---|---|---|
| GPIO expander | PCF8574 | I²C, 8-bit quasi-bidirectional | Use 4.7kΩ pull-ups; max 400kHz I²C speed |
| EEPROM | 24LC256 | 32KB, 1MHz I²C | Avoid frequent writes; 1M cycles endurance |
| Analog sensor interface | ADS1115 | 16-bit ADC, 4-ch, PGA | ±6.144V range; 860 samples/sec |
| LED driver | PCA9632 | 4-ch PWM, 25mA current | Configurable via I²C; no external resistors needed |
Decoupling capacitors must be placed within 2mm of each power pin. Use 0.1µF X7R ceramic capacitors for high-frequency noise and 10µF+ for low-frequency stabilization. For processors with multiple power domains (e.g., core vs. I/O), split capacitors per domain–failure risks latch-up. Ferrite beads (e.g., 600Ω@100MHz) isolate analog and digital sections when noise coupling is intolerable.
Programming headers should expose SWD (Serial Wire Debug) or ISP (In-System Programming) pins–VCC, GND, reset, and 2-4 data lines (CLK, MOSI/MISO, TMS, TCK). Keep traces short (
For output protection, add flyback diodes (e.g., 1N4007) on inductive loads (relays, motors) or TVS diodes (e.g., P6KE6.8CA) on data lines to clamp transients. Polyfuses (e.g., 0.5A hold) protect USB ports from overcurrent. Ground planes should be uninterrupted, with stitching vias around high-frequency components to reduce EMI. For RF-sensitive applications, split planes and route sensitive traces perpendicular to noisy ones.
