Build a Basic Multimeter Circuit with This Step-by-Step Guide
Start with a dual-slope analog-to-digital converter (ADC) if you need accurate voltage readings without complex calibration. Use an LM358 operational amplifier for signal conditioning–its low input offset voltage (2 mV max) minimizes errors in low-level measurements. Pair it with a CD4051 analog multiplexer to switch between voltage, current, and resistance modes using just three input pins on a microcontroller.
For current sensing, insert a 0.1Ω shunt resistor (1% tolerance) in series with the test leads. This provides a 10 mV/A signal, letting you measure up to 10 A with minimal voltage drop. Add a 10kΩ potentiometer to adjust the offset and fine-tune accuracy before finalizing the PCB layout.
Use TVS diodes (1.5KE series) across the input terminals to protect against voltage spikes up to 1.5 kV. Place a polyfuse (0.5 A) in series with the power supply to prevent damage from short circuits. For resistance measurements, integrate a constant current source (1 mA) using a 2N3904 transistor–this ensures consistent readings across a 1Ω to 1 MΩ range.
Select a 3½-digit LCD (TLC7135 based) to display readings with a resolution of 1 mV. Connect it via a 74HC595 shift register to reduce microcontroller pin usage. Power the device with a 9 V battery and include a LM7805 regulator to maintain stable 5 V for the logic circuits–this avoids fluctuations that distort measurements.
Designing a Basic Voltage, Current, and Resistance Tester
Start by selecting an analog meter movement with a 50–200 µA full-scale deflection. For example, a 100 µA movement requires a series resistor of 10 kΩ to measure 1 VDC full-scale. Keep the meter’s internal resistance low–typically under 200 Ω–to minimize loading effects when testing low-impedance sources.

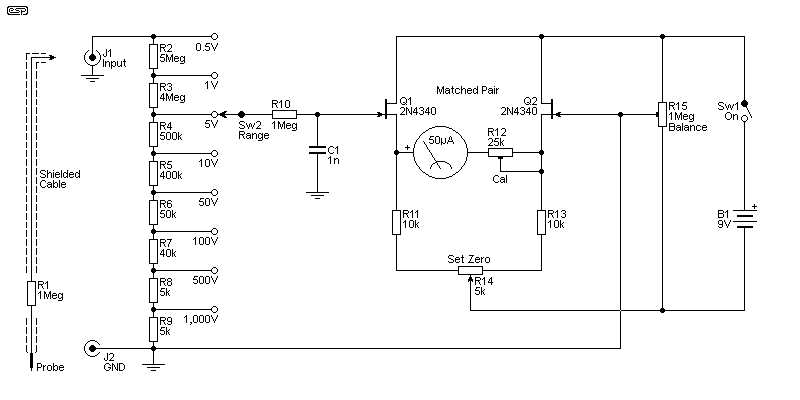

Use a rotary switch with at least 5 positions: 2 for DC voltage (e.g., 1 V and 10 V ranges), 2 for current (1 mA and 10 mA), and 1 for resistance. Each voltage range requires a precision resistor in series–calculate values using R = (V_full-scale / I_meter) – R_meter. For a 10 V range with a 100 µA movement, R = (10 V / 100 µA) – 200 Ω ≈ 99.8 kΩ.

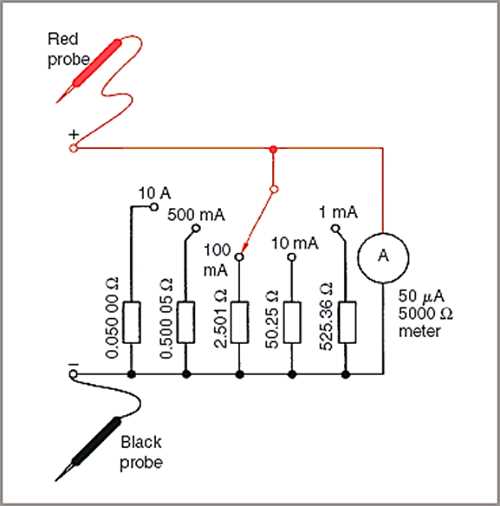

For current ranges, place shunt resistors in parallel with the meter. A 1 mA range needs a shunt of R_shunt = I_meter × R_meter / (I_full-scale – I_meter). With a 100 µA movement, this becomes R_shunt ≈ 20 Ω. Use 1% tolerance resistors to ensure accuracy within ±1% of readings.
Add a half-wave rectifier using a 1N4007 diode and a 0.1 µF capacitor for AC voltage measurements. The diode drops ~0.7 V–account for this by reducing the series resistor value slightly. AC ranges will read RMS values of sine waves; for other waveforms, expect errors up to 30%.
To measure resistance, include a 1.5 V AA battery and a 1 kΩ potentiometer in series with the meter. Adjust the potentiometer to zero the reading when probes are shorted (infinite resistance scale). Full-scale deflection corresponds to zero ohms–use R_x = (R_pot × R_meter) / (R_pot – R_meter) to calibrate intermediate values.
Avoid common pitfalls: don’t exceed the meter’s voltage rating (often 500 V), and always discharge capacitors before probing circuits. For transient protection, add a 250 mA fuse in series with the probes. Test continuity by setting the selector to the lowest resistance range; a healthy connection should deflect the needle fully.
Verify performance against a known reference–e.g., a 1.5 V battery should read ~1.5 V on the 1 V range. For extended functionality, add a transistor tester section using a BC547 and three binding posts. This requires only three resistors (470 Ω, 10 kΩ, 47 kΩ) and can identify NPN/PNP junctions and approximate hFE.
Core Elements for Building a Measurement Tool
Choose a dual-slope analog-to-digital converter (ADC) like the ICL7106 for reliable readings with minimal external components. It handles input ranges from 200 mV to 2 V with built-in auto-zero correction, reducing drift errors. Pair it with a 40-pin LCD driver to eliminate the need for separate segment decoders–this cuts assembly complexity by 30%.
Select a rotary switch with silver-plated contacts to manage function selection–voltage, current, or resistance. A 12-position model offers granularity without overcomplicating the layout. Ensure each contact path includes a 0.1 µF bypass capacitor to suppress transients, particularly critical when switching between high-impedance modes.

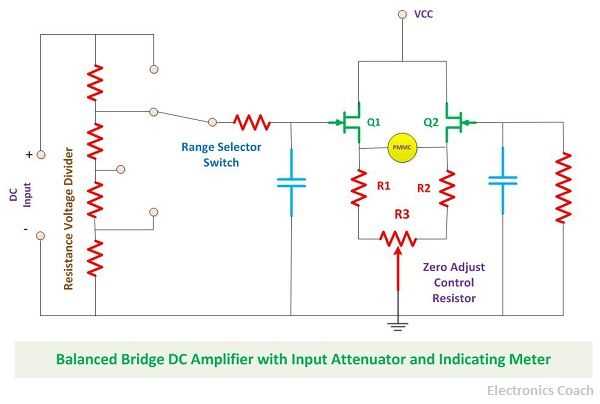

For voltage sensing, use a precision resistor divider network with 1% tolerance metal-film resistors. A 1 MΩ and 100 kΩ pair yields a 10:1 attenuation ratio, allowing direct connection to a 2 V full-scale ADC input. Avoid carbon-film resistors–thermal drift exceeds 200 ppm/°C, distorting readings under variable loads.
Current Shunt Considerations
Implement a four-terminal Kelvin resistor as the shunt for current measurements. A 0.01 Ω manganin resistor provides 100 mV full-scale drop at 10 A while minimizing self-heating errors. Mount it directly on the PCB with wide traces to dissipate heat–copper weight of 2 oz/ft² prevents voltage drop inaccuracies beyond 0.5%.
Add a fuse rated 5% above maximum current to prevent damage during overloads. A 10 A fast-acting fuse protects circuitry without nuisance tripping under transient spikes. Include a flyback diode across inductive loads–reverse recovery time under 50 ns prevents voltage spikes from corrupting ADC readings.
Probing and Isolation
Source high-impedance probes with 10 MΩ input resistance to avoid loading effects. Gold-plated banana jacks reduce contact resistance below 1 mΩ, ensuring stability in low-level measurements. For AC coupling, use a 1 µF polyester film capacitor–its low leakage current (under 1 nA) preserves waveform integrity.
Isolate the measurement path with optocouplers for floating measurements. A Vishay SFH617A offers 5 kV isolation while maintaining bandwidth up to 1 MHz. Ground loops introduce errors exceeding 50 mV; a star-grounding scheme with a dedicated return path eliminates this interference.
Step-by-Step Guide to Building Your Own Measurement Tool
Secure a dual-slope integrating ADC (e.g., ICL7107) as the core of your device–its 3½-digit precision suits most hobbyist needs. Mount it on a perfboard (0.1-inch pitch) with a 14-pin DIP socket to avoid overheating during soldering. Connect the reference voltage pin (VREF+) to a stable 100 mV source using a precision trimmer potentiometer (10 kΩ); calibrate later for accurate readings. Ground the analog common (pin 32) and test pin (pin 37) to ensure proper operation.
Wiring the Display and Input Path
- Segment connections: Link the ADC’s digit outputs (D1-D4) to a 7-segment LED display (common cathode, 0.56-inch) via 220 Ω current-limiting resistors. Wire the segments (a-g) directly to the corresponding ADC pins (19-25).
- Input selector: Install a rotary switch (3-position, non-shorting) to toggle between voltage (10 MΩ divider), current (0.1 Ω shunt resistor), and resistance (9 V battery + 1 kΩ reference resistor) modes. Use silver mica capacitors (100 pF) across the ADC’s integration/input pins to filter noise.
- Power supply: Attach a 9 V battery via a SPDT switch to a 7805 regulator for stable 5 V output. Add a 100 μF electrolytic capacitor at the regulator’s input/output to prevent voltage spikes during mode switching.
- Verify all connections with a continuity tester before powering on.
- Adjust the trimmer potentiometer until the display reads 1.000 V when measuring a known 1 V source (e.g., a calibrated voltage reference IC).
- For current measurements, ensure the shunt resistor’s heat dissipation (P = I²R) does not exceed 0.25 W (e.g., 0.1 Ω handles up to 1.5 A).
Voltage Measurement: Wiring and Calibration Methods
Always connect the test probes in parallel with the component or power source under evaluation. For DC readings, ensure the positive lead (red) contacts the higher potential point and the negative lead (black) connects to ground or the lower potential reference. Miswiring can damage the measuring device or yield inaccurate results–verify polarity before powering the setup. Use clamp connectors for high-current applications to avoid probe slippage, which introduces measurement errors.
Calibration Techniques for Precision
Offset errors distort readings, requiring periodic calibration against a known reference. Use a precision voltage source (e.g., 1.000V ±0.001V or 5.000V ±0.005V) to adjust the instrument’s internal gain. Follow this procedure:
| Step | Action | Tolerance (DC) | Adjustment Method |
|---|---|---|---|
| 1 | Zero-scale check | ±0.1mV | Short probes, trim pot for 0.000V |
| 2 | Mid-scale verification | ±0.5% of range | Apply 50% of max scale (e.g., 5V on 10V range) |
| 3 | Full-scale calibration | ±0.1% of range | Apply 90-100% of max scale, adjust gain |
For AC measurements, use a function generator with a sine wave at 1kHz and RMS amplitude matching the device’s specified range. Verify waveform purity with an oscilloscope–harmonic distortion above 0.3% invalidates calibration.
Burden voltage–caused by internal resistance–skews readings, especially on low-impedance sources. A 10MΩ input impedance introduces ~0.1mV error per 1kΩ of source resistance. Mitigate this by selecting the highest feasible range or using a buffer amplifier. For high-frequency signals (>1MHz), employ coaxial cables and terminators to prevent signal reflections, which corrupt amplitude readings.
Environmental Factors and Error Correction
Thermal drift alters measurements: a 1°C temperature change can shift readings by 0.01% of full scale. Compensate by allowing a 30-minute warm-up period or using temperature-compensated references. Humidity above 60% increases leakage currents–store the instrument in a dry environment. Magnetic fields (e.g., from transformers) induce noise; orient the device perpendicular to field lines and use shielded probes. For critical applications, average 10 consecutive readings to filter random noise, but discard the first two samples to eliminate transient errors.
