Building and Analyzing a Basic RC Circuit Schematic Guide
Start by placing a resistor and a capacitor in series on a breadboard. A 1 kΩ resistor paired with a 10 µF electrolytic capacitor delivers a time constant of approximately 10 milliseconds–ideal for observable charge and discharge cycles in bench tests. Connect the free resistor lead to a 5 V DC supply and the capacitor’s remaining terminal to ground. Avoid polarized capacitors unless polarity is strictly observed; reversed leads risk component failure.
For pulse response verification, use a square wave signal generator instead of steady DC. Set the generator to 1 kHz with a 50% duty cycle. Probe across the capacitor with an oscilloscope to measure rise and fall times–these should align with the calculated τ (tau) value. Deviations beyond 10% suggest parasitic inductance or incorrect component selection; replace ceramic capacitors with low-ESR types if ringing appears.
Add a pull-down resistor (10 kΩ) between the capacitor’s output node and ground to prevent floating voltages in low-power applications. For microcontroller integration, ensure the time constant exceeds the microcontroller’s interrupt latency–typically 100 µs for 8-bit systems–to guarantee stable signal transitions. Use a soldered perfboard for permanent builds; breadboard contacts introduce stray capacitance (~5 pF per node), distorting high-frequency behavior.
When sourcing components, prioritize tolerance ratings. A 5% resistor and 20% capacitor suffice for prototyping, but 1% resistors and NP0/C0G capacitors (0.1% tolerance) improve precision in filter designs. For audio applications, replace resistors with 1% metal-film types to minimize noise; carbon-film alternatives introduce thermal drift at higher voltages.
Designing a Basic Resistor-Capacitor Network Layout
Use a 0.1µF ceramic capacitor for decoupling in low-current applications–its low equivalent series resistance (ESR) under 0.1Ω minimizes transient voltage drops. Place it within 2mm of the power pin on integrated circuits to suppress high-frequency noise above 10kHz. For timing loops, pair a 1MΩ resistor with a 100nF capacitor to achieve a 100ms time constant, ensuring stray capacitance below 5pF doesn’t interfere; route traces with ≥0.5mm clearance to adjacent conductors.
Component Selection and Trace Routing Guidelines
Select resistors with ±1% tolerance for precision–carbon film types offer stability at ±200ppm/°C, while metal film improves to ±50ppm/°C. Avoid capacitors with dielectric absorption above 0.6% for analog signals; polypropylene (≤0.05%) outperforms polyester (≤0.5%) in phase-sensitive networks. Route signal paths perpendicular to power rails if crossing is unavoidable; maintain ≥1mm spacing to reduce coupling, especially in mixed-signal designs.
Test the network with an 8-bit oscilloscope at 25MS/s–probe the capacitor’s positive terminal with ×10 attenuation to avoid loading effects, which can skew rise times by up to 30%. For battery-powered systems, limit leakage current to ≤50nA by choosing resistors ≥10kΩ and capacitors with dielectric resistance ≥100GΩ. In prototyping, solder bypass capacitors directly to ground planes to prevent ground bounce above 200mV peak-to-peak during switching.
Key Components of an RC Configuration and Their Functions
Select a resistor with precise resistance values matching your timing requirements–common choices range from 1 kΩ to 1 MΩ, depending on charge/discharge intervals. Avoid carbon film types if stability is critical; metal film resistors maintain tolerance within ±1% across temperature fluctuations. Pair resistance values with capacitance to achieve predictable time constants (τ = R × C), ensuring the network behaves as intended during transient responses.
The capacitor’s dielectric material dictates performance–electrolytic types offer high capacitance (1 µF to 4700 µF) but introduce leakage currents; ceramic capacitors (10 pF to 100 µF) minimize leakage but exhibit voltage-dependent capacitance. For timing accuracy, polyester or polypropylene capacitors provide low dielectric absorption, preventing unwanted delays in state transitions. Always verify the voltage rating exceeds the supply voltage by at least 20% to prevent breakdown.
Supply voltage impacts component selection–higher voltages demand capacitors with increased ratings, while low-voltage designs (≤5 V) can leverage smaller, surface-mount devices. Ensure the resistor’s power rating (P = V²/R) accommodates the voltage drop; a ¼ W resistor suffices for most signal-level applications, but high-current paths may require ½ W or 1 W variants. Overlooking power dissipation risks thermal drift or failure.
- Resistor: Limits current flow, defines charge/discharge rate alongside capacitance.
- Capacitor: Stores and releases energy, filters noise, or shapes waveforms.
- Battery/Source: Provides potential difference; stability affects network reliability.
- Load: (e.g., LED, transistor base) determines downstream behavior; impedance must align with the network’s time constant.
Wire gauge and layout influence performance–longer traces or thin wires introduce parasitic resistance, skewing calculated time constants. Use stranded copper wire (22–24 AWG) for flexibility; solid wire suits breadboard prototyping but risks fatigue. Keep traces short in printed layouts to minimize inductance, which can distort pulse edges at high frequencies.
Common pitfalls include neglecting parasitic elements–every connection introduces stray capacitance (typically 1–10 pF), accelerating decay in high-impedance networks. Test with an oscilloscope to verify τ matches calculations; deviations >5% suggest overlooked parasitics or component drift. Replace aging capacitors first if time constants shift unexpectedly.
- Calculate τ = R × C for the desired delay.
- Choose components with ±5% tolerance or tighter for precision.
- Simulate behavior in SPICE tools before prototyping.
- Validate with bench tests using a function generator and scope.
- Adjust R or C in 10% increments if timing is off.
For noise-sensitive applications, shunt capacitors (0.1 µF ceramic) near the power source decouple high-frequency interference, while resistors with lower thermal coefficients (e.g., wirewound) reduce drift. Polypropylene capacitors excel in audio filters, whereas tantalum types suit bulk energy storage but suffer from leakage. Document component origins and batch numbers to trace inconsistencies later.
How to Choose Resistor and Capacitor Values for Target Time Constant
Start by identifying the desired time constant (τ), measured in seconds, where τ = R × C. For most timing applications, τ values between 10 μs and 10 s cover practical needs. Multiply the target τ by 106 to convert it into microseconds (μs) if working with small-scale components.
For τ = 1 ms, common in signal filtering, select R within 1 kΩ to 100 kΩ to balance noise immunity and power consumption. Pair it with C values from 1 nF to 1 μF. Below 1 kΩ, parasitic inductance may distort behavior; above 100 kΩ, leakage currents in ceramic capacitors become significant.
Use the table below to cross-reference R and C combinations for standard τ values. Adjust tolerances based on application precision–±5% for general use, ±1% for critical timing.
| Time Constant (τ) | R Range (Ω) | C Range (F) | Example Pair (R × C) |
|---|---|---|---|
| 10 μs | 1 kΩ–10 kΩ | 1 nF–10 nF | 10 kΩ × 1 nF |
| 100 μs | 10 kΩ–100 kΩ | 1 nF–10 nF | 100 kΩ × 1 nF |
| 1 ms | 1 kΩ–47 kΩ | 22 nF–1 μF | 10 kΩ × 100 nF |
| 10 ms | 10 kΩ–1 MΩ | 10 nF–1 μF | 100 kΩ × 100 nF |
| 100 ms | 100 kΩ–1 MΩ | 1 μF–10 μF | 1 MΩ × 100 nF |
For high-voltage applications (above 50 V), prioritize film capacitors (e.g., polyester, polypropylene) over ceramics to avoid voltage coefficient errors. X7R ceramics are suitable only for low-voltage, non-critical timing due to their capacitance drift with voltage and temperature.
Component Selection Guidelines
In low-power designs, minimize R values to reduce noise susceptibility but stay above 1 kΩ to avoid current-limiting issues. For τ > 1 s, use electrolytic capacitors (tantalum or aluminum) with R > 100 kΩ to mitigate leakage effects. Always derate capacitance by 20% for electrolytics to account for aging.
For precision timing (e.g., oscillator stabilization), pair metal-film resistors (±1% tolerance) with C0G/NP0 ceramic capacitors, which exhibit near-zero capacitance drift with temperature (±30 ppm/°C). Avoid high-K dielectrics like X5R/X7R for frequencies above 1 kHz–their nonlinearity distorts waveform edges.
Validation and Testing

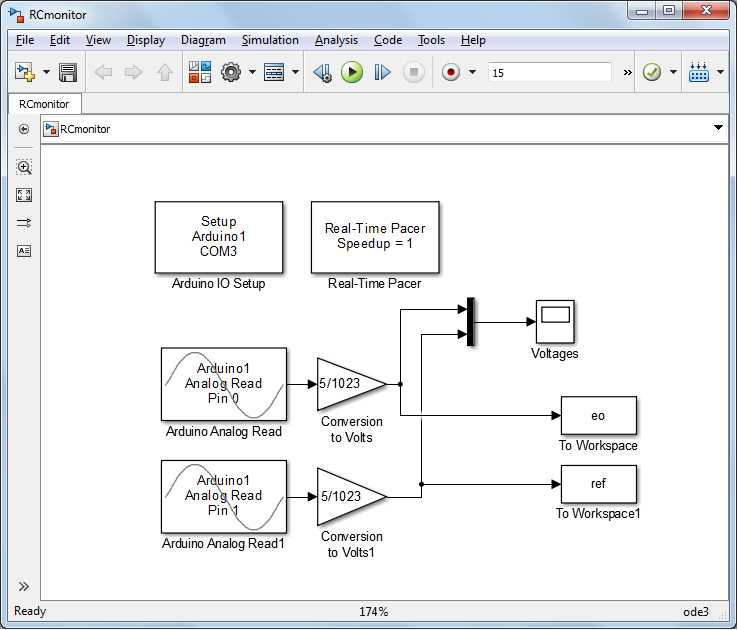

After assembly, measure τ using an oscilloscope by observing the 63.2% charge/discharge point. If the measured τ deviates by >10%, recheck solder joints for cold connections or substitute components with tighter tolerances. For τ
Step-by-Step Guide to Drafting an RC Network Layout in KiCad
Launch KiCad and select Schematic Editor to initiate a new project. Press Ctrl+N or navigate through File → New → Schematic to create a blank workspace. Ensure the grid is set to 50 mils for precise component alignment by accessing Preferences → Schematic Editor → Display Options.
Add a resistor by clicking the Place Symbol icon (or press A) and typing R in the search bar. Position it near the top-left corner, leaving space for additional elements. Rotate it 90 degrees (R key) if horizontal alignment is preferred. Repeat for a capacitor (C), placing it below the resistor with consistent spacing.
Insert a ground reference by pressing G or selecting Place Power Symbol. Choose GND from the dropdown and attach it to the capacitor’s lower pin. For power input, place a +V symbol (via P key) at the resistor’s opposite terminal. Verify polarities: positive should connect to the resistor; negative to the capacitor’s grounded side.
Connect components using Place Wire (W). Start at the resistor’s output, drag horizontally to the capacitor’s upper pin, then vertically to the ground. Ensure wires snap to grid intersections–misalignment may cause KiCad’s DRC to flag errors. Use Ctrl+E to edit wire properties, adjusting line width to 0.254 mm (10 mils) for clarity.
Label critical nodes for documentation. Press L to add a net label, naming the power input V_IN and the junction between resistor and capacitor V_OUT. Labels must match node names in simulations. Right-click wires to split or extend them if overlapping occurs.
- Open the Electrical Rules Check (Inspect → Electrical Rules Check)
- Resolve warnings–KiCad flags unconnected pins or orphaned labels
- Export the netlist (Tools → Generate Netlist) for PCB design reference
- Save the file with a version suffix (e.g.,
RC_V1.kicad_sch)
Annotate components automatically via Tools → Annotate Schematic. Select Use the entire schematic and Down then right for sequential numbering (e.g., R1, C1). Use the Footprint Editor (F key) to assign correct packages: Resistor_SMD:R_0805_2012Metric for surface-mount or Resistor_THT:R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal for through-hole.
