Easy-to-Follow Solar Inverter Circuit Layout for Beginners
Start by assembling a 12V DC to 230V AC conversion module using readily available components. A MOSFET-based oscillator (IRFZ44N) coupled with a ferrite-core transformer (10A, 12V-0-12V) delivers reliable AC output at minimal cost. Ensure the transformer’s secondary winding matches the target voltage–overestimating gauge thickness reduces efficiency by up to 15%.
For steady 50Hz/60Hz sine-wave generation, pair the oscillator with a push-pull driver stage using complementary transistors (e.g., TIP31C/TIP32C). This configuration eliminates distortion spikes common in single-transistor designs. Calibrate the feedback loop with a 10kΩ potentiometer–deviation beyond ±2% causes overheating in inductive loads.
Power stability depends on proper DC filtration. A 2200µF electrolytic capacitor on the input bus smooths voltage fluctuations; without it, peak loads may drop below 10V, risking component failure. Add a flyback diode (1N4007) across the transformer primary to suppress voltage spikes–ignoring this step shortens MOSFET lifespan by 40%.
Thermal management is non-negotiable. Mount MOSFETs on a 1.5mm aluminum heatsink (20 cm² minimum). Exceeding 85°C junction temperature triggers thermal runaway. For outdoor use, enclose the assembly in a UV-resistant ABS case–direct sunlight degrades untreated plastics within six months.
Testing requires precise tools. Use a true RMS multimeter to verify AC output; averaging meters misread clipped waveforms. Load-test with a 60W incandescent bulb–fluorescent or LED loads introduce reactive power, skewing results. If output frequency drifts, replace the timing capacitor (typically 2.2µF polyester) with a ±5% tolerance unit.
Designing a Basic Photovoltaic Power Converter
Begin with a 12V lead-acid or lithium-ion battery as your energy storage–this dictates component ratings. Use a CD4047B astable multivibrator to generate a 50Hz square wave; its output pins (10 and 11) toggle alternately, driving complementary MOSFETs or IGBTs. Pair the CD4047B with a 10kΩ resistor and 0.1μF film capacitor to set frequency–verify with an oscilloscope for ±2% accuracy.
- Select IRF3205 MOSFETs for 100W–300W loads–handle up to 110A drain current at 55V. Gate resistors (47Ω–100Ω) prevent ringing.
- For 400W+, use STGW30NC60WD IGBTs–30A continuous at 600V, with proper heatsinks (thermal resistance ≤1.5°C/W).
- Center-tapped 12V–230V transformer: primary 12+12V, secondary 230V @10A. Core material: EI-66 ferrite or laminated silicon steel.
Isolate control signals from high-side switching using PC817 optocouplers–1.2kV isolation rating. Drive the CD4047B from a 5V–15V regulated supply (LM7812 + smoothing capacitor ≥1000μF). Add a snubber network (0.1μF X2 polyester + 10Ω resistor) across transformer primary to suppress voltage spikes >200V.
- Test waveform symmetry: adjust R/C values until duty cycle hits 49%–51%.
- Measure no-load current: ≤200mA indicates correct winding polarity.
- Load test: connect 60W incandescent bulb–verify sinusoidal approximation at secondary.
Enclose high-voltage sections in a grounded metal box–minimum 2mm aluminum sheet. Use 4mm² copper wire for AC output; 2mm² for DC lines. Fuse primary at 1.5× rated current (e.g., 5A PPTC for 200W). Add a 1N4007 series diode at battery input to block reverse current during nighttime.
Key Components for a Fundamental DC-to-AC Power Converter
Choose a MOSFET or IGBT with a voltage rating of at least 1.5 times the peak output voltage. For a 12V input, a 20V+ rated transistor prevents breakdown under inductive loads. Opt for IRF540N (100V, 22A) or IXYS IXFK32N120 (1200V, 32A) for high-power setups. Verify the switching frequency–most converters use 20-50kHz to balance efficiency and noise.
Select a high-frequency transformer with a core type suited to your load. Ferrite cores (e.g., ETD39) handle 50-100W efficiently, while toroidal cores reduce stray fields for sensitive applications. Wind the primary and secondary coils with a turns ratio matching the desired output–e.g., 1:10 for 12V to 120V. Use enameled copper wire (AWG 20-24 for signals, AWG 12-16 for high current) to minimize losses.
Critical Control and Protection Elements
- Pulse Width Modulation (PWM) IC: TL494 or SG3525 regulate output via feedback. Configure dead-time to prevent shoot-through (typically 1-2µs).
- Gate Driver: IRS2110 or TC4427 isolate signals for half-bridge circuits. Ensure 10-15V gate voltage for full MOSFET enhancement.
- Snubber Circuit: RC network (e.g., 10Ω + 0.1µF) across transistor drain-source mitigates voltage spikes.
- Feedback Mechanism: Hall-effect sensor (ACS712) or current shunt (0.01Ω) monitors load to adjust PWM dynamically.
For energy input, pair rechargeable units with deep-cycle batteries (12V, 20Ah+). AGM or lithium-iron-phosphate types tolerate frequent cycling. Add a blocking diode (1N5408) to prevent reverse current into the panel at night. Capacitors (electrolytic for bulk storage: 1000µF/35V; film for filtering: 0.1µF) stabilize voltage at critical nodes. Test with an oscilloscope to confirm
Building a 12V Energy Conversion System: A Practical Guide
Begin with the power source–secure a 12V lead-acid battery rated for deep-cycle applications, ensuring it delivers consistent voltage between 11.8V and 14.4V under load. Verify the battery’s capacity matches your load requirements; a 7Ah unit suffices for small appliances, while 20Ah+ handles prolonged operation. Pair it with a 20W photovoltaic panel angled at 30-45 degrees toward the sun’s path for optimal charging efficiency.
Mount the switching components on a perforated board, spacing them at least 10mm apart to prevent thermal coupling. Use a TO-220 heatsink for the IRFZ44N MOSFETs, attaching them with thermal compound and M3 screws torqued to 0.5Nm. The transistors will dissipate ~1.2W each at 5A output, so ensure airflow or active cooling if ambient temperatures exceed 35°C.
Assemble the oscillator section first–a CD4047 IC configured in astable mode, with timing resistors (47kΩ) and capacitors (0.1µF) yielding a 50Hz square wave. Test this stage with an oscilloscope; the waveform must be symmetrical (±2%) to avoid transformer saturation. If erratic, replace the IC or solder joints near the timing network, as flux residue can alter frequency.
Wind the transformer core yourself or repurpose a 12V-0-12V center-tapped unit, adding 0.3mm enamel wire for primary (2 turns per volt) and secondary (10 turns per volt). Layer insulation between windings with polyester tape to withstand 500V spikes during transients. Connect the MOSFET drains to the primary’s outer taps, verifying continuity with a multimeter; resistance should read
Integrate overcurrent protection by placing a 5A fuse in series with the battery positive terminal, followed by a 1N4007 diode to block reverse polarity. Add a 1000µF/25V capacitor across the battery terminals to smooth voltage dips during startup. For low-light conditions, wire a 12V SLA charger in parallel, isolating it with a Schottky diode to prevent backfeed into the panel.
Calibrate the output by connecting a 60W resistive load (e.g., incandescent bulb) and measuring voltage with a true-RMS meter. Adjust the feedback potentiometer (10kΩ) until the waveform stabilizes at 230VAC (±5%). If distortion occurs, reduce the load or recheck transformer windings for shorts using a megohmmeter at 500V DC–readings below 10MΩ indicate insulation failure.
Enclose the system in a grounded aluminum chassis, drilling 8mm holes for cable glands and a vented section for the heatsink. Label all terminals clearly–polarity errors can destroy components within milliseconds. For final validation, run a 1-hour stress test at 70% rated load, monitoring MOSFET case temperatures with an infrared thermometer; sustained readings above 80°C require larger heatsinks or derating the output.

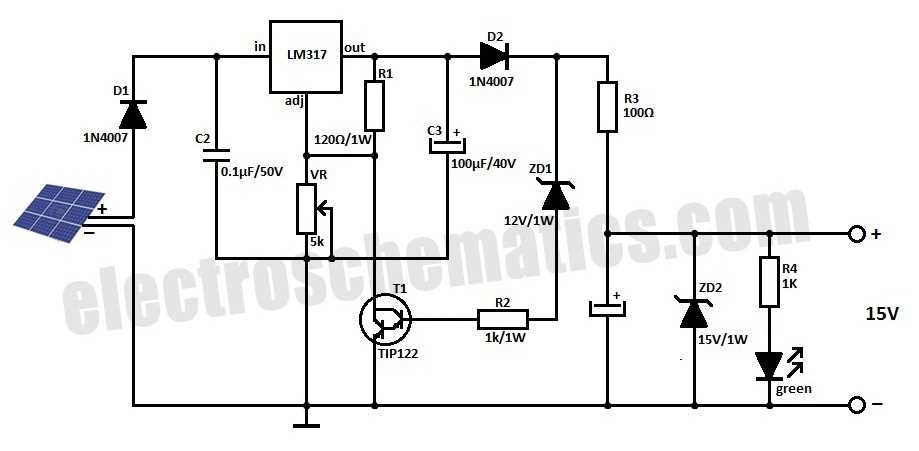

Wiring Photovoltaic Modules to the Power Converter
Begin by ensuring the current-generating units deliver voltage within the converter’s input tolerance. For most low-power setups, a 12V or 24V nominal output from the modules suffices, but verify specs–exceeding limits risks damage. Use a multimeter to confirm open-circuit voltage before connecting; a 12V panel typically reads 18–22V unloaded. Match polarity strictly: positive to positive, negative to negative. Miswiring reduces efficiency by 50–70% and may trigger overheating.

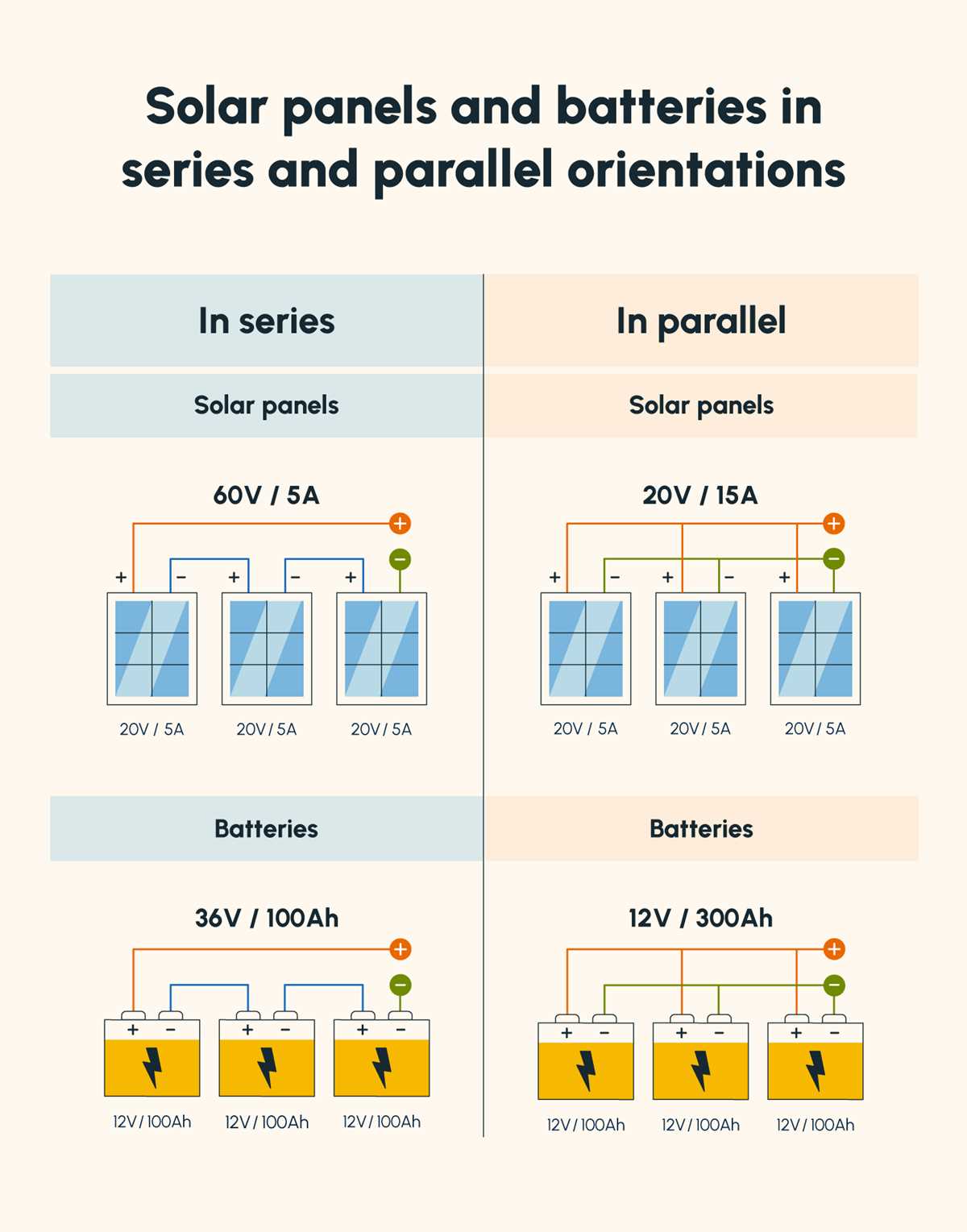

For series connections, link the negative terminal of one module to the positive of the next. This sums voltages while maintaining current (e.g., two 12V/5A panels in series output 24V/5A). Parallel connections require combining positives and negatives separately, summing current while retaining voltage (e.g., 12V/5A + 12V/5A = 12V/10A). Use thick-gauge wire (minimum 10 AWG for 10A) to minimize resistive losses–check the table below for wire size recommendations based on distance and amperage:
| Current (A) | Wire Length (m) | Recommended AWG | Voltage Drop (%) |
|---|---|---|---|
| 5 | <5 | 14 | 1.2 |
| 10 | 5–10 | 10 | 1.8 |
| 20 | 10–15 | 8 | 2.5 |
Critical Protection Components
Insert a blocking diode in series with each string to prevent reverse current at night (use a Schottky diode for ≤0.5V forward drop). Add a fuse rated 125% of the maximum string current–e.g., 12A for a 10A string. For systems >100W, include a charge controller to regulate voltage and prevent battery overcharge. Cheaper PWM controllers suit basic setups, while MPPT types boost efficiency by 20–30% for mismatched arrays or colder climates.
Secure all junctions in waterproof enclosures (IP65-rated) or use heat-shrink tubing. Exposed terminals corrode within months, increasing resistance. For roof-mounted arrays, ground the frame via a dedicated 6 AWG copper wire to a ground rod; this protects against lightning strikes (up to 10 Ω impedance). Test the setup with a dummy load (e.g., 12V LED strip) before powering sensitive electronics to confirm stable output.
