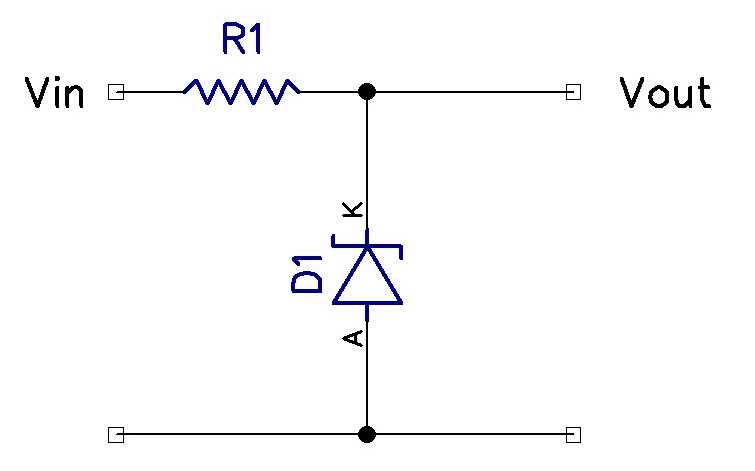

Step-by-Step Guide to Building a Basic Voltage Regulator Circuit
Begin with a low-dropout (LDO) linear stabilizer if your application requires minimal input-output differential. Use a LM1117 or AP2112 for consistent 3.3V or 5V output with dropout voltages under 1.2V. Ensure the input capacitor is at least 10µF (tantalum or ceramic) to prevent oscillations, and place it no farther than 5mm from the IC’s input pin. For load currents above 500mA, add a 1µF output capacitor close to the regulator’s output to improve transient response.
For higher efficiency in battery-powered devices, opt for a switching mode power supply (SMPS) topology. A LM2596 buck converter can step down 12V to 5V with 80-90% efficiency using a 33µH inductor rated for at least 1.5A. Include a Schottky diode (e.g., 1N5822) for fast recovery, and keep trace lengths under 10mm between the IC, inductor, and diode to minimize EMI. Input and output capacitors should be 100µF (electrolytic) + 22µF (ceramic) for stable operation.
In fixed-output designs, bypass adjustable regulators like the LM317 with a 1µF capacitor on the adjust pin to reduce noise. For output voltages above 5V, connect a 240Ω resistor between the output and adjust pins, then pair it with a 1.25kΩ potentiometer for fine-tuning. Avoid exceeding the 40V differential between input and output to prevent thermal overload. If precision is critical, add a 0.1µF bypass capacitor across the potentiometer to filter high-frequency noise.
For thermal management, attach a 25mm² copper pad beneath SMD regulators like the AMS1117 to dissipate 1W of heat per 20°C rise. In TO-220 packages, use a heatsink rated for 10°C/W when handling currents above 500mA at 12V input. Always include a 100nF ceramic capacitor near the IC’s ground pin to suppress voltage spikes caused by rapid load changes.
Designing a Stable Power Supply: A Step-by-Step Schematic
Select a linear stabilizer IC like the LM317 for adjustable outputs or the LM7805 for fixed 5V. The LM317 requires two external resistors to set the output: a 240Ω resistor between the output and adjustment pin, and a variable resistor (typically 5kΩ potentiometer) connected to ground. This configuration allows precise tuning from 1.25V to 37V, depending on input constraints. For the LM7805, no additional components are needed beyond input and output capacitors.
Input filtering is critical–place a 0.1µF ceramic capacitor as close as possible to the IC’s input pin to suppress high-frequency noise. For outputs above 500mA, a 1000µF electrolytic capacitor should be added to the input to prevent voltage sag during transient loads. On the output side, a 10µF tantalum capacitor improves transient response and stability, while a 0.1µF ceramic capacitor adjacent to the IC reduces ripple.
Component Selection and Layout Considerations
Thermal dissipation dictates component placement. The IC must connect to a heatsink if the power dissipation exceeds 1W. Calculate dissipation using P = (Vin – Vout) × Iload. For example, dropping 12V to 5V at 1A yields 7W–requiring a heatsink with a thermal resistance below 10°C/W. Ground planes should be wide to minimize resistance; use at least 2oz copper for currents above 500mA.
For adjustable designs, the feedback loop’s resistor values directly affect output stability. A 5kΩ potentiometer paired with a fixed 240Ω resistor provides a practical range for most applications. Ensure the potentiometer’s wiper can handle the current (typically <1mA) to avoid non-linear behavior. For fixed outputs, bypass the IC’s adjustment pin with a 10µF capacitor to ground to filter noise and improve load regulation to ±0.5%.
Test the schematic with an oscilloscope before deployment. Load regulation should remain within 1% for currents up to the IC’s maximum rating (e.g., 1.5A for LM7805). Ripple rejection should exceed 60dB at 120Hz. If instability occurs, revisit capacitor placement–long traces increase inductance, causing oscillations. For high-current applications, replace the LM78xx series with a switching module like the LM2596, which reduces heat but requires additional inductors and diodes.
Key Parts for a Reliable Linear Stabilizer Build
Start with a three-terminal fixed output IC like the LM7805 for 5V or LM7812 for 12V. Ensure the input rating exceeds your supply by at least 2V to prevent dropout under load variations. Pair it with an input capacitor (10–100µF, 25V+) to filter noise and smooth transient spikes from the power source–electrolytic types work best for bulk storage. Add a 1µF ceramic disc capacitor at the output to improve transient response and suppress high-frequency oscillations, especially under dynamic loads.
For adjustable setups, swap the fixed IC for an LM317. You’ll need two precision resistors (carbon film or metal film) to set the output: a 240Ω resistor from the output pin to the adjust pin, and a variable resistor (1–5kΩ) between adjust and ground. Calculate the formula R2 = R1 × (Vout/Vref – 1), where Vref is typically 1.25V, to dial in voltages from 1.25V up to 37V. Add a 1N4007 diode across input and output to protect against reverse voltage if the input is disconnected while under load.

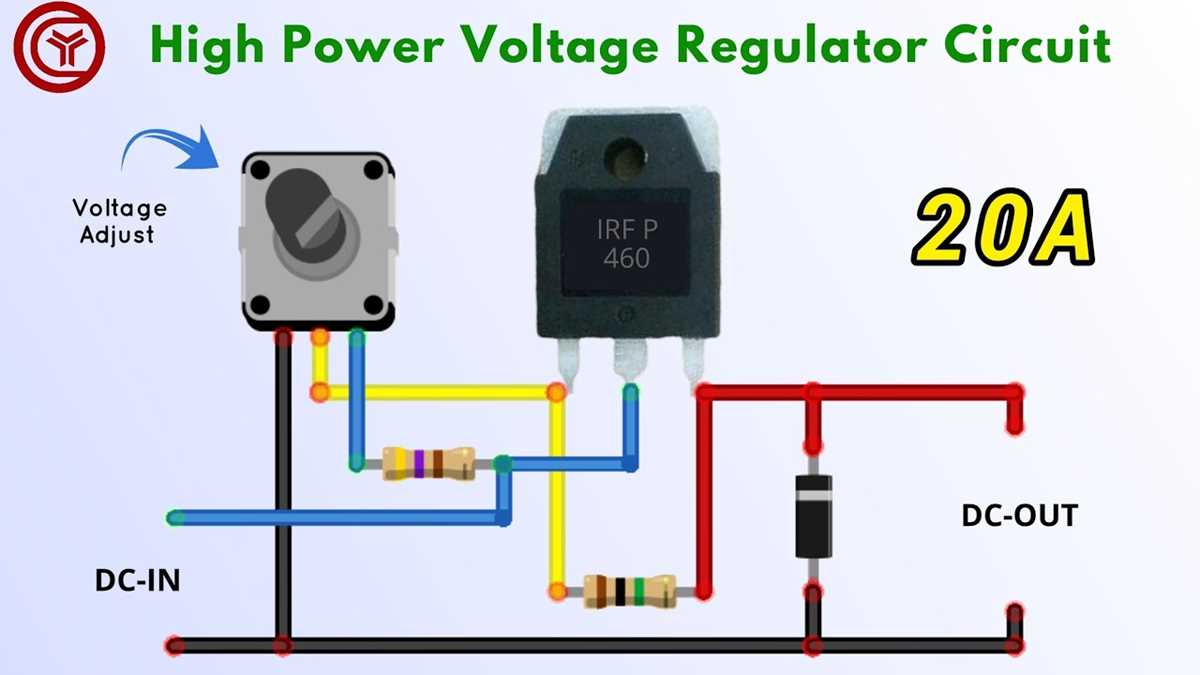

Heat management dictates reliability–mount the IC on a TO-220 heatsink if power dissipation exceeds 1W (PD = (Vin – Vout) × Iout). Use thermal paste for better conductivity. For high-current applications (above 1A), replace the IC with a MJE15030 pass transistor driven by the stabilizer IC, using a 0.3Ω current-sense resistor to limit base current. Always verify output with a multimeter under load to confirm stability.
Step-by-Step Assembly of a 7805 Linear Stabilizer

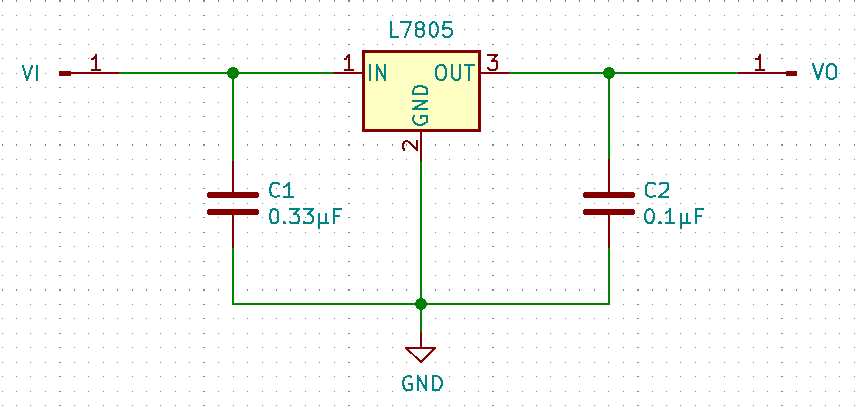

Begin by securing a 7805 IC on a breadboard or PCB, ensuring the metal tab faces away from sensitive components to prevent unintended grounding. Connect the input pin (leftmost, when viewing the front) to a DC source between 7V and 25V–higher margins risk overheating, so match the heat sink size to the input load. For a 12V supply at 500mA, a small TO-220 sink suffices; beyond 1A, opt for a finned variant. Bypass the input and output pins with 0.33µF and 0.1µF capacitors, respectively, placed within 5mm of the IC to suppress high-frequency noise and instability.
Wire the common pin (center) directly to ground, avoiding long traces to reduce voltage drop under load. If driving inductive elements (e.g., relays), add a Schottky diode (1N5817) across the output to ground–this clamps reverse EMF surges exceeding 40V, typical in unregulated environments. Test the setup with a multimeter: output should read 4.8V–5.2V across a 10Ω–1kΩ load. Deviations suggest incorrect capacitance values or a faulty IC; verify connections against the table below:
| Component | Value/Type | Purpose |
|---|---|---|
| Input Capacitor | 0.33µF (ceramic) | Noise filtering, stability |
| Output Capacitor | 0.1µF (ceramic) | Transient response improvement |
| Heat Sink | TO-220 (thermal paste) | Thermal dissipation >1W |
| Protection Diode | 1N5817 (Schottky) | Reverse voltage clamping |
For adjustable output, replace the fixed stabilizer with an LM317, using two resistors to set voltage (Vout = 1.25(1 + R2/R1)). Keep R1 under 240Ω to maintain regulation; R2 can range 1kΩ–5kΩ for outputs up to 15V. Always fuse the input line–calculate the fuse rating as 1.2×maximum current draw (e.g., 600mA for a 500mA load) to prevent overcurrent damage before the IC’s internal protection engages.
Determining Proper Capacitance for Input and Output in Power Conditioning Blocks
Start with a 10μF ceramic capacitor at the input of any linear pass device with moderate load currents (up to 500 mA). This value ensures the equivalent series resistance (ESR) stays below 100 mΩ, preventing loop instability caused by high-frequency noise from switching sources. For LDOs with dropout voltages above 300 mV, increase the input cap to 22μF to counteract transient voltage dips during load steps.
Output capacitance must satisfy two criteria: phase margin and transient response. A 2.2μF ceramic capacitor is the minimum for most 5 V fixed-output devices when the load does not exceed 200 mA. If the load steps exceed 50 mA/μs, add a second bulk capacitor–typically 10 μF–placed within 2 cm of the load to absorb the step without causing the feedback loop to ring.
Check the pass-device datasheet for ESR limits; most require ESR between 5 mΩ and 500 mΩ for optimal damping. Ceramic capacitors below 1 μF often violate the lower ESR bound, leading to oscillations that show up as ~1–2 MHz spikes on the output. To fix this, either increase capacitance to 4.7 μF or add a small (0.1–1 Ω) external resistor in series with the cap.
When input noise is sourced from a switching converter operating above 2 MHz, replace the 10 μF input cap with a 1 μF + 47 μF electrolytic pair. The electrolytic’s higher ESR (~0.5 Ω) dampens ringing caused by lead inductance, reducing error-amplifier peaking. Keep both caps mounted on the same side of the PCB, no farther than 15 mm apart to prevent etch inductance from negating the filter.
For adjustable-output devices using an external resistor-divider, the feedback-node capacitance should not exceed 50 pF. Values above 220 pF slow the loop crossover frequency below 10 kHz, risking low-frequency oscillations under dynamic loads. Measure the feedback node with an oscilloscope probe only after adding a 1 MΩ resistor in series with the probe tip to avoid probe capacitance skewing the reading.
After soldering, verify stability by applying a 50 mA/μs load step while monitoring the output with a 1× probe (≤15 pF tip capacitance). A properly damped design shows less than 40 mV overshoot and zero ringing; any sustained oscillation above 1 MHz indicates insufficient output capacitance or violated ESR bounds and requires immediate capacitance adjustment or PCB trace shortening.
