How to Wire a Single Pole Switch Step by Step Guide with Diagram
Begin by identifying the live wire from your power source–this is the conductor carrying voltage and must connect to the commutator’s input terminal. Use a conductor size rated for at least 125% of the expected load; for most residential setups, 14 AWG copper suffices, but verify local electrical codes for deviations. Always attach the uninsulated ground wire to the metal mounting box or a dedicated grounding terminal if plastic enclosures are used.
Position the toggle mechanism between the live wire and the load, ensuring the circuit opens fully when disengaged. A common error involves incomplete disconnection due to misaligned contact points–test continuity with a multimeter before finalizing connections. For switches rated at 15A, avoid exceeding 12A on inductive loads (e.g., motors) to prevent premature failure.
Label each wire with its function (e.g., “hot,” “load”) to simplify troubleshooting. When mounting onto walls, secure the device no deeper than ¼ inch from the surface; deeper placement risks damage to screws during drywall installation. If integrating with smart home systems, confirm the chosen model supports the voltage and current draw of your connected devices–standard 120V AC configurations may not suit low-voltage automation kits.
For outdoor applications, select a water-resistant variant and seal entry points with silicone-based conduit fittings. Replace any corroded terminals immediately; even minor oxidation increases resistance and generates heat. When routing wires, maintain a minimum 6-inch separation from data or Ethernet cables to prevent interference in audio-visual systems.
Basic Electrical Toggle Layout Guide

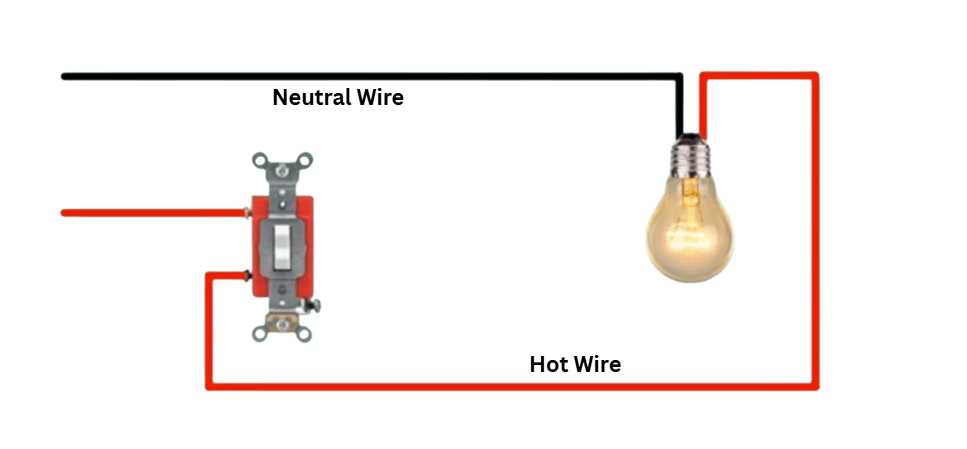

To wire a standard two-terminal control, connect the incoming live wire to one terminal and the load to the opposite terminal. Use a 14-gauge conductor for circuits protected by a 15-amp breaker or a 12-gauge wire for 20-amp circuits to prevent overheating. Ensure the breaker matches the wire gauge–mismatches risk fire hazards. Label wires before disconnecting power and verify absence of voltage with a non-contact tester. For metal boxes, attach a grounding conductor to the designated screw; in plastic enclosures, ground the fixture directly.
Position the actuator vertically if aligning with standard fixtures or horizontally for side-by-side installations–center alignment ensures consistent mechanical operation. Snap the cover plate securely to prevent dust ingress, which can shorten lifespan. Test operation by toggling the actuator multiple times; erratic behavior indicates loose connections or faulty terminals. Replace devices showing pitting or discoloration on contacts immediately.
Core Wiring Setup for a One-Way Control Device
Place the live feed wire directly into the first terminal of the mechanical actuator. Ensure the cable gauge matches the circuit’s current rating–typically 14 AWG for 15A residential lines or 12 AWG for 20A. Overloading thinner wires risks overheating and fire hazards.
Connect the output terminal of the actuator to the load, whether it’s a fixture, outlet, or appliance. For lights, route the neutral wire straight to the load, bypassing the control entirely. This keeps the circuit simple and reduces unnecessary connections.
The ground wire must link both the actuator housing and the load casing. Use a green or bare copper conductor and fasten it to the dedicated screw or clamp. Omitting this step leaves exposed metal parts electrified if insulation fails.
Avoid daisy-chaining multiple actuators off one live feed in the same box. Each should have its own dedicated hot wire to prevent voltage drops and uneven power distribution. If space is tight, use a splicing block rated for the circuit’s amperage.
- Test continuity with a multimeter before closing the box. Probe between the actuator’s input/output and confirm a closed path when activated, open when off.
- Label wires clearly if the setup will be serviced later–misidentification leads to shorts or dead circuits.
- Seal unused knockouts in the junction box to keep dust and moisture out.
For three-way variants (multiple actuator locations), extend a traveller wire between actuators, not through the load. The load connects only to the last actuator in the chain, ensuring consistent control from any point.
Step-by-Step Wiring Connections for Residential Use

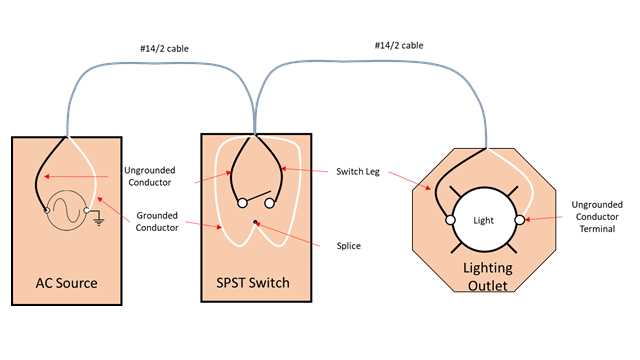

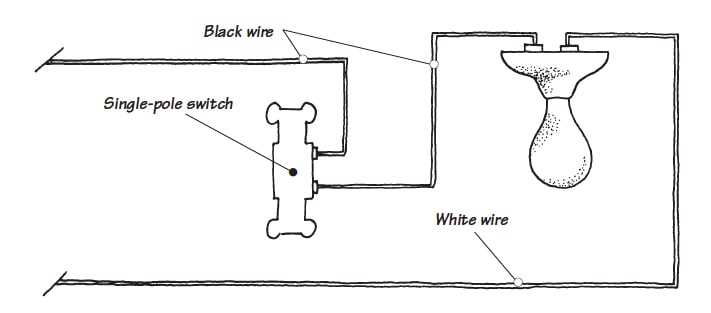

Shut off the circuit breaker controlling the line you’ll modify–verify power absence with a non-contact voltage tester. Strip 5/8″ (16mm) of insulation from each wire end, ensuring copper strands remain untwisted and free of nicks. For a standard two-way control lever installation, connect the black (hot) conductor from the source to the brass-colored terminal on the device. The black or red (switched) wire leading to the fixture attaches to the opposite brass screw. Secure the white (neutral) wires together with a wire nut, tucking them into the back of the junction box. Bare or green grounding wires twist together and bond to the green grounding screw, then fold neatly into the box.
Terminal Torque Specifications
| Wire Gauge | Terminal Screw Torque (in-lbs) | Minimum Loop Radius |
|---|---|---|
| 14 AWG | 12–14 | 3/4″ |
| 12 AWG | 15–18 | 7/8″ |
| 10 AWG | 20–24 | 1 1/8″ |
Fold wires back into the box, ensuring no bare copper touches the device yoke or adjacent terminals. Snap the cover plate on before restoring power to prevent accidental shorts.
Identifying Component Symbols in Control Circuit Blueprints
Locate the zigzag line–this represents the resistive element in the layout. In most wiring illustrations, this symbol denotes a fixed resistor, with its value often annotated adjacent to it. For variable resistors, the zigzag includes an arrow cutting diagonally across it, indicating adjustability. Verify the notation: “R” followed by a number (e.g., R1) confirms its role in the circuit.
Recognize the open circle with a diagonal line intersecting it as the manual actuator. This icon distinguishes between maintained and momentary versions: a single line denotes a latching type, while a dual-line variation signals a push-to-break or push-to-make configuration. Check for dashed lines linking to other symbols–these indicate mechanical coupling in multi-gang configurations.
Trace the straight line with a break in power flow drawings–this is the most common representation of an on-off toggle. The gap signifies the open state, while a closed gap (or a filled break) illustrates the engaged position. Some variants include a perpendicular slash at the break point, differentiating between low-voltage and high-voltage applications. Labels like “SW” or numerical identifiers clarify function.
Identify connected loops with a shaded half-moon shape–this denotes capacitors. Non-polarized types use symmetrical arcs, while polarized versions feature a curved arc and a straight line, with the straight side marking the negative terminal. Electrolytic capacitors often include “+” markings near the positive terminal. Ensure the unit (μF, pF) is specified to avoid misapplication.
Decoding Annotations and Layout Nuances
Examine surface-mount symbols: these omit detailed shapes and instead use rectangular blocks with pin numbers. Through-hole components retain traditional iconography (e.g., triangles for diodes, rectangles with leads for transistors). Cross-reference with parts lists–manufacturers like IEC and ANSI adopt slight variations, so prioritize consistency within a single schematic. Misalignment between symbol and footprint can lead to assembly errors, particularly in dense PCB designs.
Troubleshooting Common Errors in Basic Toggle Wiring
Check for reversed connections first–hot and neutral wires crossed at terminals cause immediate failure. Verify the live conductor (typically black or red) connects to the brass screw, while the neutral (white) or ground (green/bare) attaches to silver or green screws respectively. Test continuity with a multimeter before energizing: probe terminals should show ~0 ohms when toggled on, infinite resistance in the off position. If readings deviate, disassemble the mechanism and inspect for carbon buildup on contacts or cold solder joints on printed circuit boards.
Identifying Intermittent Faults
- Flickering loads indicate loose wiring–tighten terminal screws to 12-15 inch-pounds using a torque screwdriver.
- Humming or buzzing often results from overloaded circuits; confirm the current rating (usually 15A for residential) isn’t exceeded.
- Heat damage at wire entry points suggests undersized conductors–replace with THHN copper sized per NEC (14 AWG for 15A, 12 AWG for 20A).
- For GFCI-protected circuits, recalibrate or replace the device if nuisance tripping persists–test with a known load (e.g., 120V lamp).
If the control fails to respond but power is confirmed, examine the actuator for mechanical binding. Lubricate pivot points with dielectric grease or replace the entire unit if plastic components show brittleness. For smart versions, reset the firmware via manufacturer-specific procedure (usually hold configuration button for 10 seconds) and re-pair to the network protocol (Zigbee/Z-Wave). Dead outlets downstream may reveal backstab connection failures–rewire using pigtail splices secured with wire nuts and electrical tape.
