Practical Single Transistor Amplifier Circuit Design and Analysis Guide
For low-power audio preamplification or RF signal boosting, the common-emitter arrangement delivers the highest voltage gain–typically 50 to 200–while requiring minimal components. Bias the base at 0.6V to 0.7V via a voltage divider: use a 47kΩ resistor from Vcc and a 10kΩ resistor to ground for a 9V supply. The emitter resistor should be 1kΩ with a 100µF bypass capacitor to maintain stable gain without introducing low-frequency roll-off above 20Hz.
If input impedance above 10kΩ is critical–such as for guitar pickups or condenser microphones–switch to a common-collector topology. Here, the output follows the input with unity voltage gain, but current gain approaches β (100–300 for standard small-signal devices). Keep the load resistor above 10kΩ to preserve linearity; bypassing it with a 1µF film capacitor prevents high-frequency distortion above 10kHz.
For radio-frequency applications up to 10MHz, the common-base layout isolates input and output capacitances, yielding a cut-off frequency 2–3× higher than common-emitter circuits. Ground the base directly via a 10nF ceramic capacitor, omit the emitter resistor, and bias the collector at half the supply voltage. Use a 2N3904 for frequencies below 5MHz; switch to a BF199 or 2SC2408 for 5–10MHz operation.
Thermal drift can shift the operating point by ±20% over a 25–75°C range. Add a 10kΩ thermistor between the base and ground to compensate: its resistance drop with temperature mirrors the base-emitter voltage drop, holding collector current constant. For discrete prototypes, mount the core and thermistor on the same heatsink for tracking accuracy better than ±5%.
Stray capacitance between traces on perfboard will create a resonant peak 3–6dB above the intended gain. Route input and output leads orthogonally and separate them by ≥5mm to keep parasitic coupling below −40dB. For PCB layouts, use a grounded fill around the gain stage to shield it; ground planes under sensitive nodes halve the effective capacitance to the substrate.
Building a Basic Active Signal Booster: Key Layout Insights
Start with a common-emitter configuration using an NPN device like the 2N3904 for optimal voltage gain. Place a 10 kΩ resistor between the input node and the base junction, ensuring a stable bias point while preventing excessive current draw. The emitter should connect directly to ground through a 1 kΩ resistor to establish predictable gain, calculated as RC/RE where RC is the collector’s 4.7 kΩ load resistor.
Decouple the power rail with a 10 µF capacitor situated between the supply and the collector resistor. This minimizes ripple and prevents feedback from distorting the output. For input coupling, use a 1 µF capacitor to block DC offset while passing AC signals from sources like microphones or line-level outputs. Calculate the low-frequency cutoff using fc = 1/(2πRC); with a 1 kΩ source impedance, expect ~160 Hz.
Avoid parasitic oscillations by keeping leads short and adding a 100 nF bypass capacitor across the supply pins, close to the device’s body. Test stability by injecting a 1 kHz sine wave; clipping at higher amplitudes indicates incorrect biasing–adjust the base resistor until the waveform remains undistorted at 50 mVp-p input. For temperature stability, replace the base resistor with a voltage divider using 22 kΩ and 4.7 kΩ resistors.
Output coupling requires another 1 µF capacitor to isolate downstream loads from DC voltage. Position it immediately after the collector resistor to preserve signal integrity. If driving low-impedance loads (e.g., 8 Ω speakers), buffer the output with an emitter follower stage using a second 2N3904, configured with a 470 Ω emitter resistor. This preserves bandwidth while delivering sufficient current.
Fine-tune gain by swapping the collector resistor–3.3 kΩ for +20 dB, 8.2 kΩ for +30 dB. Verify performance with a signal generator and oscilloscope, ensuring the output mirrors the input phase without skew. For RF applications, add a 10 pF capacitor between base and emitter to roll off high-frequency noise above 1 MHz.
Selecting the Optimal Active Component for Your Signal Boosting Design
Begin with a bipolar junction device rated for at least 50 MHz bandwidth if your target application involves audio or RF stages. The 2N3904 (NPN) or 2N3906 (PNP) offer reliable performance with a collector current up to 200 mA and power dissipation around 625 mW, sufficient for most small-signal tasks. For low-noise preamplification, prioritize devices like the BC547C, which boasts a noise figure below 2 dB at 1 kHz, critical for sensitive inputs.
Match the active component’s gain characteristics to your stage requirements: a common-emitter configuration typically demands a current gain (hFE) between 100 and 300, while emitter-follower setups benefit from higher hFE values (400+). The 2SC5200 delivers an hFE of 250-400, making it ideal for output buffers needing robust current drive. Verify datasheet specs at your intended quiescent current–many devices peak in gain at 1-5 mA but degrade at extremes.
For high-voltage applications, select a device with a VCEO rating exceeding your supply rail by at least 20%. The MJE13003 (700 V VCEO) handles offline power stages, while the MPSA42 (300 V VCEO) suits flyback driver circuits. Thermal stability matters–ensure the thermal resistance (RθJA) aligns with your heatsinking capacity. A TO-220 package like the TIP31C offers 35 W dissipation with proper mounting, but SOT-23 variants like the BSS138 (0.36 W) require careful PCB thermal design.
Factor in switching speed for digital interfacing: rise/fall times under 20 ns (e.g., 2N2222A) prevent signal degradation in clocked systems. For analog mixing, the LM394’s monolithic transistor pair reduces distortion below 0.01% THD, outperforming discrete solutions. If cost is critical, the PN2222A delivers near-2N2222 performance at lower prices, though with slightly wider parameter spreads. Always cross-reference typical vs. minimum/maximum hFE values in datasheets to avoid marginal designs.
Evaluate package compatibility: through-hole (TO-92, TO-220) simplifies prototyping, while surface-mount (SOT-23, SOT-89) suits compact layouts. The BC847ALT1 offers identical specs to the BC547 in a 1.6×1.6 mm footprint. Avoid ultra-miniature packages (DFN, CSP) unless precise soldering tools are available–thermal stress can alter device parameters irreversibly. For harsh environments, opt for hermetically sealed variants like the JANTX2N3904, which withstands extended temperature ranges (-55°C to +200°C) without derating.
Step-by-Step Assembly of Common Emitter Stage
Begin with a 2N3904 NPN component, ensuring its gain (hFE) is between 100–300 for optimal performance. Calculate the resistor values using the formula RB = (VCC – 0.7) / IB, where VCC is 12V and IB is 10–50µA. For a 1mA collector current, use a 10kΩ base resistor and a 1kΩ load resistor.
Mount the NPN device on a breadboard, orienting the flat side toward the left. Connect the positive rail to the emitter via a 1µF electrolytic capacitor, observing polarity–negative terminal faces the emitter. This decouples DC while allowing AC signals to pass.
Install a 47µF coupling capacitor between the signal source and the base node. This blocks DC offset while permitting the input waveform to reach the device. A 10kΩ potentiometer can be added in series for adjustable input attenuation.
Solder a 100nF bypass capacitor across the power rail and ground, as close as possible to the component’s collector pin. This stabilizes the supply by filtering high-frequency noise, critical for maintaining a clean output.
Biasing and Stability Adjustments
Measure the collector voltage with a multimeter; it should stabilize at roughly half the supply voltage (6V in this case). If readings deviate, trim the base resistor value in 5% increments until the target voltage is achieved. Avoid exceeding 8V at the collector to prevent thermal runaway.
Add a 1kΩ resistor between the emitter and ground to introduce negative feedback. This linearizes the stage’s response and broadens its frequency range. For audio applications, a 2.2kΩ resistor improves headroom while maintaining low distortion.
Test the assembled network by applying a 1kHz sine wave at 100mVpp. Use an oscilloscope to verify the output waveform–it should mirror the input with a gain of 10–20dB. Phase inversion is expected; the signal will be inverted at the collector.
For final optimization, replace the fixed load resistor with a 5kΩ potentiometer. Adjust it while monitoring the output on the oscilloscope to find the sweet spot between gain and clipping. Secure the potentiometer’s position once the optimal setting is determined.

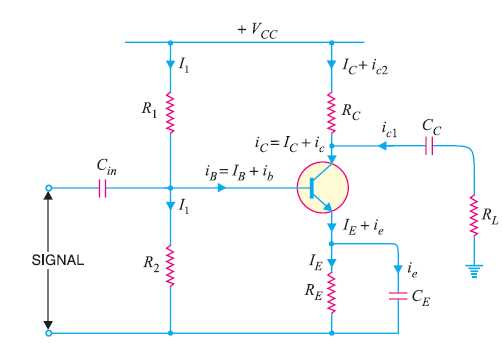

Calculating Resistor Values for Stable Biasing
Begin by setting the quiescent collector current (IC) to 1–5 mA for small-signal stages, ensuring sufficient headroom without excessive power dissipation. Use a supply voltage (VCC) of 9–12 V for typical discrete designs, balancing noise immunity and thermal stability.
Calculate the emitter resistor (RE) using Ohm’s law: RE = VE / IC. Allocate 1–2 V across RE to stabilize the operating point against temperature variations. For example, with IC = 2 mA and VE = 1.5 V, RE = 750 Ω (use 750 Ω or nearest standard value like 820 Ω).
Determine the base voltage (VB) by adding 0.6–0.7 V (forward drop of the base-emitter junction) to VE. For VE = 1.5 V, VB ≈ 2.1–2.2 V. The voltage divider formed by R1 and R2 must maintain this VB while providing a sufficiently low impedance to swamp thermal drift in the junction.
Use the ratio R2 / (R1 + R2) = VB / VCC to solve for one resistor, then calculate the other. Limit the divider current (Idiv) to 5–10× the base current (IB) to ensure stability. For a β of 100 and IC = 2 mA, IB = 20 µA; thus, Idiv ≈ 100–200 µA.
| VCC (V) | IC (mA) | VE (V) | RE (Ω) | R1 (kΩ) | R2 (kΩ) |
|---|---|---|---|---|---|
| 9 | 1 | 1.0 | 1k | 33 | 8.2 |
| 12 | 2 | 1.5 | 750 | 47 | 12 |
| 15 | 5 | 2.0 | 400 | 56 | 15 |
Add a bypass capacitor across RE (typically 10–100 µF) to preserve AC gain while maintaining DC stability. For RE = 820 Ω, a 47 µF capacitor yields a corner frequency fc = 1 / (2π × RE × C) ≈ 4 Hz, ensuring mid-band gain is unaffected.
Verify thermal stability by recalculating IC at temperature extremes (e.g., -20°C and +85°C). A well-designed stage will exhibit
