Understanding Smartphone Hardware Layouts Key Circuit Diagrams Explained

Begin by sourcing schematics from verified manufacturer documentation. Samsung’s Service Manuals and Apple’s Technician Guides provide the most accurate and detailed layouts for internal hardware configurations. Third-party repositories like Electronics Repair Wiki or PDF Schematic Databases often host older models but may lack thorough validation–prioritize files with revision history or OEM stamps.

Identify key functional blocks on the schematic: power delivery, radio frequency modules, CPU clusters, and memory interfaces. Trace the PMIC (Power Management IC) first–its connections dictate voltage rails to other components. For Qualcomm-based devices, locate QFE chipsets handling RF front-end operations, critical for diagnosing signal degradation or overheating.

Measure resistances and voltages against reference values listed in the schematic. A 34Ω impedance on a USB data line, for example, should match the design specification within ±5%. Deviations beyond this range indicate faulty traces or degraded solder joints on the PCB’s multilayer stack. Use a thermal camera to pinpoint abnormal heat signatures around the SoC (System on Chip), often a precursor to catastrophic failure.

Document all modifications or repairs directly on the schematic using vector-based tools like KiCad or Altium Designer. Annotate deviations from OEM standards–such as aftermarket battery integration points or custom bootloader pathways–to maintain a reliable repair history. If working with encrypted firmware, cross-reference flash memory maps to avoid corrupting critical partitions like bootloader or modem.

Test signal integrity with an oscilloscope before final reassembly. Verify clock signals on the AP (Application Processor) meet target frequencies–common failures include unstable PLL (Phase-Locked Loop) outputs or erratic USB PHY transmissions. Replace components only after isolating faults via signal probing; swapping ICs preemptively risks damaging adjacent circuitry.

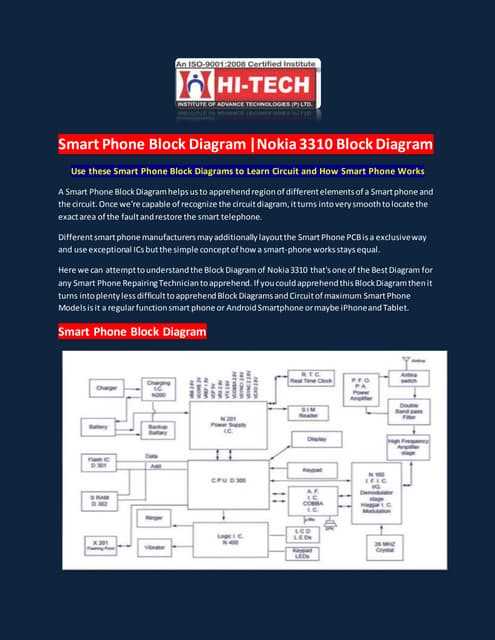

Understanding Portable Device Electrical Schematics

Start by isolating the power management IC (PMIC) on the board–typically labeled with identifiers like *MT6359*, *PM660*, or *SMB1390*. Trace its connections to the battery interface (usually a 2–4 pin connector) and verify voltage rails (e.g., *VSYS*, *VBAT*, *VREG*) using a multimeter set to DC mode. Low or inconsistent readings on these pins indicate faulty PMIC output capacitors or corroded solder joints. Replace 0402/0603 capacitors rated at 1–10µF if ESR exceeds 2Ω.

Identify RF front-end modules by locating antennas (marked *ANT* or *RF_IN*) and their matching networks–these often consist of inductors (1–10nH) and variable capacitors (0.5–5pF). Use a spectrum analyzer (span: 700MHz–2.7GHz) to confirm signal integrity at key frequencies:

• GSM: 850/900/1800/1900MHz (±5dBm tolerance)
• LTE: Bands 1–41 (check harmonics for spurious emissions)
• Wi-Fi/Bluetooth: 2.4GHz and 5GHz (±3dB)

Swap out SAW/BAW filters if insertion loss exceeds 2dB or if return loss dips below -10dB. For memory interfaces, probe the flash controller (*eMMC/UFS*) data lines (D0–D7) and clock (CLK) with an oscilloscope–jitter above 50ps or missing pulses suggest failing NAND chips or insufficient termination resistors (typically 22–47Ω).

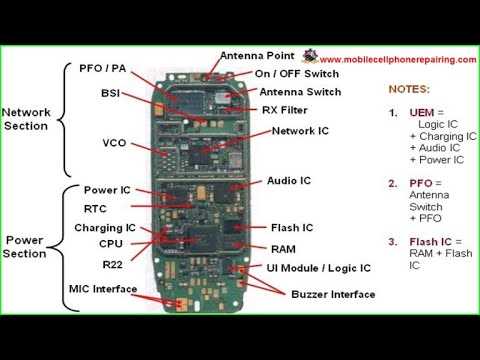

Key Components and Their Roles in a Handheld Device PCB Layout

Position the application processor (AP) at the geometric center of the board to minimize trace lengths to critical subsystems. Modern APs, like those based on ARM Cortex-A78 or Snapdragon architectures, require dedicated power planes (V_DD, V_CORE, V_IO) with impedance below 10 mΩ. Use 4-layer or 6-layer stackups with at least one solid ground plane to suppress EMI–separate analog and digital grounds via a star-point connection at the battery connector.

Power management ICs (PMICs) must be placed within 2 cm of the AP to reduce voltage droop during load transients. Key PMIC rails (e.g., 1.1V for CPU, 1.8V for DDR, 3.3V for I/O) demand decoupling capacitors in this hierarchy:

• 0402 1 µF MLCC (X5R/X7R) for mid-frequency (1–10 MHz) noise.
• 0603 10 µF tantalum (low ESR) for bulk stability (100 Hz–1 kHz).
• 0805 100 nF per pin for high-frequency decoupling (10 MHz–1 GHz).

Route PMIC outputs with 1 oz copper traces (minimum 20 mils width) to prevent overheating during peak currents (up to 5A for flagship SoCs).

Memory and RF Module Placement

DDR or LPDDR modules must follow strict length matching: address/control lines within ±25 µm of the clock signal, data lines within ±5 µm. Use serpentine tuning on longer traces (e.g., >60 mm) to compensate for propagation delays. Place the memory chip on the same side of the PCB as the AP to avoid vias, which introduce 1–2 ns delay per transition. RF front-end modules (FEMs) for Wi-Fi/Bluetooth and cellular (4G/5G) require isolation zones–keep them ≥10 mm from sensitive components like oscillators or PLLs. Shield FEMs with grounded copper pours on all layers, connected via stitching vias at 5 mm intervals.

Antennas demand clearance zones: 30 mm for main cellular antennas (e.g., PIFA, monopole), 15 mm for diversity/GNSS antennas. Avoid routing power traces or digital signals near antenna feeds to prevent desense. For mmWave 5G (24–40 GHz), use low-loss substrates (e.g., Rogers RO4350B, ε_r = 3.66) and microstrip feeds with 50 Ω impedance (±2%). Test antenna efficiency in anechoic chambers; target ≥60% for sub-6 GHz bands, ≥40% for mmWave.

Final PCB layout checks should include:

1. Thermal simulation (AP hotspots should not exceed 85°C under 1W dissipation).
2. Signal integrity analysis (eye diagrams for DDR; target >70% eye opening at 3.2 Gbps).
3. Power integrity (AC impedance
4. DFM/DFA rules (via aspect ratio ≤8:1, solder mask clearance ≥0.1 mm).

Use automated DRC tools (e.g., Altium Designer, Cadence Allegro) but manually verify high-speed signals (HDMI, USB 3.2, MIPI-DSI) with TDR measurements. Optimize via placement: stagger vias under BGAs to reduce crosstalk, avoid backdrilling on differential pairs.

How to Read and Interpret Power Management IC Schematics

Identify the PMIC (Power Management Integrated Chip) symbol first–it’s typically a rectangular block with labeled pins. Pin names like VIN, VOUT, EN (enable), and FB (feedback) are critical. Cross-reference these with the datasheet to confirm pin functions before tracing connections.

Trace power rails from the battery input. Look for thick lines or wider traces–these indicate high-current paths. Thin lines usually represent control signals or feedback loops. Note series components like inductors, capacitors, or resistors; their placement near VOUT often suggests buck or boost converter stages.

Locate the feedback network. A resistor divider (two resistors in series) connected to FB regulates output voltage. Calculate the expected output using the formula VOUT = VREF × (1 + R1/R2), where VREF is the internal reference voltage (usually 0.6V–1.2V). Verify against the schematic’s stated VOUT.

Examine control signals. The EN pin may connect to a GPIO or a dedicated power-on key. Check for pull-up/down resistors–absence suggests the PMIC starts automatically at power-on. Some chips use PS_HOLD (power sustain) to prevent accidental shutoff; trace this to the processor.

Inspect protection features. Thermal shutdown pins (e.g., TS) may link to a thermistor. Overcurrent protection often involves a small resistor in series with VIN or VOUT, feeding back to a dedicated pin. Look for diodes or transistors handling reverse voltage or inrush current.

Decode communication interfaces. I²C or SPI lines (e.g., SCL, SDA) may connect to a microcontroller for dynamic voltage scaling. Identify pull-up resistors on these lines–typical values range from 2.2kΩ to 10kΩ. Check for decoupling capacitors (100nF–1µF) near interface pins to suppress noise.

Analyze sleep/wake circuits. Some PMICs use WAKE or INT pins to exit low-power modes. These may connect to a real-time clock or a button. Look for resistors or transistors acting as level shifters if the processor runs at a different voltage domain.

Compare against reference designs. Most vendors provide evaluation board schematics–use these as a baseline. Deviations (e.g., missing components, altered values) often indicate cost-saving measures or design flaws. Document any discrepancies for debugging.

Troubleshooting Signal Flow in RF Schematics

Isolate the antenna port first. Measure voltage at the feed point with a spectrum analyzer; expect -40 dBm to -20 dBm for a healthy transmission path. If levels drop below -60 dBm, inspect the duplexer or switch matrix preceding the antenna–common dropout points include corroded solder joints on RF connectors or damaged matching networks.

Trace the front-end module (FEM) with these test points:

Component	Pin	Expected Voltage (V)	Tolerance (mV)
Low-Noise Amplifier (LNA)	Supply	1.8	±50
Power Amplifier (PA)	Bias	2.8	±30
Switch IC	CTRL	1.2	±20

Deviations beyond tolerance indicate failed regulation. Check adjacent capacitors–self-resonance at 2.4 GHz often masks faulty 0402 packages.

Verify signal integrity through the baseband processor interface. Inject a 1 MHz tone at the RF input via signal generator; monitor output at the I/Q demodulator pins. Distorted sine waves or phase shifts greater than 15° confirm faulty PLL or mixer stage. Replace the voltage-controlled oscillator (VCO) if jitter exceeds 2 ps.

Confirm ground continuity between RF shielding and main board. Use a milliohm meter–resistance should read below 5 mΩ. Higher values create parasitic inductance, causing desense. Reflow any suspect vias under shields; use conductive epoxy for detached grounding clips.
