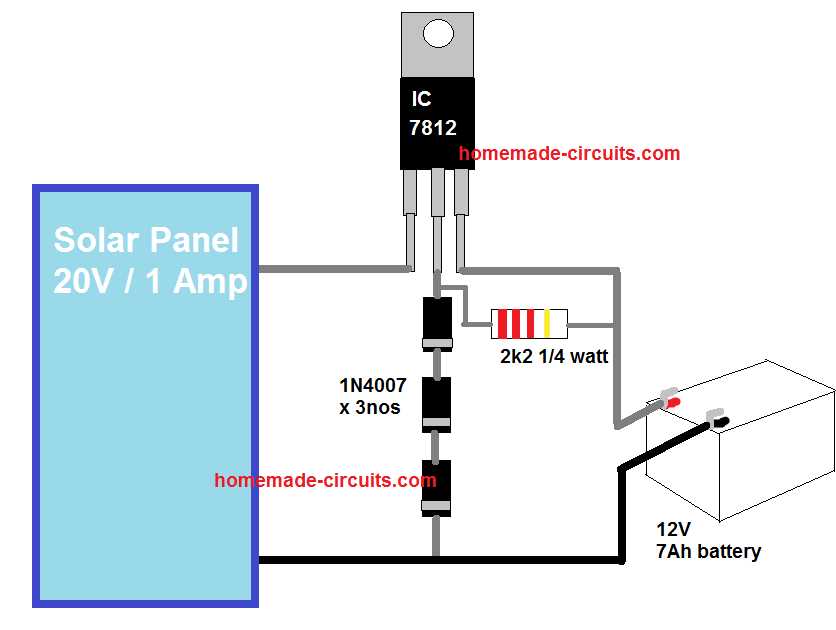

DIY Solar 12V Battery Charger Circuit Guide with Wiring Schematic
For optimal performance, use a PWM-based controller with a 20–30A rating when assembling a regulator for 13.2–14.4V lead-acid or lithium iron phosphate storage units. A Schottky diode (e.g., 1N5822) prevents reverse current at night, while a 470μF electrolytic capacitor smooths voltage fluctuations. Place the diode after the photovoltaic panel’s output but before the storage terminals to avoid parasitic drain. Verify the panel’s open-circuit voltage exceeds 18V under peak sunlight to ensure proper regulation.
Select a low dropout (LDO) linear regulator or a buck converter (e.g., LM2596) if fine-tuning charge curves is required. For 60W panels, a maximal power point tracking (MPPT) module improves efficiency by 20–30% over PWM in low-light conditions. Mount temperature sensors (e.g., NTC thermistors) near the storage cell–they adjust float voltage by 3–5mV/°C to prevent overcharging in hot climates. Include a resettable fuse (25A) on the input side to protect against transient spikes.
Test the assembled system with a multimeter: measure input voltage at the panel’s terminals, the dropout across the diode (should be 10 AWG or thicker. For lithium iron phosphate units, incorporate a balancing circuit (e.g., TP4056 module) to equalize cell voltages. Avoid relying solely on the panel’s label wattage–actual output often drops 10–15% due to aging and dust.
Designing an Autonomous Energy Harvesting Setup for Lead-Acid Storage
Select a monocrystalline photovoltaic panel with a minimum 18V open-circuit voltage to compensate for low-light losses. Panels rated at 20W or above ensure sufficient current for 50Ah accumulators under partial cloud cover, delivering 1.1A–1.3A in peak conditions. Avoid polycrystalline modules under 15% efficiency–they require 30% more surface area for equivalent output.
Use a low-dropout PWM controller with hysteresis thresholds set at 13.8V (absorption) and 12.6V (float). Models incorporating a blocking diode prevent reverse leakage at night; Schottky variants reduce forward voltage drop to 0.3V versus 0.7V for silicon diodes. For continuous loads, bypass the controller with a direct connection during daylight hours if the panel exceeds 25W.
Component Selection Reference
| Function | Recommended Part | Key Specification | Alternative |
|---|---|---|---|
| Voltage regulation | LT8490 | Buck-boost, 60V max input | TPS54062 |
| Blocking element | MBR2045CT | 20A, 45V Schottky | 1N5822 |
| Protection fuse | Slow-blow 3A | 250V AC/DC rating | Polyfuse resettable |
Wire gauge choices impact efficiency: 14AWG copper for runs under 2m, 12AWG for longer distances. Stranded conductors reduce voltage sag by 12% compared to solid core. Heat-shrink tubing over soldered joints prevents corrosion; use adhesive-lined variants for outdoor installations.
Mount the photovoltaic array at a fixed 35° angle in northern latitudes to optimize winter output. Seasonal adjustment yields 22% more energy than flat mounting. Secure panels with stainless-steel brackets, avoiding aluminum–it accelerates oxidation under UV exposure.
Add a microcontroller with ADC to log terminal voltage and current. Sampling every 15 minutes prevents battery sulfation by toggling between equalization and float modes. A DS3231 RTC synchronizes dawn/dusk transitions for timed loads.
Store the accumulator in a ventilated enclosure if ambient temperature exceeds 30°C. Elevated temperatures reduce lifespan by 50% for every 10°C above 25°C. Gel-cell variants tolerate deeper discharges but require lower charging currents (C/20).
Test the setup with a 3Ω resistive load drawing 4A for 2 hours. Monitor voltage recovery rate–acceptable systems regain 0.2V within 30 minutes. Slow recovery indicates undersized panel capacity or excessive internal resistance.
Troubleshooting Steps
If no current flows during peak insolation:
- Verify diode polarity (anode to panel positive)
- Check for open circuits with a continuity tester
- Measure panel open-circuit voltage–degraded cells drop below 17V
- Inspect controller input terminals for loose connections
Core Hardware for Assembling an Autonomous Power Supply Unit
Select a photovoltaic module rated between 20W and 50W, ensuring its open-circuit voltage remains under 22V to prevent overloading downstream regulators. Monocrystalline panels yield higher conversion efficiency–typically 18–22%–compared to polycrystalline variants, which rarely exceed 16%. Verify the panel’s peak power current matches the capacity of your storage cell; mismatch risks inadequate replenishment during low-irradiance conditions or accelerated degradation from underutilization.
Critical Regulation and Conversion Elements
Integrate a buck converter with a minimum 3A output rating and adjustable voltage truncation to precisely clamp output at 14.4–14.8V. Models equipped with synchronous rectification reduce heat loss by up to 15% versus conventional diodes. Include reverse polarity protection–either a MOSFET switch or a dedicated blocking diode–to safeguard against inadvertent connection errors. For enhanced longevity, opt for a converter with built-in overtemperature shutdown, halting operation if thermal limits exceed 85°C.
Use a deep-cycle lead-acid or lithium iron phosphate accumulator with a nominal capacity between 10Ah and 100Ah. The latter offers superior cycle stability (2000+ cycles at 80% depth of discharge) and a flatter discharge curve, but requires active management via a BMS. Without a dedicated regulator, lead-acid variants demand periodic equalization pulses–charge to 15.5V for 1–2 hours–every 30 cycles to prevent sulfation. For off-grid reliability, prioritize absorbent glass mat designs over flooded cells to eliminate maintenance.
Include a blocking Schottky diode rated for at least 1.5× the panel’s peak current to prevent nighttime backflow, which can drain stored energy. A 20A fuse between the converter and storage cell interrupts catastrophic shorts without nuisance trips from transient spikes. For telemetry, attach a shunt resistor (e.g., 75mV @ 50A) and a low-power microcontroller to log voltage, current, and cumulative Coulombs, enabling predictive failure detection before capacity drops below 60%.
Step-by-Step Wiring Guide for the Power Supply Assembly
Begin by securing the photovoltaic panel’s output terminals to the input of a voltage regulator rated for 15–18V DC handling. Use 2.5mm² copper wire for connections exceeding 1.5A current, ensuring minimal voltage drop over distances longer than 2 meters. Strip 8–10mm of insulation from each wire end and twist strands tightly before crimping with ring or spade terminals if connecting to screw terminals.
Component Layout and Terminal Preparation
- Position the charge controller within 30cm of the storage cell to reduce resistance losses, placing it on a non-conductive surface like acrylic or fiberglass.
- Identify polarity markings: “+” for the positive terminal (often red), “-” for the negative (black or bare). Reverse polarity will damage the semiconductor components permanently.
- Inspect the blocking diode–if included–to confirm its cathode (striped end) aligns with the controller’s input; this prevents backflow during low-light conditions.
Connect the regulator’s output to the storage cell using tinned copper wire no thinner than 4mm² for 10A systems. For temporary setups, use alligator clips–only if rated for 20A or higher–but replace with soldered or crimped joints for permanent installations. Apply heat shrink tubing over exposed conductive areas, especially near metal frames, to prevent short circuits.
Load Connection and Safety Checks
- Attach a 15A fuse between the controller’s output and the storage cell’s positive terminal; mount it in an accessible fuse holder, avoiding enclosed spaces where heat could build up.
- Wire the load (e.g., LED lights, inverters) to the designated output terminals on the controller, using 1.5mm² wire for currents under 5A. Include a switch or circuit breaker for load isolation during maintenance.
- Before powering on, measure each connection’s resistance with a multimeter: readings above 0.1Ω indicate loose or oxidized terminals–clean with sandpaper or replace.
Test under direct sunlight (not artificial light) by monitoring the voltage across the storage cell’s terminals. A functional assembly should rise from its resting state (≈12.6V for flooded cells) to 13.8–14.4V within 1–2 hours. If readings exceed 14.5V, disconnect immediately and verify the regulator’s settings or heat dissipation–overvoltage can boil electrolyte in less than 30 minutes.
For off-grid systems, add a low-voltage disconnect (LVD) module set to 11.5V to prevent deep discharge damage. If integrating a lithium-based cell, replace the LVD with a battery management system (BMS) matching the cell’s chemistry (e.g., LiFePO4 thresholds: 10.0V cutoff, 14.6V charge limit). Use strain relief–zip ties or cable clamps–every 20cm along wires to prevent fatigue from vibration or wind.
Determining Photovoltaic Module and Regulation Device Requirements
Select a panel producing 1.5x the nominal system voltage to ensure adequate headroom for voltage drop and efficiency losses. For a standard lead-acid accumulator, target 18-20V open-circuit at peak irradiance to compensate for wiring resistance (typically 0.2-0.5Ω per meter) and charge controller dropout. Use the Isc (short-circuit current) rating from the panel’s spec sheet, multiply by 1.25 to account for transient spikes, then round up to the next available regulation device rating. A 5A panel requires at least a 6.25A controller; common off-the-shelf ratings are 10A, 15A, and 20A.
Factor in daily watt-hour demand: a 100Ah cell at 80% depth of discharge (DoD) needs ~960Wh. Divide by average insolation hours (e.g., 4.5h in moderate climates) to find minimum array output: 960Wh ÷ 4.5h = 213W. Add 20% for losses–temperature derating (~15%), dust (~5%), and controller inefficiency (~10%)–raising the requirement to ~256W. Two 130W panels in parallel will satisfy 260W, or a single 300W panel if space permits.
Temperature and Voltage Tolerance Adjustments
Panels lose ~0.35% efficiency per °C above 25°C. At 45°C, a 180W module delivers ~157W. For cold climates, voltage rises; a 18V open-circuit panel may reach 22V at -10°C. Ensure the regulation device handles these extremes–check the maximum power point tracking (MPPT) range or shunt controller’s voltage window, typically 15-150V for MPPT units. Low-voltage systems risk overcharging in winter or undercharging in summer if not properly compensated.
Match cable gauge to current: 6AWG for 20A over 5m, 10AWG for 10A over the same distance. Wire losses should not exceed 3% of total output. Use this formula: (Length × Current × 0.017) ÷ Cross-sectional area (mm²). For 5m of 4AWG (21.15mm²) carrying 15A: (5 × 15 × 0.017) ÷ 21.15 = ~0.06V drop, or 0.5% of a 12.8V system–well within limits.
Fuse sizing: place a 25A fuse between the panel and controller for a 20A setup, and a 15A fuse between the controller and the cell. Use ANL fuses for high-current applications, and always install a blocking diode if the controller lacks reverse current protection. Verify diode voltage drop (typically 0.5-0.7V) and ensure the panel’s Voc (open-circuit voltage) remains below the controller’s maximum input rating, accounting for temperature variations.
