Build Your Own Solar Charge Controller Step-by-Step Circuit Guide

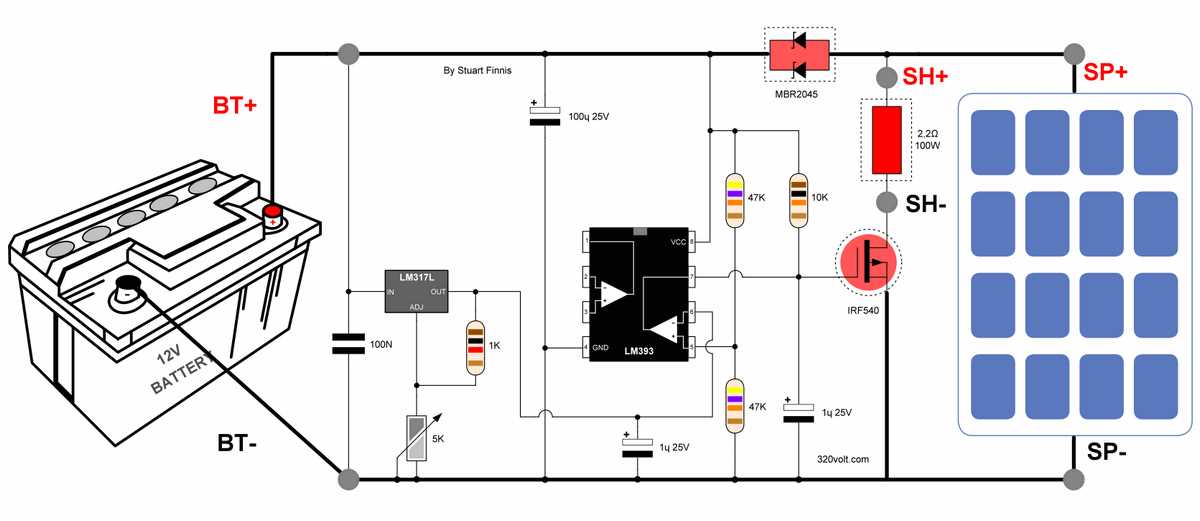

Begin with a PWM-based regulator if the system operates under 300W or uses batteries below 24V. A TL494 or SG3525 IC paired with a N-channel MOSFET (e.g., IRF3205) ensures minimal power loss and precise voltage control. Configure the feedback loop with a voltage divider (10kΩ and 2.2kΩ resistors) to maintain a steady 14.4V for lead-acid cells or 13.8V for LiFePO₄, preventing overcharging while maximizing capacity.

For higher power demands (400W+), shift to an MPPT topology using a STM32F103 or ATmega328 microcontroller. Implement synchronous buck conversion with two low-R_DS(on) MOSFETs (e.g., CSD18536) and a 100µH inductor (saturation current ≥15A). The algorithm should track the maximum power point by adjusting the PWM duty cycle in ≤2ms intervals, achieving 92-95% efficiency under variable irradiance.

Avoid generic LC filters; instead, use a pi-network (two 22µF capacitors flanking a 10µH inductor) to suppress EMI below 40dBµV/MHz. For protection, integrate a TVS diode (P6KE33CA) on the input, a polyfuse (e.g., 15A resettable), and an NTC thermistor (10kΩ @ 25°C) on the battery terminals to cut power at 60°C.

Test the layout with a programmable DC load set to mimic real-world conditions: 50% load for 30 minutes, followed by 10% load for 10 minutes, and full load for 5 minutes. Log input/output currents, switching node voltages, and thermal rise on the MOSFETs–any deviation >5% from simulated values indicates layout flaws.

For off-grid deployments, add a supercapacitor bank (10F/2.7V) parallel to the battery to handle transient loads (e.g., inverter startup surges). Ensure the PCB uses 2oz copper and thermal vias under MOSFETs, spaced ≤2mm apart, to prevent thermal throttling.

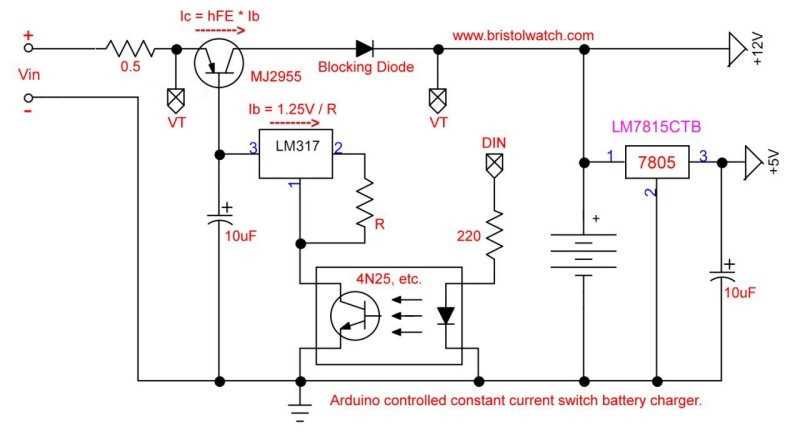

Designing a Photovoltaic Charge Regulator Schematic

Use an MPPT-capable IC like the TI bq24650 for optimal power extraction. Configure the input stage with a 20V-60V operating range to handle varying irradiance levels. Include a 10μF low-ESR input capacitor to stabilize voltage transients, and a 15A MOSFET (e.g., Infineon BSC0906NS) to manage current surges. Ensure the inductor (10μH, saturation current ≥20A) has a ferrite core to minimize losses at switching frequencies above 150kHz.

Implement a synchronous buck converter topology for efficiency above 95%. Place a schottky diode (e.g., Vishay VS-10MQ060N) in parallel with the low-side MOSFET to reduce reverse recovery losses. Add a 10kΩ NTC thermistor near the MOSFETs for thermal protection, triggering shutdown at 100°C. Use a precision 0.1% resistor divider (e.g., 1MΩ and 100kΩ) for accurate voltage sensing, critical for float charge regulation in LiFePO4 batteries.

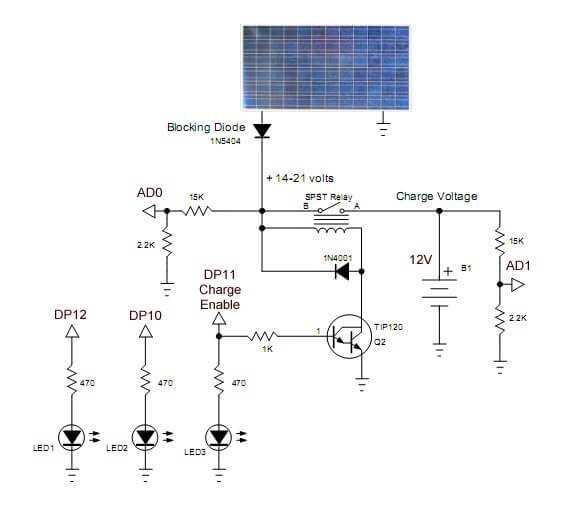

Integrate a microcontroller (e.g., STM32G0) to dynamically adjust PWM duty cycles based on battery state. Program the MCU to perform periodic load disconnects (every 24h for 5s) to recalibrate voltage measurements. Include an I2C-connected EEPROM (e.g., Microchip 24LC64) to store historical performance data, enabling predictive maintenance algorithms. Ensure isolation between high-voltage and control circuitry using optocouplers (e.g., Vishay SFH6741) for safety compliance.

Test the schematic with a 300W halogen lamp simulator to verify performance under fluctuating load conditions. Validate the input voltage ripple stays below 2% at full power, and confirm the charge regulator maintains a ≤0.5% voltage error margin during transitions between bulk and absorption charging phases. Include a user-accessible JTAG port for firmware updates without disassembly.

Key Components for an Efficient Photovoltaic Regulator Board Design

Position the MOSFET or IGBT switching elements near the edge of the PCB with direct thermal vias to a copper pour on the reverse side, ensuring a minimum of 3mm clearance from adjacent traces. For 12V systems, use 60V-rated devices with R_DS(on) under 10mΩ to minimize conduction losses; 24V setups require 100V devices. Place the gate driver no farther than 20mm from the switch, with a dedicated ground plane beneath the driver-to-switch path to reduce gate ringing.

Select input capacitors with low ESR–ceramic X7R or polymer types rated for at least 1.5× the maximum system voltage–placed within 5mm of the switching node. For a 30A regulator, use three 47µF/25V capacitors in parallel rather than a single large value to achieve better ripple current handling. Ensure the Vin trace width is ≥4mm per amp for 1oz copper, or calculate using IPC-2152 for internal layers.

Voltage Sensing and Feedback Loop

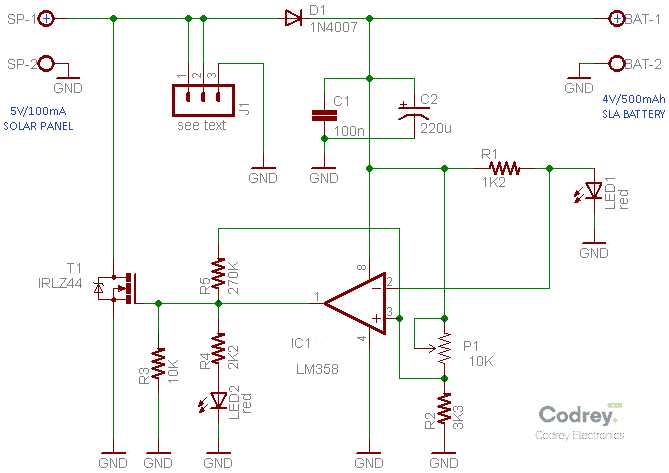

Route the voltage divider resistors directly to the amplifier’s non-inverting pin, keeping traces under 10mm in length to prevent noise pickup. Use 1% tolerance resistors with a ratio of 10k:1k (11:1) for a 12V battery, giving a 1.09V reference at the amplifier’s input. Place a 10nF ceramic capacitor between the divider midpoint and ground to filter switching noise; any longer traces demand a guard ring tied to analog ground.

The feedback loop compensation network–typically a series resistor and capacitor–must connect from the amplifier output to the inverting input with traces no wider than 0.25mm to reduce parasitic capacitance. For a Type-II compensator, start with R=47kΩ and C=1nF, then adjust based on transient response measured with a 1kHz square-wave load step. Keep the compensation components away from power traces to avoid coupling.

Thermal Management and Mechanical Considerations

Mount the heat-generating components on a 2oz copper plane extending ≥10mm beyond the device footprint, with at least four thermal vias (0.3mm diameter) per pad. For TO-220 packages, pre-tin the vias to improve thermal conductivity; avoid solder mask on the thermal pad to maximize heat transfer into the board. If using a separate heatsink, ensure the mounting holes are non-plated and sized for M3 screws, with a thermal interface material thickness of 50-80µm.

Place battery connection terminals adjacent to the reverse-current blocking diode, using a 3mm-wide trace for currents up to 20A. For higher currents, parallel multiple traces with 2mm spacing to prevent overheating. Route the load output trace symmetrically to the battery path, keeping inductance below 20nH per centimeter to minimize voltage spikes during load transients.

Incorporate a 1A PTC fuse on the Vin path within 30mm of the input connector, and use a TVS diode rated for 1.3× the maximum open-circuit voltage from the energy harvester. Select a Schottky diode with a forward voltage under 0.3V at the regulator’s maximum current; place it within 10mm of the switching node to prevent body diode conduction. For layouts with limited space, consider a dual-diode package (e.g., B230LB) to consolidate footprint without sacrificing performance.

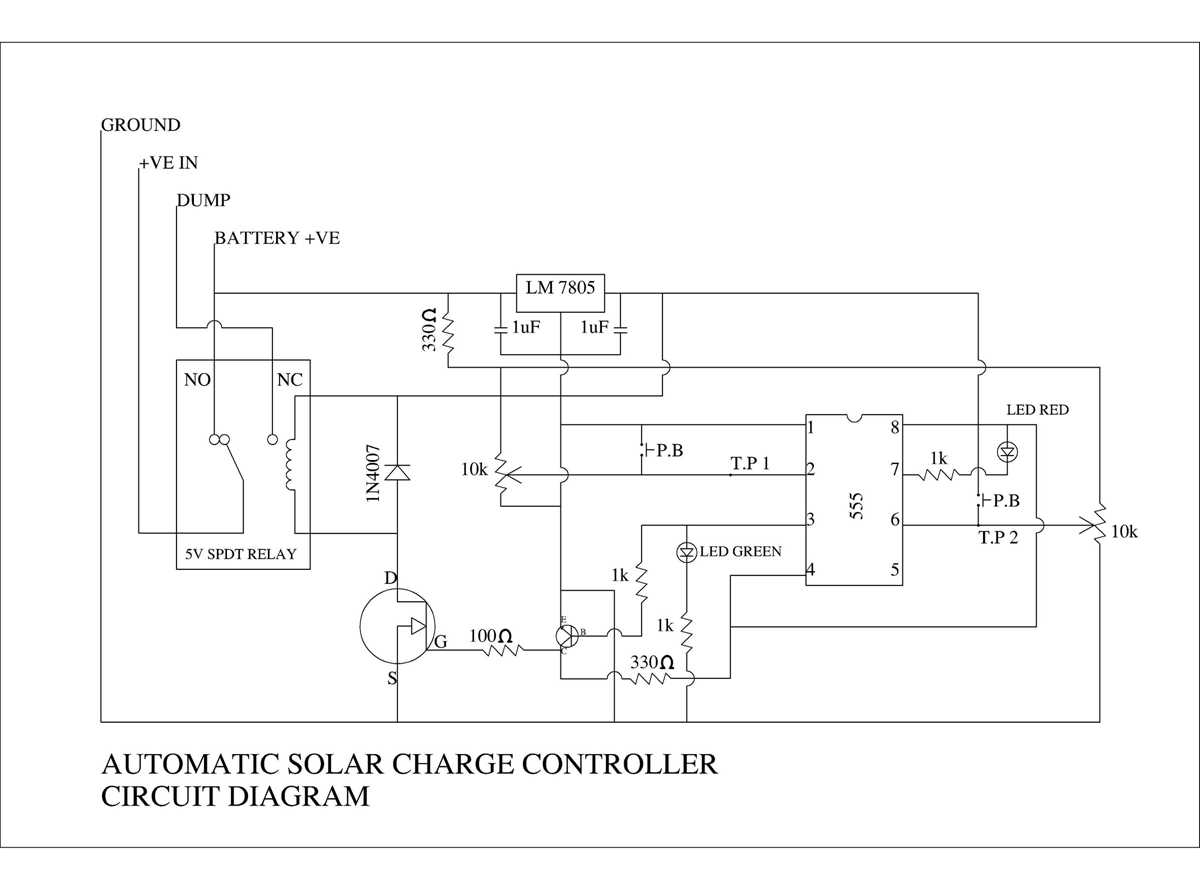

Step-by-Step Wiring Guide for PWM-Based Energy Regulators

Connect the battery terminals first–positive to the labeled “+” input and negative to the “-” input. Use 10 AWG copper wire for systems up to 30A to minimize voltage drop. Secure connections with crimp connectors and apply heat shrink tubing to prevent corrosion. Verify polarity before powering on; reversing connections can damage components permanently.

Key Components to Wire

• Photovoltaic Module: Link the output terminals directly to the regulator’s input clamps. For 12V setups, use MC4 connectors rated for 6mm² wire. Check the open-circuit voltage (Voc) matches the regulator’s max input; excess voltage will trigger protection shutdowns.
• Load Output: Attach DC appliances to the load terminals, ensuring the total wattage doesn’t exceed 80% of the regulator’s rated current. Add a 20A fuse between the regulator and load for systems above 10A.
• Grounding: Run a dedicated ground wire from the battery’s negative terminal to a copper rod driven 2.4m into moist soil. Avoid shared ground paths with other circuits to prevent noise interference.

Test the setup with a multimeter before full deployment. Measure the input voltage at the regulator’s terminals–fluctuations above 0.5V indicate loose connections or undersized wiring. For PWM units, observe the charging state: bulk (equal to battery voltage), absorption (constant voltage), and float (reduced voltage to prevent overcharging). Adjust the regulator’s dip switches if the battery type (e.g., LiFePO4, AGM) requires specific charging profiles.

1. Power down the system entirely before making adjustments.
2. Label all wires with their source and destination to simplify troubleshooting.
3. Use a torque screwdriver for terminal screws–typically 2.5Nm for 6mm² wires–to avoid overtightening.
4. For cold climates, increase wire gauge by 2 sizes to compensate for temperature-related resistance rise.

How to Select MOSFETs and Diodes for Overcurrent Protection

For low-voltage (R_DS(on) < 10mΩ and V_DS ≥ 1.5× maximum input voltage. Example: Infineon IPD060N03L (30V, 6mΩ) or Vishay SiR870DP (40V, 3.5mΩ). Prioritize devices with built-in ESD protection (≥2kV HBM) to reduce external component count. For high-voltage (≤100V) applications, choose HEXFETs like International Rectifier IRLB8748PbF (75V, 8mΩ) or STMicroelectronics STL325N4LF8 (80V, 4.5mΩ), ensuring V_GS(th) < 3V for reliable turn-on with microcontroller-driven gates.

Parameter	Low-Voltage (<48V)	High-Voltage (≤100V)
RDS(on)	<10mΩ	<20mΩ
VDS	≥1.5×Vin(max)	≥1.3×Vin(max)
Qg (typ)	<50nC	<100nC
Package	TO-220, DPAK	TO-247, DirectFET

Schottky diodes must handle I_F(AV) ≥ 1.2× max load current and V_RRM ≥ 1.1× max input voltage. For 12V systems, use ON Semiconductor MBR1045 (45V, 10A) or Vishay VS-10MQ060N (60V, 10A), both with V_F < 0.55V at 5A to minimize conduction losses. In high-power setups (>30A), parallel two 15A diodes with matched V_F or deploy a synchronous rectifier (e.g., TI LM5113 driver + dual MOSFETs) for efficiency gains up to 15%. Thermal calculations must assume T_j(max) = 125°C and θ_JA from datasheets; derate current by 20% for T_A > 50°C.
