Complete Guide to Solar Water Heater Wiring and Setup for Home Use

Build a closed-loop indirect configuration with copper coil exchangers rated for at least 80°C operating delta. Position the storage tank above the collector array to leverage thermosiphon flow, eliminating the need for circulation pumps in mild climates. For areas with frequent overcast conditions, integrate a 30-watt PV panel to sustain the pump during low-irradiance periods–ensuring a minimum 3.5 L/min flow rate to prevent stratification.

Use 15 mm insulated cross-linked polyethylene (PEX) piping for plumbing runs under 15 meters; switch to 22 mm copper for longer distances to reduce pressure losses to below 0.2 bar. The expansion vessel should accommodate 10% of the total glycol volume–typically 8 liters for a 200-liter tank with a 6 m² flat-plate collector. Install dual-magnesium anodes in the reservoir if hardness exceeds 150 mg/L CaCO₃, spaced at 12-month replacement intervals.

Mount differential temperature controllers with a 5–8°C activation threshold; pair them with snap-action bimetallic sensors for precise on/off cycling. For freezing-prone regions, deploy a premixed 50% propylene glycol solution with a -34°C pour point–avoid automotive antifreeze to prevent coil fouling. Include a failsafe 2 kW electric backup element wired to a manual bypass switch, consuming less than 2.5 kWh per daily heating cycle.

Arrange thermal collectors at a fixed 30–40° tilt angle relative to latitude; optimize azimuth within ±15° of true south for northern hemispheres. A single-glazed, low-iron tempered pane yields 0.75–0.82 optical efficiency; reinforce with an evacuated tube array if ambient temperatures drop below -10°C. Size the preheating reservoir to hold 1.5× daily demand–a 300-liter vessel suffices for a 4-person household with 50 L daily usage.

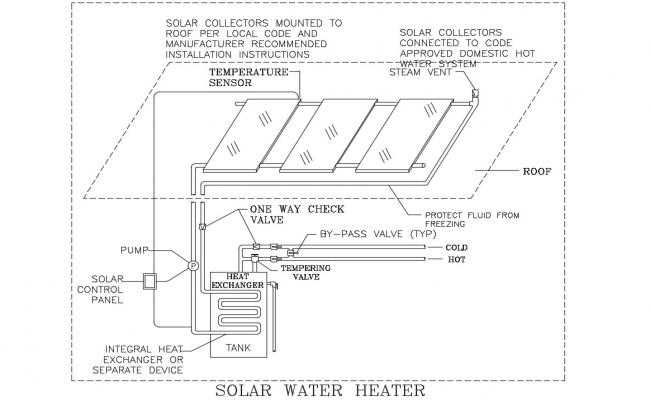

Key Components of a Thermosiphon Heat Exchange Blueprint

Install a flat-plate collector angled at 30–45° relative to the horizon, calculated based on your latitude. For northern latitudes above 40°, tilt toward 45°; for equatorial regions, 30° is optimal. Position the unit within 3 meters of the storage tank to minimize thermal losses in the circulation loop.

Use copper piping with a minimum diameter of 15 mm for the primary circuit. Insulate all exposed tubing with closed-cell foam at least 20 mm thick–preferably with a reflective aluminum outer layer to reduce infrared radiation losses by up to 30%. Avoid sharp bends; maintain a gentle gradient of 1° to facilitate natural convection.

The heat exchanger should have a surface area ratio of at least 0.8 m² per 100 liters of tank capacity. Choose a stainless-steel coil for corrosion resistance, especially in hard-water areas where scaling can reduce efficiency by 5-7% annually. Place the coil at the tank’s lower third to maximize stratification.

Integrate a differential temperature controller set to activate the backup element only when the collector outlet exceeds the tank bottom by 8–10°C. Wire the sensor leads with 1.5 mm² cross-section copper cable, positioned at mid-height on both components to avoid false triggers from localized cold spots.

Mount the expansion vessel at the highest point of the circuit, sized at 10% of total fluid volume. For a 200-liter setup, use a 2-liter vessel pre-charged to 1.5 bar, matching the static head. Include a pressure-relief valve rated 0.5 bar above the pre-charge to prevent cavitation during thermal expansion.

Deploy a twin-wall vented heat transfer fluid with a freezing point below –20°C if ambient temperatures drop below zero. Propylene glycol blends at 50% concentration offer adequate freeze protection while maintaining thermal conductivity within 5% of water. Replace the fluid every 3–5 years–viscosity rises with degradation, reducing flow rates by 12–15%.

Embed the storage reservoir within the building envelope to cut standby losses by 25%. Use a 316-grade stainless-steel tank with rigid foam insulation R-20 (50 mm) on all sides, including the top flange. Avoid polyurethane; over time it compresses, creating cold bridges. Include a magnesium anode rod if the tank lacks lining–replace annually in soft-water regions.

Route the cold inlet through a spiral diffuser at the tank’s base to preserve temperature layers. Connect the outlet at the top with a thermostatic mixer set to 60°C, preventing scalding while ensuring Legionella control. For off-grid setups, add a 24V DC circulation pump sized for 3 L/min flow, triggered when the upper sensor registers a 2°C drop below the collector outlet temperature.

Critical Parts and Their Functions in a Renewable Liquid Warming Setup

Select collectors with 95% copper tubing absorption efficiency for urban rooftops under 50° latitude–flat-plate variants outperform evacuated tubes in cloud-prone regions by 12% due to reduced vacuum degradation. Mount at 35-45° tilt facing equator with

Storage tank configurations demand

• Pressurized tanks (8+ bar rating) prevent scaling in hard-liquid areas but require sacrificial anodes replaced every 18 months
• Non-pressurized variants demand 3m headspace–install air vents at highest point to prevent vapor lock
• Stainless steel (AISI 316) resists corrosion 4x longer than carbon steel in coastal applications

Circulation pumps must handle 50-60°C glycol mixtures–centrifugal models with 0.5-1.2 m³/h flow rate achieve optimal heat transfer at 4-6m head. Avoid bronze impellers in chlorinated district supplies; cast iron lasts 7 years vs. 2 years for bronze.

Heat exchangers require 0.5mm reduces efficiency by 18%.

1. Temperature sensors: PT1000 RTDs (±0.1°C accuracy) outperform thermocouples in sub-zero conditions
2. Controller: PID algorithms reduce cycling by 40% vs. on/off relay logic
3. Expansion tanks: Calculate 1L per 100L circuit capacity–under-sizing risks burst pipes at 90°C

Backup elements (electric/gas) activate only below 45°C–hardwire to immersion thermostat with 5°C hysteresis to prevent short cycling. Gas boosters require

Arrange piping in reverse-return configuration to equalize flow resistance; use DN15 copper (15mm ID) for

Constructing a Flat-Plate Collector: Assembly Sequence in Visual Form

Begin with a copper or aluminum absorber plate no thinner than 0.5 mm to ensure optimal heat conduction. Cut the plate to dimensions matching the enclosure–typically 1.2 m × 2.4 m for residential units–leaving 2 cm excess on all sides for sealing. Apply a selective coating immediately after cutting to prevent oxidation; sputtered or electroplated black chromium or titanium nitride yield absorption rates above 95%. Align the plate inside the insulated housing, ensuring full contact with the substrate–fiberglass or mineral wool with R-value ≥ 3.5 is mandatory for thermal retention.

Attach riser tubes to the absorber plate using ultrasonic welding or high-temperature solder (Sn96.5Ag3.5) at 5 cm intervals. Copper tubing with 10 mm outer diameter minimizes pressure drop while allowing turbulent flow. Verify tube-to-plate bond integrity with a vacuum test at -80 kPa; leaks exceeding 1 cc/min require reapplication of solder. Secure tubes with aluminum brackets corrugated at 45° angles to accommodate thermal expansion without stress fractures.

Position tempered low-iron glass (4 mm thick) as the glazing layer, maintaining a 25 mm air gap between the absorber and cover. Use silicone seals with Shore A hardness ≥ 50 and UV stabilizers to prevent outgassing. The glass should overlap the housing by 10 mm to prevent capillary ingress; securing clamps must exert 15-20 N/cm² pressure evenly. Anti-reflective coatings on the glazing boost transmission efficiency by 4-6%–apply via dip-coating or vapor deposition.

Install a 0.7 mm galvanized steel backing plate painted with heat-resistant epoxy to deflect UV radiation below the absorber. Ensure the plate’s edges extend 5 mm beyond the housing to protect insulation from moisture. Ventilate the air gap through 3 mm breather holes drilled at opposing corners–cover with aluminum mesh (≤0.5 mm aperture) to exclude insects. Thermal sensors (type K thermocouples) embedded at inlet, outlet, and plate midpoints provide real-time performance data.

Connect inlet and outlet manifolds to the riser tubes using sweat fittings; use dielectric unions to prevent galvanic corrosion in mixed-metal setups. Manifolds should slope at 0.5° toward the outlet to facilitate vapor displacement. Insulate manifolds with closed-cell elastomeric foam (thermal conductivity ≤ 0.035 W/m·K, 19 mm thick) to prevent standby losses. Pressure-test the entire loop at 3 bar for 24 hours–drops exceeding 0.1 bar indicate flaws in fittings or tube bonds.

Mount the assembled collector at a 30-45° angle facing the equator, adjusting pitch based on local latitude (±10°). Use stainless steel mounting brackets spaced ≤ 60 cm apart; fasteners must withstand wind loads of 1.5 kN/m². Ground all conductive components via 6 AWG copper cable to a dedicated earth rod. Final functional checks include measuring stagnation temperature (target > 120°C) and fluid flow homogeneity (± 5% across all risers) before integration into the loop.

Integrating Thermal Probes and Actuated Gates into Circuit Layouts

Position PT100 sensors at the collector outlet and storage inlet–use shielded 2-wire cables with twisted pairs to minimize electromagnetic interference from pump motors. Terminate each probe with a 4-20 mA transmitter calibrated for –50 °C to 150 °C; grounding at a single point prevents loop currents.

Install NTC thermistors on recirculation loops where rapid response is critical: mount probes inside copper wells filled with thermal paste, securing with stainless steel clamps torqued to 0.5 Nm. Connect leads to a PLC analog input card configured for 0–10 VDC, applying a 1 kΩ pull-down resistor to eliminate floating readings.

Control Valve Wiring Sequences

• Select 24 VAC actuated ball valves with fail-safe spring return for safety isolation.
• Wire valve coils in parallel to a relay output module rated for 5 A inductive load; add flyback diodes across each coil to suppress voltage spikes.
• Use 1.5 mm² stranded copper wire for valve actuators, routing along EMT conduits to separate power from sensor signal paths.
• Configure PLC ladder logic with 0.5-second pulse widths to prevent coil overheating; stagger valve activation by 3 seconds to avoid inrush current surges.

For differential controllers, daisy-chain RS-485 Modbus sensors to a gateway converter–maintain 120 Ω termination resistors at both ends of the bus. Set baud rate to 19200 bps and parity to none; address conflict errors typically stem from duplicate slave IDs, verify with a protocol analyzer.

In frost-prone regions, deploy a separate PT1000 at the lowest panel point, wired to a dedicated PID controller with hysteresis set to ±1 °C. Trigger a 3-way diverter valve via a solid-state relay when temperatures drop below 4 °C, bypassing the primary loop until readings stabilize above 7 °C.

1. Label all sensor and valve cables with heat-shrink tubing markers showing loop designation (e.g., “C_OUT_1”, “ST_IN_2”).
2. Apply transparent silicone sealant to cable glands at junction boxes to prevent moisture ingress.
3. Test continuity with a 500 V megohmmeter; insulation resistance should exceed 500 MΩ.
4. Log voltage drops during pump startup–exceeding 2 V indicates undersized cable gauge.

Fault Detection Wiring

Interlock pressure switches (normally closed) in series with valve power circuits–set switches to trip at 60 psi, wiring a latching alarm to a supervisory panel. Program the PLC to enter safe mode if sensor readings deviate by ±10% from calibrated values, requiring manual reset.

Use din-rail mounted surge protectors rated for 10 kA across all 230 VAC inputs; install gas discharge tubes on signal lines with 90 V clamping voltage. Ground the chassis via a 6 mm² green/yellow conductor to a buried electrode at least 2.5 m deep, measured impedance must stay below 10 Ω.
