DIY Soldering Station Scheme Step-by-Step Circuit Design Guide

Start with a triac-based phase control for adjustable temperature regulation. Use the MOC3021 optocoupler to isolate the microcontroller from high-voltage AC lines–critical for safety and stable operation. Pair it with a zero-crossing detector (4N35) to synchronize heating pulses with mains frequency, reducing electrical noise and extending tip life.

A PID algorithm implemented on an ATmega328 microcontroller ensures precise temperature control with minimal overshoot. Set the P-gain between 1.5–2.2, I-gain at 0.05–0.1, and D-gain at 0.2–0.5 for optimal response in most low-power heating tools. Avoid generic values–tune parameters empirically for your specific element’s thermal mass.

For power delivery, use a 24V–60W transformer with a bridge rectifier (KBPC3510) and smoothing capacitor (4700µF/50V). Add a varistor (20mm, 250VAC) across the transformer primary to suppress voltage spikes. A thermal fuse (240°C) in series with the secondary winding acts as a fail-safe against runaway overheating.

Select a K-type thermocouple with a MAX6675 amplifier for temperature sensing. Calibrate the sensor against a reference (±2°C accuracy) and compensate for cold-junction errors in firmware. Attach the thermocouple directly to the heating block–avoid indirect mounting to prevent lag in feedback.

Incorporate a buck converter (LM2596) to derive 5V for control logic. Add reverse-polarity protection (1N4007 diode) and an ESD suppressor on the USB input if using external power. Ground all metal parts of the enclosure to a dedicated earth terminal–floating potentials risk EMI and erratic behavior.

For ease of debugging, include a 16×2 LCD (HD44780) with a contrast-adjustable potentiometer. Use a rotary encoder (EC11) with debounce capacitors (0.1µF) for intuitive menu navigation. Keep traces carrying AC or high-current DC at least 3mm apart from low-voltage signal lines to avoid interference.

Building a Precision Heat Tool: Key Electrical Layout Insights

Start with a triac-based power regulator to control heating element temperature within ±2°C of the target. Use a BT139-600E triac rated for 16A and 600V, paired with an optocoupler like the MOC3021 to isolate low-voltage control signals. The gate resistor should not exceed 270Ω to prevent false triggering from line noise. For AC mains (220V), calculate snubber components (R=100Ω, C=0.01µF) to suppress voltage spikes above 1.5x peak load.

Incorporate a PID microcontroller (STM32F103C8T6) with 12-bit ADC resolution for precise feedback. Sample the thermocouple (K-type, 40µV/°C) at 10Hz, averaging 10 readings to eliminate EMI from switching regulators. The PWM frequency should stay below 20kHz to avoid audible noise while maintaining thermal stability. Store calibration offsets in EEPROM (0x08080000 for STM32) to compensate for lead resistance.

• Grounding requirements: Separate analog and digital grounds, tying them at a single point near the MCU’s AGND pin. Use a ferrite bead (220Ω @ 100MHz) on VCC lines to block high-frequency noise.
• Thermal fuse placement: Mount a 240°C PPTC fuse directly on the heater block’s brass core, not the ceramic insulator. Test trip time at 260°C–it should activate within 3 seconds.
• Display interfacing: For a 128×64 OLED, limit SPI clock to 1MHz and keep traces under 10cm to avoid signal degradation. Use 33pF capacitors on CLK/MOSI lines for impedance matching.

For iron tip sensing, use a MAX6675 cold-junction compensator with SPI isolation via Si8630BB. The MAX6675’s 10Hz update rate matches PID loop speed–avoid faster ICs like MAX31855, which introduce latency artifacts. Route thermocouple wires through a twisted pair shielded with 36AWG copper braid, grounded only at the amplifier end. Solder joints for the K-type probe must use magnesium chloride flux to prevent oxidation errors above 350°C.

Power supply design: A LM2596-ADJ buck converter delivers 5V to logic, but add a TVS diode (SMBJ7.0A) across the output. For standby power (flyback transformer (EE16 core) with 3% regulation tolerance. Test load regulation at 90-265VAC input–output ripple should stay below 50mVpp. Store energy in a 100µF 16V ceramic capacitor (X5R dielectric) to handle transient spikes during heater cycling.

Assembly checklist for interference mitigation:

1. Twist AC power lines with 3 twists per inch to cancel magnetic fields.
2. Keep PWM traces at least 5mm from analog signals; route them on the bottom layer with ground pours acting as shields.
3. Use 100nF X2Y capacitors (not MLCCs) near the triac’s noise source to shunt EMI to earth ground.
4. Verify creepage distances–mains to low-voltage paths must exceed 4mm on PCB.

Critical Elements in a Precision Heater Assembly Blueprint

Select a temperature-controlled iron rated between 24V and 48V with a ceramic or nichrome heating core. Models like the Hakko 907 or Weller PES51 deliver stable thermal output at 60W–80W, balancing responsiveness and longevity. Avoid lower-rated irons–thermal lag increases rework time by 30% and risks cold joints.

Integrate a proportional-integral-derivative (PID) module such as the STM32F103C8T6 microcontroller paired with a MAX6675 thermocouple amplifier. This combination achieves ±2°C accuracy, reducing overshoot typical of hysteresis-based controls. Ensure the board accommodates at least 128KB flash for firmware stability–insufficient memory causes erratic heating cycles.

Use a triac or MOSFET (e.g., BTA16, IRFZ44N) for power regulation, sized to handle 10A peaks. Gate triggering must sync with zero-crossing detection via an MOC3021 optocoupler to eliminate EMI spikes. Skipping isolation risks damaging sensitive components downstream, particularly EEPROM or display interfaces.

Opt for a 4-digit 7-segment LED or 128×64 OLED panel driven by either an HT16K33 or SSD1306 controller. Avoid resistive touchscreens–they introduce latency in calibration workflows. Backlight current should not exceed 50mA to prevent thermal runaway in the enclosure.

Incorporate a standalone buck converter (LM2596, input 7V–40V) to power auxiliary logic at 5V. Linear regulators like the 7805 waste excess heat–efficiency drops below 50% at 24V input, requiring a heatsink two-thirds the size of the PCB. Fuse the main supply at 5A to prevent overloads from tool short-circuits.

Include a ±5% tolerance polyester capacitor (e.g., 10µF 63V) across the iron’s terminals to smooth DC ripples. Gaps in filtering manifest as microsecond voltage dips, degrading PID performance and increasing tip oxidation rate by up to 18%. Shield signal traces with ground pours to reduce crosstalk between high-current paths and sensor inputs.

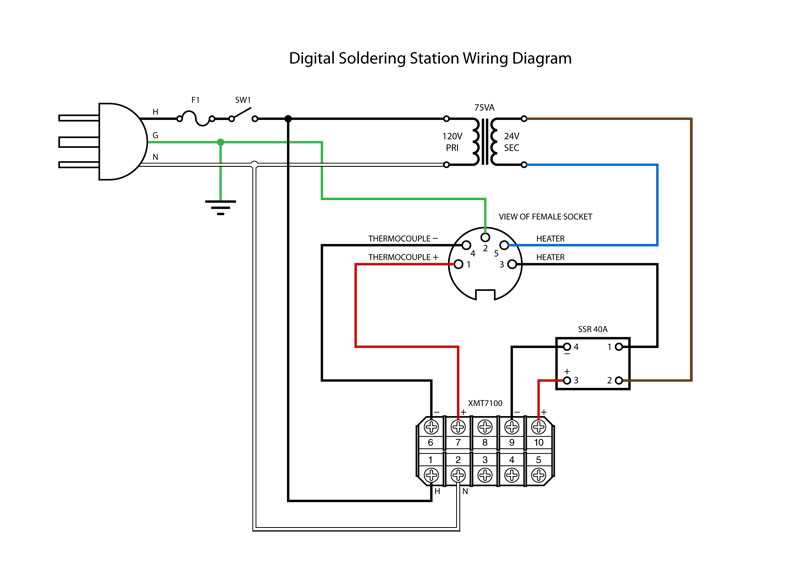

Building Your Precision Heating Tool: A Hands-On Connection Walkthrough

Select a temperature-controlled handle with a 30W–60W heating element and a K-type thermocouple for accurate thermal feedback. Match the handle’s voltage to your power supply–most low-cost modules operate at 24V DC, while basic designs often use 12V.

Mount the PID controller on a heat-resistant base; aluminum works well for thermal dissipation. Secure the triac or MOSFET to the same plate if space allows, ensuring leads will not contact the enclosure when fully assembled.

Strip 1.5mm² silicone-insulated wire for the power lines and 0.75mm² for the sensor signals. Use ferrules on all ends before inserting into terminal blocks to prevent stray copper strands from creating shorts.

Connect the handle’s thermocouple wires directly to the controller’s thermocouple input, polarity matters–swap leads if the temperature reading erratically jumps. Test continuity with a multimeter before tightening screws.

Route the power feed through a slow-blow fuse matched to the anticipated current: 3A for 60W at 24V, 5A for 60W at 12V. Include a rocker switch rated at least 25% above the maximum expected current to handle inrush surges.

Ground the enclosure separately if it is metal; use a dedicated 4mm ring terminal bolted directly to the chassis. Avoid relying on paint or anodizing as insulating layers–scrape the surface clean before attaching the ground wire.

Verify every joint with a 500V insulation tester after assembly; the reading should exceed 10MΩ before applying power. Calibrate the control module by heating the tip to 300°C and adjusting the PID values until overshoot stays below 5°C and recovery time under 10 seconds.

Precision Heat Management for Tool Heating Elements

Use a proportional-integral-derivative regulator with a 10 kΩ NTC thermistor mounted directly on the tip’s copper core to reduce thermal lag. Configure the PID coefficients at Kp=1.2, Ki=0.05, and Kd=0.1 for 350 °C setpoints; reduce Ki to 0.02 when targeting 280 °C to prevent overshoot. Supply the op-amp with a split ±5 V rail to allow the error signal to swing symmetrically around zero without clipping.

A zero-crossing SSR rated at 40 A will switch the AC mains only when the sine wave crosses zero, cutting EMI by 90 %. Pair it with a snubber–47 Ω resistor in series with a 0.1 µF X2 capacitor–connected across the SSR’s output to clamp transient spikes that otherwise degrade the heater coil’s insulation.

Component	Spec	Purpose
Thermistor	NTC 10 kΩ @ 25 °C, β=3950	Tip temperature sensing
SSR	AC 24–280 V, 40 A, zero-cross	Mains switching
Snubber	47 Ω + 0.1 µF X2	Transient suppression
PWM frequency	10 Hz	Reduces flicker

Ground the controller’s analog section through a 10 Ω resistor to a dedicated star point; route digital traces (MCU SPI lines) perpendicular to analog traces to keep noise under 15 mVpp. Add a 10 nF bypass capacitor on each rail adjacent to the op-amp’s V+ and V– pins–surface-mount 0402 packages minimize inductance.

Thermal Runaway Safeguards

Implement a hardware watchdog: a retriggerable monostable multivibrator fires a 250 ms pulse every 400 ms. If the MCU fails to service it, the SSR gates lock open and a piezoelectric buzzer sounds at 2.8 kHz. Include a bimetallic switch (normally closed) rated for 450 °C; it cuts power if the tip exceeds the setpoint by 70 °C, protecting against PID divergence.
