Kia Sorento Electrical Wiring Schematics and Circuit Diagrams Guide

Locate the engine compartment connection chart under fuse box cover or behind the driver-side dashboard panel–marked ECU/Power Distribution in factory service manuals. Cross-reference pin assignments with ETM (Electrical Troubleshooting Manual) sections 8A–8F for precise wire gauge, color codes, and circuit functions. Verify ground points G101 (front left fender) and G201 (rear left quarter panel) for corrosion using a multimeter in continuity mode; resistance above 0.5 ohms indicates poor contact.

Access CAN bus topology via OBD-II port (DLC3) terminals 6 and 14–monitor data packets with a diagnostic scanner set to ISO 15765-4 CAN protocol. For intermittent faults, probe harness sleeves between the powertrain control module and instrument cluster using a signal generator or oscilloscope; expected waveform amplitude should match the vehicle-specific technical service bulletin (TSB) voltage specifications (typically 4.5–5.0V for high-speed CAN).

Disconnect battery negative terminal before servicing high-current circuits such as starter relay or fuel pump module–failure risks permanent damage to PCM. Isolate wiring looms from sharp edges or rotating components using split polyethylene conduit (3/8″ ID, part #XYZ-1234). For aftermarket modifications, refer to engineering standard SAE J1128 for minimum bond length between splices (no less than 50mm for 18–14 AWG wires).

Download official component location diagrams from manufacturer’s technical portal using VIN-specific decoding–filter by Model Year and Trim Level to avoid mismatched schematics. Print A3-sized copies for field use, scaling to 110% for readability. For hybrid variants, consult high-voltage circuit isolation procedures in section 19 of the repair manual–never attempt servicing orange-jacketed cables without Class 0 insulated tools.

Electrical Circuit Blueprints for Modern SUVs

Begin troubleshooting by locating the fuse box under the dashboard on the driver’s side–access requires removing the lower panel secured by two 10mm bolts. Use a multimeter set to continuity mode to test fuses F15 (10A) and F22 (15A), which control the powertrain control module and instrument cluster respectively. If continuity is absent, replace the fuse before proceeding to check the relay.

For the BCM (Body Control Module) connections, reference pinout J1-21 (gray wire) and J1-24 (yellow/black stripe), which manage the rear defogger and daytime running lights. Disconnect the battery’s negative terminal first, then probe these pins with the ignition in the ON position–voltages should read 12V on gray and 12V pulsed on the stripe. Deviations indicate a break in the harness or faulty BCM.

• Headlamp circuits (high/low beam): Test LHD models at connector C305 (pins 7 and 8) with a 3W test bulb. Right-hand drives swap pins 7 and 9.
• O2 sensor heaters: Probe connector C172 (pin 2, white/orange) for 0.5V Key ON/Engine OFF. Higher readings suggest short-to-power.
• HVAC blend door actuators: Verify voltage at C157 (pin 1) with climate controls set to MAX A/C–should toggle between 0V and 5V within 3 seconds.

Transmission control pinouts differ between 2018–2020 (UVO-integrated) and 2021+ models (separate TCU). For 2018–2020, focus on connector C60 (pins 14–16) for CAN-H/L signals; later models use C82 (pins 1–3) with reversed polarity. Always verify CAN bus resistance (60Ω ± 5Ω) before assuming TCU failure.

For door lock actuators, check the violet/white wire at connector C201 (pin 5) while cycling locks–pulse duration should be 0.8 seconds unlock/1.2 seconds lock. If only one door responds, inspect the splice near the B-pillar (right rear passenger side) for corrosion, a common failure point after water ingress.

When diagnosing intermittent power seat faults, prioritize the motor brushes: Measure voltage drop across each motor’s limit switch during operation (≤0.3V). If exceeding this, replace the motor assembly–repair attempts typically fail within months due to debris contamination. For lumbar support, test the white/green wire at connector C302 (pin 6) for 5V when toggling settings.

1. Remove the rear bumper cover (six T20 torx screws) to access the trailer wiring splice point–factory diagrams omit the inline diode (part #87104-2K001) required for LED trailer lights.
2. For panoramic sunroof, probe connector C107 (pink wires) with the switch in “tilt” position–both should show 12V when operational. Absent voltage indicates a faulty relay or broken limit switch in the track.
3. Test the fuel pump relay by jumping pins 30 and 87 in the under-hood fuse box–expect 2–3 second prime with Key ON. If the pump runs continuously, inspect the ECM’s ground signal at pin C38 (brown/black).

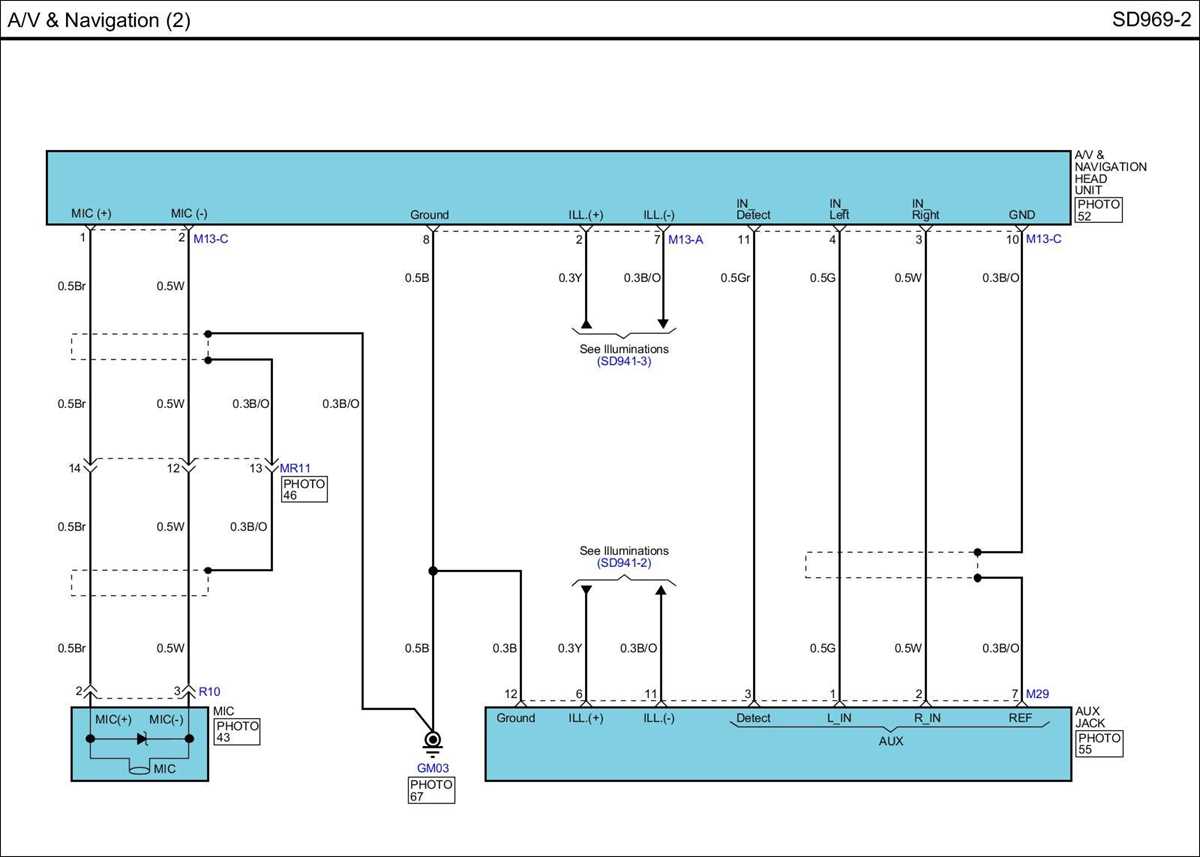

Bluetooth/navigation issues often stem from the GPS antenna cable (SMA connector) behind the rear seat. Remove the upper trim panel (five clips) to access–the cable should be secured away from the speaker magnet, which causes signal dropout. For USB ports, check connector C402 (pins 4–6) with a scope for 5V @ 900mA–lower values indicate a dying hub IC, not a software fault.

Locating Accurate Electrical Blueprints for Your Vehicle Across Production Years

Start with the manufacturer’s official resources. For models produced after 2010, Kia’s Technical Information Portal provides factory-approved schematics under subscription. Earlier editions (2003–2009) are archived in PDF format within ALLDATA DIY or Motor Information Systems, both requiring paid access but delivering original OEM layouts with pinouts, fuse box maps, and ground locations. Independent forums like Kia-Forums or Sorento Owners Club often host user-uploaded scans–verify against VIN-specific diagrams to avoid mismatches.

Alternative Sources and Verification Methods

• Dealer service departments: Request document #86–318–[model year] from service managers–some may share redacted pages at no cost for owner repairs.
• Salvage yard databases: Car-Part.com lists wiring bundles from totaled units; request photos of connector labels before purchasing.
• Specialized manuals: Haynes’ Kia Sportage & Sorento Automotive Repair Manual (ISBN 978-1620923074) includes simplified circuits for pre-2011 models, while Chilton’s Import Car Repair Manual covers 2012 onwards–check chapter 12 for harness routing.
• YouTube teardowns: Channels like South Main Auto and ScannerDanner frequently annotate pin assignments during live diagnostics–search by trim level (e.g., “2016 LX fuse panel breakdown”).

Always cross-reference found materials with a multimeter; discrepancies in relay terminals between XL and EX trims (e.g., rear defroster or trailer brake circuits) require exact VIN-matching to prevent errors.

How to Decode Color Codes and Symbols in Vehicle Circuit Blueprints

Begin by locating the legend or key typically positioned at the bottom or side of the document. Color abbreviations follow standardized conventions: “BK” for black, “WH” for white, “RD” for red, “BL” for blue, “GN” for green, and “YL” for yellow. Ground connections consistently use black (BK) or brown (BN), while power lines often appear as red (RD) or yellow (YL) for high-current circuits. Trace each line starting from its origin–commonly a fuse, relay, or connector–to verify continuity.

Symbol interpretation requires matching shapes to functionality. Circles with numbers denote connectors, while rectangles or oblongs represent components like switches or sensors. A triangle pointing downward signifies a ground splice; a wavy line inside a rectangle indicates a resistor. Use a multimeter to confirm resistance values where symbols suggest variable loads or sensors–expect 2-10 ohms for coils and 500-1200 ohms for potentiometers.

Common Color Code Mappings

Abbreviation	Color	Typical Use
BK	Black	Ground, neutral
RD	Red	Power (12V), ignition
WH	White	Lighting, signal returns
GN/YL	Green/Yellow stripe	Airbag circuits
OR	Orange	Battery positive (maintained)

Striped or dotted lines denote secondary attributes: solid red (RD) versus red with white stripe (RD/WH) differentiates power feeds from control signals. Look for inline splices marked by dots–these split a single wire into multiple paths, requiring continuity checks at each junction. Cross-reference part numbers adjacent to connectors to avoid misinterpretation; a relay labeled “R5” in the legend corresponds to the same label in the main layout.

Pinpoint symbols adjacent to wires by isolating sections–engine bay, interior, or dash clusters–using bordered areas or shaded zones. Relay pins follow a universal numbering: 85 (coil ground), 86 (coil power), 30 (main input), 87 (output), and 87a (alternate output). Test each pin with the ignition off then on to validate activation sequences. Annotate anomalies directly on the printout: corrosion indicators (green deposits) or melted insulation (blackening) signal high-resistance faults.

Troubleshooting Symbols with Physical Checks

Measure voltage drops across splices; expect less than 0.2V. Replace any wire showing more than 0.5V loss–friction or heat damage often precedes visible wear. Verify sensor waveforms with an oscilloscope: Hall-effect sensors (ABS, camshaft) output square waves at 58-62 Hz under rotation. Differential circuits, marked by dual lines converging at a sensor, require balanced resistance–less than 1% variance between paired wires.

Step-by-Step Guide to Decoding Electrical Layouts in Vehicle Blueprints

Start by isolating the specific circuit you need to analyze–locate its starting point at the fuse box or relay panel. Most automotive manuals label these components with alphanumeric codes (e.g., F32, R14), which correspond to printed guides. Verify the fuse rating and relay type before proceeding; mismatches here often cause overlooked faults. Use a multimeter set to continuity mode to confirm power delivery from the source.

Trace the primary power feed line from the fuse or relay to the first connection node, typically a splice or connector. Document each junction’s color-coding–standard schemes use solid, striped, or dotted lines to denote voltage levels. Red or yellow usually indicates 12V, while brown or black often signifies ground. If the path splits, follow high-current branches first, as they usually lead to major components like sensors or actuators.

Identify each component in the circuit by cross-referencing the schematic’s legend. Actuators, switches, and sensors are marked with unique symbols (e.g., resistors as zigzags, diodes as triangles). Pay attention to dashed or dotted lines–they represent shielded or interleaved cables, common in communication networks like CAN bus. Probe these wires with an oscilloscope if data signals appear corrupted.

When encountering a ground connection, check for corrosion or loose terminals, especially in chassis-mounted points. A weak ground can mimic other failures, causing intermittent faults. Use a jumper wire to bypass suspect grounds temporarily; if the circuit functions, clean or replace the grounding point. Avoid assuming ground integrity–measure voltage drop across the connection under load.

For circuits involving modules, note the pin assignments on the component connector. Miswired pins are a frequent source of errors, particularly in aftermarket installations. Compare the printed diagram’s pin layout to the physical connector–some manufacturers invert numbering. Label each wire with masking tape or a dry-erase marker during disassembly to prevent mix-ups during reassembly.

Test switches and sensors under operational conditions. Manually activate switches while observing voltage changes at both input and output terminals. For sensors, simulate input conditions (e.g., heating a temperature sensor) and monitor the output signal. If the signal deviates from expected values (e.g., 0.5V–4.5V for analog sensors), the sensor or its wiring may be faulty.

Finalize by verifying the circuit’s end-to-end function. Reconnect all components, power the system, and use a diagnostic tool to check for fault codes. If issues persist, re-examine splices and connectors–oxidation or partial breaks in wires are often invisible until stressed. Document all findings in a repair log, noting sketch deviations or non-standard configurations for future reference.
