Complete Guide to Designing a High-Quality Sound System Circuit Layout

Begin by selecting components that match impedance requirements–speakers rated at 4 to 8 ohms work best with amplifiers outputting 60 to 150 watts per channel. For stability, use thick-gauge copper wire (12-16 AWG) to minimize signal loss over distances exceeding 3 meters. Add a preamplifier stage with low-noise operational amplifiers like the NE5532 to maintain clarity at high volumes.

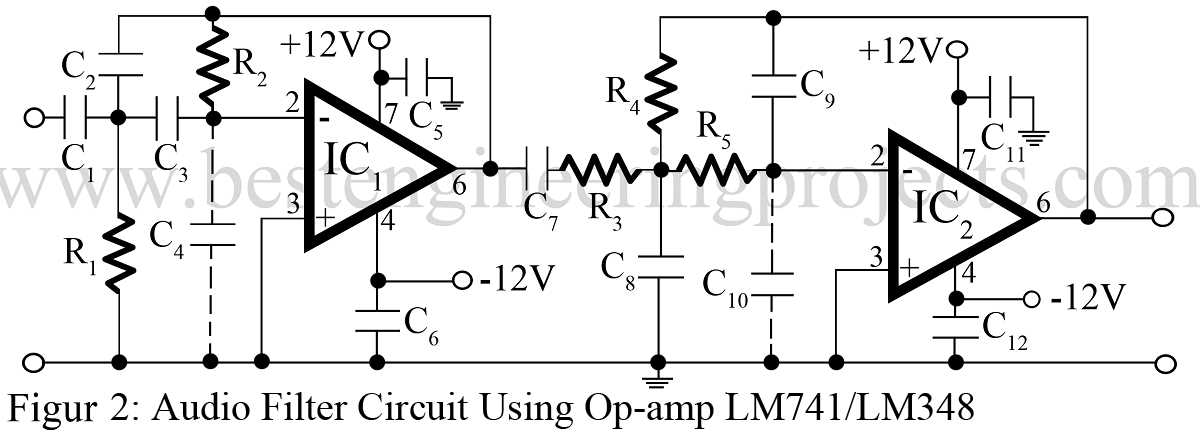

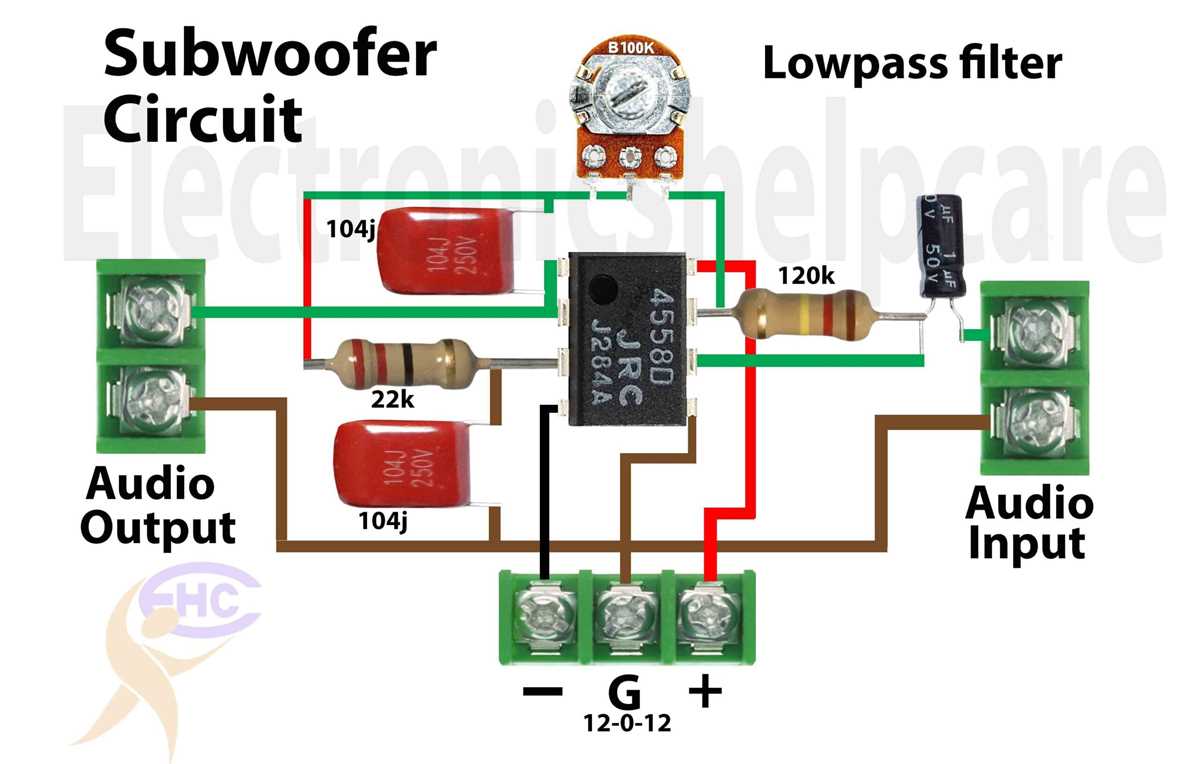

Grounding is critical–connect all chassis grounds to a single star point to prevent hum. Use polyester or polypropylene capacitors in crossover networks to preserve tonal accuracy. For subwoofer integration, incorporate a low-pass filter with a cutoff frequency of 80-120 Hz to avoid muddiness. Heat dissipation matters; mount power transistors on aluminum heatsinks with thermal paste for prolonged operation.

Test waveforms with an oscilloscope before final assembly. A sine wave at 1 kHz should appear undistorted at 90% of the amplifier’s rated power. If clipping occurs, reduce gain or upgrade the power supply. For digital-to-analog conversion, opt for 24-bit/96 kHz DACs like the PCM5102A to retain dynamic range. Avoid breadboarding high-current sections–use a PCB with wide traces (2-3 mm) for better conductivity.

Voltage regulators like the LM317 ensure consistent power delivery. Shield interconnect cables to block interference from nearby power lines. For vintage setups, replace carbon resistors with metal film types to prevent drift. Finally, bench-test each stage separately to isolate issues before full integration.

Building a High-Fidelity Audio Setup: Schematic Essentials

Start with a preamplifier stage using a low-noise operational amplifier like the NE5532. Configure it in a non-inverting setup with a gain of 2–5 to avoid signal distortion. Place a 100nF decoupling capacitor as close as possible to the op-amp’s power pins to suppress high-frequency interference. Use shielded twisted-pair cables for input connections to minimize electromagnetic pickup from nearby power lines or wireless devices.

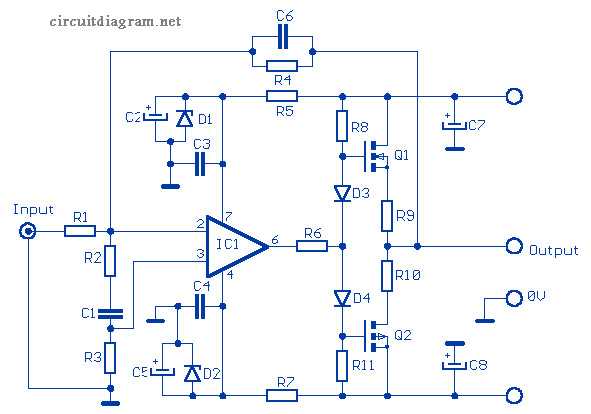

For the power amplifier section, select a complementary symmetry design with a TDA7294 or LM3886 IC. These chips handle up to 100W into 8Ω with built-in thermal and short-circuit protection. Ensure the heatsink is at least 50°C/W and mounted with thermal compound. Include a Zobel network (10Ω resistor in series with 100nF capacitor) across the output terminals to prevent high-frequency oscillations that can damage speakers.

Electrolytic capacitors in the power supply must match the amplifier’s current demands. For a 50W setup, use 4700µF at 50V per rail, with a 10Ω resistor in series to limit inrush current during power-up. Fuse the primary AC input at 1.5x the expected current (e.g., 2A for 100W at 230V). Avoid placing switching power supplies within 20cm of signal paths to prevent noise coupling.

Grounding follows a star topology–centralize the ground reference at the power supply’s negative terminal. Separate analog grounds (preamp, tone controls) from digital grounds (microcontrollers, LED indicators) and connect them only at one point. This prevents ground loops, which manifest as a 50/60Hz hum. For volume potentiometers, use log-taper models (e.g., Alps RK27) to ensure consistent perceived loudness across the range.

• Input impedance: Keep above 20kΩ to avoid loading effects on sources like vinyl turntables or condenser microphones.
• Output impedance: Target below 0.1Ω to maintain damping factor for accurate speaker control.
• Frequency response: Test with a sweep generator; roll-off should stay within ±0.5dB from 20Hz to 20kHz.
• Protection: Add a relay to disconnect speakers during power-on/off transients–use a delayed trigger (e.g., 1-second RC network).

Layout components on a single-sided PCB with wide traces for high-current paths (minimum 2.5mm width for 5A). Place input stages far from transformers and place vias under ICs to reduce parasitic inductance. If using a toroidal transformer, orient its coil perpendicular to the PCB ground plane to minimize magnetic coupling. Test each stage with a dummy load (8Ω resistor) before connecting drivers–oscilloscope should show clean, symmetrical waveforms at full power.

Essential Parts for Crafting a Simple Audio Booster

Begin with an operational amplifier (op-amp) like the LM386; its low power draw and built-in gain (20x in default mode, adjustable to 200x with pin modifications) make it ideal for battery-powered setups. Pair it with a 10µF coupling capacitor at both input and output to block DC while allowing AC signals–values between 4.7µF and 47µF work for most small-speaker applications. For power, a 9V battery suffices, but add a 1000µF electrolytic capacitor in parallel to the supply rails to filter voltage spikes and prevent distortion from sudden current demands. Keep trace lengths under 2cm between the op-amp and passive components to minimize noise pickup, especially in high-impedance areas.

Select a potentiometer (10kΩ linear taper) for volume control, wired as a voltage divider before the amplifier input–this preserves signal integrity compared to post-amplification adjustment. For stability, solder a 0.1µF ceramic capacitor directly across the op-amp’s power pins, as close as possible to the IC body. If using a single-ended supply, bias the non-inverting input at half the supply voltage with a voltage divider (two 10kΩ resistors), then couple the input through another 10µF capacitor to avoid upsetting the bias. Test with a 1kHz sine wave at 100mV RMS; total harmonic distortion should stay below 0.5% at 1W output into an 8Ω load.

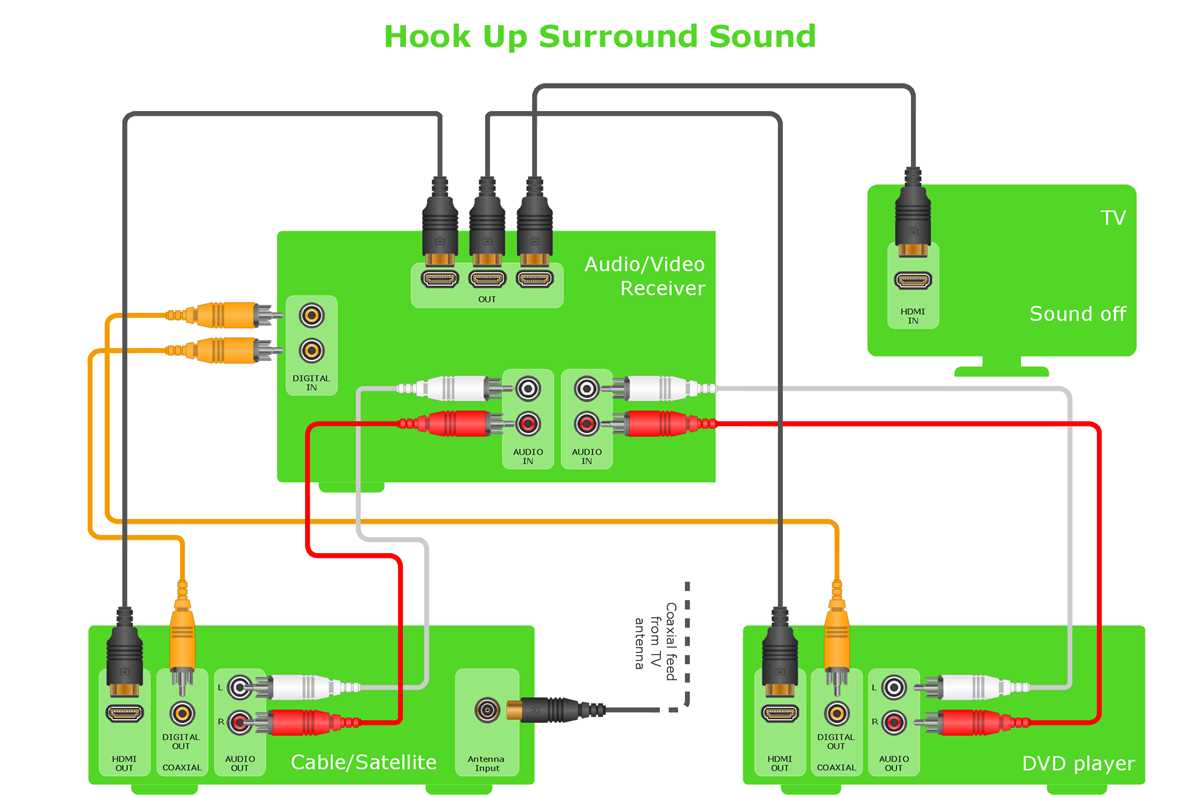

Step-by-Step Wiring Guide for a 2.1 Channel Setup

Begin by matching the amplifier’s output terminals to the correct speakers. Identify the left, right, and subwoofer outputs–most modern amps label them clearly. Use oxygen-free copper cables (16-14 AWG) for satellite units and thicker (12-10 AWG) for the low-frequency driver to handle higher current without signal loss. Ensure polarities align: positive (+) to positive, negative (-) to negative. Reverse connections on even one component will cancel frequencies and degrade clarity.

Terminal Connections and Signal Flow

Connect the amplifier’s front left/right channels to the corresponding satellite units first. Route the RCA subwoofer line from the amp’s dedicated output to the low-frequency driver’s input, using shielded coaxial cable to block interference. If the bass module lacks an internal crossover, install an inline 80-120Hz low-pass filter between the amp and driver. Secure connections with gold-plated spade or banana plugs; bare wire contact causes oxidation and resistance buildup over time.

Test each channel individually before finalizing. Play a 1kHz sine tone through the satellites and a 50Hz pulse through the subwoofer, adjusting amplifier gain so the output sits at 75-80dB SPL at 1 meter. Use a multimeter to verify voltage consistency across terminals–fluctuations indicate loose wiring or faulty components. Ground the amplifier chassis to the same earth point as the source device to eliminate hum loops, especially in setups with separate power supplies.

Finish by dressing cables away from power cords and transformers. Use nylon braided sleeves on longer runs to prevent interference from fluorescent lights or Wi-Fi routers. Label each cable at both ends with heat-shrink tubing for future troubleshooting. Store spare fuses (3-5A for satellites, 10-15A for subs) and a soldering iron near the setup–correcting a single broken joint restores performance faster than replacing entire sections.

Common Mistakes to Avoid When Connecting Audio Inputs and Outputs

Mismatching impedance between sources and amplifiers causes signal degradation. A preamp’s 50kΩ output connected to a power amplifier with 600Ω input impedance will reduce high-frequency response by up to 20%. Check specifications before wiring–use adapters or impedance-matching transformers if necessary.

Incorrect Cable Shielding Practices

Twisting signal wires with power lines induces hum. Separate balanced XLR or TRS cables from unbalanced RCA by at least 10cm. If unavoidable, cross cables at 90° angles. Ensure shields connect to ground only at one end–preferably the source–to prevent ground loops.

• Never daisy-chain shields across multiple devices.
• Avoid using shielded cables as current-carrying conductors.
• Test continuity with a multimeter–breaks in shielding compromise noise rejection.

Phantom power applied to non-P48-compatible microphones destroys their circuits within seconds. Verify device compatibility before engaging 48V on mixing consoles or audio interfaces. For passive ribbon mics, phantom power is fatal–confirm settings on all channels before powering.

Ignoring Polarity and Phase Alignment

Reversing polarity in stereo setups cancels midrange frequencies, reducing perceived volume by 6-10dB. Use phase-check tools or invert polarity on one speaker to test. For multi-way crossovers, ensure tweeters and woofers operate in-phase; delay adjustments may be required if drivers are physically offset.

1. Label cables (+/-) during installation.
2. Measure phase response with a sine wave generator and oscilloscope.
3. For subwoofers, align acoustic centers to within 30cm for coherent bass.

Overloading inputs with line-level signals distorts preamps. Consumer-level devices (e.g., phones, laptops) output -10dBV, while pro gear expects +4dBu. Attenuate signals with inline pads or resistors (10kΩ for line-level, 1kΩ for instruments) to prevent clipping. Test input sensitivity with a signal generator before full deployment.

Improper grounding creates buzzing or interference. Avoid connecting grounds through multiple paths–use star grounding with a single central point. For vehicles, isolate chassis ground from audio ground using optocouplers or ground-loop isolators. Test resistance between grounds (should be
