How to Wire a Two Way Switch Staircase Circuit Step by Step Guide

Use two SPDT switches (single pole, double throw) positioned at opposite ends of the area–ground floor and upper floor, long hallway, or split-level room. Power enters the first unit at the common terminal, then splits to the traveler wires (two distinct conductors, typically red and black for clarity). The second unit mirrors this layout, connecting its common terminal to the lighting fixture. Verify wire gauge: 14 AWG for 15-amp circuits, 12 AWG for 20-amp systems.

Critical connections: Secure all screws firmly–loose strands risk arcing. Label each traveler pair to prevent cross-wiring; reversed polarity will fail silently. Test continuity with a multimeter before restoring power: both units should toggle the light independently. For metal junction boxes, ground each switch to the box’s grounding screw using a pigtail; plastic boxes require ground wires bonded directly to the switches.

For three-level configurations, add an intermediate unit between the existing ones. Wire this as a pass-through: travelers from the first switch feed into matching terminals on the middle device, then continue to the final switch. Avoid daisy-chaining feed power–each segment should receive direct power from the source to prevent voltage drop over distance.

Safety override: Install arc-fault circuit interrupters (AFCI) for overhead lighting runs. Code mandates AFCI protection for branch circuits feeding luminaires in habitable spaces. Retrofit older panels by replacing the circuit breaker with a dual-function (AFCI/GFCI) model if space permits.

Energy savings tip: Replace incandescent bulbs with LED equivalents rated for enclosed fixtures if using downward-facing luminaires. LEDs in open-air fixtures may require derated drivers; check manufacturer specs for thermal limitations. Calculate wattage draw: 9W LEDs at 120V draw 0.075A, well below the 20A circuit limit, but ensure total load including other devices stays under 80% of breaker capacity.

Dual-Control Light Installation Guide

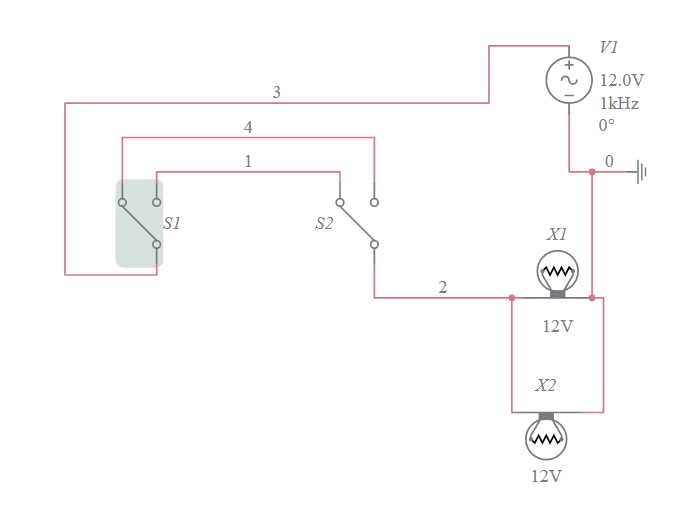

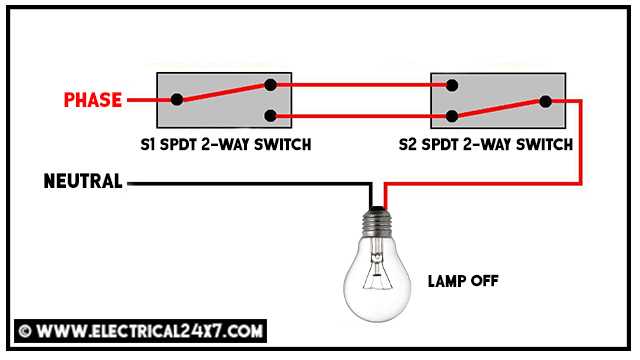

Install two SPDT (single pole, double throw) controls at opposite ends of the path for full functionality. Connect the common terminal of the first control to the live feed and the second’s common to the load–this ensures power flows correctly regardless of toggle position. Use 3-core cable between the two points: one core carries the phase, while the other two serve as travelers.

Label each traveler wire at both ends before stripping–confusing them risks short circuits or dead zones in operation. Verify continuity with a multimeter after securing connections; even slight resistance can cause intermittent failures. Secure terminal screws tightly to prevent arcing, which degrades copper contacts over time.

Mount the controls at ergonomic heights–between 1.2 to 1.5 meters from the floor–to ensure accessibility. Avoid placing them near water sources or in damp conditions unless using weatherproof models rated IP44 or higher. Test the final setup with all bulbs installed; flickering often indicates loose wiring, not faulty controls.

Select wire gauge based on expected load: 1.5 mm² for standard 10A circuits, upgrading to 2.5 mm² if driving multiple lamps or high-wattage LEDs. Keep traveler runs as straight as possible–tight bends increase resistance and heat buildup. Ground the metal mounting boxes if installed in conductive surfaces to prevent shock hazards.

Use crimp connectors instead of twist-and-tape joints for traveler wires–vibration from foot traffic or nearby machinery can loosen hand-twisted pairs. Cover exposed terminals with insulated caps before closing the wall plates to comply with safety standards. Document the wiring path with a simple sketch for future troubleshooting.

For long runs exceeding 20 meters, reduce voltage drop by adding a relay at the midpoint–directly connecting traveler wires over extended distances strains the controls. Replace incandescent loads with LED equivalents to lower current draw and extend toggle contact life. Check for warm junction boxes after 30 minutes of operation; excessive heat signals undersized wires or overloaded circuits.

Isolate the live feed at the distribution board before working–confirm zero volts with a non-contact tester before touching conductors. For dimmable setups, use compatible toggles and trailing-edge dimmers to prevent buzzing or premature failure. Mark the neutral path in light blue sheathing to distinguish it from travelers and live conductors.

If retrofitting an existing setup, replace aged porcelain or bakelite toggles with modern polycarbonate ones–these resist cracking under temperature fluctuations. Inspect the entire path annually for insulation degradation, especially in areas prone to rodent activity or extreme humidity. A properly executed scheme allows seamless control from both access points without ghosting or unintended power-offs.

Tools and Materials Required for Dual-Control Installation

Select a multimeter with a voltage range of at least 600V AC to verify live conductors and confirm circuit deactivation before handling terminals. Analog models lack the precision needed for small voltage fluctuations, so opt for a digital version with auto-ranging capability to eliminate manual adjustments. Ensure it includes test leads rated for 1000V minimum to prevent insulation breakdown during inspections.

Insulated screwdrivers should cover a 3mm to 8mm flathead and Phillips range, with handles complying to IEC 60900 standards for a minimum 1000V insulation rating. Replace any tool with cracks or exposed metal; even hairline fractures compromise safety. Keep a dedicated non-conductive tray to store them separately from pliers or cutters to avoid accidental shorts during use.

• Wire strippers with adjustable gauge stops (0.5mm² to 2.5mm²) for clean cuts without conductor damage
• Crimping tool for 6mm² ring terminals, essential for secure ground connections
• Fish tape (10m) with a hooked or magnetic tip to navigate conduit runs up to 50mm diameter
• Conduit bender (½” and ¾”) with precise angle markings to maintain consistent sweeps without kinking
• Non-contact voltage detector (sensitivity ≤50V) for rapid, touch-free live wire identification

Cable selection must match the intended load: 1.5mm² solid copper for lighting circuits, 2.5mm² stranded for ceiling rose connections prone to vibration. Use PVC-insulated conductors for dry locations; opt for heat-resistant silicone sheathing if ambient temperatures exceed 60°C. Verify local codes for mandatory use of single-core vs. multi-core configurations–some jurisdictions prohibit multi-core for fixed installations despite their flexibility.

Safety and Ancillary Components

Install a double-pole circuit breaker with a 10A rating for lighting circuits, or 16A if combined with outlets. Choose a model with a trip curve of C (5–10× rated current) to avoid nuisance tripping from inrush currents. Include arc-fault circuit interrupters (AFCIs) if retrofitting older installations; they detect low-energy arcs that thermal-magnetic breakers miss, reducing fire risks by 60%.

1. Junction boxes (minimum 20 cubic inches) with knockouts sized for ½” conduit; use metal boxes for fire-rated assemblies
2. Insulating tape (electrical grade, ≥2.5kV breakdown voltage) for temporary sheath repairs, not permanent insulation
3. Cable glands (IP66 rated) for outdoor or damp-location entries, sized to compress sealing rings without crushing conductors
4. Terminal blocks (screw-type, 30A current capacity) for neutral connections, avoiding back-stab types prone to loosening
5. Earth continuity tester (≤1Ω accuracy) to verify protective conductor resistance before energizing

For cover plates, select thermoplastic (polycarbonate) over metal to prevent condensation-induced corrosion on screws. Ensure plates have screw terminals isolated from mounting ears or use nylon washers if metal plates are unavoidable. Mark all tools with heat-shrink tubing at 100mm intervals–color-coded for identification–to prevent mix-ups in multi-trade environments where tools are shared.

Installation Guide for Dual-Control Light Setup

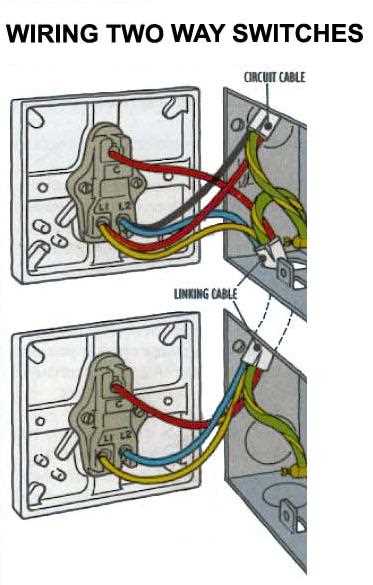

Begin by shutting off power at the breaker panel to prevent electric shock. Use a voltage tester to confirm no current flows to the intended connection points. Identify the three-core cable (live, neutral, earth) for the main power feed and the two-core traveler cables linking the two controls. Label each conductor at both connection sites to avoid mixing them during assembly.

• Connect the live wire to the common terminal (marked L or COM) on the first control.
• Attach one traveler wire to terminal L1 at the first site and run it to L1 at the second location.
• Repeat the process for the second traveler wire, linking L2 terminals at both ends.
• Join the neutral conductor directly to the light fixture without routing it through the controls.
• Secure the earth wire to the designated grounding terminal on the fixture and any metal components.

After securing all connections, restore power and test the setup by toggling both controls. If the light fails to respond or behaves erratically, recheck each terminal for loose screws or incorrect wire placement. Use a multimeter to verify continuity across traveler conductors and ensure no shorts exist between live and neutral paths. Once operational, enclose all terminals in protective covers to comply with safety regulations.

Common Mistakes to Avoid When Installing Dual-Control Lighting

Incorrectly matching the traveler terminals between the two control points causes intermittent operation or complete failure. Most mechanisms label these as “L1” and “L2” or use color-coded screws–gold and silver. Verify both ends use identical terminals; swapping them renders the setup unusable. A multimeter check confirms continuity between matched travelers across both devices.

Omitting the neutral line in modern dimmable setups creates unpredictable behavior. While older two-point configurations worked without neutrals, current LED-compatible designs require them. Locate the neutral bundle in the junction box and splice it to the dimmer’s white wire. Failure to do so often leads to flickering or dimming malfunctions.

Misidentifying the common terminal (often marked “COM” or in black) disrupts the entire sequence. This terminal connects to the power source or load, while the travelers link the two controllers. Swapping the common with a traveler flips the on/off logic–lights turn off when they should illuminate. Mark the common terminal with tape before disconnecting anything.

Using incompatible cable types introduces resistance or shorts. Solid 14-gauge copper works for 15-amp lines, while 12-gauge suits 20-amp circuits. Stranded wire or mixtures of aluminum/copper increase connection strain and corrosion. Strip insulation precisely–exposed wire longer than 6mm invites accidental shorts.

Error	Symptoms	Verification Method
Traveler swap	Unpredictable toggling	Check for continuity between matched terminals
Missing neutral	Flickering LEDs	Trace neutral bundle with voltage tester
Incorrect common	Reversed logic	Label terminals before wiring

Over-tightening terminal screws damages wires or cracks the backplate. Apply torque just until the wire stops sliding–typically 0.8 Nm for standard screws. Loose connections generate heat, risking meltdowns. After securing, tug each wire gently to confirm grip.

Ignoring junction box fill limits violates safety codes. Each box has a maximum allowable conductor count–usually 9 for a standard 4×4 deep box. Exceeding this traps heat, damaging insulation. Calculate total volume, accounting for devices and wire nuts. If cramped, upgrade to a larger box or splice elsewhere.
