Understanding the Starter Motor Wiring Layout and Key Components
The initial engagement sequence of any internal combustion engine relies on a precisely arranged electrical flow. At its core, this system consists of a high-torque actuator, a solenoid switch, a heavy-duty relay, and the vehicle’s power source. The primary conductor–typically a thick-gauge cable–carries current directly from the battery to the switching mechanism. A 12-volt system requires no less than 8mm² cross-sectional wiring to handle the instantaneous surge, often exceeding 100 amps during activation. Anything thinner risks voltage drop, leading to sluggish or failed engagement.
Solenoid operation is often misunderstood. It functions as both a mechanical shifter and an electrical bridge. When energized, the coil creates a magnetic field, pulling the plunger to complete two critical connections: one between the battery and the actuator, and another to engage the pinion gear with the flywheel. Resistance in the coil should measure between 0.2 and 0.8 ohms; values outside this range indicate wear or corrosion. Replace the unit if testing reveals readings above 1.0 ohm–performance degradation will follow.
Ground integrity is frequently overlooked. The actuator’s housing must connect to the engine block through a dedicated, corrosion-resistant strap. Paint, rust, or oil on contact surfaces increase resistance, reducing torque delivery. Clean these points with a wire brush and apply dielectric grease before reattaching. A poor ground manifests as slow rotation even when battery voltage reads normal. Test voltage drop across the ground path–anything exceeding 0.2 volts signals trouble.

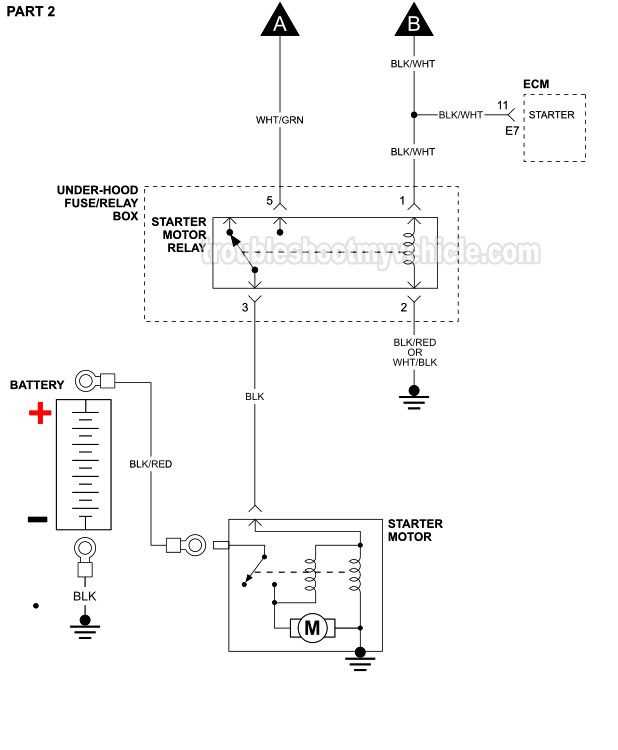

Relay-based configurations add a safety layer by isolating the ignition switch from high current. The relay coil draws minimal amperage, protecting the switch from burnout. Ensure the relay contacts can handle at least 30 amps continuous; standard automotive relays often fail under repeated cranking cycles. Upgrade to a 70-amp relay if frequent starts are expected, such as in cold climates or heavy-duty applications. Wiring should follow a star-point arrangement–never daisy-chain components–to prevent localized overheating.
Fuses protect against catastrophic failure but are often sized incorrectly. A 30-amp fuse is standard for most passenger vehicles, while commercial or high-displacement engines may require 40 or 50 amps. Never substitute with wire or higher-rated fuses, as this bypasses thermal protection. Test the circuit with an ammeter during cranking–current should stabilize within 3-5 seconds. Prolonged draw indicates internal binding or mechanical resistance in the actuator.
Understanding the Electrical Path of a Vehicle’s Cranking System
Check the solenoid’s engagement terminal for voltage during ignition activation–a reading below 9.5V indicates excessive resistance in the control path. Use a multimeter in continuity mode to verify the integrity of the excitation coil; resistance should fall between 0.2Ω and 0.5Ω for most passenger vehicles.
Trace the heavy-gauge power cable from the battery to the engagement mechanism. Corrosion at the battery terminals reduces current flow by up to 40%–clean connections with a wire brush and apply dielectric grease. For batteries older than three years, test the cold-cranking amps (CCA) against the manufacturer’s specification; a deviation greater than 15% requires replacement.
The following table outlines critical voltage drops across key components when the system is under load:
| Component | Maximum Allowable Drop (12V System) |
|---|---|
| Battery positive terminal to engagement coil input | 0.2V |
| Engagement coil input to ground | 0.3V |
| Battery negative terminal to engine block | 0.1V |
| Solenoid contacts | 0.5V |
Inspect the flywheel ring gear for worn or chipped teeth–visible damage requires replacement. A single missing tooth can prevent engagement and may cause intermittent failures. Measure the pinion clearance; it should align within 1–3mm of the ring gear when the armature is at rest.
For vehicles with automatic transmissions, ensure the neutral safety switch is properly adjusted. Misalignment triggers a no-crank condition. Test the switch by bypassing it momentarily–if the system cranks, recalibrate or replace the switch.
Replace the ignition relay if testing reveals inconsistent switching. A faulty relay may exhibit voltage spikes exceeding 0.8V across its contacts during activation. Use a scan tool to monitor live data for the engine control unit’s crank signal; absence of this signal during attempted startup confirms an upstream interruption.
On diesel engines, verify the glow plug control module’s operation before diagnosing cranking issues. A failed module can draw excessive current, mimicking a weak battery. Check for parasitic draws exceeding 50mA when all systems are off–higher values indicate a short in the electrical harness or faulty accessory.
When reassembling, apply thread locker to threaded fasteners in high-vibration areas–loose bolts lead to premature wear of brushes and commutator. Replace brushes if their length is less than 50% of the original specification. Lubricate the Bendix mechanism only with recommended grease; over-lubrication attracts debris and causes sluggish engagement.
Critical Elements of an Engine Cranking System
Begin with the solenoid–verify its voltage rating matches the vehicle’s electrical system. For most passenger cars, a 12-volt solenoid suffices, but heavy-duty applications may require 24 volts. Check the plunger travel distance; if it exceeds 5mm without engaging the pinion, replace the unit. Corrosion on the terminals often causes intermittent failures–clean them with a wire brush and apply dielectric grease to prevent future oxidation.
Battery Connections and Voltage Drop
Measure voltage drop across the positive cable during cranking. A drop above 0.5 volts indicates resistance–replace the cable or tighten connections. Use a multimeter to test the battery’s cold cranking amps (CCA); if it’s below 70% of the rated value, the battery must be charged or replaced. Avoid using jumper cables for diagnostics–they introduce resistance and skew results. For accurate readings, test with a dedicated load tester instead.
The ignition switch’s role is frequently underestimated. A worn switch can create a voltage drop of up to 0.3 volts, delaying engagement. Test it by probing the switch’s output terminal while turning the key–if voltage fluctuates, replace the switch. For push-button systems, inspect the relay’s coil resistance; values outside 50-120 ohms suggest internal failure. Always use OEM-spec relays to avoid compatibility issues.
Neutral safety switches prevent cranking in gear–test them by attempting to start the engine in drive or reverse. If the engine cranks, replace the switch immediately. On manual transmissions, ensure the clutch pedal position sensor is properly adjusted; misalignment can prevent power from reaching the solenoid. For vehicles with automatic transmissions, verify the inhibitor switch’s continuity in park and neutral positions–broken contacts disrupt the entire sequence.

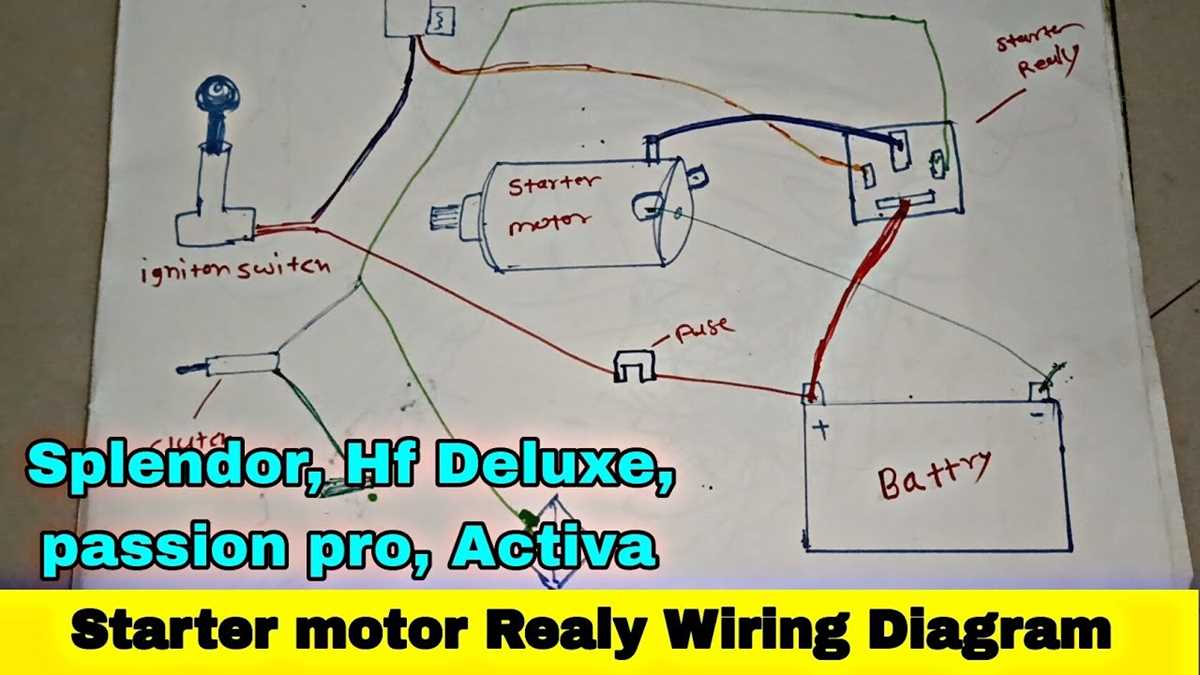

Step-by-Step Wiring Process for an Ignition Activation System
Disconnect the vehicle’s battery terminal first to eliminate any risk of short circuits. Identify the solenoid’s heavy-gauge input terminal (usually marked “B+” or “30”) and attach a 4-gauge cable directly from the battery’s positive post–ensure the connection is crimped with a copper lug and secured with an 8mm bolt tightened to 12 Nm torque. Route the cable away from moving parts or exhaust components, clipping it every 15 cm with nylon ties to prevent chafing. Verify the ignition switch’s output wire (typically a thin red or purple 16-gauge lead) by probing it with a multimeter set to 12V DC while turning the key; it should show full voltage momentarily. Solder this wire to the solenoid’s “S” terminal using a 60/40 rosin-core solder, then insulate the joint with heat-shrink tubing.
Finalizing High-Current Pathways
Attach the solenoid’s output terminal (“M” or “C”) to the drive assembly’s main lug using a second 4-gauge cable, matching the gauge to the original OEM spec–deviating by even one size can reduce cranking power by up to 15%. Ground the unit’s housing directly to the engine block with a 6-gauge bare wire, scraping away paint or corrosion at both contact points for a resistance below 0.2 ohms. Test the assembly by reattaching the battery: cranking should initiate within 0.5 seconds of key rotation, and the solenoid’s click should be crisp, not sluggish. If voltage drops below 9.6V during cranking, inspect all connections for cold solder joints or loose bolts–they must withstand a 200A surge without overheating.
Typical Issues in Ignition System Linkages
Loose or corroded battery terminals are the primary cause of failed engine engagements. Measure voltage drop across connections–any reading above 0.2V signals resistance that prevents full current flow. Clean terminals with a wire brush and apply dielectric grease to inhibit oxidation. Verify cable clamps tightness using a torque wrench set to manufacturer specifications, typically between 8-12 Nm.
Faulty solenoid contacts create intermittent power delivery. Test the relay’s pull-in voltage with a multimeter; if below the specified range (usually 8-10V), replace the unit. Check for pitted or burned contact points–these require immediate replacement to avoid voltage spikes damaging control modules. Inspect ground straps for rust or fraying; a compromised ground path forces current through unintended routes, overheating wiring and triggering fusible links to melt.
