Understanding Vehicle Starter Motor Electrical Schematic Basics

Begin by identifying the battery’s positive terminal–trace its cable to the solenoid, a compact cylindrical component mounted near the starter motor. Verify the solenoid’s input connections: one thick wire from the battery and a thinner activation lead from the ignition switch. Use a multimeter to confirm 12V at the battery terminal when the key is turned to the “crank” position. If voltage is absent, inspect the ignition switch and neutral safety switch for corrosion or loose wiring.

Examine the starter motor’s primary terminal, where the solenoid bridges power during engagement. On most vehicles, this connection uses an M8 or M10 bolt–ensure it’s torqued to 15-20 Nm to prevent arcing. A telltale sign of failure is a single “click” with no motor rotation, indicating solenoid wear or internal open circuits. Replace solenoids with identical amperage ratings (typically 80-120A) to avoid premature burnout.

Locate the ground strap–a braided cable running from the engine block to the chassis. Clean the contact points with a wire brush and apply dielectric grease to prevent oxidation. Poor grounding causes voltage drops, leading to sluggish starter performance. For diesel engines, check the glow plug relay’s timing circuit, as delayed activation can mimic starter failure.

For hybrid and start-stop systems, refer to manufacturer schematics. Toyota’s auxiliary 12V circuits, for example, integrate a DC-DC converter–bypass it only with load-tested components rated for 200A transient spikes. Always disconnect the negative battery terminal before working on high-current paths to avoid short circuits.

Use relay bypass testing for quick diagnostics: jumper the solenoid’s battery and motor terminals for 3-5 seconds while monitoring current draw with a clamp meter. Normal range is 120-250A–values above 300A suggest internal shorting, requiring immediate starter replacement. Document all modifications with labeled photos, especially for vehicles with anti-theft immobilizers.

Engine Cranking Mechanism Schematics

Check solenoid terminals for corrosion first–use a multimeter to verify voltage drops exceeding 0.2V signal poor contact or internal resistance. Clean connectors with 600-grit sandpaper and apply dielectric grease to prevent oxidation.

Inspect the flywheel ring gear teeth for uneven wear; a damaged gear reduces engagement efficiency by up to 30%. Replace if chips exceed 2mm depth–ignoring this causes intermittent cranking.

Key Pathway Components

Battery current flows through the ignition switch (verify 12V at terminal 50), then to the solenoid relay coil (standard 120Ω resistance). A weak coil draws under 9A, indicating replacement necessity. Starter motor windings should register 0.02–0.04Ω between brushes–values outside this range confirm shorted armature.

Fuse links often overlooked–modern setups use a 100A fusible link between battery and starter. Test continuity with a probe; absence of beep confirms blown link, requiring 8-gauge copper replacement wire.

Troubleshooting Workflow

Disconnect ground cable before bench-testing–attach starter to a 12V source with jumper cables. Cranking under 1500 RPM indicates worn brushes; lubricate bushings with molybdenum disulfide paste (not WD-40). For solenoid issues, tap the housing sharply while engaging–if it cranks, the plunger is sticking.

Measure voltage at the motor during cranking; readings below 10V confirm excessive wiring resistance or weak battery. Use a current clamp to monitor amperage–healthy draws peak at 200–300A, while 400A+ indicates impending failure.

Critical Elements of a Vehicle Ignition Network

Begin by verifying the battery’s cold-cranking amps (CCA) rating matches or exceeds the manufacturer’s specifications–typically 1.5 to 2 times the engine’s cubic inch displacement for gasoline engines. For instance, a 2.5L four-cylinder engine requires a minimum 600 CCA battery, while diesel engines demand 800+ CCA due to higher compression ratios. Replace batteries older than 3–5 years preemptively, as sulfation and internal resistance degrade performance exponentially in colder climates. Use a multimeter to check voltage under load; a reading below 9.6V during a 10-second crank signals impending failure.

Electromagnetic Switch and Flywheel Ring Gear

Inspect the solenoid’s plunger and contacts for pitting or corrosion–these defects cause intermittent engagement or complete failure. A telltale “click” without cranking indicates worn contacts; measure their resistance (should be

• Battery cables: Use 4-gauge (or thicker) copper cables for the primary positive and negative paths. Corrosion at terminals increases resistance; clean with a wire brush and apply dielectric grease to prevent oxidation. Replace frayed or undersized cables–they can drop 0.5V per foot under load, causing slow cranking or no-start conditions.
• Neutral safety interlock: Test this device in both park and neutral (for automatics) or with the clutch depressed (for manuals). A faulty switch may allow engine turnover while in gear, creating a safety hazard. Bypass tests can confirm switch integrity but never operate the vehicle without this safety feature functional.
• Ignition lock cylinder: Worn tumblers generate false starts or require excessive key turning effort. Replace if the key feels loose or requires jiggling. Modern vehicles often integrate this with the immobilizer–ensure transponder chip communication via a diagnostic scan tool before condemning the cylinder.

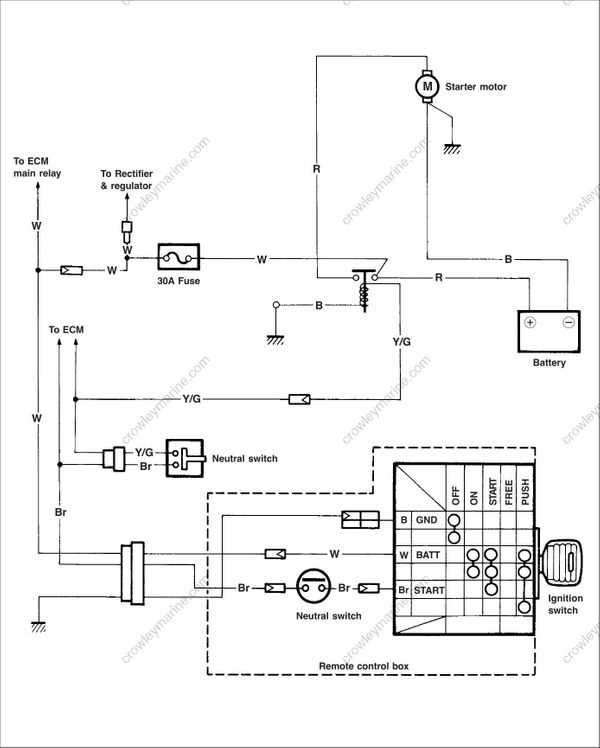

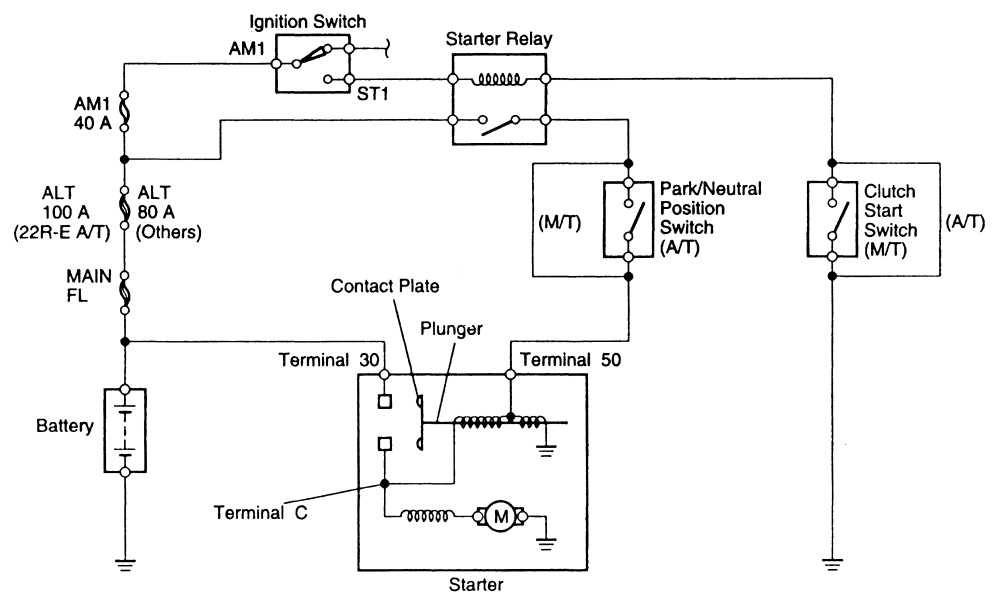

Decoding a Starter Motor Wiring Schematic

Identify the battery symbol first–it’s typically a rectangle with a “+” and “-” sign, often labeled “B+” and “B-“. This marks the power source for the entire setup. Trace the thick red line from the battery’s positive terminal to the solenoid; this heavy-gauge cable carries high current and will usually be the widest path on the layout.

Locate the solenoid, shown as two sets of contacts inside a small circular or oval enclosure. One side connects to the battery, the other to the motor assembly. The solenoid’s control terminal–usually a smaller terminal labeled “S” or “50”–receives the ignition signal through a thin wire linking it to the ignition switch.

Follow the ignition switch representation, often a simple toggle or rotary symbol marked “IG” or “Start”. From here, a thin control wire runs to the solenoid’s activation terminal. Verify this path includes any relay or fuse inline, shown as a small square or rectangle with internal contacts; these protect the low-current trigger line.

• Battery positive → heavy cable → solenoid main terminal
• Solenoid main terminal → heavy cable → starter motor armature
• Ignition switch → thin wire → solenoid “S” terminal
• Ground path: starter motor housing → engine block → battery negative

Check for additional components like neutral safety switches or clutch interlocks. These appear as small push-button or relay symbols interrupting the ignition-to-solenoid control wire. Their presence indicates the engine won’t crank unless the transmission is in neutral or park, or the clutch pedal is depressed.

Observe the ground return paths–thin lines clustering around the starter motor housing leading to the engine block, then to the battery’s negative terminal. Poor grounding often causes intermittent cranking; schematics highlight this with dotted or dashed lines.

Note any diodes or resistors inserted in the trigger line, shown as a zigzag or arrow-shaped symbol. These suppress voltage spikes when the solenoid disengages, preventing damage to the ignition switch or computer modules. Their absence in older layouts is common, but modern setups incorporate them routinely.

Verify wire gauge codes if available–numbers like “4 AWG” or “10 AWG” denote thickness. Heavy cables (4-6 AWG) link battery to starter, while thinner wires (12-18 AWG) handle control signals. Cross-reference these with physical cables during inspection to spot degraded or undersized wiring causing voltage drops.

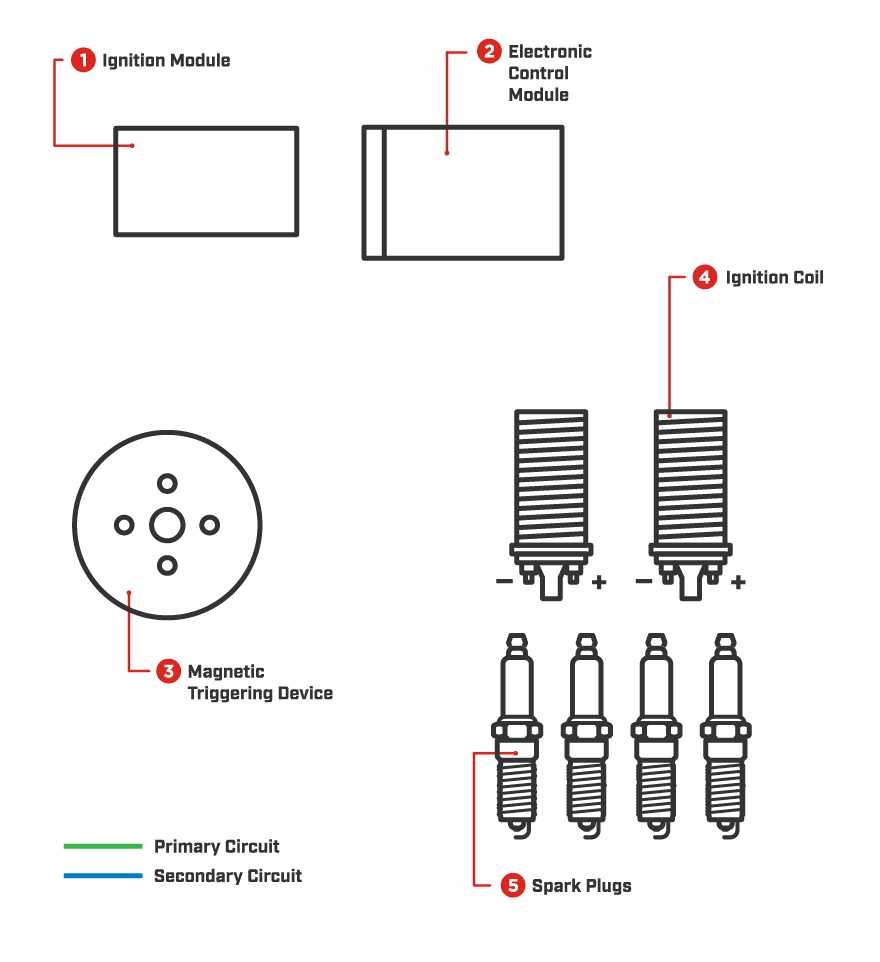

Step-by-Step Tracing of the Ignition Signal Flow

Locate the battery positive terminal first–this is the power origin for the entire ignition sequence. Use a multimeter to verify a minimum of 12.6V at the post before proceeding; anything below 12.2V indicates a weak charge or parasitic drain. Trace the heavy-gauge cable from the positive post to the starter solenoid, noting any corrosion at connections; clean with a wire brush if resistance exceeds 0.1 ohms.

Examine the ignition switch wiring harness. The typical configuration includes a purple wire (constant power), a yellow wire (accessory), and a white or red-striped wire (ignition feed). Probe the white/red lead with the key turned to “ON” position–voltage should match battery levels. If absent, inspect the fuse block for a blown 15A fuse in slot IGN1.

Follow the ignition feed wire to the anti-theft module if equipped. Modern vehicles route this signal through an immobilizer, where a transponder in the key sends a coded signal via the coil antenna. Check for continuity between the module’s input and output pins with the key in the “ON” position; a broken loop here prevents further progression to the ignition coil.

Move to the ignition coil pack. Identify the switched power wire (often brown or black with a stripe) and the trigger wire (typically yellow or green). Backprobe the trigger wire while cranking the engine–voltage should pulse between 0.5V and 5V. A steady 0V suggests a faulty crankshaft position sensor or open circuit in the ECU feed.

Inspect the crankshaft position sensor wiring. The sensor grounds through the engine block, so corrosion at the mounting point can disrupt the signal. Measure resistance between the sensor terminal and ground–specs vary by manufacturer, but a reading outside 200-1000 ohms warrants replacement. Ensure the air gap between the sensor and reluctor wheel is within 0.5-1.5mm.

Verify the ignition control module (ICM) if present. On distributor-based setups, the ICM grounds one side of the coil while the other receives switched power. Use a test light to confirm the ground pulse at the ICM’s trigger terminal during cranking. Absence of pulse indicates a failed ICM or open circuit in the wiring to the distributor pickup.

Check the fuel pump relay activation. The ignition feed often powers the relay coil, so a stalled engine may stem from no fuel delivery. Listen for a brief hum from the fuel pump upon turning the key to “ON”; if silent, swap the relay with a known-good one (e.g., horn relay) to isolate the issue.

For push-button start vehicles, focus on the brake pedal switch and clutch interlock. These safety switches complete the circuit to the starter motor. Test continuity across the brake switch terminals with the pedal depressed–specs should show near-zero resistance. A misadjusted switch here mimics a dead battery, halting the entire sequence before the solenoid engages.
