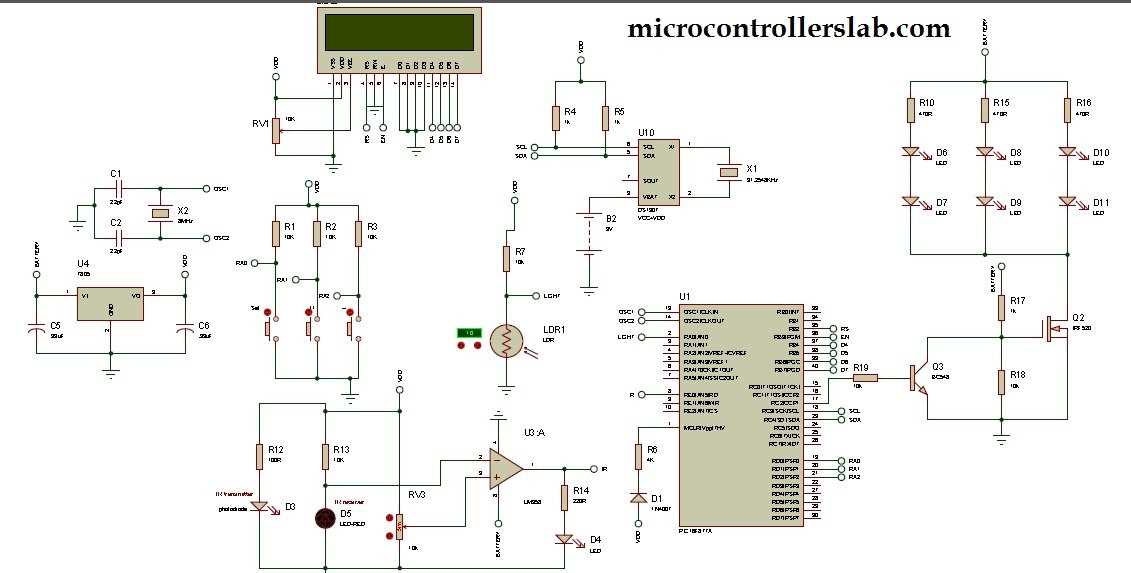

Understanding Key Components of a Modern Street Lighting Wiring Plan

Start with a 230V AC power source feeding a dedicated distribution box for public fixtures. Install a 63A-100A circuit breaker in the enclosure to handle inrush currents–LED luminaires may draw up to 5x nominal power during startup. For typical municipal setups, run 6mm² copper cables from the breaker to each post; this gauge supports 300W loads over 100-meter spans with

At each post, use a fused disconnect rated for 1.5x the luminaire’s maximum current. For 150W sodium-vapor units (≈1.7A), specify a 2A fuse; for 250W LEDs (≈3A), use a 4A fuse. Run parallel wiring loops among nearby posts–limit each loop to 12 luminaires to keep fault currents below 20A. Integrate surge arrestors–metal-oxide varistors–across line-neutral at both ends of each loop to clamp transients from switching or lightning to ≤300V.

For adaptive control, add a 0-10V dimming ballast or a DALI controller triggered by an astronomic timer. Configure the timer with local latitude/longitude (±5°) to adjust on/off times accurately, saving ≈1.2 kWh per luminaire nightly. In zones with frequent vandalism, replace standard breakers with arc-fault circuit interrupters (AFCIs)–they trip in

Label every junction box and disconnect with engraved stainless-steel tags–include circuit number, voltage, fuse rating, and maintenance date. Use IP66-rated Wago 222-series lever-nuts for splices; they handle 30A continuous without loosening. In corrosive coastal areas, supplement copper wires with tinned conductors–untinned copper loses 30% conductivity in

Urban Illumination Circuit Design Essentials

Begin with a main distribution panel rated for at least 20% above expected load to prevent voltage drops–common values range from 100A to 400A depending on segment length. Use copper conductors (16mm² minimum) for trunk lines to reduce resistivity; aluminum is prone to oxidation at splice points under fluctuating humidity.

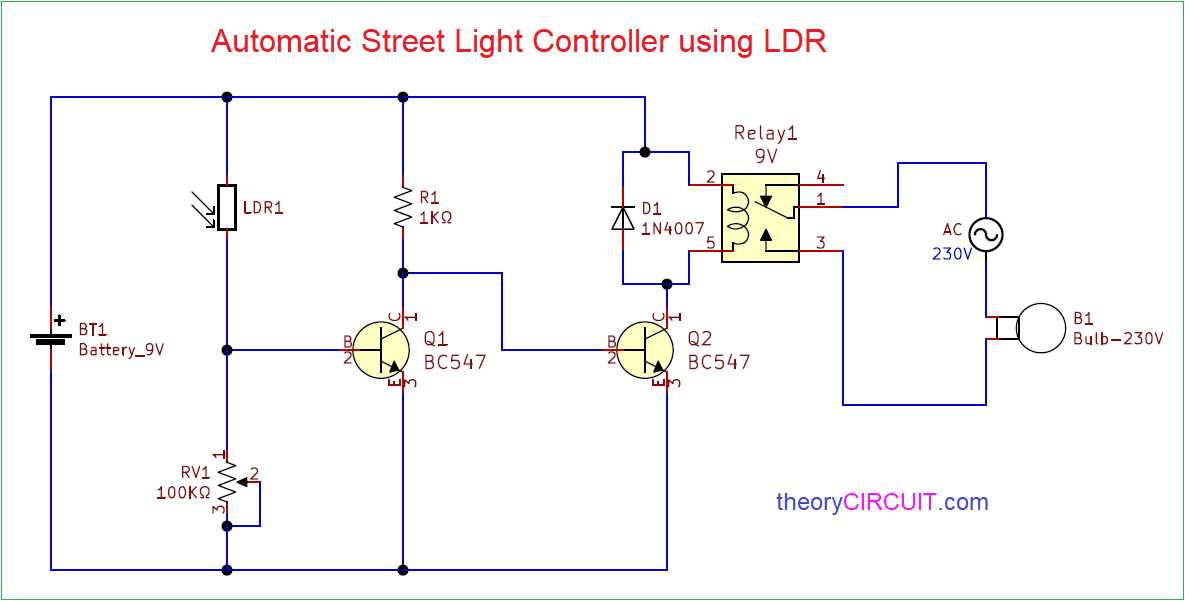

Implement photocell-controlled relays with a 5-10 lux activation threshold–avoid cheap units with high hysteresis that cause flickering at dusk. For LED fixtures, ensure a constant-current driver (700mA–1A typical) with transient voltage suppression rated for 6kV to handle switching surges.

Branch Circuit Optimization

Divide circuits into maximum 8–12 luminaires per branch to limit voltage drop to under 3%–calculate using V_drop = I × R_wire × length, where R_wire for 16mm² copper is ~1.15Ω/km. Install manual disconnect switches at every third pole to simplify maintenance without de-energizing entire segments.

Use twisted pair underground cables (XLPE insulation, 600V rating) for branch runs–avoid PVC as it degrades under UV exposure if surface-laid. Bury cables at 60cm depth or deeper in regions with freeze-thaw cycles to prevent insulation cracking. Include pull boxes every 50 meters to ease future wiring upgrades.

Fault Protection Strategies

Equip each branch with residual current circuit breakers (RCCBs) set to 30mA trip threshold–this prevents electrocution hazards from exposed conductors. Add surge arrestors (MOV type, 275V clamping voltage) at panel entry points to protect against induced transients from nearby lightning strikes.

Label all conduits with reflective, UV-resistant tags specifying circuit number and intended load–include burial depth and conductor type. For DC systems (common in solar-powered installations), use bi-directional blocking diodes at each luminaire to prevent reverse current from batteries contributing to premature LED failure.

Critical Elements of Urban Luminaire Wiring Systems

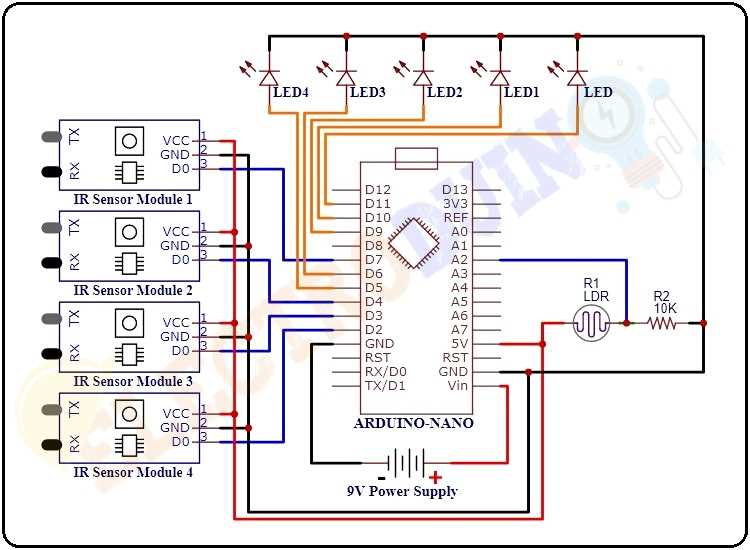

Install a photocell sensor rated for 120–280VAC with a minimum off-load current of 10μA to prevent false daytime activation. Position the sensor at least 4 meters above ground level, angled 15° away from direct southern exposure to eliminate sun glare interference during dawn/dusk transitions.

Breakers must match the circuit’s ampacity: use HRC fuses or MCBs with a trip curve C for standard installations, D for inductive loads exceeding 1kW. A 16A MCB protects 2.5mm² copper conductors for 10-meter luminaire spacing; scale to 20A for 35mm² cables over 25 meters to maintain ≤3% voltage drop at 230V input.

Grounding conductors require ≤10Ω resistance; bond all metal poles to a dedicated 25mm² earthing rod driven 2.4 meters deep, supplemented by a buried 50mm² copper strip radial network covering a 10-meter radius around each fixture cluster.

Opt for constant-current LED drivers with 0.95 to extend driver lifespan beyond 50,000 hours. Specify drivers with output ranges 350–700mA for 40–150W luminaires to align with manufacturer’s recommended LED forward voltages.

Include surge arrestors with 8/20μs impulse current ratings ≥5kA on both live and neutral feeds; mount arrestors within 1 meter of each pole base to clamp transients below 1.5kV, preventing dielectric breakdown of insulation sleeves rated at 1kV test voltage.

Wiring Configurations for Common Fixture Types

For LED luminaires, connect the live wire (typically brown or red) to the input terminal marked “L” or “+”. The neutral (blue or black) attaches to “N” or “-“. If the unit has a grounding terminal (yellow-green), secure it last. Verify polarity before energizing–reverse connections can damage the driver circuit. Most modern LEDs tolerate 100-265V AC, but check the label: some require 12V or 24V DC and need an external transformer.

Sodium vapor lamps demand a ballast and ignitor. Wire the ballast’s input side first: live to “INPUT L”, neutral to “INPUT N”. On the output side, connect “OUTPUT L” to the lamp socket’s center pin and “OUTPUT N” to the outer shell. The ignitor inserts between the ballast’s “OUTPUT C” and the lamp’s starting electrode. Use 1.5 mm² copper wire for currents under 16A; upgrade to 2.5 mm² for longer runs or higher wattage (250W+).

• Fluorescent tubes require a starter and ballast. Link the ballast’s live input to the circuit breaker. The neutral input connects to the fixture’s neutral bus. On the output side, route one wire from the ballast to each socket pin. If using a rapid-start ballast, jumper the socket pins together before attaching the ballast leads. Test each connection with a multimeter–resistance should read 0.5-5 Ω for a healthy circuit.
• Halogen bulbs run on low voltage (12V or 24V). Install a transformer close to the fixture–voltage drop exceeds 0.5V per meter beyond 2m. Connect the primary side to 230V mains; the secondary outputs to the lamp pins. Use twisted 0.75 mm² cables for halogen runs under 3m; 1.0 mm² for distances up to 5m. Shield splices in outdoor-rated junction boxes–halogen circuits generate heat that can degrade unprotected joints.
• Metal halide fixtures follow sodium vapor wiring but omit the ignitor if the ballast has internal ignition. The ballast’s “OUTPUT L” feeds the lamp’s center electrode; “OUTPUT N” ties to the outer shell. Capacitors stabilize arc initiation–mount them within 30 cm of the lamp for optimal performance. Ground the fixture’s metal housing directly to the supply earth–ungrounded housings attract stray voltage spikes.

Induction lamps eliminate electrodes, simplifying wiring. Live and neutral wires attach directly to the fixture’s labelled terminals. No ballast or ignitor is needed, but install a surge protector rated for 20kA–induction circuits are sensitive to transient voltages. Use 4 mm² wire for units over 100W to prevent voltage drop across longer spans.

For dimmable LED clusters, add a compatible driver. The driver’s input terminals accept live and neutral; output terminals connect to the LED array. Dimming wires (usually orange or purple) link to the controller’s corresponding terminals. Verify the driver’s DC output voltage matches the LED’s forward voltage (e.g., 36V for a 10-series array). Twist dimming wires tightly–loose connections cause flicker. Use a heat-shrink sleeve over splices to prevent moisture ingress in outdoor installations.

How to Calculate Voltage Drop in Extended Outdoor Illumination Circuits

Measure the conductor’s resistance per kilometer using standard tables or manufacturer specifications. Copper wire at 20°C has a resistivity of 0.0172 Ω·mm²/m; aluminum is 0.0282 Ω·mm²/m. Multiply the resistivity by the wire’s length in meters, then divide by its cross-sectional area in mm² to find total resistance. Example: 100 meters of 16 mm² copper wire yields 0.1075 Ω (0.0172 × 100 / 16).

Apply Ohm’s Law (V = I × R) to determine voltage drop. Identify the circuit’s load current–LED clusters typically draw 0.3–0.8 A per fixture; high-pressure sodium units pull 1.2–2.4 A. Multiply the current by the total wire resistance. A 1.5 A load through 0.1075 Ω causes a 0.161 V drop per conductor. For single-phase AC, double the result to account for return path.

Factor in temperature effects. Resistance rises ~0.39% per °C above 20°C. For cables buried at 40°C, multiply the base resistance by 1.078 (20°C × 0.0039 × 20). Recalculate total drop with adjusted resistance. Neglecting this correction underestimates losses by 8–12% in tropical deployments.

Key Constants and Correction Factors

Material	Resistivity (Ω·mm²/m)	Temp Coefficient (%/°C)	Typical Current (A)
Copper	0.0172	0.39	0.5–2.0
Aluminum	0.0282	0.40	0.8–3.0
Steel-core	0.05–0.12	0.3–0.5	1.0–4.0

Account for reactive components in AC networks. Power factor (PF) of 0.9–0.95 increases apparent current and drop. Use the formula V_drop = I × (R × cosφ + X × sinφ), where X is reactance per kilometer (0.08–0.12 Ω/km for 16 mm² cables). Example: 2.0 A, R = 0.1 Ω, X = 0.1 Ω, PF = 0.9 gives V_drop = 2 × (0.1 × 0.9 + 0.1 × 0.436) = 0.274 V.

Verify calculations against regulatory limits. NEC allows 3% voltage drop for branch circuits; IEC 60364 permits 5%. For a 230 V system, 11.5 V is the maximum acceptable loss. Compare total drop to these thresholds–exceeding them mandates thicker conductors or distributed transformers. Use V_drop ≤ (V_nominal × 0.03) as the design constraint.

Voltage Drop Calculator Shortcuts

Cable Size (mm²)	Drop per Meter per Ampere (mV/A·m)	Max Length (m) for 3% Drop (230 V, 1.5 A)
4	4.30	51
10	1.72	128
16	1.075	205
25	0.688	320
