Complete Guide to Subwoofer Amplifier Wiring Connections Step by Step

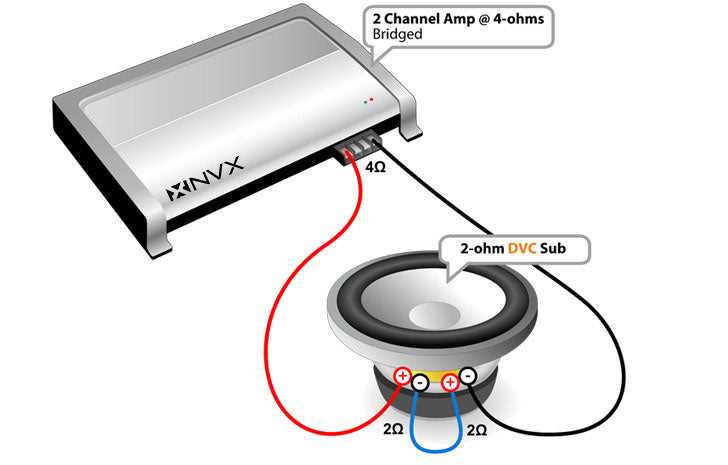

Begin by identifying the power output specifications of your bass module and matching them to the impedance rating of your speaker unit. A mismatch here can result in poor performance or permanent damage. For single-channel setups, use a direct 2-ohm load if the module supports it–this maximizes power transfer without overheating. If bridging dual channels, ensure the combined load meets the module’s minimum impedance, typically 4 ohms.
For signal input, always use shielded RCA cables to minimize interference from adjacent electrical sources. Ground the shielding at both ends to prevent hum. If your module lacks RCA inputs, high-level speaker wires can serve as an alternative–connect them directly to the vehicle’s stereo output, but verify voltage compatibility to avoid overloading the input stage.
Use 4-gauge oxygen-free copper cables for power delivery from the battery. Route them away from ignition wires and ECU lines to prevent signal noise. Install a 60-amp fuse within 18 inches of the battery terminal to protect the circuit. For ground connections, attach the cable to a bare metal chassis point, scraping away any paint or corrosion to ensure a solid contact.
In multi-speaker configurations, avoid daisy-chaining. Instead, run separate speaker wires from the module’s output terminals to each driver. Twist the cables every 3 inches to reduce electromagnetic interference. Verify polarity with a 9V battery before finalizing connections–reversing leads will cancel out low frequencies.
Seal all connections with adhesive-lined heat shrink tubing to prevent moisture ingress. Avoid electrical tape, which degrades over time. Test the setup with a 50Hz sine wave at half volume before driving to confirm clean response and proper grounding. Adjust gain levels incrementally to prevent distortion–start at 1/3 volume and increase only if peak performance isn’t achieved.
Connecting Your Bass Module: A Practical Guide
Use heavy-gauge oxygen-free copper cables–12 AWG minimum–for all low-frequency signal paths to prevent power loss and distortion at high excursion levels. For a typical mono block setup, run a twisted pair from the preamp’s line output to the input terminals marked “+IN” and “-IN,” ensuring the ground conductor connects to the chassis via a dedicated grounding bolt. Secure all connections with gold-plated spade lugs torqued to 12 in-lbs; loose crimps cause intermittent drops that mimic blown voice coils.
| Component | Recommended Wire Gauge (AWG) | Connector Type | Torque (in-lbs) |
|---|---|---|---|
| Battery to power supply | 4 | ANL fuse holder | 25 |
| Power supply to block | 8 | Tinned ring terminal | 15 |
| Block to driver terminals | 10 | Gold-plated banana plug | 8 |

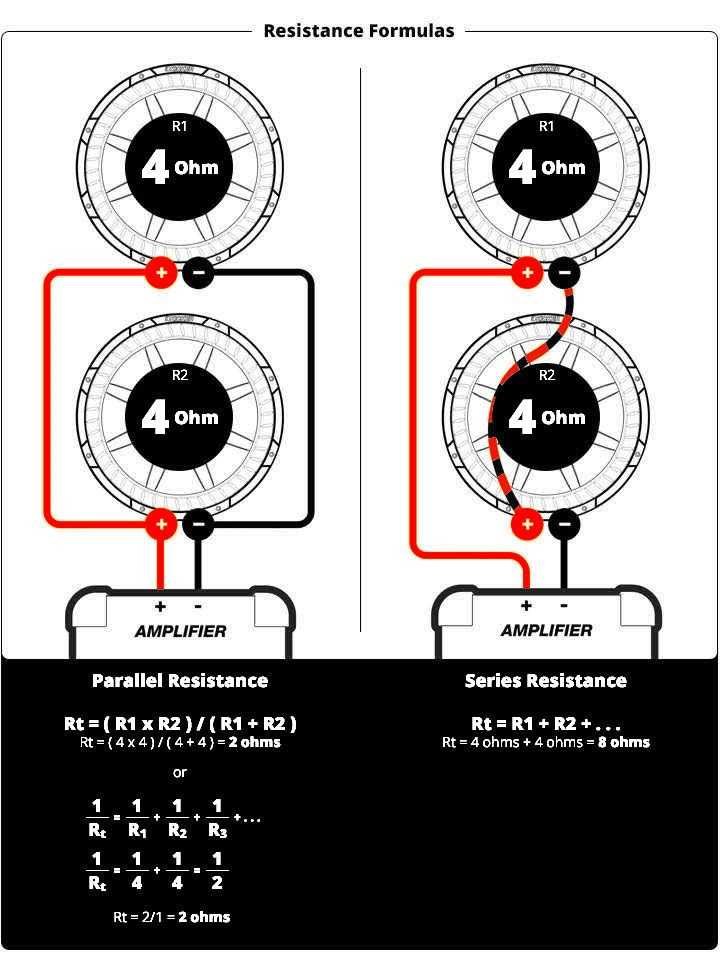

Label every conductor within one inch of the terminal with heat-shrink tubing coded by function: red for positive lead, black for negative, yellow for remote turn-on, and blue for signal ground. Route power cables at least 12 inches away from RCA interconnects to minimize alternator whine; use braided shield grounded at a single point near the source if separation proves impossible. Test impedance with a dedicated meter before finalizing connections; a reading below 1.5 ohms indicates incorrect series-parallel arrangement of multiple drivers.
Selecting Optimal Cable Thickness for Low-Frequency Driver Connections
For most aftermarket sound reinforcement setups, 4 AWG conductors deliver the best balance between conductivity and cost when powering deep bass transducers requiring 500–1200 watts RMS. Thinner 8 AWG cables introduce measurable voltage drop over runs exceeding 16 feet, forcing power sources to work harder and risking overheating during sustained 40 Hz sine bursts. Consult the wire resistance chart below to match cable diameter with total system impedance.
- 12 VDC systems at 1 Ω: 2 AWG minimum, 1/0 AWG preferred.
- 2 Ω loads under 700 W: 6 AWG acceptable, 4 AWG optimal.
- 4 Ω monoblocks up to 1 kW: 4 AWG mandatory, 2 AWG for runs >20 feet.
Oxygen-free copper conductors outperform copper-clad aluminum by maintaining 98.6% rated current capacity at 180°F versus CCA’s 65% retention. While CCA cables save weight, they require one gauge size thicker to equal OFC performance. Strand count also matters–372-strand wire flexes better during vehicle movement compared to rigid 19-strand alternatives, preventing fatigue fractures at terminal crimps.
Calculate gauge based on peak draw figures, not RMS values. A 1000 W bass module pulling 80 A peaks requires 2 AWG wire even if its continuous rating sits at 50 A. Ignoring surge demands leads to instantaneous voltage sag during kick drum hits, causing audible compression or shutdowns. Add 20% buffer to wire ampacity if routing through tight enclosures where heat dissipation is limited.
Measure actual path length, not straight-line distance. Twisted runs plus connector loops add 15–25% to required cable length. Terminal type dictates stripping techniques–crimp lugs need 5/16″ exposed copper while solder cups accept 3/8″. Always double-check manufacturer specs; some high-efficiency bass enclosures push 120 A bursts, necessitating 1/0 AWG despite modest 600 W RMS ratings.
Beyond diameter, insulation material impacts reliability under extreme conditions. Silicone-jacketed cables withstand -60°C to 200°C environments but cost 40% more than PVC-equivalent wires. For marine installations, tinned copper prevents corrosion from saltwater exposure, extending service life from 18–24 months to 7–10 years. Match termination hardware to wire gauge–4 AWG incompatible with 8 AWG ring terminals guarantees loose connections regardless of connector torque.

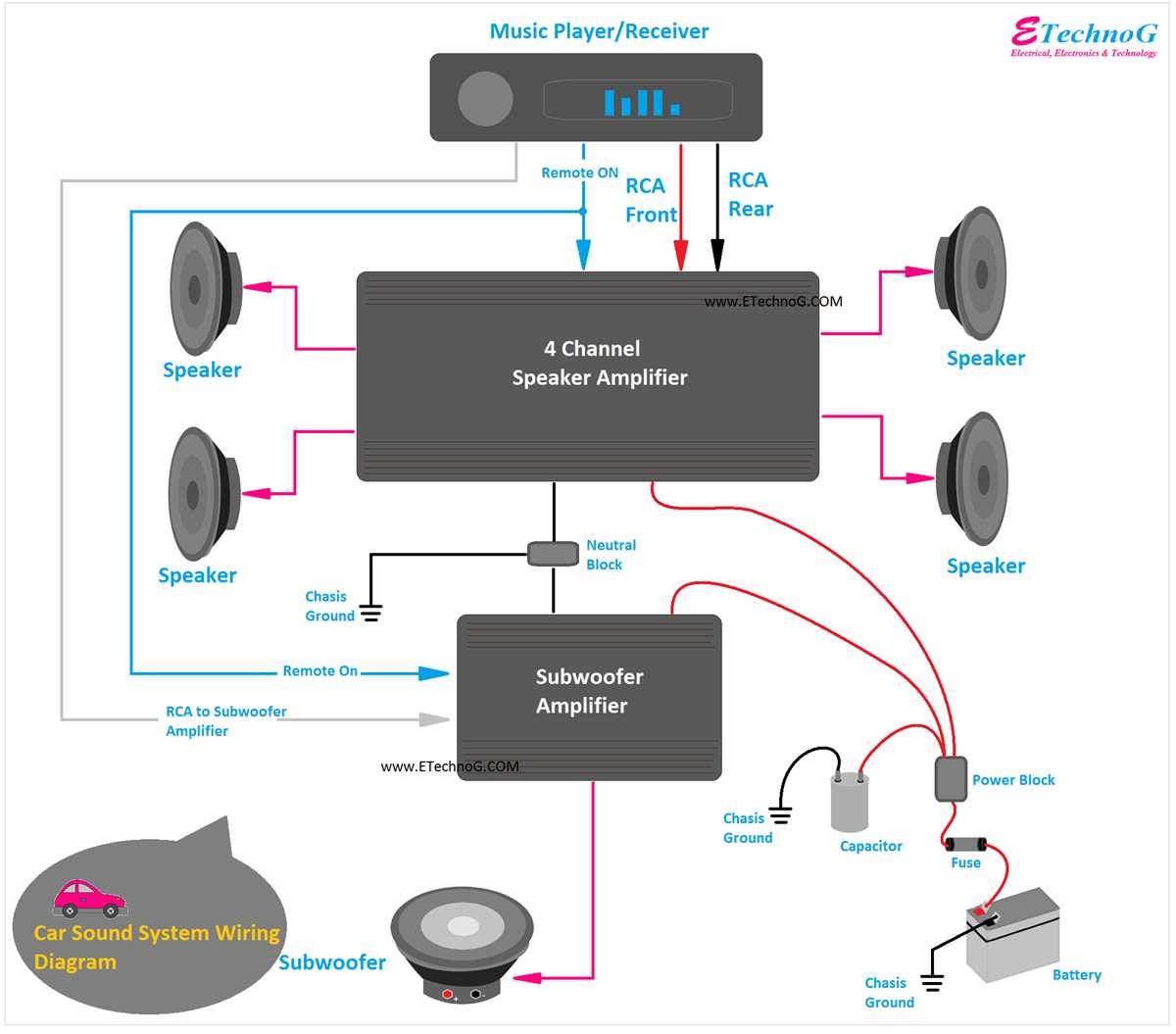

Step-by-Step Guide to Connecting Power and Ground Cables
Start by identifying the thickest cable in your setup–typically 4 AWG or lower–to handle high current draw without voltage drop. Strip ½ inch of insulation from both ends, ensuring no stray strands remain. For the power lead, attach a fuse holder within 18 inches of the battery terminal, using a fuse rated 10-15A higher than your device’s continuous current draw. Secure the cable directly to the battery’s positive post with a ring terminal crimped and soldered for reliability, avoiding battery clamps that can corrode or loosen over time.
Ground the system to the vehicle’s chassis using a bare metal point free of paint, rust, or undercoating. Locate a factory grounding bolt–often found near the battery, dashboard, or trunk–within 18 inches of your device’s location. Scrape the surface clean to expose raw metal, then sand lightly for optimal conductivity. Use a star washer between the ring terminal and chassis to prevent loosening from vibration, torquing the bolt to 18-22 lb-ft. Never ground to thin sheet metal or components like seat rails, as resistance can exceed 0.1 ohms, causing hum or thermal failure.
Route the power cable away from factory harnesses, moving parts, and heat sources like exhaust pipes. Use grommets when passing through firewall or panel holes, securing the cable every 12-18 inches with adhesive-lined clamps or zip ties to prevent chafing. Test for continuity with a multimeter before finalizing connections–ideal resistance should read under 0.5 ohms from the device’s positive terminal to the battery post and 0 ohms from the negative terminal to chassis ground. If voltage at the device drops more than 0.5V under load, recheck crimps, clean connections, or upgrade cable gauge.
After securing all terminals, reconnect the battery’s negative terminal last to prevent sparks. Monitor the system for 30 minutes under full load–no heat buildup in cables, fuses, or connections indicates proper installation. If interference affects audio, relocate the ground point or add a secondary ground strap (10 AWG minimum) directly to the chassis near the device. Avoid daisy-chaining grounds, as this raises resistance and noise. Store unused cable length in a spiral near the battery or device, coiled tightly to reduce inductance.
How to Properly Connect RCA Cables for Audio Signal Input
Use shielded RCA interconnects with at least 75-ohm impedance to minimize noise interference from nearby power sources or switching devices. Route cables away from AC lines, power transformers, and switched-mode power supplies–maintain a minimum 8-inch separation to prevent hum or buzz. Terminate connections with gold-plated connectors for corrosion resistance and signal clarity; avoid tin-plated ends in humid environments.
Key Connection Steps
- Identify the left (white) and right (red) channel outputs on the audio source–labeling prevents accidental polarity reversal.
- Plug the RCA ends firmly into the corresponding preamp outputs–apply light pressure until the connector clicks into place. Loose connections introduce resistance and signal degradation.
- Secure the other ends to the low-level inputs of the processing device–match color coding precisely. Suspect grounding issues if one channel drops out intermittently.
- Test connections with a 1 kHz sine wave signal at -10 dBV. Use an oscilloscope to verify signal integrity–fluctuations above 20 mVpp indicate improper shielding or ground loops.
For dual-channel setups, avoid running parallel RCA lines over distances exceeding 25 feet without a buffer. If longer runs are unavoidable, use balanced XLR cables with impedance-matched transformers or active line drivers. Examine cable insulation integrity–nicks or exposed conductors increase capacitance and high-frequency roll-off. Replace damaged cables immediately; partial breaks cause intermittent signal loss.
