Complete Guide to Subwoofer Wiring Connections for Car and Home Audio
For optimal performance, match amplifier impedance to the combined load of bass drivers. A single 4-ohm driver paired with a 4-ohm amplifier channel delivers maximum power without strain. Two 4-ohm drivers connected in parallel reduce impedance to 2 ohms–ensure the amplifier supports this load; most stock units fail under such demand. Parallel connections split the current, lowering resistance; series connections add impedance, restricting power flow. Use 12-gauge oxygen-free copper wire for runs under 15 feet; thicker 10-gauge cable compensates for longer distances.
Before routing cables, measure terminal spacing on the enclosure–standard posts require spade connectors, while spring clips accommodate bare wire or bullet terminals. Direct contact without connectors risks corrosion or disconnection under vibration. Crimping tools create secure joints; soldering adds durability but complicates future repairs. Label each connection at both ends to prevent polarity reversals, which cancel bass output and stress drivers. Bridge amplifier channels only if the manual confirms stability at the calculated impedance; bridging doubles voltage but halves current tolerance.
Sealed enclosures perform best with amplifiers delivering continuous power within 75-150% of the driver’s RMS rating. Ported designs demand tighter control–overpowering causes port noise, underpowering muddies midbass. Line-level inputs require shielded RCA cables to prevent interference; high-current remote wires must run separately from signal cables to avoid ground loops. Test connections with a multimeter before applying power; a 0-volt reading between negative terminals confirms a complete circuit. Faulty grounds manifest as buzzing or erratic volume changes.
Dual voice coil drivers offer flexibility but complicate setup. Parallel wiring (both positive terminals to amplifier positive) halves impedance; series wiring (first coil’s negative to second coil’s positive) doubles it. Never leave a voice coil unwired–it acts as an unloaded path, generating excessive heat. Subwoofer isolators or decoupling pads prevent energy transfer to vehicle frames, improving clarity. For home setups, place drivers at least a foot from walls to avoid standing waves; cardioid configurations cancel rear radiation by delaying one signal 180 degrees.
Track peak power draw during testing–clipping occurs when amplifier voltage exceeds rail capacity, producing distorted waveforms. Replace blown fuses with exact ratings; higher values risk permanent damage. Capacitors smooth power delivery but introduce delay–avoid them unless dealing with intermittent voltage drops. Before finalizing, play a sine wave sweep at 80% rated power; listen for mechanical noise or overheating. If the enclosure vibrates excessively, increase mounting rigidity or reposition away from resonant surfaces.

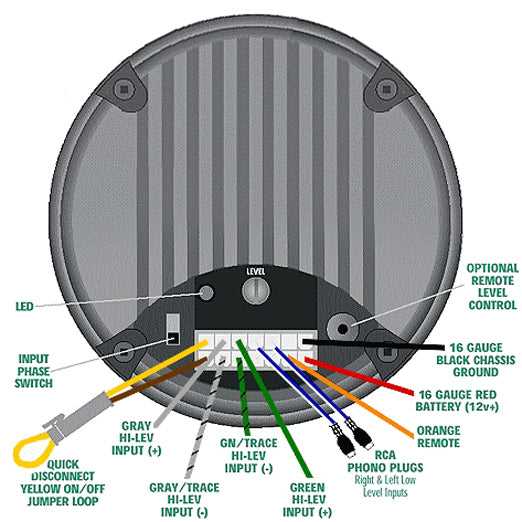

Connecting Low-Frequency Speakers: Visual Guidance
For optimal bass response, match impedance values precisely when linking multiple units. A dual-voice-coil model rated at 4 ohms per coil can be bridged to a 2-ohm mono load if the amplifier supports it–consult the power ratings first. Use 12-gauge oxygen-free copper cables to reduce signal loss over distances exceeding 10 feet, securing connections with gold-plated terminals to prevent corrosion.
Configuration Scenarios
Single-channel setups demand a direct link from the amplifier’s output to the speaker’s terminal block, ensuring the ground wire (black) connects to the negative port and the live wire (red) to the positive. For series-parallel arrangements–common with four-unit arrays–calculate total impedance using the formula: (impedance per unit × number in series) / number in parallel. Verify the result doesn’t fall below the amplifier’s minimum load capacity.

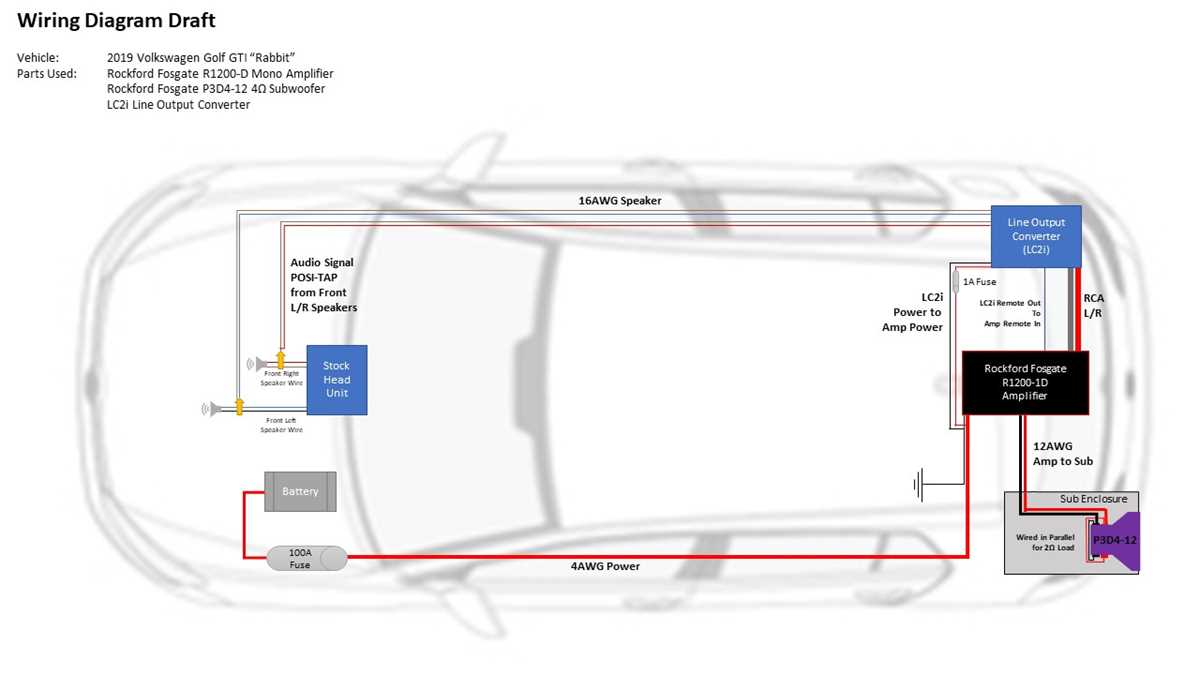

Active designs require separate power feeds: split the preamp signal with a Y-cable before routing to the amplifier’s input, maintaining isolation between high-level and low-level circuits. Dual-mode units (e.g., 4-ohm/2-ohm selectable) need careful adjustment–wire both coils in parallel for 2-ohm operation only if the amplifier’s RMS output at 2 ohms exceeds 80% of its 4-ohm rating. Always cross-check manufacturer specs for coil resistance tolerances (±10% is typical).
Ground loops can introduce noise; mitigate by connecting all components to a single chassis ground point or using a ground loop isolator on RCA cables. For sealed enclosures, wire polarity consistently–reversed connections cancel output at frequencies below 80Hz. Vented enclosure designs benefit from phase alignment; test with a sine wave at 40Hz to confirm no destructive interference occurs.
How to Select the Optimal Cable Thickness for Your Low-Frequency Speaker Installation
Begin with the power amplifier’s RMS output rating–this dictates the minimum conductor size. For systems under 200 watts RMS, 16 AWG oxygen-free copper (OFC) suffices, but anything above 300 watts demands 12 AWG or thicker. Distance compounds resistance: a 12-foot run from amp to driver requires at least 14 AWG for 500-watt loads, while 25 feet necessitates upgrading to 10 AWG to prevent signal degradation
Matching Gauge to Amplifier Load and Cable Length
| Amplifier RMS (watts) | Recommended Gauge (AWG) for 10 ft | Recommended Gauge (AWG) for 20 ft |
|---|---|---|
| 100–200 | 16 | 14 |
| 201–400 | 14 | 12 |
| 401–800 | 12 | 10 |
| 801+ | 10 | 8 |
Inspect the insulation type–XLPE or silicone outperforms PVC in high-current applications, reducing heat buildup by up to 30%. Dual conductors (positive and negative runs in a single jacket) simplify routing but demand one gauge thicker than separate cables for equivalent performance. Avoid CCA (copper-clad aluminum) wire; its resistivity is 65% higher than pure copper, forcing unnecessarily large diameters (e.g., 8 AWG CCA ≅ 4 AWG OFC)
Step-by-Step Guide to Series vs. Parallel Speaker Connection
Start with a multimeter to verify impedance levels before linking components. For series hookups, daisy-chain positive terminals from the amplifier to the first driver, then connect the negative of that unit to the positive of the next–repeat until all are linked, closing the loop back to the amp’s negative terminal. This method doubles impedance per additional element: two 4-ohm speakers result in 8 ohms total. Use 12-gauge wire for runs under 15 feet to prevent voltage drop, switching to 10-gauge for longer spans or higher power applications. Ensure all connections are soldered or secured with crimp connectors, never relying on bare wire twists, which corrode or loosen over time.
Parallel Connection Best Practices

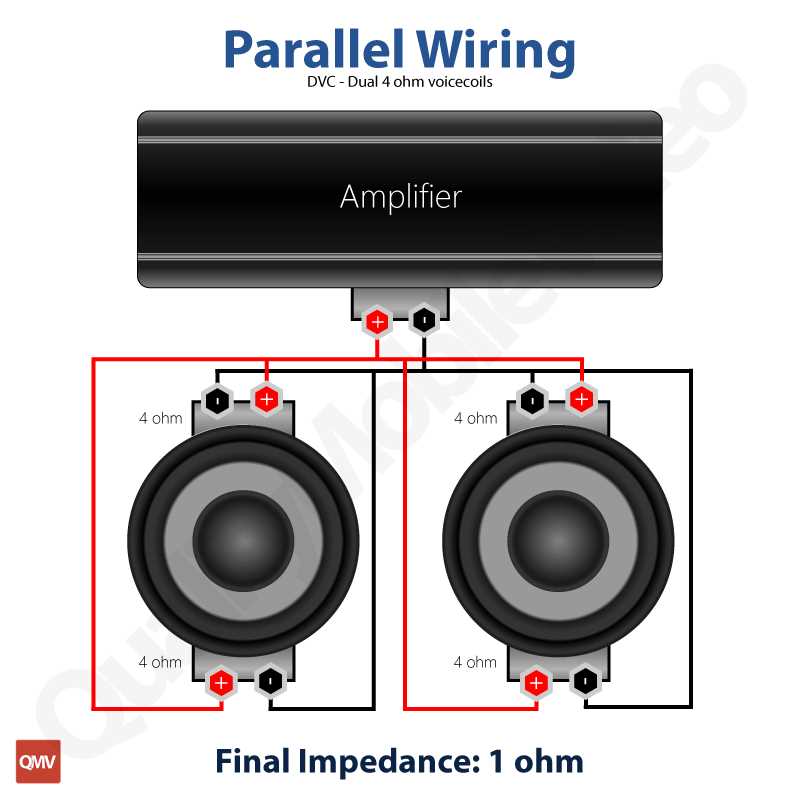

- Link all positive terminals together directly to the amplifier’s positive output, then do the same with negatives–this halves impedance: two 4-ohm drivers yield 2 ohms.
- Confirm your amplifier’s minimum impedance rating; most stable class D models handle 1 ohm, while class AB units often require 2 ohms or higher.
- For mixed loads (e.g., one 2-ohm and one 4-ohm driver), calculate total impedance using the formula:
(Z1 × Z2) / (Z1 + Z2). - Avoid exceeding 80% of the amplifier’s RMS capacity to prevent thermal shutdown–parallel setups draw more current, increasing heat output.
- Use distribution blocks for systems with more than two drivers to simplify cabling and reduce resistance.
Calculating Total Load Resistance for Single and Dual Coil Bass Drivers
To determine the combined load for a single-coil driver, consider the nominal impedance specified by the manufacturer–typically 2Ω, 4Ω, or 8Ω. Connecting multiple identical drivers in parallel reduces the total load: for two 4Ω drivers, divide the individual rating by the number of units (4Ω ÷ 2 = 2Ω). Series connections add the values linearly: two 4Ω drivers yield 8Ω. Always verify amplifier compatibility; most modern bass amps tolerate 2Ω minimum, while high-current models handle 1Ω stable loads safely.

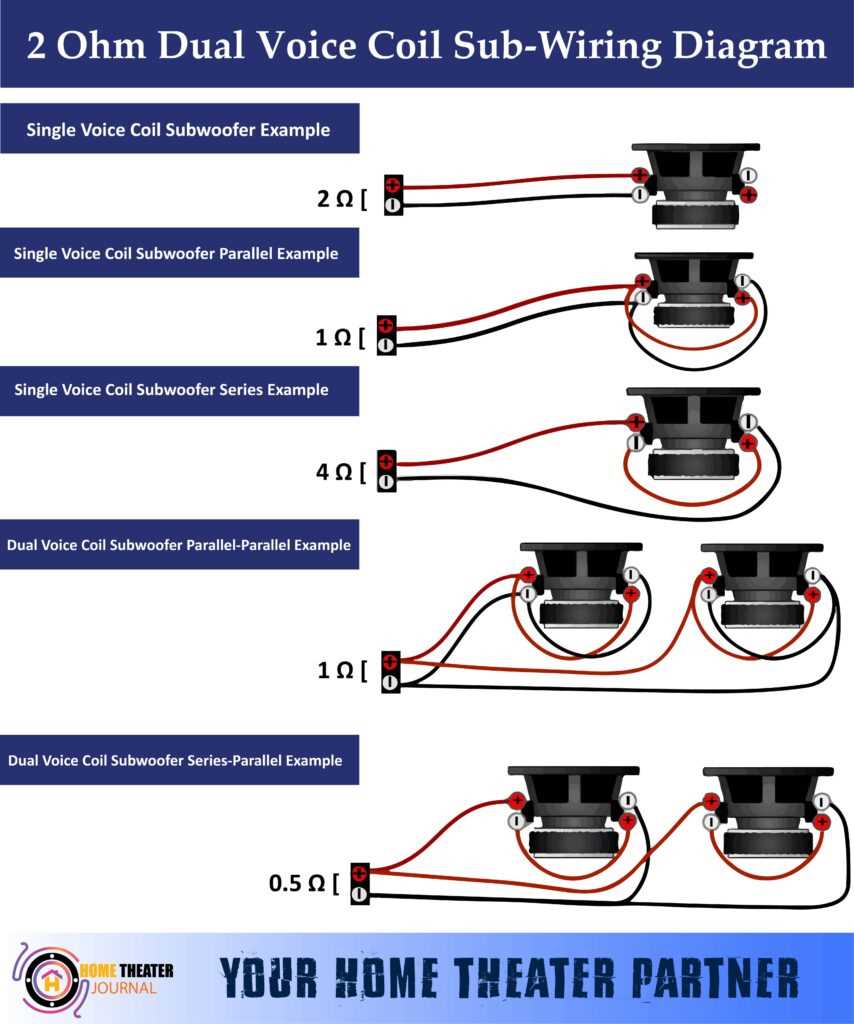

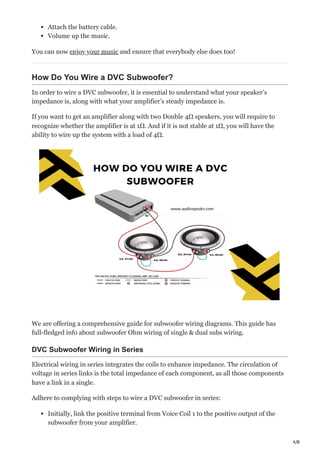

Dual-coil drivers introduce four terminal configurations: series, parallel, or independent. Series wiring (connecting one coil’s positive to the other’s negative) doubles the impedance (e.g., 2×4Ω coils = 8Ω). Parallel wiring (positive to positive, negative to negative) halves it (4Ω ÷ 2 = 2Ω). For independent coils, each remains at its nominal rating unless bridged. Use an ohmmeter post-installation to confirm calculated values–real-world measurements may deviate by ±10% due to manufacturing tolerances.
For mixed-configuration setups–such as a dual 2Ω coil paired with a single 4Ω driver–calculate each segment separately, then combine results. Parallel example: dual 2Ω coil in parallel (1Ω) + single 4Ω driver in parallel = (1Ω × 4Ω) ÷ (1Ω + 4Ω) = 0.8Ω. Series example: dual 4Ω coil in series (8Ω) + single 4Ω driver = 8Ω + 4Ω = 12Ω. Prioritize amplifier stability certificates; 0.8Ω demands Class D amps with ultra-low impedance specs, while 12Ω suits vintage tube designs.
Impedance mismatches risk thermal overload or clipped outputs. A 2Ω target with 4Ω drivers requires parallel wiring; avoid series links that exceed amplifier limits. For dual-coil models, measure each coil’s DC resistance first–discrepancies above 0.5Ω indicate manufacturing defects or fatigue. Re-calculate if adding passive crossovers or EQ circuits; each component introduces additional reactive loads, typically raising the total impedance curve by 1–3Ω above 1kHz frequencies.
Final checks: log amplifier’s RMS wattage at the calculated impedance (e.g., 400W @ 4Ω → 800W @ 2Ω). Ensure wiring gauge (12–8 AWG for 20–100A currents) matches length–voltage drop over 15ft of 12 AWG copper exceeds 0.5V at 50A. For dual-coil arrangements, use color-coded 10 AWG silicone-jacketed cables to prevent shorts from vibration. Re-test after 30 minutes of operation; voice coils warm to 120°C, increasing resistance by 20% from cold-state readings.
