Creating and Interpreting Symbol Schematic Diagrams for Engineering Designs

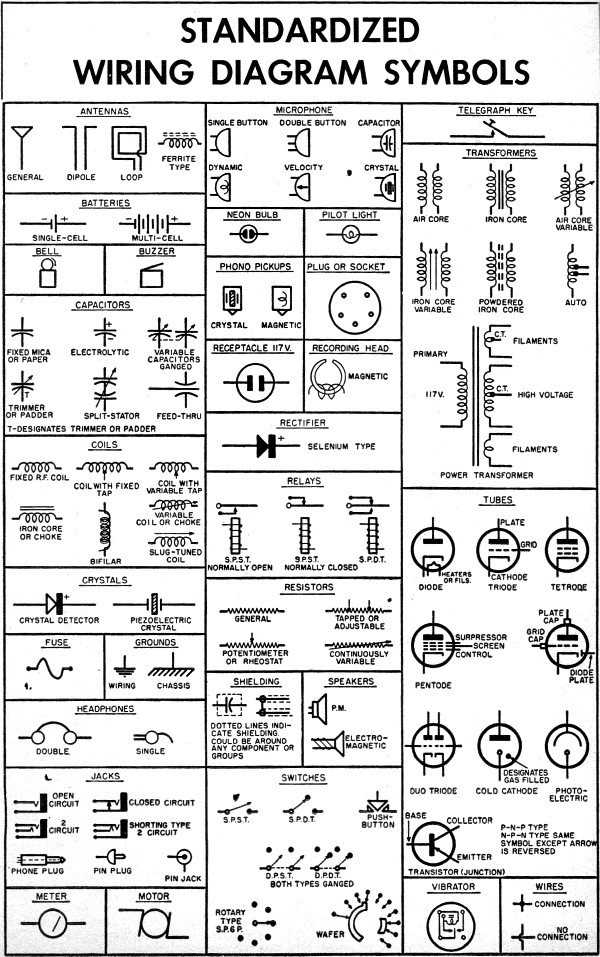

Start by selecting standardized glyphs for critical components like resistors, capacitors, or logic gates. Ensure each icon adheres to industry norms–ANSI, IEC, or IEEE standards–to avoid misinterpretation. Use concise labels adjacent to symbols, limiting them to 3-5 characters where possible, and align text horizontally for consistency. Apply a grid-based layout with uniform spacing (recommended: 2.5mm between elements) to improve readability.

Group related elements in functional blocks, using dashed or thin solid borders to separate subsystems. Highlight power rails, ground points, and signal paths with distinct line weights–0.5pt for reference connections, 0.75pt for primary flows. Avoid diagonal lines unless essential for clarity, as they introduce visual noise. Color should only indicate status (e.g., red for fault conditions), not structural roles, to maintain accessibility.

Verify the representation against the physical system by cross-referencing pin assignments, voltage levels, and signal polarities. Test the visual against real-world measurements–oscilloscope traces or multimeter readings–to catch discrepancies early. Export final versions in vector formats (SVG, PDF) to preserve scalability, and include a legend if more than 10 unique glyphs are used.

For digital systems, distinguish between synchronous and asynchronous signals with distinct glyphs (e.g., clock inputs marked with a triangle). Use busses sparingly, opting for explicit individual lines when fewer than 8 connections are involved. Annotations should be minimal but precise–specify propagation delays, voltage thresholds, or protocol types (I2C, SPI) directly on the diagram if critical.

Review the layout for ambiguity by presenting it to someone unfamiliar with the design. If they misidentify a component or connection, revise the glyph placement, sizing, or labeling. Prioritize left-to-right or top-down signal flow to match natural reading patterns, and use arrows only when direction isn’t self-evident.

Creating Technical Blueprints: A Hands-On Approach

Begin by defining a standardized legend for component markings. Use IEEE 315 or ANSI Y32.2 as baseline, but adapt it for your project’s specifics. Example:

Component Type	Marking Format	Example
Resistor	R + sequential number	R42
Capacitor	C + sequential number	C17
Inductor	L + sequential number	L5
Transistor	Q + sequential number	Q12
IC	U + sequential number	U3

Group related elements in functional blocks. Position power rails vertically on the left/right edges, with ground at the bottom. Place signal flow from left to right or top to bottom. Maintain 0.5-inch spacing between blocks to prevent visual clutter. For multi-layer boards, assign each layer a distinct color (e.g., red for top, blue for bottom) to avoid confusion during assembly.

Label every pin with its function, not just the number. Include voltage levels, signal names, and logic states for digital circuits. Example:

Pin	Label	Details
5	VCC	+5V, 500mA max
12	TXD	UART, 3.3V logic
14	GNDA	Analog ground (

Use hierarchical sheets for large designs. Break subcircuits into separate pages with consistent port naming. Number sheets sequentially (e.g., “Sheet 1 of 5”) and include a master sheet with interconnects. Add a revision table in the corner:

Rev.	Date	Description	Author
A	2023-11-05	Initial version	J. Smith
B	2023-11-12	Added pull-ups on I2C	M. Lee

Validate net connectivity before finalizing. Use tools with electrical rule checks (ERC) to catch floating pins, duplicate labels, or unconnected grounds. Set ERC parameters:

• Unconnected pins: Warning (not error)
• Power pins: Verify before approval
• Off-page connectors: Require net names

Export in both editable (SVG/EDR) and print-ready (PDF) formats. For PDFs, embed fonts at 600 DPI resolution. Include a grid reference system (A-Z vertical, 1-20 horizontal) for quick component location during debugging.

Store reference designs with your blueprints. For microcontrollers, include:

• Pinout assignment diagrams
• Bootloader configuration
• Clock tree settings (e.g., 8 MHz external crystal with 10pF caps)
• Decoupling capacitors (100nF + 10μF near each VCC pin)

Annotate critical voltages and tolerances directly on the drawing. Highlight noise-sensitive traces with dashed lines. For mixed-signal designs, mark analog/digital ground splits with heavy bold lines. Add a section for thermal considerations, specifying component spacing for natural convection (e.g., “min. 2mm clearance for SOIC-16 packages”).

How to Choose Appropriate Graphical Elements for Engineering Fields

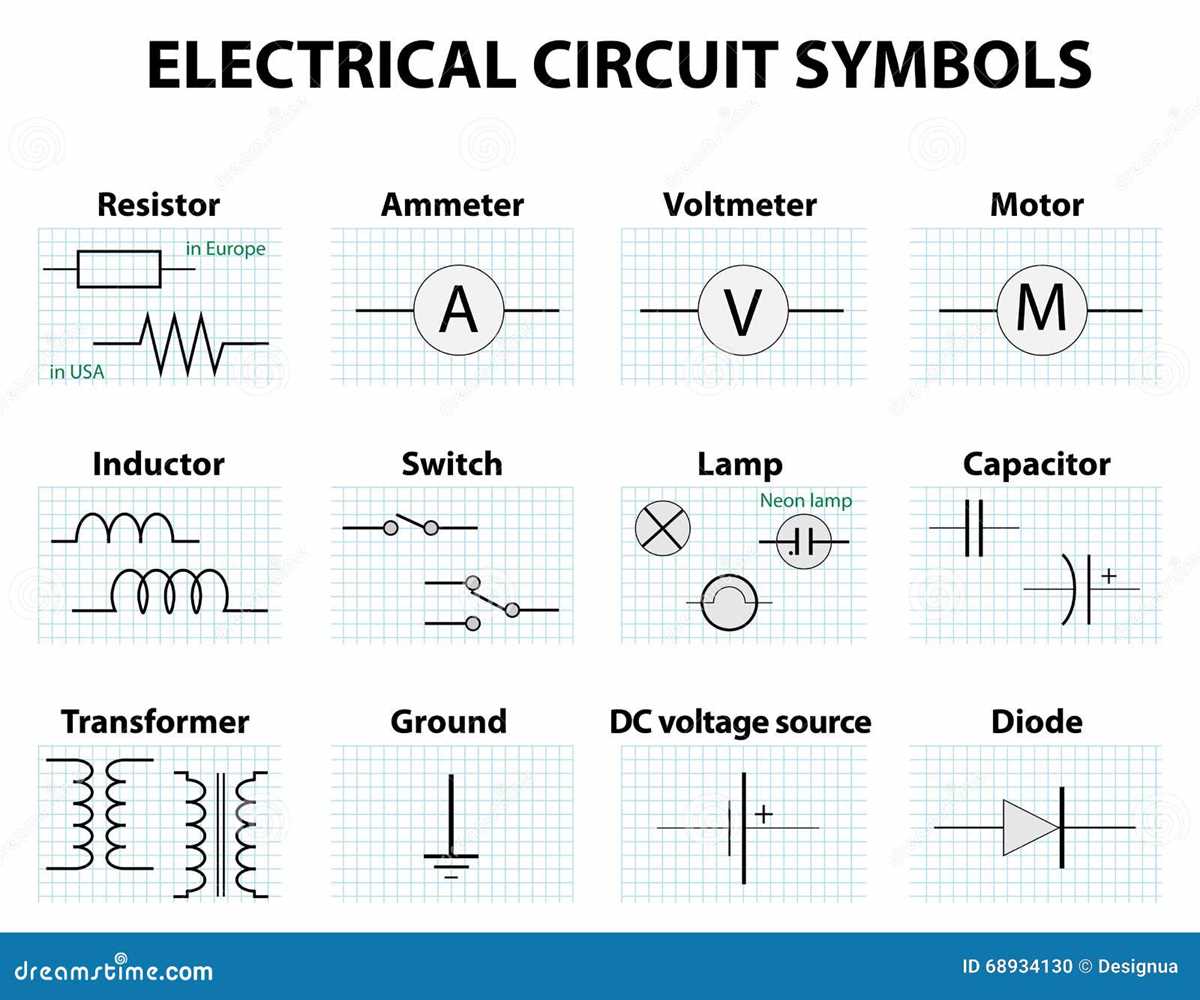

For electrical engineering layouts, prioritize IEEE/ANSI standard representations like the IEC 60617 set. Use distinct resistors with zigzag lines (R) and capacitors as parallel plates (C) with polarity marks if electrolytic. Transistors should follow BJT (arrow on emitter) or FET (arrow on gate) conventions. For integrated circuits, outline pin functions explicitly–mislabeling pins in power electronics can lead to PCB failures costing 30-50% of redesign time.

Mechanical designs demand ISO 128-24 compliance. Bearings appear as circled crosses for ball types, double circles for roller versions. Fasteners use threaded lines (M6, #10-32) with pitch indicated, while hydraulic systems require ISO 1219 pumps (circled arrows), valves (rectangles with flow paths), and cylinders (double-headed arrows). Avoid generic shapes–opt for parameterized blocks showing bore size, stroke length, and port connections for accurate BOM generation.

Civil and structural documents rely on AISC and Eurocode notations. Steel profiles show I-beams as rectangles with flanges (W12×26), channels as C-shaped outlines (C10×30), and angles with equal legs (L4×4×½). Concrete elements display reinforcement as dashed lines (rebars) with diameter and spacing (e.g., #5@12″). For piping, use P&ID standards: solid lines for process flows, dashed for instrumentation, and dotted for electrical conduits. Always cross-reference manufacturer specs–ASME B31.1 mandates pressure class markings on flanges.

Software/system diagrams adopt UML 2.5 or SysML. Class boxes split into compartments (name/attributes/operations) for OOP, while state charts use rounded rectangles for states and arrows for transitions. Hardware descriptions (VHDL/Verilog) require IEEE Std 1076 gate symbols: AND gates as flat-ended rectangles, OR gates with curved fronts. Embedded systems combine electrical and firmware notations–pull-up resistors must show value (4.7kΩ) and MCU pins label alternate functions (e.g., PA5/TIM2_CH1). Validate against IPC-2221 for assembly constraints to prevent footprint errors.

Step-by-Step Guide to Crafting Uniform Graphical Representations

Define a standard grid size for all components–0.1-inch increments work best for most CAD tools. This ensures pins align perfectly with traces and avoids misalignment during layout. Use a consistent origin point, typically the center of the part, to simplify rotation and mirroring.

Adopt a uniform naming convention for terminals. Label inputs with ascending numbers (IN1, IN2) and outputs similarly (OUT1, OUT2). Power connections should follow industry norms: VCC at the top, GND at the bottom. For multi-pin parts, group related functions (e.g., address lines A0–A15) with sequential numbering.

Set fixed dimensions for shapes: rectangles for ICs, circles for discrete components. Use 0.05-inch line widths for outlines and 0.03-inch for internal details. Reserve thicker lines (0.07-inch) for connectors or high-current paths. Avoid arbitrary scaling–stick to these metrics for all elements.

Limit text to essential labels. Use a single font family (sans-serif for clarity) and standard sizes: 0.05-inch for pin numbers, 0.08-inch for part identifiers. Place text horizontally for readability; avoid vertical or angled labels unless necessary. Include a reference designator (R1, U5) in the same position for every part type.

Layer Organization

Separate graphical elements onto distinct layers. Dedicate one layer for outlines, another for internal details, and a third for text. Use consistent colors: black for active elements, gray for hidden or background lines. This simplifies editing and ensures visibility when layers are toggled.

Create reusable templates for common part types. Store templates in a shared library with version control. Update all instances when modifying a template to maintain consistency. Test new representations in a sample project before rolling out library-wide changes.

Validate each graphical element against its physical counterpart. Check pin counts, spacings, and functional groupings. Use a checklist to verify compliance with industry standards (IEEE 315, IEC 60617) for specialized components like transistors or relays. Document deviations for future reference.

Export final representations in both vector (SVG, DXF) and raster (PNG at 600 DPI) formats. Include metadata: part number, manufacturer, and revision date. Store files in a structured directory with clear naming (e.g., “MOSFET_N-CHANNEL_V1”). Archive obsolete versions separately to avoid confusion.

Common Mistakes to Avoid When Creating Circuit Graphics

Neglecting pin numbering consistency leads to assembly errors. Always verify each component’s datasheet and label pins sequentially–starting from 1 for ICs, with clear clockwise or counterclockwise progression. Mixed or omitted numbers cause miswiring, especially in connectors and multi-pin devices. For resistors, capacitors, or diodes, ensure the anode/cathode or positive/negative terminals align with industry conventions (e.g., banded end as cathode). Discrepancies between labels and physical layout waste debugging time.

Overcomplicating designs with ambiguous or redundant markings increases errors. Follow these rules:

• Use standard abbreviations (V_CC, GND, IN, OUT) instead of custom text.
• Avoid merging unrelated functions into single shapes–split complex blocks into subcircuits.
• Label test points and critical nodes (e.g., TP1, CLK_GEN) for easier troubleshooting.
• Exclude decorative elements; stick to functional lines (solid for wires, dashed for buses).
• Validate polarity in electrolytic capacitors and diodes–reverse connections damage components.
• Check orientation for polarized parts like MOSFETs (source/drain) and LEDs (flat side to cathode).
