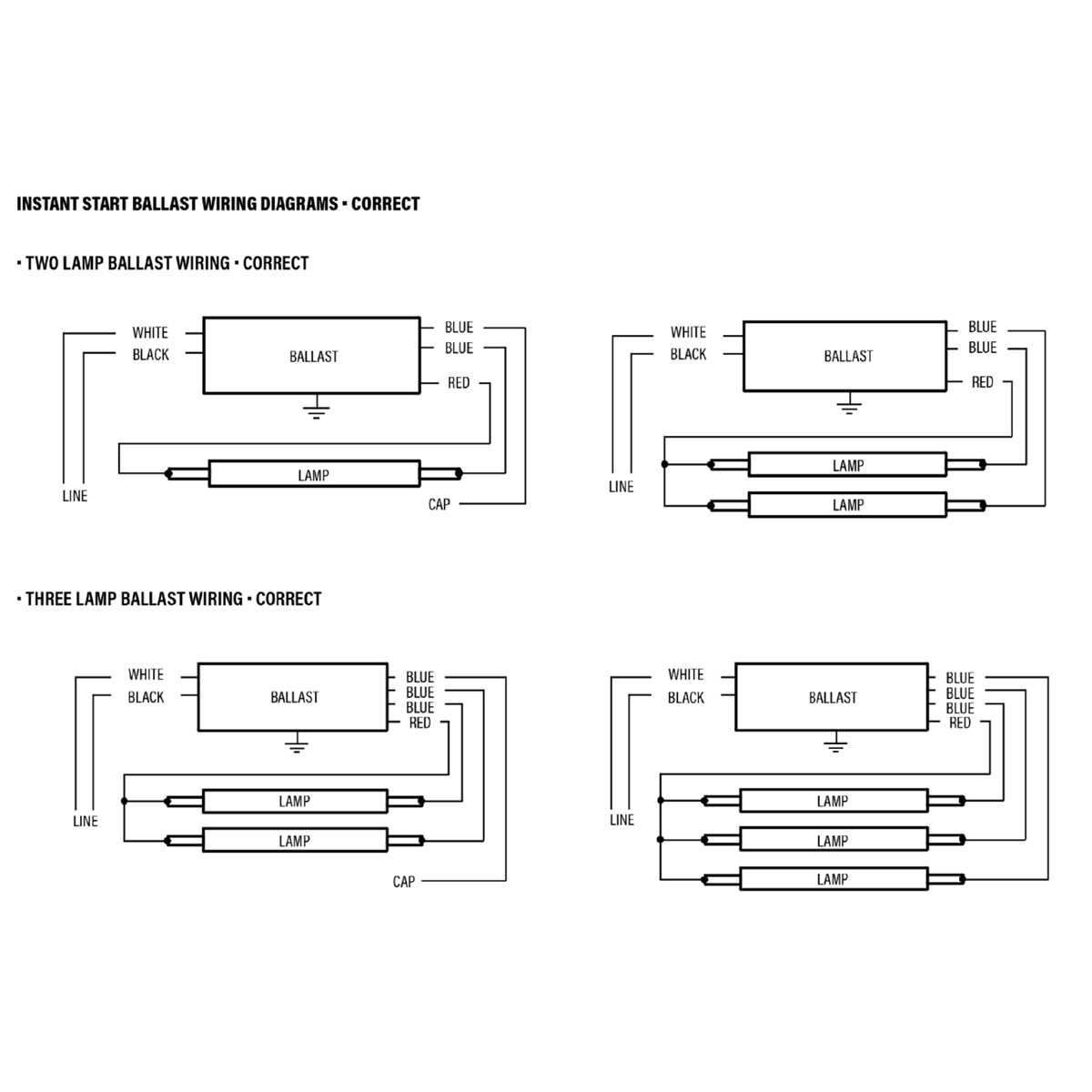

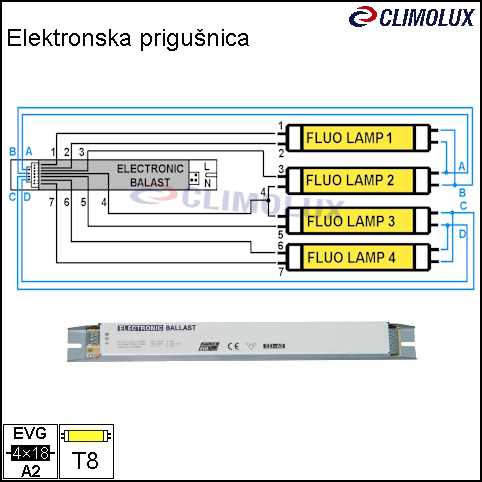

Step-by-Step T8 4 Lamp Ballast Wiring Guide with Diagram

Start with a rapid-start electronic control gear rated for 4 tubes at 32W each. Verify the input voltage matches your mains supply–most modern units handle 120V-277V AC, but check the label for exact specifications. If the fixture uses high-lumen output tubes, ensure the selected gear supports constant wattage operation to prevent premature burnout.

Locate the power entry leads–typically marked L (line) and N (neutral). Strip 10mm of insulation from each wire, then crimp with ring terminals if the gear includes screw-down connectors. For shunted socket configurations, confirm the socket tabs are bridged internally; non-shunted sockets require jumper wires between adjacent tube pins (pins 1 to 1 and 4 to 4 on each G13 base).

Trace the secondary control lines from the gear output. Most 4-tube units split into two pairs of dual-channel outputs, each feeding a pair of tubes. Attach the blue wire to pin 1 on the first tube in each pair, the red wire to pin 4. If the gear lacks color coding, refer to the etched symbols: “△” indicates the start pin, “⏚” denotes the common return.

Avoid mixing programmed-start and instant-start circuitry–programmed gear requires a dedicated filament heating circuit, adding an extra yellow lead per tube. For instant-start setups, connect only the blue and red outputs, ignoring filament wires. Always secure unused filament leads with wire nuts to prevent shorts.

Test continuity before energizing: set a multimeter to ohms mode and probe each socket pin against the opposite socket pin–resistance should read 2-8 ohms. If readings exceed 20 ohms, inspect for loose socket connections or corroded contact surfaces. Apply dielectric grease to socket terminals in high-humidity environments.

Finalize grounding: attach a 14 AWG bare copper wire from the gear chassis to the fixture’s metal frame, then bond the frame to the building ground via the junction box. Missing this step risks RF interference and potential shock hazards under fault conditions.

Electrical Hookup Guide for T8 Four-Tube Fluorescent Fixtures

Begin by confirming the fixture’s voltage rating matches the supply line–most four-tube units operate on 120V or 277V. Use a multimeter to verify live wires before handling; incorrect voltage identification risks equipment damage or electrical shock. Label each conductor immediately upon exposure: black (hot), white (neutral), and red or blue (secondary circuit paths). Secure terminal connections with wire nuts rated for 600V minimum, ensuring no copper strands protrude beyond the insulated cap.

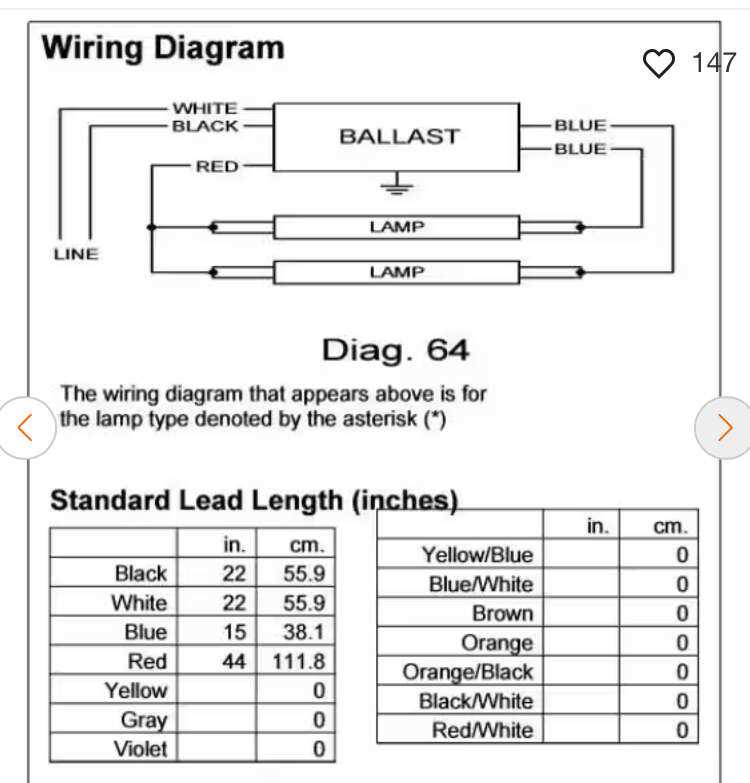

Refer to the schematic printed inside the housing cover for model-specific terminal assignments–generic layouts often misalign with manufacturer deviations. For instant-start configurations, connect the black input wire directly to the primary coil entrance, then bridge remaining tubes in parallel using jumpers from the first tube’s output terminal. Rapid-start variants require separate starter leads; ignore these only if bypassing built-in igniters during retrofit projects.

Component Compatibility Table

Fixture Type	Recommended Tube Length	Max Supported Current (mA)	Typical Wire Gauge
Instant-start	4 ft	265	18 AWG
Rapid-start	2 ft	425	16 AWG
Programmed-start	8 ft	300	14 AWG

Shield exposed conductors with electrical tape only after verifying connectivity with a non-contact voltage tester–temporary wraps risk slippage during installation. Avoid splices within the fixture housing; run continuous conductors from source to device terminals whenever possible. Ground fault interrupters must bypass the internal circuitry entirely; route a dedicated green or bare wire directly from the supply ground bus to the chassis screw, tightening to 12 in-lbs torque.

For dimming applications, ensure the control module’s minimum load rating exceeds the combined tube wattage–typically 32W per tube for 4 ft lengths. Swap standard magnetic regulators with electronic counterparts only after confirming input capacitance tolerance; undersized capacitors overheat under sustained dimming operations. Match the dimmer’s voltage range precisely; 1-10V analog signals require isolated low-voltage conduits separate from power lines.

Troubleshooting Sequence

If tubes flicker or fail to ignite, isolate the circuit first:

• Inspect for loose terminal screws (torque: 8 in-lbs).
• Test each tube socket with a known-good replacement unit.
• Measure input voltage drop across primary terminals (acceptable: ±5%).
• Bypass internal jumpers temporarily to identify faulty coils.

Capacitor leakage manifests as warm housing touches but normal voltage readings–replace suspect components with identical microfarad ratings.

Follow NEC Section 410.130 for junction box strain relief; clamp cords entering the housing within 12 inches of entry points. Seal unused knockout holes with UL-listed plugs to prevent rodent ingress; aluminum fixtures corrode rapidly when exposed to condensing moisture. Verify local AHJ amendments–some jurisdictions mandate arc-fault protection for shared neutrals in multi-tube setups.

Prioritize disconnecting upstream breakers before servicing–even low-wattage fluorescent circuits store hazardous residual current in internal capacitors. Use polarized test leads when probing live terminals; reversed polarity readings during diagnostics mimic coil failures. Document all modifications with indelible markers inside the housing lid for future reference.

Key Elements of a T8 Four-Tube Fluorescent Control Gear Configuration

Start by identifying the input leads on the control gear–typically marked as “L” (live), “N” (neutral), and ground. Connect these directly to the mains supply, ensuring the voltage matches the gear’s rating (120V, 277V, or 220-240V). Misalignment here will cause immediate failure or erratic startup.

Examine the output sockets–four pairs for the tubes, each consisting of one rapid-start (filament) and one shunted (common) terminal. Avoid mixing these: filament wires (often red, blue, or yellow) must attach to the corresponding tube pins, while the shunted side handles the main current. Reversing them will prevent ignition.

Check the capacitor embedded in the gear–some units integrate a power-factor correction component (marked µF). If absent, external capacitors may be required for compliance with local energy codes. Verify capacitance values (usually 4-8 µF for 4-tube setups) to avoid overloading the circuit.

Use 18-gauge solid copper wires for filament connections and 16-gauge stranded for shunted links. Twist strands tightly before securing them under terminal screws to prevent loose connections, which cause flickering or overheating. Soldering is unnecessary; properly torqued terminals suffice.

Sequence matters: hook up tubes in pairs to balance load. Start with the first tube’s filament wires to the gear’s first output slot, then bridge the shunted side to the second tube. Repeat for the remaining two tubes. Skipping this step overloads one channel, shortening gear lifespan.

Troubleshooting Missteps

If tubes glow dimly or fail to ignite, probe the starter bypass–modern rapid-start gears eliminate this component, but some retrofit kits retain it. Remove any lingering starters from the socket to avoid conflicting signals.

For buzzing or humming, inspect the gear’s mounting: secure it to a grounded metal surface (e.g., fixture chassis) using non-conductive standoffs if the unit lacks internal shielding. Loose mounting transfers vibrations, magnifying noise.

Measure current draw per channel: exceeding 0.3A per tube suggests a mismatched gear or deteriorating tube cathodes. Replace tubes first; if the issue persists, swap the gear for a higher-capacity model.

Step-by-Step Guide to Connecting Conductors in a T8 Fluorescent Fixture Setup

Begin by identifying the power supply leads–typically black (hot) and white (neutral)–from the main circuit. Strip 1/2 inch of insulation from each conductor using wire strippers, then match the fixture’s input terminals: attach the hot wire to the marked line-side terminal and the neutral to its corresponding slot. Verify the fixture’s rating aligns with the circuit breaker (e.g., 120V or 277V) to prevent overload. For a four-tube setup, locate the output pairs–each tube requires one red and one blue lead per socket; consult the schematic for polarity if marked.

Sequence for Secure Connections

1. Disconnect all power at the breaker; test circuits with a multimeter to confirm zero voltage.
2. Group sockets by pairs: tubes 1-2 share one output set, tubes 3-4 the other. Connect red leads to one side of each socket, blue to the opposite.
3. Twist compatible bare ends (e.g., same color) together, then cap with a wire nut, ensuring no exposed copper remains.
4. Tuck conductors neatly into the chassis, avoiding sharp edges that could fray insulation.
5. Recheck all joints by gently tugging–loose connections cause flicker or failure.
6. Restore power and observe startup; tubes should ignite within 1-2 seconds. If delayed, re-examine socket connections for reversed polarity.

• Use 18-gauge solid copper wire for extensions if factory leads are short.
• Label each terminal with masking tape if working on multiple units to avoid confusion.
• Ground the fixture’s green/yellow wire to the metal housing or grounding screw if present.

Critical Errors in Installing a 4-Tube Fluorescent Driver

Ignoring polarity on non-shunted sockets causes immediate failure–red wires must align with the socket’s marked terminal, not the nearest connection point. Most 120V models tolerate minor reversals, but 277V configurations demand strict adherence; a single misplaced lead can arc across the entire fixture, tripping breakers or melting insulation within minutes. Always test socket continuity with a multimeter before energizing, even if the connector appears identical on both ends.

Overlooking Tandem Pathways

Tandem wiring requires sequential routing–skipping a single terminal in the chain forces the remaining tubes to operate at uneven current, reducing lumen output by up to 30% and accelerating phosphor degradation. Verify the driver’s label: rapid-start units need both ends of each tube connected to distinct output leads, while instant-start models only require a single lead per end. Use 18-gauge solid conductor for distances under 12 feet; stranded wire introduces impedance variability that distorts startup behavior.

Grounding the metal chassis only to the frame’s dedicated screw hole prevents stray voltage–attaching it to any painted surface or enclosure joint creates a high-resistance path, leading to intermittent flicker or premature component fatigue. Mount the driver at least 2 inches from any conductive surface to avoid thermal throttling; most electronic units derate power output by 5% per degree Celsius above 40°C ambient. Keep input and output leads separated by a minimum 0.5-inch gap to prevent capacitive coupling, which can induce harmonic noise detectable in occupancy sensors and radio-frequency devices.
