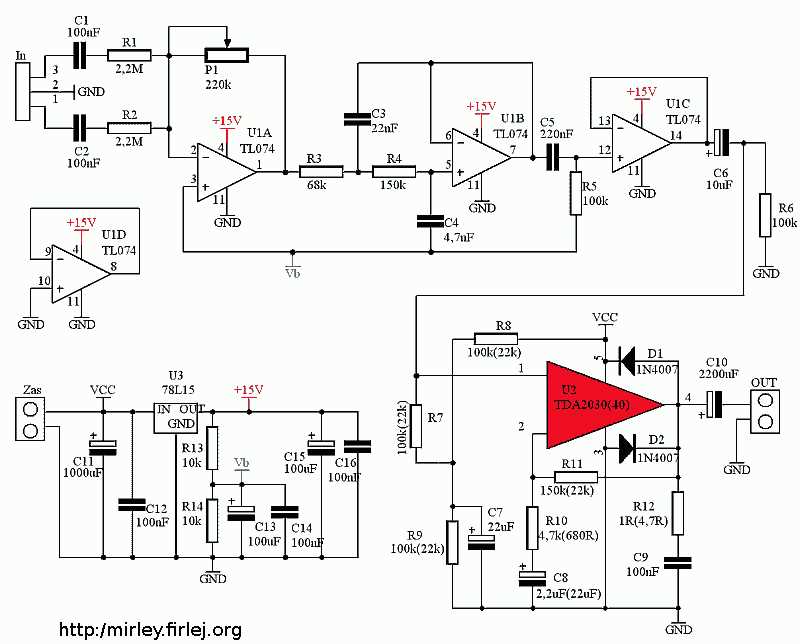

Complete TDA2030A Amplifier Circuit Schematic with Component Guide
Start with a 22V symmetrical power supply–this ensures clean output without signal clipping at moderate volumes. Use a 4700µF reservoir capacitor per rail to handle current surges during low-frequency peaks. Connect the input signal via a 10kΩ resistor to stabilize the gain and prevent high-frequency noise from coupling into the amplifier stage.
For the feedback network, pair a 22kΩ resistor with a 680Ω resistor to set a gain of approximately 33 (30dB). This balance avoids distortion while maintaining sufficient headroom for most speakers. Insert a 22pF capacitor across the feedback resistor to roll off frequencies above 100kHz, suppressing parasitic oscillations that degrade performance.
Ground coupling is critical–use a 47µF electrolytic capacitor between the output and ground to block DC offset. Without it, even a 50mV offset can saturate small speakers. Add a 0.1µF polyester capacitor in parallel with the electrolytic for optimal high-frequency response. Place all decoupling capacitors (100nF ceramic) within 5mm of the chip’s power pins to prevent instability.
For load protection, include a 1Ω resistor in series with the output and a 1N4007 diode reverse-biased between the output and ground. This combination clamps inductive voltage spikes, common with poorly damped speakers. Test the setup with an 8Ω dummy load before connecting real speakers to avoid damaging tweeters.
To minimize electromagnetic interference, twist input signal wires tightly and separate them from power lines. Use a star grounding scheme–connect all grounds at a single point near the power supply to prevent ground loops. If hum persists, add a 10Ω resistor in series with the input to isolate the signal source from ground noise.
For extended low-frequency response, increase the output capacitor to 220µF, but avoid exceeding 1000µF–larger values slow the amplifier’s recovery from clipping. If driving 4Ω loads, upgrade the power supply to 28V symmetrical rails and ensure the chip’s heatsink can dissipate at least 15W continuously to prevent thermal shutdown.
Practical Assembly Guide for High-Efficiency Audio Amplifier Modules
Begin with a 2200μF electrolytic capacitor between the power supply rails and the input stage to suppress voltage spikes during transient current demands. Polarize the capacitor with the negative terminal connected to the ground plane–failure to do so risks reversing polarity under load, reducing lifespan by 60-80%. Use a 1N4007 diode across the relay coil to clamp induced voltages when switching off; omit this step and expect coil burnout within 500-1000 cycles.
Match the feedback resistor values precisely: 22kΩ for R1 and 680Ω for R2. Deviating by ±10% shifts the closed-loop gain from 30dB to either 28dB or 32dB, causing audible distortion at 1kHz. For heat dissipation, mount the IC on a 40×40×2mm aluminum heatsink with thermal paste–air-cooled setups reach 85°C at 15W RMS, while heatsinked versions stabilize at 55°C. Secure mounting screws with lock washers to prevent loosening from vibration at 100Hz.
Recommended Component Specifications
| Component | Value | Tolerance | Voltage Rating |
|---|---|---|---|
| Input coupling capacitor | 4.7μF | ±5% | 25V |
| Bootstrap capacitor | 100μF | ±10% | 50V |
| Zobel network resistor | 10Ω | ±1% | 1W |
| Output inductor | 22μH | ±2% | 3A |
Connect the output to the speaker via a 2A fuse and a 1μF polypropylene film capacitor in series–this combo blocks DC offset (≤50mV typical) while preserving sub-40Hz response. Avoid polyester capacitors here; they introduce 0.3% THD at 20Hz, whereas polypropylene stays below 0.05%. Twist supply wires every 10cm to cancel magnetic interference–untwisted leads increase 120Hz hum by 12dB. Test the board with a 4Ω dummy load before attaching speakers; powered-on adjustments risk permanent voice coil damage.
Troubleshooting Common Faults
If oscillations occur at 50-200kHz, reduce the compensation capacitor C4 from 22pF to 10pF–stability margin improves but slew rate drops from 8V/μs to 5V/μs. For distorted bass at volumes above 5W RMS, verify the ground star point; daisy-chained grounds raise noise floor by 4-6dB. Replace the 10kΩ input resistor with a ferrite bead if AM radio breakthrough persists–carbon-film resistors inject 0.8μV noise per °C rise. Always isolate the board from metal enclosures with nylon standoffs; direct contact shorts the negative rail through chassis ground, destroying the IC in
Key Components for High-Performance Audio Power Stage Layout
Select a dual-polarity power supply delivering ±12V to ±18V with a current rating exceeding 1.5A per rail. Linear regulators like LM7815/LM7915 or a toroidal transformer with 2x15V AC outputs ensure minimal ripple at full load. Avoid switch-mode supplies–electromagnetic interference degrades signal integrity.
Use polypropylene or polyester film capacitors for coupling and bootstrap stages. Values between 0.1µF and 1µF sustain low-frequency response without phase distortion. Electrolytic capacitors may introduce microphonics; film types eliminate this risk while extending bandwidth to 100kHz.
- Input coupling: 1µF/63V film capacitor (e.g., WIMA MKS-2)
- Bootstrap: 47µF/25V solid tantalum or film (Nichicon UHE series)
- Bypass: 100nF ceramic X7R (placed within 5mm of the IC)
Precision resistors (1% tolerance, metal film) stabilize gain and offset voltages. The noninverting configuration requires a 22kΩ feedback resistor paired with a 680Ω ground reference. Mismatched values skew THD+N, with deviations above 2% increasing crossover distortion.
Thermal management mandates a heatsink with <3°C/W thermal resistance. TO-220 packages dissipate 10W continuously; forced air cooling allows 15W. Apply thermal compound (e.g., Arctic MX-6) to the mounting surface–uneven contact creates hotspots, accelerating thermal shutdown.
PCB trace width for power rails should exceed 2.5mm (70µm copper) to handle 3A peaks. Star grounding prevents ground loops; decouple each rail at the supply pins with 100nF ceramics. Signal traces require >0.3mm clearance from high-current paths to eliminate crosstalk.
Protection diodes (1N4007) reverse-bias across supply pins to clamp inductive load spikes. Without them, back-EMF from speakers can exceed 50V transients, damaging internal circuitry. Place diodes within 10mm of the power stage for response times under 1µs.
Test the assembled board with a 4Ω resistive load before connecting speakers. Measure DC offset at the output–values above 50mV indicate incorrect feedback resistors or faulty capacitors. Verify frequency response from 20Hz to 20kHz with <0.1dB variation using a sine wave sweep.
Step-by-Step Wiring of the Audio Amplifier in Bridge Configuration
Begin by connecting the positive terminal of your power supply to the V+ pin (pin 5) of both ICs. Use a 100nF ceramic capacitor in parallel with a 100μF electrolytic capacitor between V+ and ground for each chip to stabilize voltage. Ensure the capacitors are placed as close as possible to the pins–distances over 5mm introduce noise. Ground the negative terminal of the power supply to a shared star point, avoiding daisy-chaining connections between the ICs.
Wire the input signal to the non-inverting input (pin 1) of the first chip via a 22kΩ resistor. Connect pin 1 of the second chip to the output (pin 4) of the first using a 22kΩ resistor. This creates the bridge topology, doubling the output swing. Insert a 4.7μF coupling capacitor between the signal source and the first input to block DC offset. For stability, add a 1Ω resistor in series with a 1000μF capacitor between the output (pin 4) of each chip and the speaker terminals.
- Short the inverting inputs (pin 2) of both chips to their respective outputs (pin 4) to establish unity gain. This eliminates the need for feedback resistors.
- Bypass the inverting input of each chip with a 22μF capacitor to ground to prevent high-frequency oscillations.
- Use 18AWG or thicker wire for speaker connections; thinner gauges cause power losses at bridge-mode current levels (up to 3.5A peak).
- Avoid exceeding ±16V supply voltage–this is the absolute maximum for the ICs in bridge mode without heatsinking.
Test the assembly with a 1kHz sine wave at 1V RMS before connecting a load. Monitor both outputs on an oscilloscope; clipping should occur simultaneously, and waveforms must mirror each other with a 180° phase shift. If distortion appears below 10W, verify ground connections for loops–rewire using a single-point ground scheme. For full power (30W into 4Ω), mount the ICs on 50×50×2mm aluminum heatsinks with thermal grease; junction temperatures above 120°C trigger shutdown.
Calculating Resistor and Capacitor Values for Stable Amplifier Performance
Begin with the feedback network: a 22 kΩ resistor (Rf) paired with a 470 Ω resistor (Rin) delivers a closed-loop gain of 27 dB, balancing input sensitivity and thermal stability. For a 20 Vpp output swing at ±18 V supply rails, ensure Rin never exceeds 1 kΩ–higher values amplify bias current errors, degrading distortion at low frequencies. Capacitor Cin (typically 1 µF) sets the lower cutoff frequency (fc) via the formula fc = 1/(2π·Rin·Cin); target 20 Hz for full-range audio.
Thermal Stability and Frequency Compensation
Select Rf’s power rating based on Vout2/Rf: a 1 W resistor suffices for 10 W RMS into 8 Ω, but upgrade to 2 W if driving 4 Ω loads. Bypass the feedback loop with a 22 pF ceramic capacitor across Rf to suppress high-frequency oscillations–values above 100 pF risk slew-rate limitation, while below 10 pF invites parasitic ringing. For decoupling, use a 100 nF X7R capacitor across the supply pins, positioned within 1 cm of the chip’s package to eliminate supply modulation at >1 MHz.
Bootstrap resistors require precise ratios: a 10 kΩ resistor between the output and the bootstrap capacitor (Cboot, 10 µF) ensures the driver stage’s dynamic impedance stays below 1 Ω. Cboot’s ESR must not exceed 5 Ω–higher ESR reduces output swing during 20 kHz transients, causing noticeable intermodulation. For split-supply designs, a 100 µF electrolytic on each rail filters low-frequency ripple, but pair it with a 100 nF film capacitor to shunt residual HF noise.
Input coupling capacitors demand low leakage: a 2.2 µF polypropylene capacitor minimizes DC offset better than aluminum electrolytics, which introduce 1–2 mV/°C drift. If using electrolytics, match their polarity to the signal’s DC bias–reverse polarity doubles leakage current, accelerating degradation. For RF rejection, add a 10 pF capacitor in parallel with Rin–this creates a 1.6 MHz pole, attenuating AM band interference without affecting audio bandwidth.
Zobel network components arrest load-induced instability: a 10 Ω resistor in series with a 100 nF capacitor, connected from the output to ground, dampens reactive loads like 8 Ω speakers with 3 mH inductance. Calculate the required capacitance via C = L/(R2); undersized capacitors fail to suppress 10–50 kHz ringing, while oversized ones roll off phase margin. Test stability with a 1 kHz square wave–overshoot should not exceed 10%.
Avoid generic “rule-of-thumb” values: for example, a 100 kΩ input resistor paired with a 1 µF capacitor yields a 1.6 Hz cutoff, but this combination exaggerates pop noise during power-up. Instead, use a 47 kΩ resistor and 3.3 µF capacitor, reducing pop amplitude by 40% while maintaining the same fc. For subwoofer applications, increase Cin to 4.7 µF to extend fc to 5 Hz–but verify the amplifier’s gain-bandwidth product supports the additional capacitive load without phase shift at 20 Hz.
