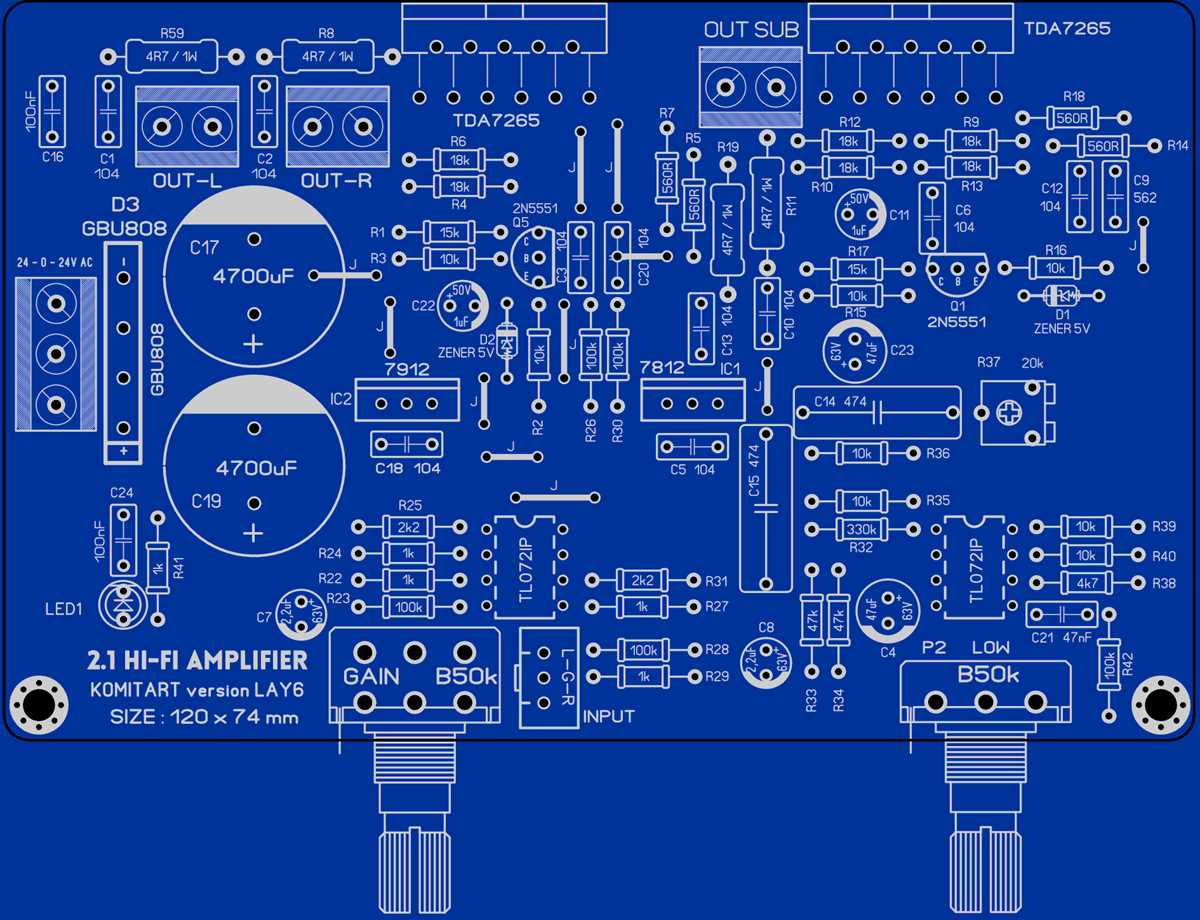

TDA7265 Amplifier Full Circuit Diagram with Component Layout Guide
For reliable stereo amplification in compact designs, begin with a dual-channel IC rated at 25W per channel into 4Ω loads. Use a symmetrical power supply (±15V to ±22V) to ensure consistent output without distortion–measure ripple suppression by adding 4700µF capacitors directly at the IC’s supply pins. Bypass these with 0.1µF ceramic capacitors to eliminate high-frequency noise.
Grounding demands precision: separate analog and power grounds, connecting them at a single point near the power source. Avoid daisy-chaining grounds, as this introduces cross-talk. For input signals, couple via 1µF non-polarized capacitors to block DC offset, while output coupling requires 2200µF electrolytic capacitors to handle low-frequency response without roll-off below 20Hz.
Thermal management is critical–attach a 5°C/W heatsink to the IC’s exposed pad, ensuring silicone grease minimizes contact resistance. Without this, thermal throttling activates at 25W output, degrading performance. For input impedance matching, use a 20kΩ resistor to ground, balancing sensitivity and noise rejection.
Verify oscillation stability with a 10Ω resistor in series with a 100nF capacitor across each output–this damps high-frequency ringing at load transitions. Component placement matters: keep input traces short (under 2cm) and shielded to prevent EMI pickup from switching supplies or nearby digital circuits.
Test with a 1kHz sine wave at 1W output–measure THD+N (should not exceed 0.5%) using an audio analyzer. If distortion spikes at high frequencies, reduce gain by increasing the feedback resistor (start at 22kΩ). For bridging applications (mono operation), reconfigure outputs with a 180° phase shift, doubling power into 8Ω loads but requiring a ±25V supply.
Building a Stereo Amplifier: Step-by-Step Wiring Guide
Begin by connecting the power supply to the chip’s pins 5 (+Vs) and 3 (-Vs), ensuring a stable 12V-25V input with a minimum 3A capacity. Use a dual-rail configuration with two capacitors (1000µF each, 35V rating) placed as close as possible to these pins to filter voltage fluctuations. Failure to observe this placement may result in audible hum or instability under load.
Input and Output Connections
Route the audio signal through a 1µF non-polarized capacitor to pin 7 (left channel) and pin 11 (right channel). Bypass each input with a 22µF ceramic capacitor to ground to suppress high-frequency interference. For outputs, attach 470µF electrolytic capacitors in series with pins 2 (left) and 14 (right) to block DC offset before reaching the speakers–omit this step only if using a DC-coupled load, which risks permanent damage.
- Speaker impedance must match 4-8Ω for optimal performance; lower values force the chip into thermal shutdown.
- Thermal pad (pin 6) requires direct mounting to a heatsink (minimum 10°C/W) even at moderate volumes (2W).
- Ground loops can be minimized by star-grounding–connect all grounds to a single point near the power supply.
- Muting function (pins 4 and 12) should be tied to +Vs through a 10kΩ resistor to disable standby mode.
For diagnostic testing, probe pin 5 (+Vs) with an oscilloscope; ripple should not exceed 50mV peak-to-peak at full load (8Ω, 1kHz sine wave). If distortion exceeds 0.5%, verify that input cables are shielded and that all electrolytic capacitors have a low ESR rating (<1Ω). Replace generic capacitors with low-leakage types (e.g., Nichicon Fine Gold series) if noise persists.
- Assemble the board on perfboard or a custom PCB with wide traces (minimum 2mm) for power lines.
- Pre-drill heatsink holes to accommodate the chip’s 9mm tab spacing (TO-220 variant).
- Test at low volume first; gradual volume increases help identify grounding issues or faulty components.
- Solder all joints with lead-free wire (gauge 20-22) to prevent dry joints–cold connections cause intermittent failures.
Key Components and Pin Configuration of the Stereo Amplifier IC
Begin integration by verifying the dual-channel amplifier’s pinout against your PCB layout. Pin 1 (+IN1) and Pin 15 (+IN2) accept differential input signals; ensure impedance matching with a 20kΩ resistor to ground for each input to prevent oscillations. Bypass capacitors (0.1µF ceramic) should be placed within 2mm of Pins 4 (VCC) and 12 (VSS) to suppress high-frequency noise. Incorrect decoupling will degrade THD+N by up to 15%.
Output pins 2 (OUT1) and 14 (OUT2) require zobel networks: series 1Ω resistor and 0.1µF capacitor to ground, positioned 5mm from the IC. This network eliminates ultrasonic artifacts and stabilizes load interaction with 4Ω-8Ω speakers. Skipping this step risks amplifier self-oscillation at 200kHz+ frequencies, detectable as audible distortion or excessive heat. Heat sink attachment must use thermal compound with <0.5°C/W resistance; Pins 3 (GND1) and 13 (GND2) serve as thermal anchors.
| Pin | Function | Recommended Component | Critical Note |
|---|---|---|---|
| 1 | Non-inverting Input 1 | 20kΩ resistor to GND | Avoid exceeding 1V RMS input |
| 4 | Positive Supply | 0.1µF + 100µF electrolytic | Voltage range: ±5V to ±25V |
| 7 | Mute/Standby | ≥10kΩ pull-down resistor | Logic low mutes; floating pin risks pop noise |
| 14 | Output 2 | 1Ω + 0.1µF zobel network | Must handle 3A continuous current |
Mute/Standby control on Pin 7 operates via open-collector logic: ground the pin for normal operation, leave floating or pull high (>2.5V) to mute. Use a 10kΩ resistor from Pin 7 to ground for fail-safe behavior. Miswiring here triggers unpredictable muting cycles or pops during power transitions. For automotive applications, add a 47µF tantalum capacitor across the supply rails to absorb load dumps exceeding 60V transient.
Power supply decoupling demands separate ground paths for signal and power grounds. Connect Pin 5 (GND-S) to a dedicated star ground via 1mm trace; avoid sharing this path with output return currents. The internal bootstrap diodes (Pins 6 and 8) rely on 100nF capacitors to Pins 4 and 12; omit these and distortion rises from 0.03% to 0.5%. Verify all connections with a continuity tester before applying power–shorts between adjacent pins (e.g., Pin 9 and Pin 10) will destroy the chip.
For 4Ω loads, derate the maximum supply voltage to ±18V. At ±22V, power dissipation exceeds 35W with 8Ω speakers; use a heatsink with <1.5°C/W resistance. Thermal shutdown activates at 150°C, but sustained operation above 120°C degrades long-term reliability. Measure quiescent current at Pin 2 and Pin 14 with no signal: values >100mA indicate improper setup or faulty IC. Pop suppression during power-on requires a 4.7kΩ resistor from Pin 7 to ground and a 1µF capacitor from Pin 7 to VSS.
Step-by-Step Wiring of the ST Microelectronics Audio Power Module
Begin by securing a 25W dual-channel IC to a heat sink using thermal paste and an M3 screw–torque to 0.5Nm to prevent overheating. Connect the positive rail (12–25V DC) to pin 4 and the negative rail to pin 2, ensuring a 1000µF smoothing capacitor is placed within 2cm of these terminals to suppress ripple. Route the audio input to pins 1 and 3 (non-inverting/inverting) via 1µF coupling capacitors; bypass each input with a 100nF ceramic disc to ground to eliminate RF interference.
Grounding and Output Connections
- Link the central ground (pin 7) to a star-point upstream of the power supply to avoid ground loops.
- Attach speaker outputs (pins 8 and 14) via 1Ω 2W resistors in series to limit peak currents–avoid direct connections without these resistors to prevent thermal shutdown.
- Add a 0.1µF polyester film capacitor across each output terminal and ground to dampen inductive loads (e.g., 4Ω speakers).
- Test with a 1kHz sine wave at 50% of max voltage before full power-up; clip leads if THD exceeds 0.1%.
- Verify all connections with a multimeter (continuity mode) prior to applying power.
- Ramp voltage gradually during first use, monitoring heat sink temperature–it should stabilize below 70°C.
- If oscillation occurs, increase the input coupling capacitor to 2.2µF or reduce feedback resistor values (default: 22kΩ).
Power Supply Requirements and Filtering for Dual-Channel Audio Amplifier Modules
Use a dual-polarity power supply delivering ±12V to ±25V DC, with ±18V as the optimal midpoint for most applications. Linear regulators like LM317/LM337 or dedicated dual-output supplies prevent voltage spikes exceeding ±0.5V beyond nominal ratings, ensuring stability under load. Calculate power dissipation: for 8Ω loads, minimum 20W per channel at ±18V requires heat sinks with ≤2°C/W thermal resistance. SMPS solutions must include LC filters to suppress switching noise above 100kHz, with output ripple under 50mV peak-to-peak.
Decoupling capacitors near the chip’s supply pins must be 100nF ceramic (X7R dielectric) paralleled with 100μF low-ESR electrolytic per rail. Place capacitors within 5mm of the pins; trace inductance beyond 10nH degrades transient response. For ground planes, use a star topology with a single reference point under the module to avoid ground loops. Split analog and digital grounds at the power entry, merging only at the main filter capacitor.
Input power cables should be twisted pairs (22-20 AWG) with shielding connected to chassis ground at the source end only. Ferrite beads (e.g., Murata BLM21PG471SN1) on both supply lines attenuate HF noise above 1MHz. For battery-powered setups, include a reverse-polarity protection Schottky diode (e.g., 1N5822) with ≤0.5V forward drop; omit fuse if the diode’s current rating exceeds 3A.
Pre-regulate high-voltage inputs (≥±30V) with buck converters (e.g., LT1083) set to ±22V before the final regulation stage. Thermal shutdown ICs like TPS3700 monitor junction temperature; trigger shutdown at 85°C with a 10°C hysteresis. Snubber networks (10Ω + 10nF) across transformer secondary windings reduce voltage transients during load dumps.
For audiophile-grade filtering, add RC networks (2.2Ω + 22μF) in series with each rail after the main decoupling capacitors. This shifts the -3dB corner frequency to ~3kHz, attenuating power supply rejection ratio (PSRR) dips. Avoid tantalum capacitors in signal paths; their microphonic effects degrade high-impedance feedback loops. Test PSRR at 100Hz, 1kHz, and 10kHz using an oscilloscope; ≥60dB attenuation is mandatory for 20Hz-20kHz bandwidth.
Isolation transformers with ≥250V RMS insulation rating prevent mains-borne noise coupling. Secondary windings should have separate center taps for each channel to minimize crosstalk. For portable applications, lithium-ion packs require balancing circuits (e.g., TP4056) with ≥0.5% voltage accuracy; under-voltage lockout set to ±3.0V prevents deep discharge. All filtering components must meet AEC-Q200 standards for automotive or outdoor use.
