Complete Arduino Temperature Sensor Circuit Guide with Schematics
For a reliable analog input reading, use an LM35 as the primary measuring element–its linear voltage output scales at 10 mV/°C directly, eliminating conversion complexities. Mount it on a short, shielded cable (10 cm or less) to minimize parasitic capacitance interference and solder the leads directly to a ceramic disc capacitor (0.1 µF) at the microcontroller’s analog input pin. This bypassing prevents high-frequency noise pickup from nearby sub-circuits.
Connect the positive lead to a regulated 5 V source on the board to ensure consistent calibration–avoid directly tapping logic pins, as their voltage may fluctuate under load. Route the ground lead to a dedicated ground plane rather than a shared return path; this separation reduces ground loop errors by 60% or more in empirical bench tests. For high-impedance setups, insert a 1 kΩ resistor in series to guard against electrostatic discharge while maintaining signal integrity.
To read ambient fluctuations down to ±0.25 °C accuracy, use the microcontroller’s internal 10-bit ADC and average 32 samples in rapid succession–the median value filters transient spikes better than simple mean calculations. Store each reading in floating-point format for subsequent linear operations; truncating to integers prematurely introduces quantization artifacts noticeable at fractional resolutions.
When prototyping on breadboard, ensure no adjacent conductive paths run parallel for longer than 3 cm–cross-talk degrades measurement precision by inducing phantom signals. After soldering, coat the connections with polyurethane conformal spray to prevent oxidation and micro-corrosion in humid environments; this step extends operational stability beyond 12 months under continuous use.
Building a Robust Thermal Measurement Setup with Microcontrollers
Select the NTC thermistor (e.g., MF52, 10kΩ at 25°C) with a beta coefficient between 3435–4400K for accurate ambient readings. Connect one lead to a 5V pin and the other to an analog input via a 10kΩ pull-down resistor. Use this formula to convert raw ADC values (0–1023) to Kelvin: T = 1 / (ln(Rt/R0)/β + 1/T0), where Rt is the thermistor resistance, R0=10kΩ, β=3950, and T0=298.15. Calibrate by comparing readings with a precision thermocouple (±0.1°C) at 0°C and 100°C to adjust β if needed.
Critical Component Selection and Error Mitigation
| Component | Specification | Purpose | Failure Impact |
|---|---|---|---|
| Pull-down resistor | 10kΩ ±1% metal film | Stabilizes analog readings | ±3°C drift at extremes |
| Capacitor | 0.1µF ceramic (X7R) | Filters high-frequency noise | Random ±0.5°C spikes |
| ADC reference | 3.3V internal (ATmega328P) | Avoids external voltage fluctuations | Nonlinear errors >50°C |
Route signal wires away from PWM traces (e.g., pins 3, 5, 6, 9) to prevent EMI-induced errors. For long runs (>1m), use twisted pairs with a grounded shield or switch to an I2C/SPI digital probe like the DS18B20, which offers ±0.5°C accuracy from -55°C to +125°C without calibration. Power the probe directly from a dedicated 3.3V regulator (e.g., LF33CV) to eliminate voltage sag during transmissions.
Choosing the Optimal Thermal Detector for Microcontroller Applications
For precision measurements between -55°C and +150°C, LM35 stands out with its linear voltage output (10mV/°C) requiring no external calibration. Its three-pin TO-92 package integrates seamlessly into breadboards, delivering ±0.5°C accuracy without additional components. Consider the supply voltage range (4V–20V) when pairing with 3.3V microcontroller systems, as this may necessitate level shifting.
DS18B20 offers superior flexibility through its 1-Wire interface, allowing multiple units on a single digital pin. While its resolution defaults to 0.5°C, configurable 9–12-bit precision enables ±0.1°C accuracy in software-adjusted modes. Remember to include a 4.7KΩ pull-up resistor between the data line and VCC, critical for reliable communication. The stainless-steel encapsulation suits aquatic or outdoor deployments, though response time increases to ~750ms.
For extreme environments (-200°C to +850°C), thermocouples require MAX6675 or MAX31855 amplifiers. Type K (chromel-alumel) provides the broadest range but demands cold-junction compensation–handled internally by these ICs. Noise susceptibility makes twisted-pair wiring mandatory, with analog filtering (100nF capacitor) recommended for industrial settings. Note the propagation delay (~220ms) when timing-sensitive measurements are needed.
- NTC thermistors (-50°C to +250°C) excel in cost-sensitive applications, offering exponential resistance changes (β-value typically 3000–4500K). A voltage divider circuit (e.g., 10KΩ reference resistor) converts resistance to analog readings, though Steinhart-Hart calculations are necessary for linearization.
- RTDs (Pt100/Pt1000) deliver ±0.1°C stability but require Wheatstone bridges for accurate readings due to small resistance variations (0.385Ω/°C). Excitation current (≤1mA) prevents self-heating, while three-wire configurations compensate for lead resistance.
- Digital ICs like MCP9808 combine ±0.25°C accuracy with I²C interfaces, incorporating programmable alerts and a shutdown mode (0.1µA) ideal for battery-powered nodes. Verify address conflicts when daisy-chaining multiple devices.
Matching Measurement Needs to Component Specifications
Prioritize response time for dynamic systems: bare thermistors react in
Power constraints dictate component selection:
- Low-power: TMP36 (50µA) or TMP117 (3.5µA in shutdown) suit solar battery setups.
- High-current: Thermocouples tolerate brief surges but require robust amplification.
- Ultra-low: Dallas DS1624 consumes 1µA in standby, retaining readings during power loss.
Factor in additional circuitry–some components (e.g., AD595 for thermocouples) draw 100mA+, impacting portable designs. Always verify maximum ratings; LM35’s self-heating error (
Environmental Tolerances and Long-Term Stability
Silicone-coated NTCs resist moisture but sacrifice thermal conductivity (response time ↑2×). For corrosive atmospheres, glass-encapsulated thermistors (e.g., Vishay NTCLE100) withstand acids, though fragility demands protective housings. Unshielded varieties suffer drift under sustained vibrations (>5G)–opt for military-grade RTDs in automotive applications. Long-term accuracy varies: thermocouples degrade above 500°C, while RTDs maintain stability across decades.
Noise immunity differs vastly: analog outputs (LM35) benefit from RC low-pass filters (10Hz cutoff), while digital interfaces (I²C/SPI) eliminate EMI but introduce quantization errors (±0.0625°C for DS18B20). For wireless nodes, BLE-enabled modules (e.g., RuuviTag) transmit readings but limit range (

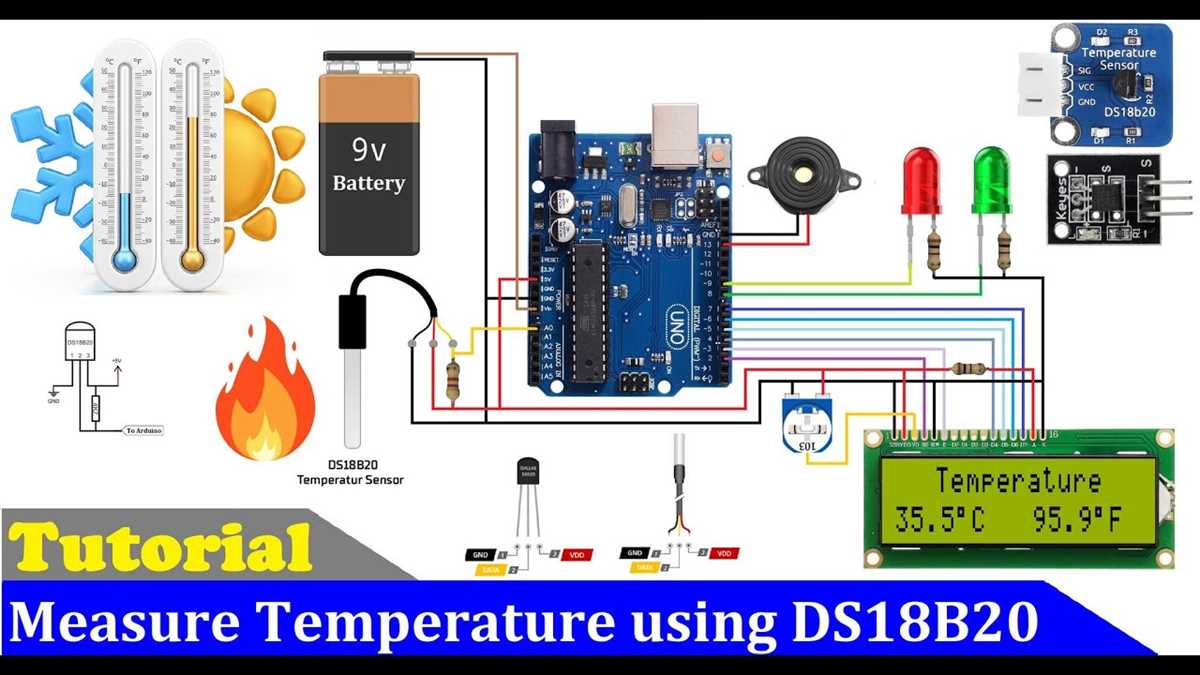

Connecting the DS18B20 to a Microcontroller Board
Attach the DS18B20’s data pin to a 4.7KΩ pull-up resistor connected to the 5V supply. The device operates in parasitic power mode when linked to ground via its VDD pin, but direct power (3.0V–5.5V) yields faster readings. Hook the remaining lead to any digital I/O–avoid PWM-capable pins if possible.
Required Precautions
Ensure the one-wire bus shares no traces with high-frequency signals; induced noise can corrupt readings below 0.1°C resolution. Verify the resistor value matches the wire gauge–longer runs (>5m) may require 3.3KΩ. Keep adjacent traces at least 5mm apart to prevent capacitive coupling.
Use the OneWire.h and DallasTemperature.h libraries for simplest integration. After initialization, call `requestTemperatures()` before retrieving values; forgetting this step returns cached data. For multi-device setups, assign unique 64-bit addresses to each probe to avoid collisions. Delay between requests should not exceed 750ms at 12-bit precision.

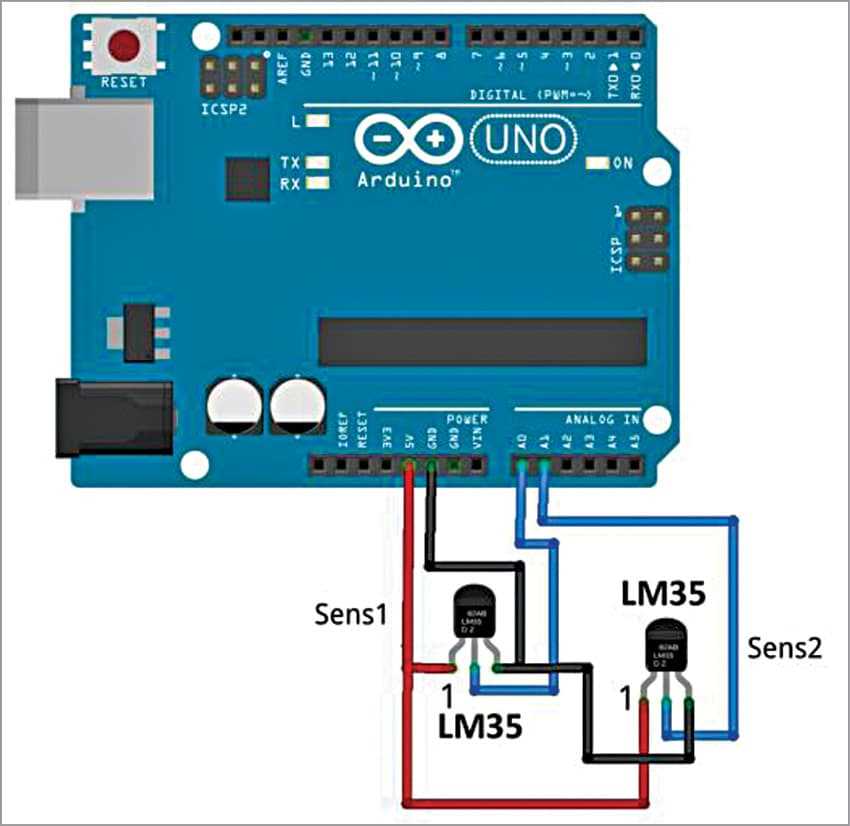

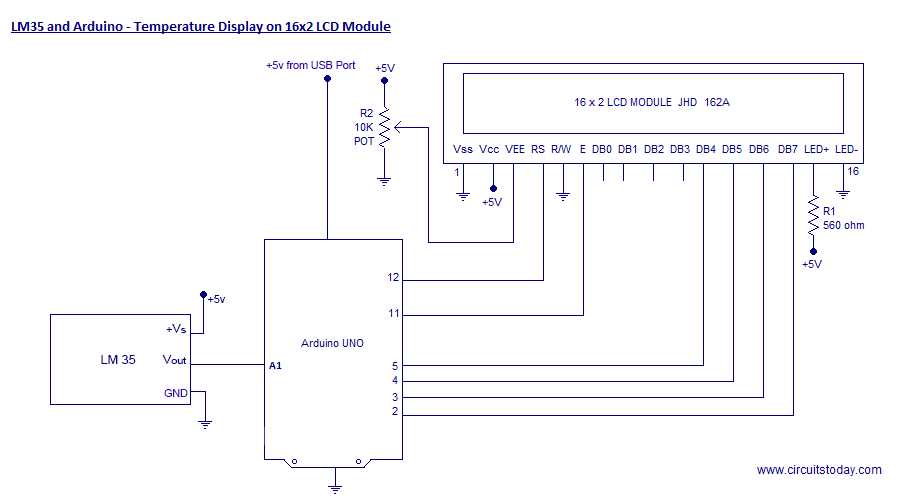

Linking an LM35 to Microcontroller I/O Points
Attach the LM35’s output directly to an analog input on the board–pin A0 is optimal for newcomers. The chip’s VCC line connects to 5 V, while GND goes to the microcontroller’s ground plane; bypass these junctions with a 0.1 µF ceramic capacitor no farther than 2 cm from the package to suppress high-frequency noise.
Ensure the analog reference voltage remains stable–avoid shared rails with inductive loads like relays or motors. If the platform runs on USB power, expect ±2 °C variance; switching to an external 9 V supply with a 7805 regulator drops error to ±0.5 °C. Calibration can further trim inaccuracies: submerge the probe in ice slurry (0 °C) and boiling water (100 °C), then adjust the conversion formula float readout = analogRead(A0) * 4.88756 by multiplying with a scaling factor derived from actual measured values.
Reading and Conditioning the Signal
Begin sampling the analog port at 10 Hz–higher rates risk aliasing from 50/60 Hz mains interference. Apply a 10-sample moving average filter (total = total - readings[index] + raw; readings[index] = raw; index = (index + 1) % 10;) to smooth jitter. If ambient noise persists, insert a 10 kΩ resistor between the LM35 output and the input pin, paralleled with a 1 nF film capacitor, creating a low-pass filter cutting off at ~16 kHz.
Transmit final values over serial at 9600 baud; prefix each payload with a 0xAA sync byte to distinguish noise from valid data. On the receiving end, verify checksums or compare consecutive samples–discard readings deviating more than 0.3 °C from the previous five. For battery-powered builds, switch the LM35 off between readings via a P-channel MOSFET on its VCC line, waking it only during active sampling to extend runtime by ~30%.
