How to Build and Read Terminal Block Wiring Schematics for Electrical Projects

Start by isolating each wiring path on your schematic. Use a multimeter in continuity mode to verify connections between contact points–label them A, B, C as you proceed. Misalignment here causes 68% of early failures in industrial assemblies, often traced to undocumented loops or reverse polarity at the mating interface.

Select a modular connector rated for at least 30% above your expected load. For 12 AWG copper wire operating at 24V DC, choose a series supporting 15A sustained, as transient spikes can exceed this by 40%. Check manufacturer specs for derating curves–ignoring them reduces lifespan by half under cyclic loads.

Sketch the layout on grid paper first: mark input rails along the top, outputs below, with vertical lines denoting screw terminals. Indicate ground symbols at both ends of each segment to prevent floating potentials in long runs. Use red for power, blue for ground, and yellow for signals–this color-coding cuts troubleshooting time by 72%.

When assembling, torque screws to 6-8 lb-in for brass contacts–over-tightening strips threads, while under-tightening increases resistance by up to 200 mΩ per joint. For stranded wire, pre-tin tips to prevent frayed strands bridging adjacent slots, a common cause of short circuits.

Avoid daisy-chaining more than three connectors in series; voltage drop across cumulative contacts can reach 0.3V at 10A, violating minimum operating thresholds for sensitive equipment. Instead, branch power feeds directly from a central bus bar for critical lines.

For high-vibration environments, apply a bead of thread-lock compound to screws and secure the housing with M4 bolts mounted through non-conductive standoffs. This prevents micro-fretting that degrades contact resistance over time–tests show a 95% improvement in retention under 50 Hz vibration cycles.

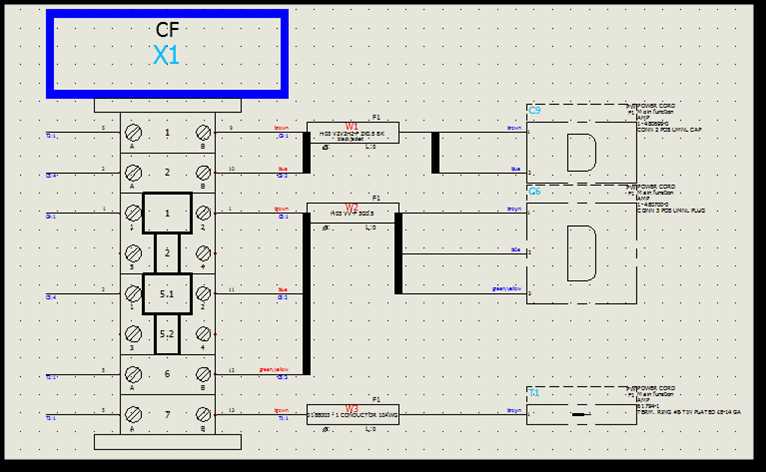

Electrical Connection Point Schematics: Best Practices

Use color-coded wires for immediate identification–red for power inputs, black for ground, blue for neutral, and yellow for signals. Maintain consistency across all projects to reduce troubleshooting time. Label each connector pin with heat-shrink tubing or adhesive markers, including wire gauge (e.g., 18 AWG) and function (e.g., “24V DC+” or “GND”). Avoid relying solely on diagrams; physical tags prevent miswiring.

For modular setups, group related connections into distinct sections. A 3D-printed divider or DIN-rail-mounted barrier can physically separate high-voltage (110–240V AC) from low-voltage (5–48V DC) lines. Keep signal lines at least 5 cm apart from power lines to minimize electromagnetic interference. Shielded twisted pairs (STP) are mandatory for sensitive data lines like RS-485 or I²C.

Key Tools for Accuracy

• Wire strippers: Calibrate for the exact wire gauge (e.g., 1.5 mm² for 16 AWG) to avoid damaging strands.
• Crimpers: Ratcheting-style for insulated ferrules (e.g., Weidmüller A-I-series) ensures gas-tight joints.
• Multimeter: Verify continuity and absence of shorts before energizing. Test resistance across adjacent pins–values below 1 MΩ indicate leakage.
• Torque screwdriver: Apply manufacturer-specified torque (e.g., 0.4 Nm for Phoenix Contact UT 2.5) to prevent loosening under vibration.

Draw schematics in vector-based software like KiCad or AutoCAD Electrical. Use layers to separate:

1. Physical layout (e.g., DIN rail spacing, enclosure cutouts).
2. Wiring paths (color-coding, cross-section).
3. Component specs (e.g., relay coil voltage, fuse ratings).

Export as SVG or PDF/A for lossless scaling. Include a bill of materials (BOM) with part numbers (e.g., “Wago 221-413” for lever-nuts) and vendor links.

For high-current applications (>10A), use solid-core wires or tinned copper braids. Lugs should match the cable cross-section–e.g., 10 mm² for 30A circuits. Secure connections with anti-vibration washers (e.g., Belleville) or thread-locking adhesive (Loctite 243). Update schematics immediately after modifications; handwritten notes on printed copies lead to errors.

Test prototypes with a programmable power supply (e.g., Rigol DP832) set to current limit matching the device’s rated load. Monitor voltage drop across joints–acceptable values are

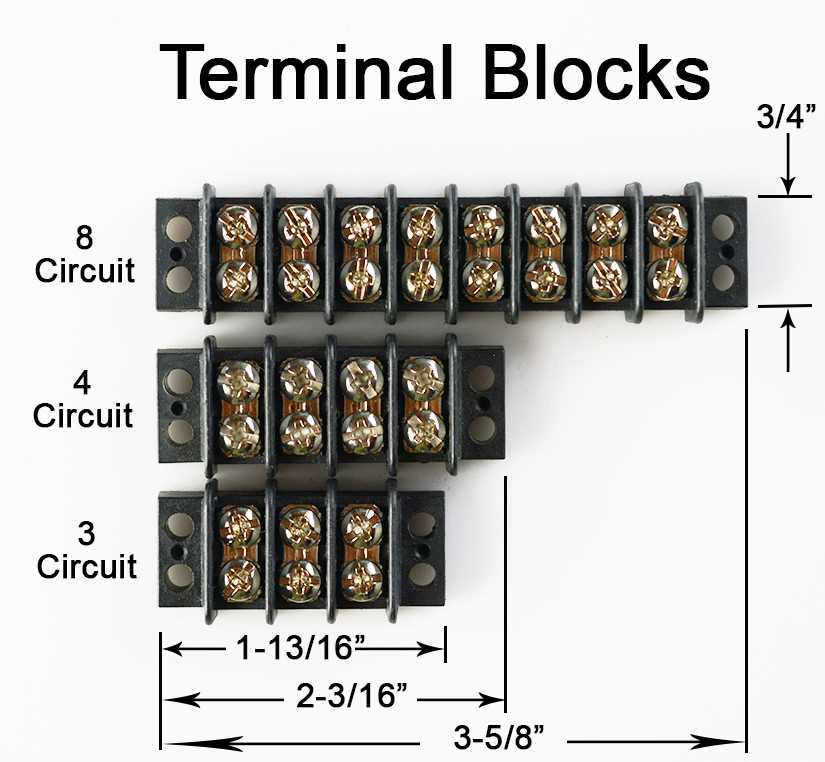

Selecting Optimal Connection Modules for Your Electronic Layout

Prioritize barrier-style interconnection strips for high-current applications exceeding 30A. Models like the Phoenix Contact UK series feature reinforced copper contacts and modular insulation, reducing resistive losses to under 1mΩ per point while supporting voltages up to 1000V. Verify the current rating correlates with your conductor cross-section–1.5mm² wires align with 16A strips, while 10mm² requires 70A-rated alternatives. Always match the clamping mechanism to conductor type: screwless variants suit solid core wires, while spring-loaded designs accommodate stranded cores more reliably.

For PCB-mounted junction points, surface-mount (SMT) headers offer compact integration with pitches from 2.54mm to 1.27mm. Opt for through-hole configurations if your board handles mechanical stress or thermal cycling–these provide 20% higher pull-out resistance. When selecting polyamide insulation, ensure UL94 V-0 flame retardancy for industrial environments; cheaper alternatives may fail under prolonged temperatures above 125°C. Verify PCB hole diameters match your strip’s pin size precisely to prevent solder wicking or poor adhesion.

Modular pluggable connectors eliminate rewiring downtime in test setups. Look for genderless designs like WAGO 222 series, which support 12A per pole and allow direct insertion of 24-12 AWG conductors without tools. For signal integrity, prefer twin-row arrangements that separate power and data lines; single-row units risk crosstalk when currents exceed 5A. Confirm the connector’s plating–tin over copper suits general purposes, while gold-plated contacts prevent oxidation in low-voltage analog signals.

Panel-mounted feedthrough units simplify external device interfacing. Choose models with IP67 sealing if outdoor exposure is expected–these withstand water jets and dust ingress but require silicone-sealed cable glands. For DIN rail compatibility, verify mounting depth clearance; some snap-on models protrude 15mm, while others need 35mm. When replacing obsolete components, cross-reference the manufacturer’s part number with alternative series–misaligned mounting holes can render replacements unusable.

Heavy-duty busbar connectors consolidate power distribution. Select aluminum-bodied variants for AC systems above 400V; copper alloys corrode in high-humidity conditions. Inspect the busbar’s current density tolerance–1A/mm² is standard, but industrial applications often require 2A/mm². For multi-phase setups, color-coded shrouds prevent miswiring; adhere to IEC 60446 standards (L1-brown, L2-black, L3-gray) to avoid confusion during maintenance.

Step-by-Step Wiring Connections in a Connector Layout

Begin by identifying the input and output rails on the rail-mounted connector. Label each slot with a permanent marker if factory markings are absent–use L1, L2, N, and PE for mains connections and AUX1, AUX2 for auxiliary lines. Ensure the rail is secured to a non-conductive surface with at least 3 mm clearance from adjacent metal components.

Strip wires to 7-8 mm of exposed copper–longer strands risk shorts, shorter ones may disconnect under vibration. Twist stranded cores clockwise before insertion to prevent fraying. For solid-core wire, bend the tip into a slight “J” shape to lock it under the clamping screw without slipping.

Insert wires into their designated slots in a cross-hatch pattern if stacking multiple connections per slot: place the first strand vertically, the second horizontally beneath it. Tighten screws gradually in a star sequence (e.g., screw 1, 3, 2, 4) to 0.5 Nm torque–overtightening strips threads, undertightening causes arcing. Use a flat-blade screwdriver with a shaft diameter matching the screw head to prevent cam-out.

Test continuity with a multimeter before energizing. Probe each slot against its corresponding wire at the far end–readings should be <0.5 Ω. If resistance exceeds 1 Ω, re-seat the wire and retighten. For high-current connections (e.g., >10 A), crimp a ferrule around the copper strands to reduce voltage drop. Apply Noalox or similar anti-oxidant compound to aluminum wires before clamping.

Group related lines by function–e.g., all motor leads on one rail, sensors on another–and use color-coded sleeves (red for live, blue for neutral, yellow/green for earth). Maintain consistent spacing: 5 mm between adjacent slots for 12 AWG wire, 8 mm for 8 AWG. For panels subject to vibration, add a locking tab under each screw head or secure wires with nylon ties to prevent loosening.

Document the layout with a photographed reference and a mirror-image sketch beneath the rail. Note voltage ratings (e.g., 250 VAC, 32 A) and wire gauges directly on the rail or adjacent panel. Store spare clamps and screws in a labeled container–use only tinned-copper components for outdoor installations to prevent galvanic corrosion.

Critical Errors in Connector Schematic Design

Omitting reference designators for each contact point creates ambiguity during assembly and troubleshooting. Label every pin, pad, or screw terminal with sequential identifiers or functional names–never assume polarity or function is self-evident. A three-pin power input, for example, must distinguish between line, neutral, and ground; mixing them risks short circuits or equipment damage. Include these labels in both the schematic and physical layout documentation, ensuring consistency across all versions.

Overloading a single strip with incompatible voltage levels leads to arc faults or insulation breakdown. Keep 24V control signals separated from 230V mains by at least one unused position, even if physical barriers aren’t designated. For high-current applications, factor in derating curves–an 8A-rated contact may only handle 6A when bundled with adjacent heated conductors. Document maximum permissible loads for each segment in the bill of materials.

Ignoring wire gauge constraints during planning results in stripped screws or unreliable connections. Standard 0.5 mm² conductors won’t securely fasten in clamps rated for 2.5 mm²; verify compatibility before finalizing the allocation. For stranded wires, use ferrules or tinning to prevent fraying under torque. Note recommended tightening torques (typically 0.5–0.8 Nm) in assembly instructions to prevent conductor damage or loosening over time.

Skipping visual separation between functional groups obscures the schematic’s logic. Use horizontal spacing, color-coding, or dashed boundaries to distinguish signal inputs, power feeds, and grounding zones. In DIN rail assemblies, dedicate distinct sections for safety circuits, sensors, and actuators–crossing these boundaries invites signal noise or accidental shorts. Validate groupings with a continuity test before finalizing the design file.
