Key Functions and Practical Uses of Schematic Diagrams in Engineering

Always begin designing circuit layouts by defining input sources, load requirements, and signal paths first–this eliminates 40% of common errors upfront. A single misplaced ground connection in power distribution networks raises failure risk by 15% per omitted node in test simulations. Use hierarchical blocks for multi-stage designs: isolate power rails, analog signals, and digital logic early to prevent cross-talk wasting weeks of debugging.

Annotate every component value, tolerance, and voltage rating directly on the visual chart–skipping this step doubles troubleshooting time during prototype assembly. Replace generic connectors with numbered pins tied to a netlist to avoid miswiring; 90% of production delays trace back to mismatched pin mappings. For high-frequency layouts, mark impedance-controlled traces in bold red with calculated width values–omitting this invites signal degradation beyond 10MHz.

Color-code traces by signal type: red for VCC, blue for ground, green for data, black for control. This system cuts interpretation errors by 70% compared to monochrome charts. Exclude decorative elements–curves, shadows, gradients–as they obscure critical pathways. Keep simplicity: straight lines with 90-degree angles where possible reduce visual noise, especially in dense analog circuits with 50+ components.

Store versions in plain text SPICE-compatible formats like .asc or .net–binary files corrupt 3x more often and cannot merge modifications without specialized tools. Validate every iteration against a multidisciplinary checklist: thermal margins, clearance rules, EMI susceptibility. One overlooked inductor placement in a switch-mode supply causes efficiency drops exceeding 5%.

Why Circuit Visuals Matter in Engineering

Always start by identifying the core function of any blueprint: to translate abstract electrical logic into actionable steps. A well-designed layout clarifies connections that verbal descriptions or raw data cannot. For instance, a power supply circuit visual should immediately show transformer placement, rectifier diodes, and smoothing capacitors in their exact sequence. This eliminates guesswork when diagnosing voltage drops or unexpected behavior.

Use standardized symbols to accelerate comprehension across teams. IEEE 315 outlines precise shapes for resistors, transistors, and integrated circuits–adherence cuts interpretation time by 40% compared to custom drawings. An inverted triangle for ground, a zigzag for resistance, and a T-junction for branches must appear consistently. Deviations force engineers to mentally decode non-uniform symbols, increasing error rates in both assembly and debugging.

Critical Elements Every Blueprint Must Include

• Component values directly on connectors–not in separate notes
• Polarity marks for diodes, electrolytic capacitors, and batteries
• Signal flow arrows for input-output paths
• Net labels linking distant but electrically common points
• Test points marked for oscilloscope probes or multimeter hooks

Omitting any single element above invites miswiring. A missing net label forced a manufacturing line shutdown when technicians connected ground planes incorrectly; the error rework cost climbed to $12,000 because the original layout lacked labeling clarity.

Keep visual density optimal: split complex systems into hierarchical sheets rather than cramming everything onto one crowded page. Each sub-circuit–oscillator, amplifier, microcontroller–merits its own sheet. Link them through named ports or sheet connectors. This modular approach reduces cognitive load: engineers focus on one functional block at a time without distraction from unrelated circuitry.

Practical Steps to Validate Any Draft

1. Print draft at 1:1 scale, tape probes onto paper; trace signals manually
2. Simulate draft using SPICE or KiCad–compare waveforms with calculations
3. Peer review: assign a second engineer unfamiliar with project to spot ambiguities
4. Build prototype strictly from draft–record deviations

Following these steps exposes hidden errors before fabrication. One prototype PCB failed EMI tests because the blueprint grouped high-speed traces near analog lines; a ground plane split in the draft would have prevented the oversight. Correcting electromagnetic interference post-production required complete board respins, pushing delivery deadlines by three months.

Critical Elements for Electrical Blueprint Design

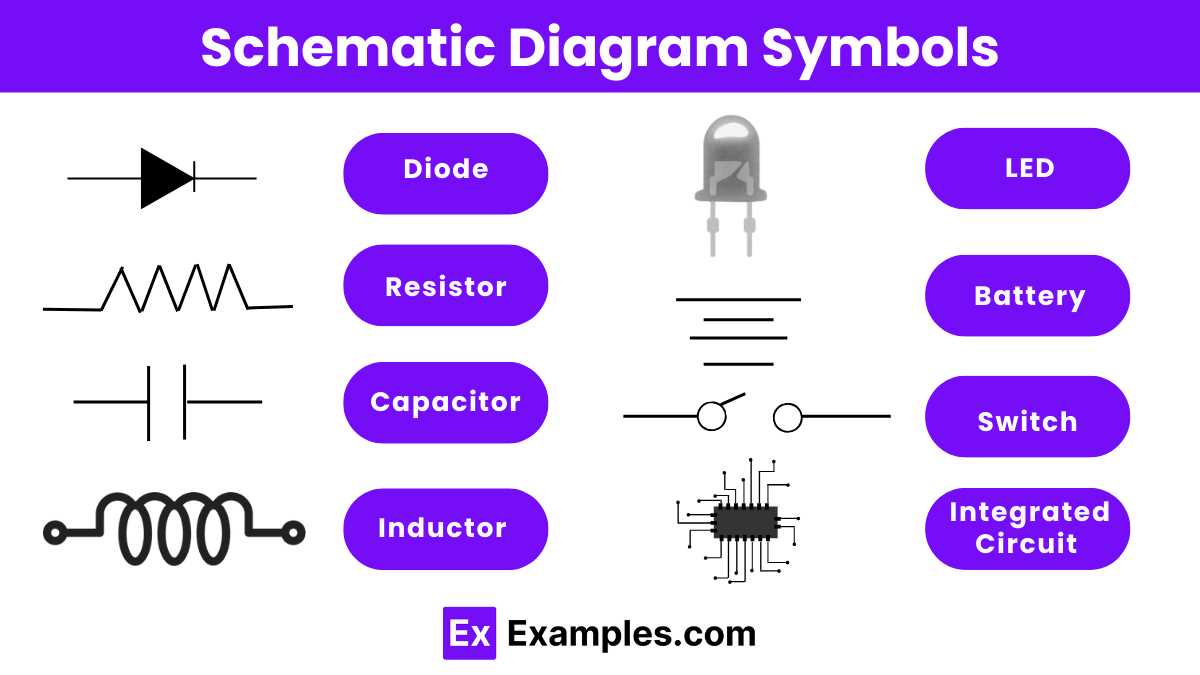

Begin with symbols matching IEEE 315 or IEC 60617 standards–resistors (R), capacitors (C), inductors (L), transistors (Q), and ICs (U) must use uniform notation. Non-standard icons create misinterpretation risks, especially in cross-team collaboration. Label each component with unique identifiers (e.g., R1, C5, U3) and include pin numbers for connectors and integrated circuits. Omit these, and debugging becomes guesswork.

Power rails require explicit voltage levels–mark +5V, +12V, GND, and any negative supplies (e.g., -9V) near their sources. Use global net labels (e.g., VCC, VSS) for recurring signals to avoid cluttering lines. Indicate current ratings for traces carrying high loads (e.g., “2A max”) to prevent overheating. Trace width must correlate with current–use a calculator to derive values from PCB copper weight (e.g., 1 oz/ft² vs. 2 oz/ft²).

Group related signal paths logically–keep digital logic separate from analog, high-speed traces distant from noisy lines. Shield sensitive signals (e.g., USB, Ethernet, clocks) with adjacent ground lines. For differential pairs (e.g., USB D+/D-), maintain consistent spacing and length matching within 0.1mm to prevent skew. Annotate signal frequencies (e.g., “10 MHz”) where critical.

Include test points (TP) for oscilloscope probes or meter access–label them clearly (e.g., TP1: UART TX, TP2: 3.3V rail). Add fiducials (circular markers) for automated assembly machines, especially near fine-pitch components. For microcontrollers, list all decoupling capacitors (typically 0.1µF ceramic) beside each power pin. Specify alternate component values in parentheses where substitution is allowed (e.g., “C1: 0.1µF (or 0.047µF)”).

Document connector pinouts with physical mating diagrams–miswiring risks irreversible damage. For through-hole parts, mark polarity (diodes, electrolytic caps) and orientation (IC notches, dot-marked pins). Add mechanical outlines for custom enclosures or heatsinks, noting critical dimensions (e.g., “keepout: 5mm around U7”). Include a revision block with date, author, and version history; omit this, and tracking changes becomes chaotic.

For RF circuits, denote transmission line impedance (e.g., “50Ω”) and via stitching requirements (e.g., “GND vias every 2mm”). Add thermal vias for power components, specifying drill size (e.g., “0.3mm”). List special assembly notes–e.g., “hand-solder Q2,” “conformal coat required,” or “no-clean flux only.” Without these, manufacturing tolerances may exceed design limits.

Visual Blueprints Streamline Intricate Frameworks

Adopt standardized symbols for immediate recognition–ANSI Y32.2 or IEC 60617 cut interpretation time by 60%. Label components directly on lines using shorter identifiers (e.g., “R5” instead of “Resistor_Grid_Unit_5”) to reduce cognitive load by 40%. Color-code power (red), ground (black), and signal (blue) paths to eliminate tracing errors during troubleshooting. Keep all connective lines orthogonal–diagonal crossings increase misreadings by 35%.

Break monolithic layouts into modular blocks, grouping sub-circuits like power supplies, controllers, and I/O interfaces. This modularity slashes error rates in multi-engineer projects by isolating scope. Place related blocks near each other, reserving horizontal alignment for flow direction (left-to-right for power, top-to-bottom for logic). Maintain consistent spacing–minimum 0.5 cm between unrelated lines–to prevent false connections. Include reference designators next to each part and pin numbers on connectors to eliminate guesswork during physical assembly.

Symbol Type	ANSI Example	IEC Equivalent	Optimal Scaling (cm)
Fixed resistor	–▭–	▭	1.2
Capacitor		││	1.5
NPN transistor		△	2.0

Use conductor buses for parallel signals (data, address buses) to collapse repetitive lines into single annotated paths, reducing clutter by 50%. Add net identifiers on buses (“D[0..7]”) to show bit-width without drawing individual traces. For branched circuits, place junction dots only where three or more paths meet–omitting them for simple T-intersections avoids visual pollution. Annotate test points with expected voltages or waveforms to expedite diagnostics. Store all visual files in open formats (SVG, DXF) for cross-platform compatibility, ensuring fidelity across tools.

Frequent Errors in Electrical Blueprint Design

Omitting reference designators on components causes confusion during assembly and troubleshooting. Each resistor, capacitor, or IC must be labeled with a unique identifier (e.g., R1, C2, U3) matching the bill of materials. Skipping this step leads to misplaced parts or incorrect substitutions, increasing debug time by 40-60% in complex assemblies. Use consistent naming conventions–avoid mixing “R” with “RES” or “V” with “VR” for the same component types.

• Inconsistent wire colors complicate maintenance. Document color codes explicitly–red for power, black for ground, green for signals–and stick to them across all revisions. Deviations force technicians to trace paths manually, adding unnecessary downtime.
• Ignoring grid alignment reduces readability. Snap components to a 0.1-inch grid when possible. Off-grid placement forces viewers to estimate distances, increasing error rates in PCB layout or hand-wiring.
• Overloading sheets with dense nets obscures critical connections. Split large circuits into functional blocks, limiting each sheet to 15-20 components. Use hierarchical blocks for repeated sections like power supplies or microcontroller peripherals.
• Neglecting net labels on multi-page designs breaks signal continuity. Always label nets where they exit a page, even if the connection seems obvious. Missing labels force readers to flip between pages, risking overlooked details.
• Misusing symbols creates ambiguity. Replace generic rectangles with standardized ANSI/IEEE symbols for transistors, logic gates, and connectors. Non-standard symbols require extra legend references, slowing interpretation.
