Complete Guide to Three-Way Switch Wiring with Practical Diagram

Install a common terminal at each switch point–this is the critical connection that carries current between devices. Use 14/3 or 12/3 NM cable for runs between switches, ensuring you have dedicated traveler conductors: one neutral (white), one always-hot (black), and two interchangeable wires (red and another color, marked if needed). Label every conductor at both ends before securing connections to avoid miswiring that can trip breakers or create dead circuits.

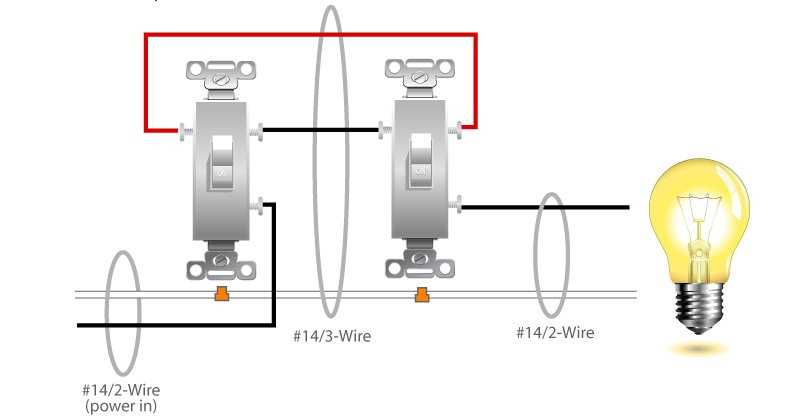

Start with the power source feeding into the first switch box. Connect the line (hot) conductor to the common screw–typically black or brass-colored. Route both traveler wires to the matching screws on the switch; these carry voltage back and forth between units. The second device receives power through its common terminal, which connects to the load (light fixture). Verify polarity: mismatched traveler terminals will prevent proper toggling.

For copper connections, twist ends clockwise and secure with UL-listed wire nuts–no exposed strands should remain. Smart switches or dimmers often require a neutral return; connect it directly to the bundle within the box, never through a fixture unless explicitly allowed by the manufacturer. Test each configuration with a multimeter: voltage between travelers should alternate predictably when toggled, confirming correct function. Skip grounding at your risk–these circuits can energize switch plates if faults occur.

Mastering Multi-Location Switch Configurations

Begin by identifying the common terminal on each switch–it’s typically darker or marked “COM.” Label all conductors: black for hot, red for travelers, white for neutral (if used), and green or bare for ground. Connect the hot wire to the common terminal of the first switch, then run the two traveler wires between the switches’ brass terminals. The second switch’s common terminal links to the light fixture. Verify all connections with a multimeter before powering the circuit to prevent short circuits.

Use 14-3 or 12-3 NM cable for standard residential setups, depending on the circuit’s amperage–14 AWG for 15A circuits, 12 AWG for 20A. For installations exceeding 100 feet, upsize the traveler wires to 10 AWG to minimize voltage drop, which can dim LEDs or cause flickering. Secure all terminal screws tightly; loose connections generate heat and increase fire risk. If working in metal junction boxes, wrap connections with electrical tape to prevent shorts against the box walls.

Critical Conductor Arrangements

Component	Terminal	Wire Gauge	Color Coding
Primary switch	Common (COM)	14 AWG	Black (hot)
Secondary switch	Common (COM)	14 AWG	Connected to load
Traveler conductors	Brass screws	14 or 12 AWG	Red/black or yellow
Ground	Green screw	14 AWG	Green or bare

For dimmable applications, ensure both switches and bulbs are rated for dimming. Use a single-pole dimmer at one location and a standard switch at the other, wiring the dimmer’s common terminal to the light. Avoid combining incandescent and LED loads on the same dimmer circuit–this causes erratic behavior. If installing smart switches, follow the manufacturer’s wiring guide precisely; most require a neutral conductor at each switch box, which older homes may lack.

Fault Detection and Troubleshooting

If the circuit fails, isolate the issue using a non-contact voltage tester. First check the light fixture: remove the bulb and test for power at the socket. If live, the problem lies upstream. Next, test each switch’s common terminal with the travelers disconnected–no voltage indicates a break in the traveler path. Common culprits include severed traveler wires behind drywall (often from drywall screws) or corroded connections in outdoor damp locations. Replace any damaged cable segments entirely; splicing with wire nuts introduces failure points.

For three-or-more location control, insert a four-way switch between the two three-location switches. Connect the traveling conductors from the first switch to the four-way’s input terminals (marked “IN”), and run the outgoing travelers to the second switch’s brass terminals. Reversing the terminal pairs will render the four-way inoperable. Label each conductor during installation; mistakes here turn a 10-minute job into hours of debugging.

Decoding Terminal Markings and Conductor Hues in Multi-Location Circuits

Always match the *common* terminal (often labeled *C*, *COM*, or *dark screws*) to the incoming power line or load conductor–typically black or red in North American standards. The remaining *traveler* connections (usually brass or light-colored screws) pair with identical color coding across switches: red-to-red and black-to-black, or striped-to-striped if using alternate schemes. Verify the terminal layout with a continuity tester before energizing; some manufacturers swap traveler positions between models, even within the same series.

US residential systems frequently rely on a red/black traveler pair, but European and Aussie variants may substitute brown/gray or blue/black. Industrial controls sometimes use numbered terminals (*L1/L2* for travelers, *L* for common) instead of color hints–check equipment documentation if hues deviate from expected norms. Avoid assuming polarity–neutral conductors (white/blue) must bypass the switching mechanism entirely, terminating directly at the fixture or neutral bus where required.

Label conductors immediately after stripping insulation: wrap a small flag of matching colored tape around each traveler at both ends. For commercial installations with parallel circuits, cross-reference phase tapes (e.g., yellow stripe) with schematics to prevent miswiring between adjacent lighting zones. If retrofitting LEDs, confirm dimmer compatibility–the wrong traveler pairing can cause flickering or premature failure.

Installing a Multi-Location Switch Circuit: A Precise Procedure

Identify the power source and locate the two switch boxes–mark them as Switch A (near the hot feed) and Switch B (remote position). Run a 14/3 or 12/3 NM cable between the boxes, ensuring the third conductor serves as the runner (typically red). At Switch A, connect the black (hot) wire to the common terminal (darker screw), the white wire to the neutral bus inside the junction box, and the runner to one of the brass screws. Cap the remaining terminals temporarily.

• At Switch B, repeat the process: attach the hot feed’s common terminal, link the runner to a brass screw, and connect the load (light fixture) to the remaining brass terminal using a 14/2 or 12/2 NM cable. Verify all connections with a multimeter (0V between neutral and ground, 120V between hot and neutral).
• Label every conductor before terminating: black = hot, white = neutral, red = runner, bare = ground. Secure all splices with wire nuts rated for the gauge (e.g., yellow for 12 AWG).
• Test functionality: flipping either switch should toggle the load on/off independently. If miswired, the load will only respond to one switch–recheck the runner connections immediately.

Frequent Errors in Multi-Location Switch Installation and Solutions

Connecting the power source to a terminal other than the common screw on the primary switch disrupts circuit logic. Use a voltage tester to confirm the black (or red) screw–labeled “COM” or marked differently–receives the hot wire. Miswiring here causes the secondary unit to function only when the primary is off or creates dead spots where neither toggles the light. Swap wires immediately if the setup behaves erratically, ensuring the common terminal carries the line feed and the traveler wires link the paired terminals.

Ignoring wire color coding leads to swapped travelers or reversed ground assignments. Standard residential setups use black for the common, red and white (or yellow) for travelers, and bare copper for ground. If the white wire acts as a neutral instead of a traveler, wrap black tape around its ends to mark it as hot. Test continuity with a multimeter–travelers should show no voltage when both switches are off but register 120V when toggled individually. Crossed travelers prevent simultaneous control; reassign them to the brass screws on both units.

Essential Gear for Multi-Switch Circuit Installation

Begin with a non-contact voltage tester rated for 120–240V AC to verify power shutdown before handling conductors. A wire stripper with 14–12 AWG markings ensures clean cuts without nicking copper strands–critical for avoiding short circuits. Use needle-nose pliers for bending looped ends precisely around terminals; this prevents loose connections that overheat. Include a flathead screwdriver (4mm) for secure terminal screws and a Phillips #2 for switch faceplate fasteners. Torque screwdrivers (0.5–0.8 Nm range) prevent overtightening, which can crack plastic switch housings.

Safety Equipment Checklist

• Insulated gloves (Class 0, 1000V AC rating) for handling live wires if testing continuity.
• ANSI Z87.1-rated safety goggles to shield eyes from sparks during terminal tightening.
• Rubber-soled work boots (ASTM F2413 certified) to reduce electrical conduction risks.
• Arc-flash face shield (minimum ATPV 8 cal/cm²) if working near high-load circuits.
• Fire-resistant long-sleeve shirt (NFPA 70E Category 2) for protection against accidental arcing.

Label each conductor with heat-shrink tubing or color-coded tape (red for travelers, black for common, white for neutral) before disconnecting existing setups. Store tools in a non-conductive belt pouch to avoid contact with exposed terminals. Test all connections with a multimeter (ohm range) before energizing–confirm infinite resistance between neutral and hot wires, and less than 1 ohm between connected points.

Precision Tools for Complex Setups

1. Fish tape (1/8″ steel) with a flexible leader for pulling conductors through 1/2″ conduits.
2. Conduit reamer to deburr cut ends and prevent wire insulation damage.
3. Laser level for aligning switch plates parallel to door frames or trim lines.
4. Circuit tracer (toner/probe) to identify correct breakers without trial-and-error.
5. Wire crimper (for 10–22 AWG) if using push-in connectors instead of terminal screws.
